Yard Ramp – 11260mm Length x 2260mm Width – 10000kg Capacity – Industrial Use

Roll over image to zoom in Click on image to zoom

Yard Ramp – 11260mm Length x 2260mm Width – 10000kg Capacity – Industrial Use

Name: Yard Ramp – 11260mm Length x 2260mm Width – 10000kg Capacity – Industrial Use
Brand: Barriers Co
SKU: TRP-BC3599
Price: 37140.0 GBP
Availability: InStock

£37,140.00

Incl. VAT

Handrail Options: Handrails

Variant

In Stock & Ready to Ship

Free UK Shipping

In Stock — Order by 2pm for same-day dispatch

Free UK Delivery — arrives 1-3 days

UK & EU Safety Standards

Expert Support — 01282 270 214

14-Day Returns

🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product

Free UK mainland delivery included
Same-day dispatch when ordered before 2pm

Download Spec Sheet

PDF with image, specifications & dimensions

→

Chat With Us on WhatsApp

Added to Cart!

View Cart

- Payment
- Secure transaction
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Dispatches from
- UK warehouse

★★★★★

"Amazing quality and quick shipping!"

- Sarah K.

★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.

★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Product Overview

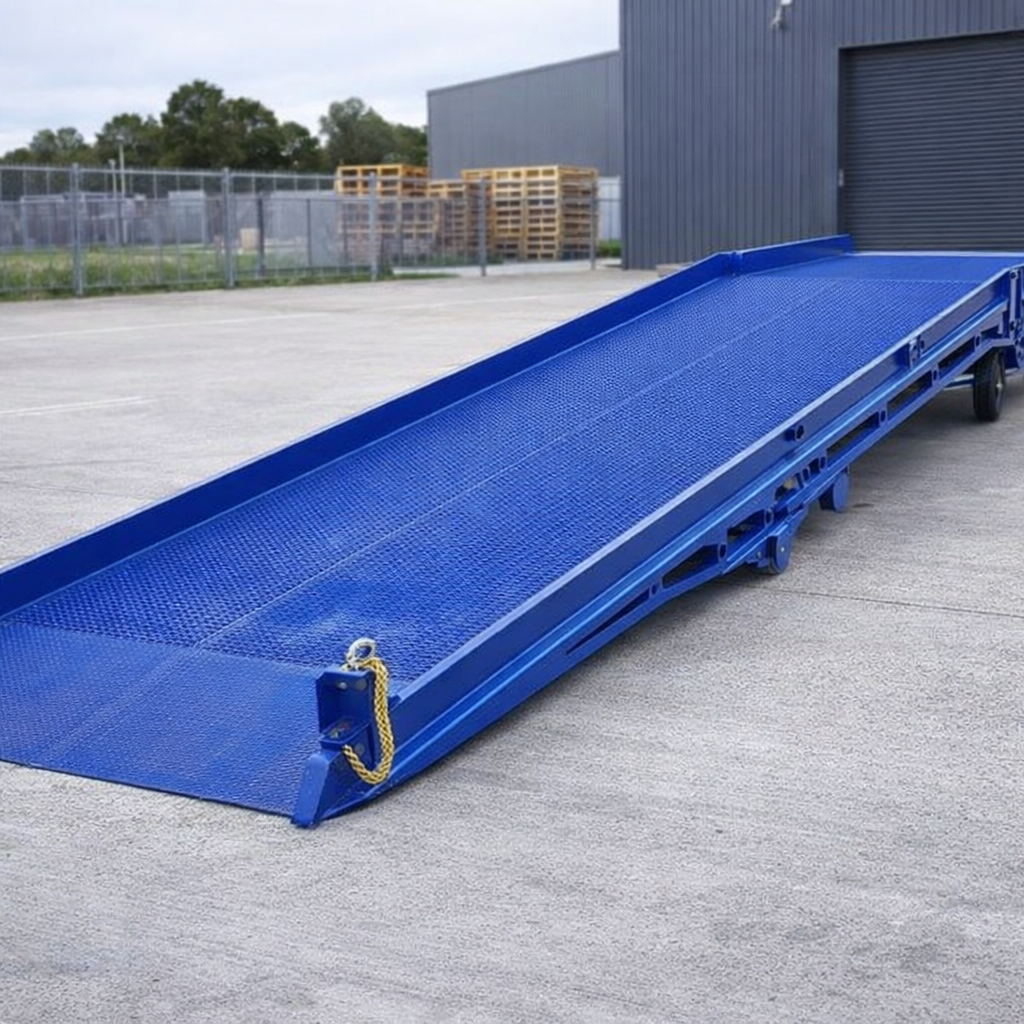

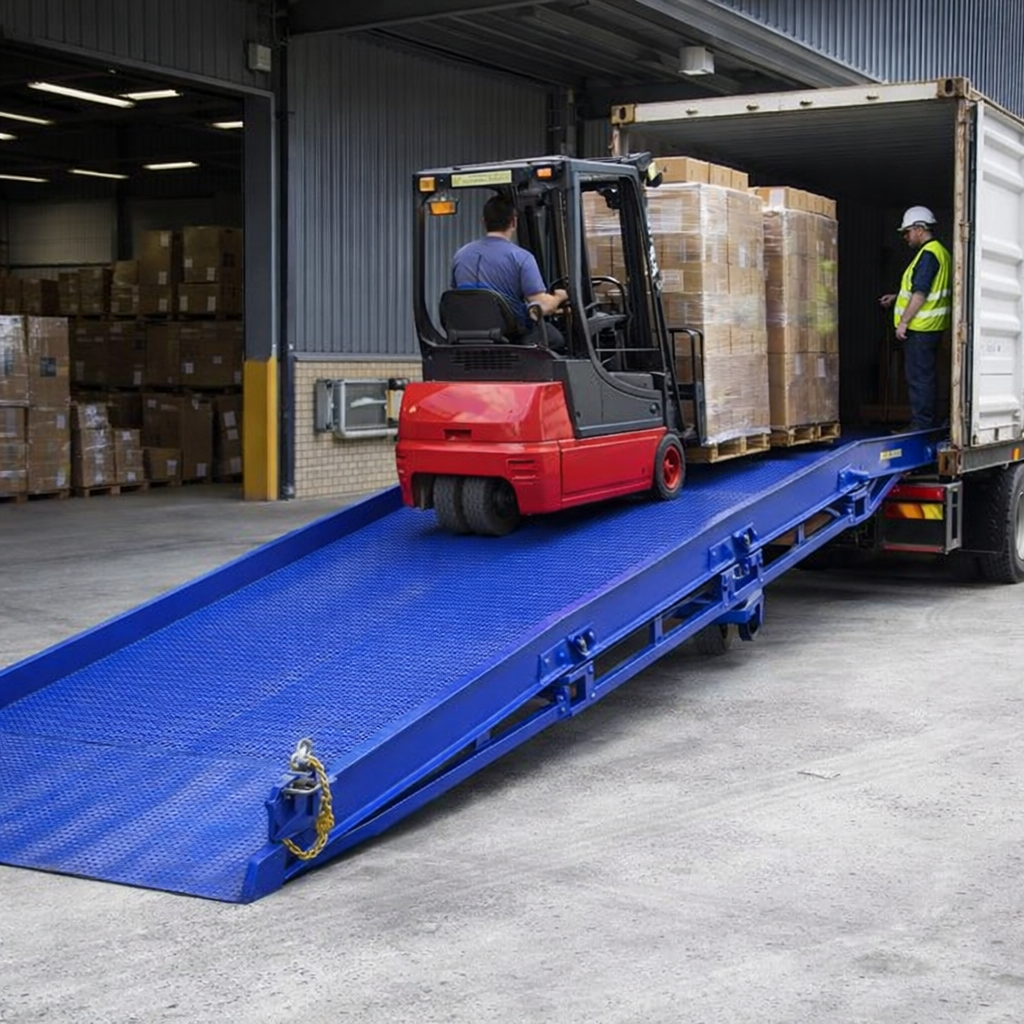

This industrial-grade yard ramp simplifies the process of loading and unloading containers. Designed for easy movement with a forklift, it features a hydraulic assist for height adjustment, ensuring versatility across various operations.

Key Features

Constructed from single-piece steel for maximum durability and safety.
Customisable with optional handrails upon request.
High traction UK-produced mesh anti-slip surface.
Supplied with swivel fork mount, steel chains, clamps, and hydraulic assist.
Optional wheel chocks for added security when stationary.

Dimensions

Total ramp length: 11260mm

Inclined section length: 8440mm

Level section length: 2520mm

Rest on connection/lip size: 2060mm x 300mm

Total ramp width: 2260mm

Useable width: 2060mm

Product Specifications

Specification	Details
Capacity (kg)	10000
Height (mm)	800-1650
Internal Width (mm)	2060
Length (mm)	11260
Max Load Height (mm)	1650
Min. Load Height (mm)	800
Weight (kg)	3800
Width (mm)	2260
One Year Warranty	Yes
Easy to Fit	Yes
European Made	Yes
Leave Outside	Yes
Colour Option	Black

Frequently Asked Questions

How is the ramp moved?

The ramp can be easily moved using a forklift, thanks to its swivel clamp design.

Is the ramp height adjustable?

Yes, the ramp features a hydraulic assist that allows for easy height adjustment.

Can the ramp be customised?

Yes, optional handrails can be added upon request.

★★★★★
