Yard Ramps

Last updated: May 2026. Written by the BarriersCo technical team.

What Are Yard Ramps?

Yard ramps are heavy-duty steel loading ramps designed to provide safe, efficient access between ground level and the bed of a lorry, trailer, or loading dock. Used extensively in warehouses, distribution centres, manufacturing plants, and construction sites across the UK, yard ramps eliminate the need for a fixed loading bay by creating a temporary or semi-permanent bridge for powered industrial trucks and manual handling equipment.

Unlike fixed dock levellers that require permanent installation, yard ramps are versatile — they can be repositioned, shared between multiple loading points, and used outdoors on yard surfaces. This makes them an essential piece of handling equipment for operations that load and unload from multiple positions or work with varied trailer types.

Types of Yard Ramps

Choosing the right type of yard ramp depends on your site layout, frequency of use, and the equipment accessing the trailer:

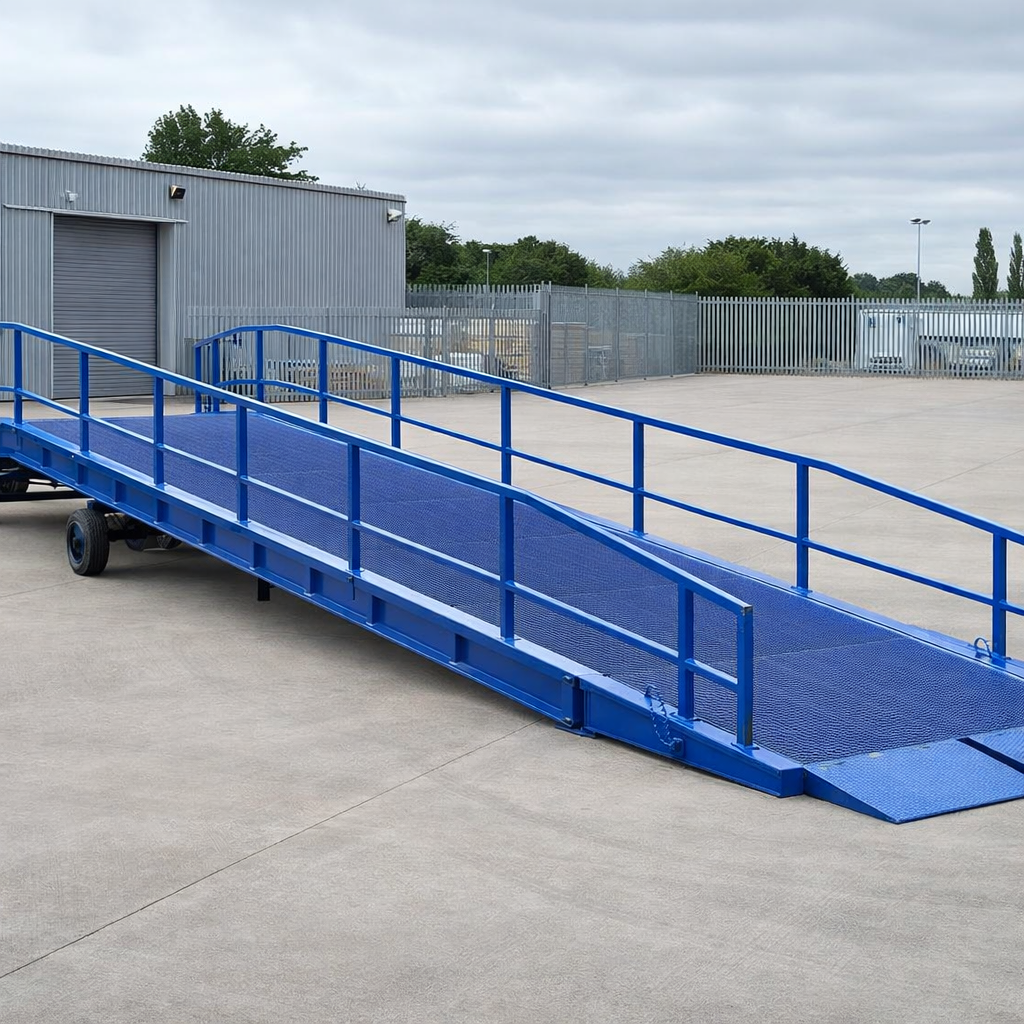

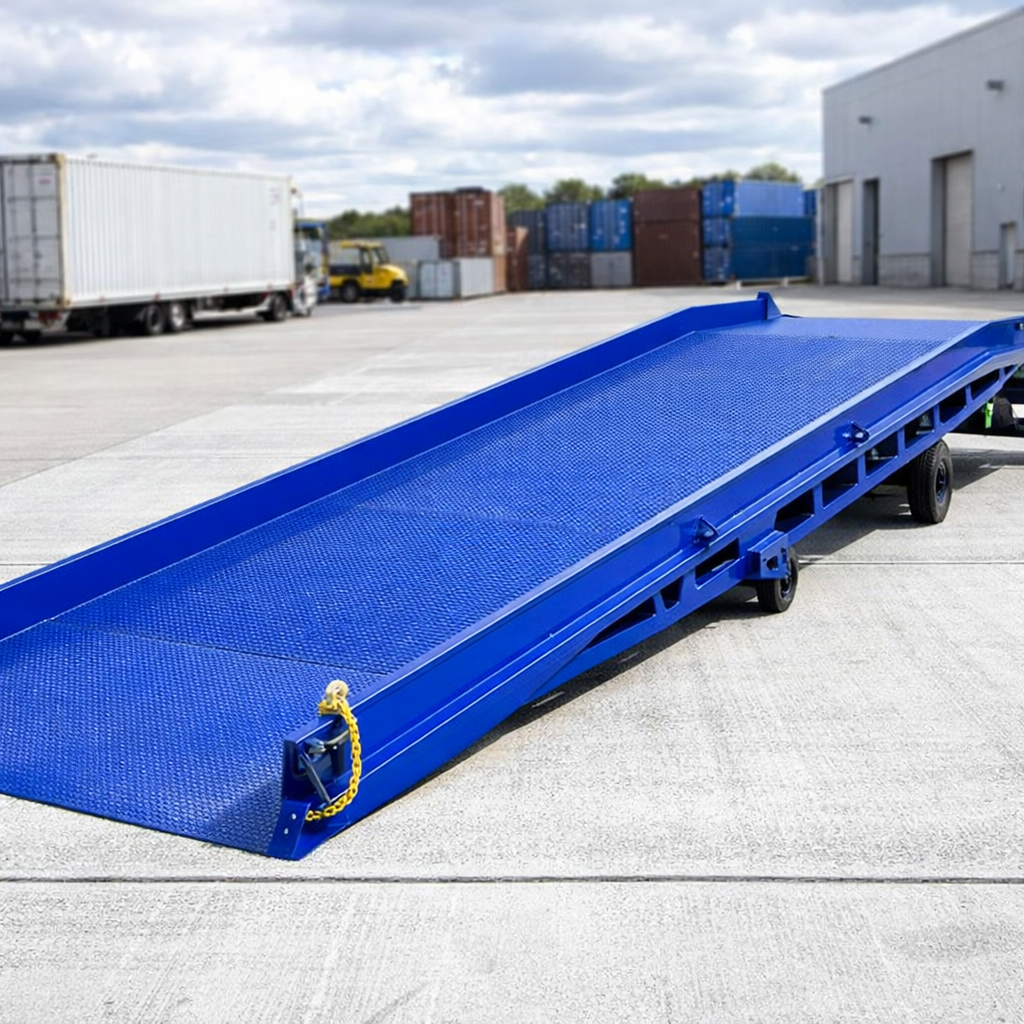

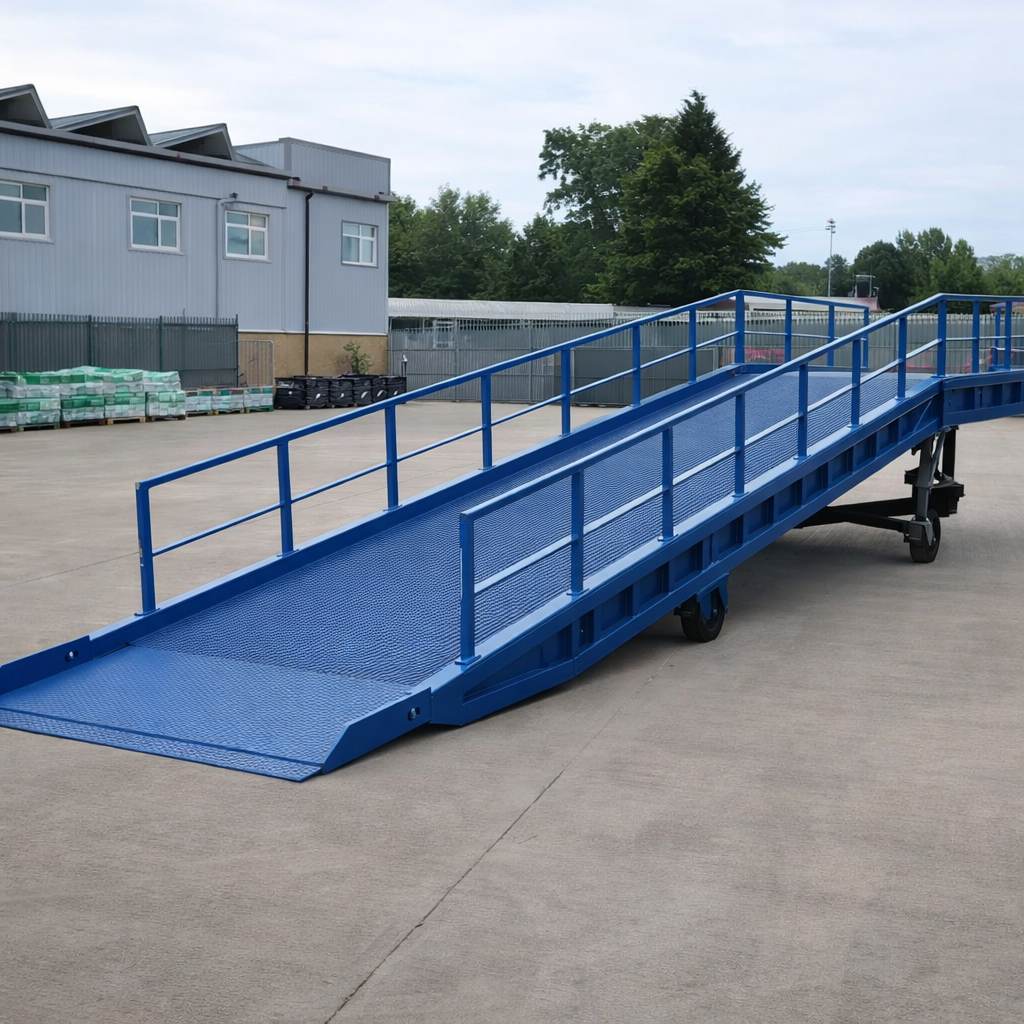

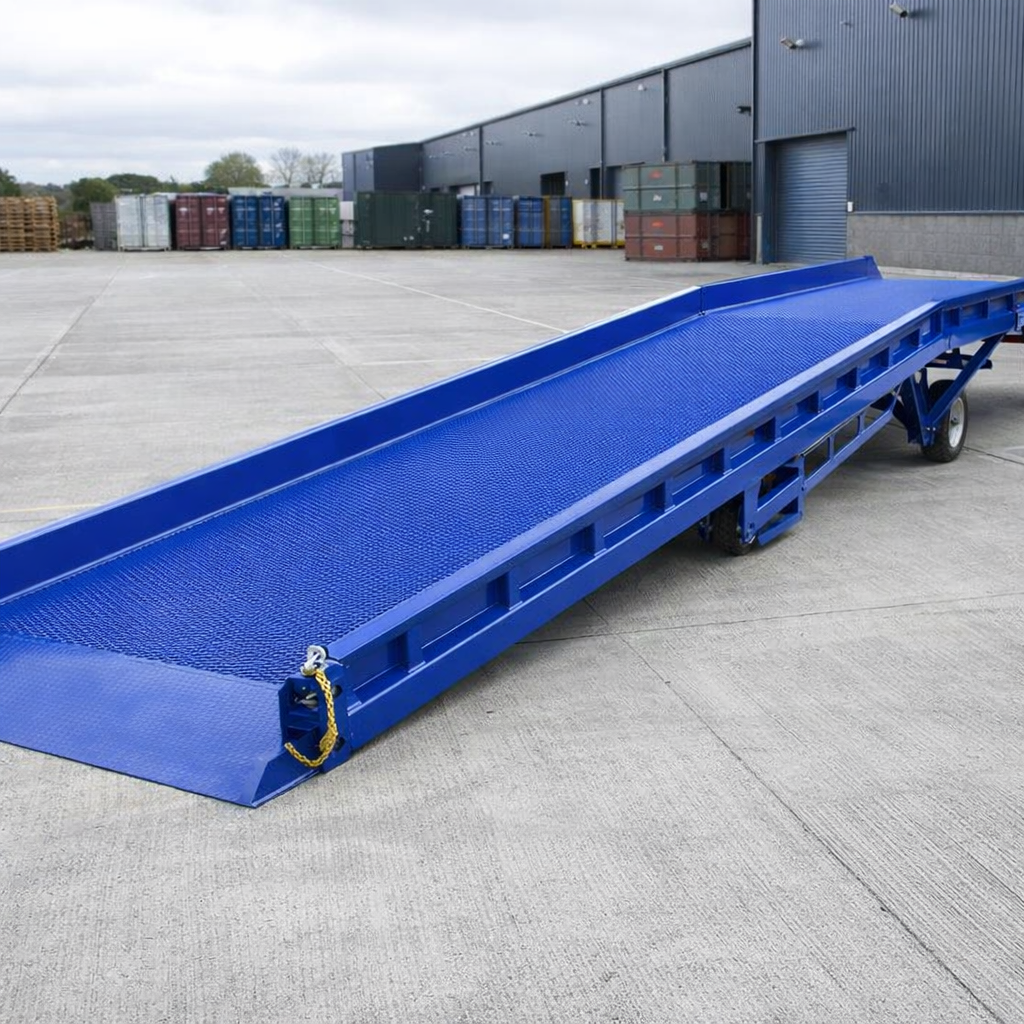

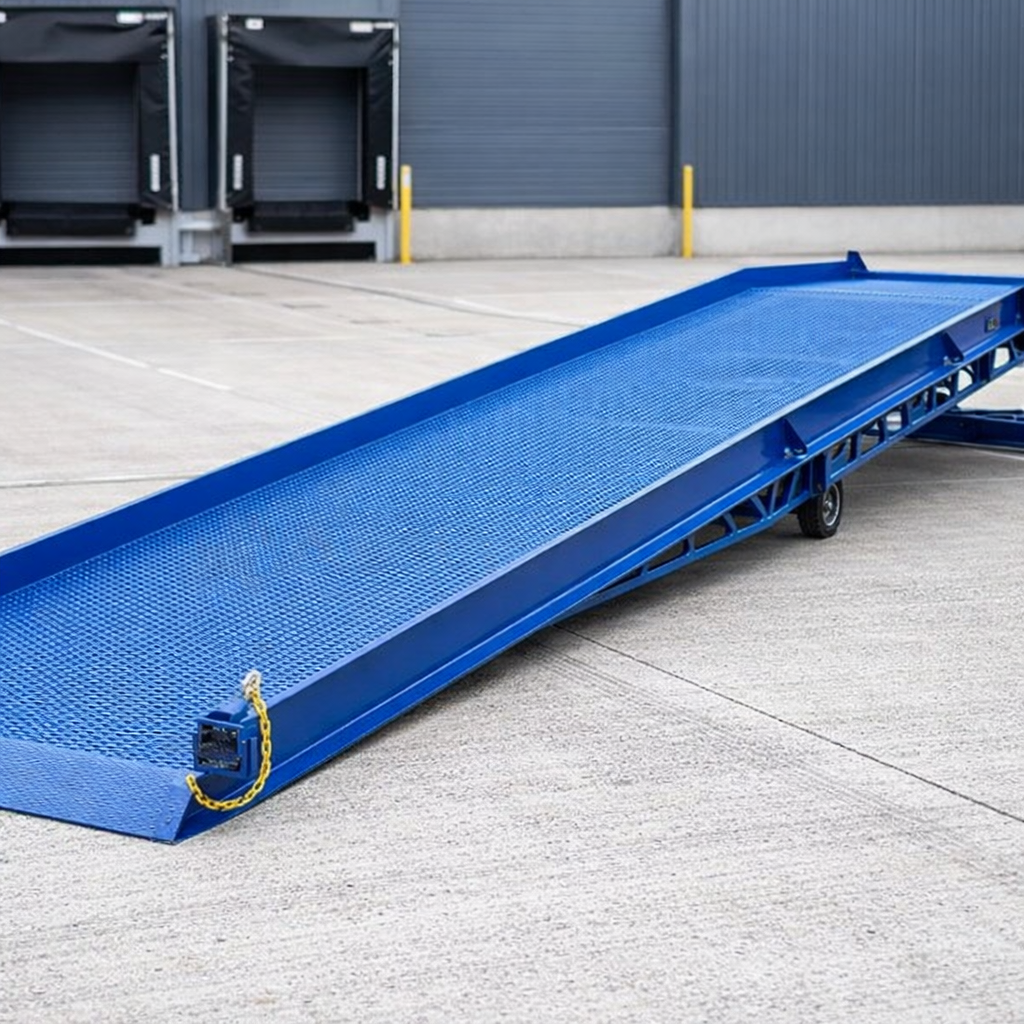

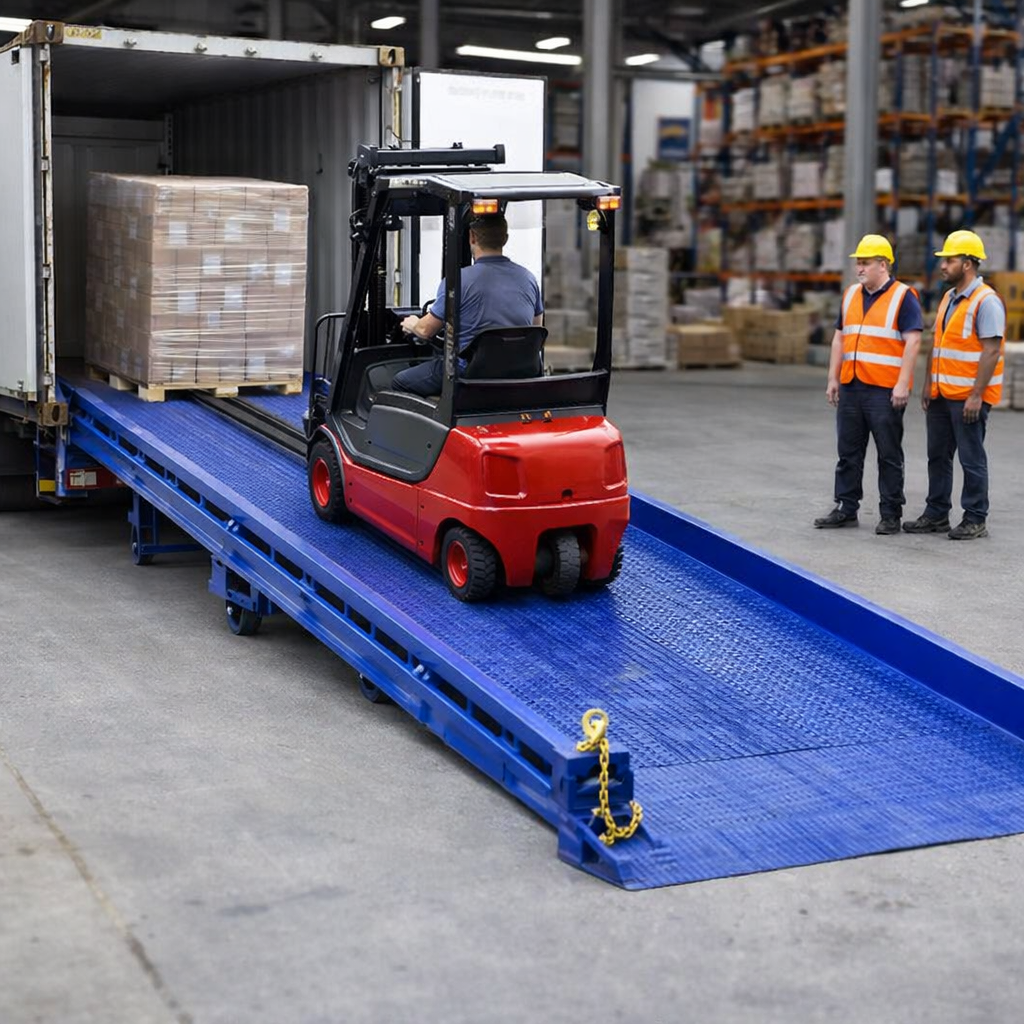

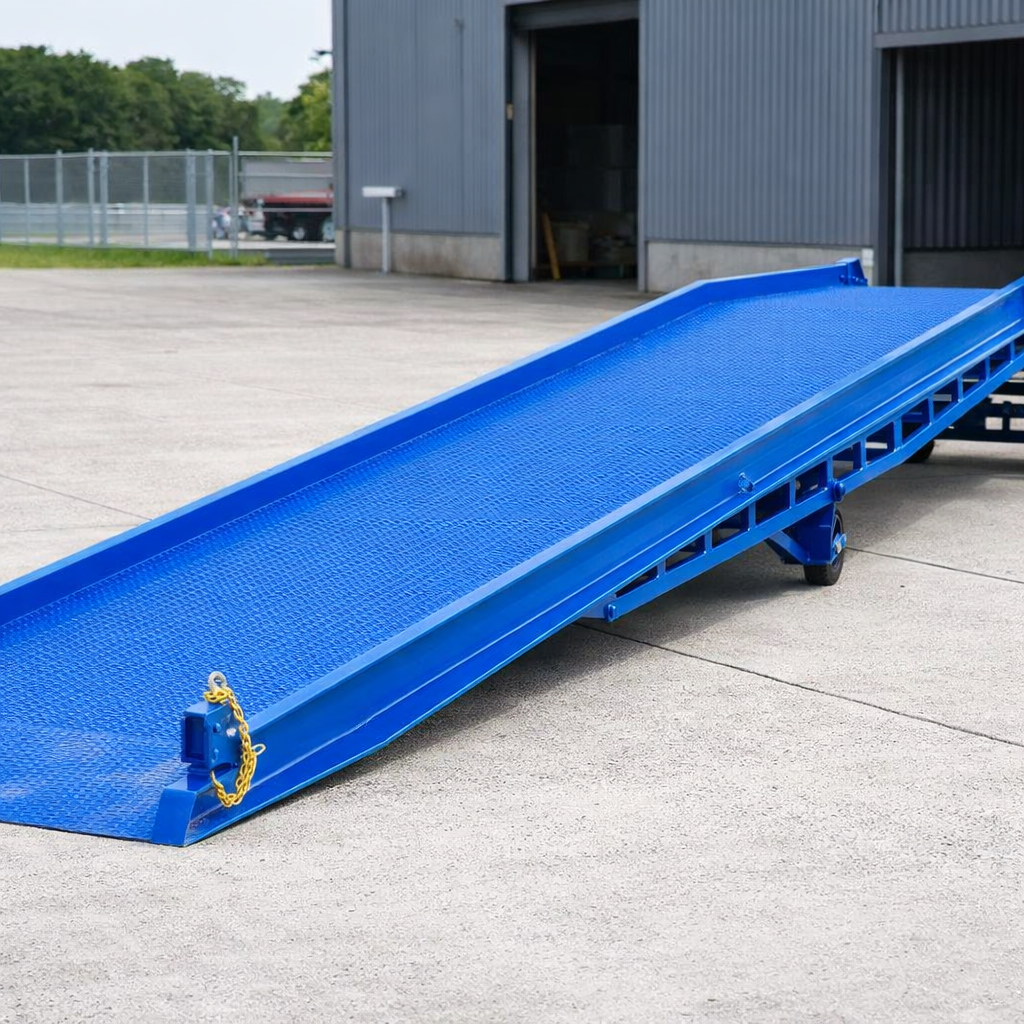

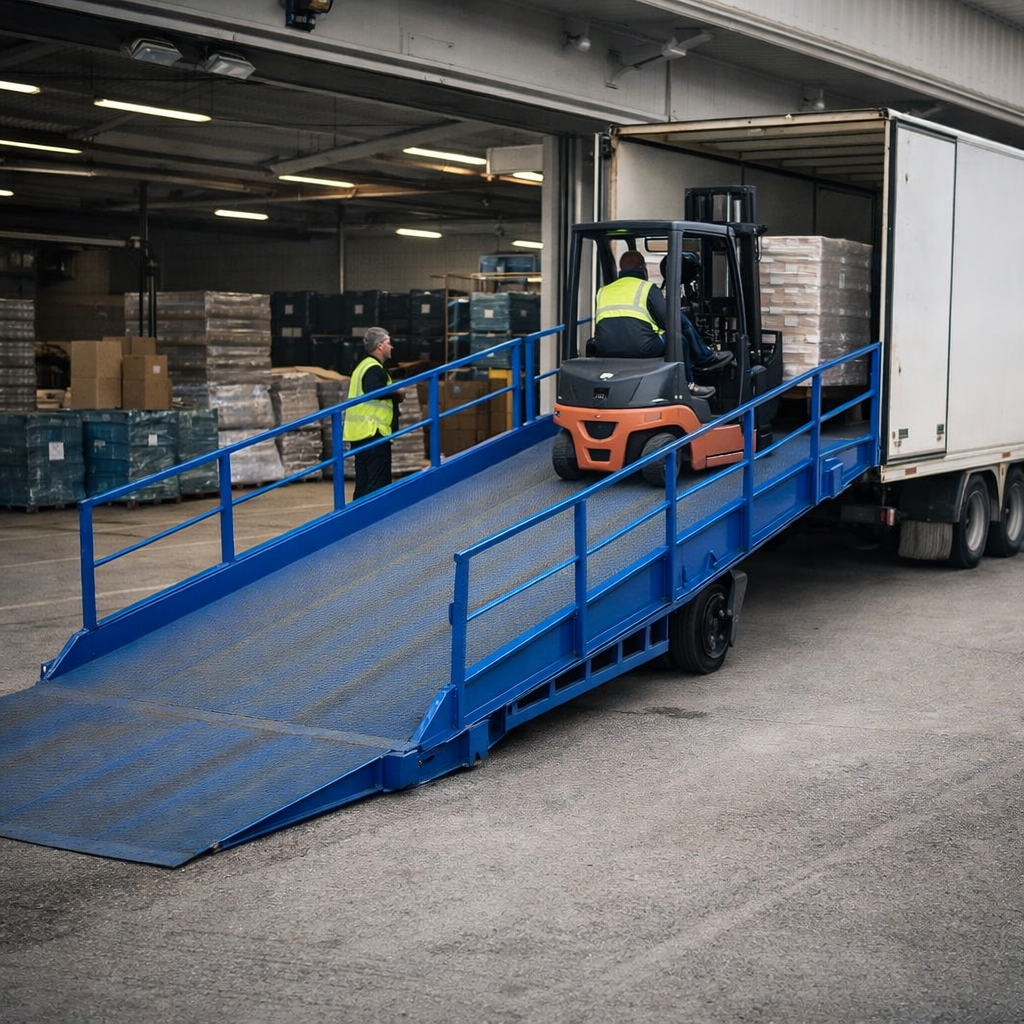

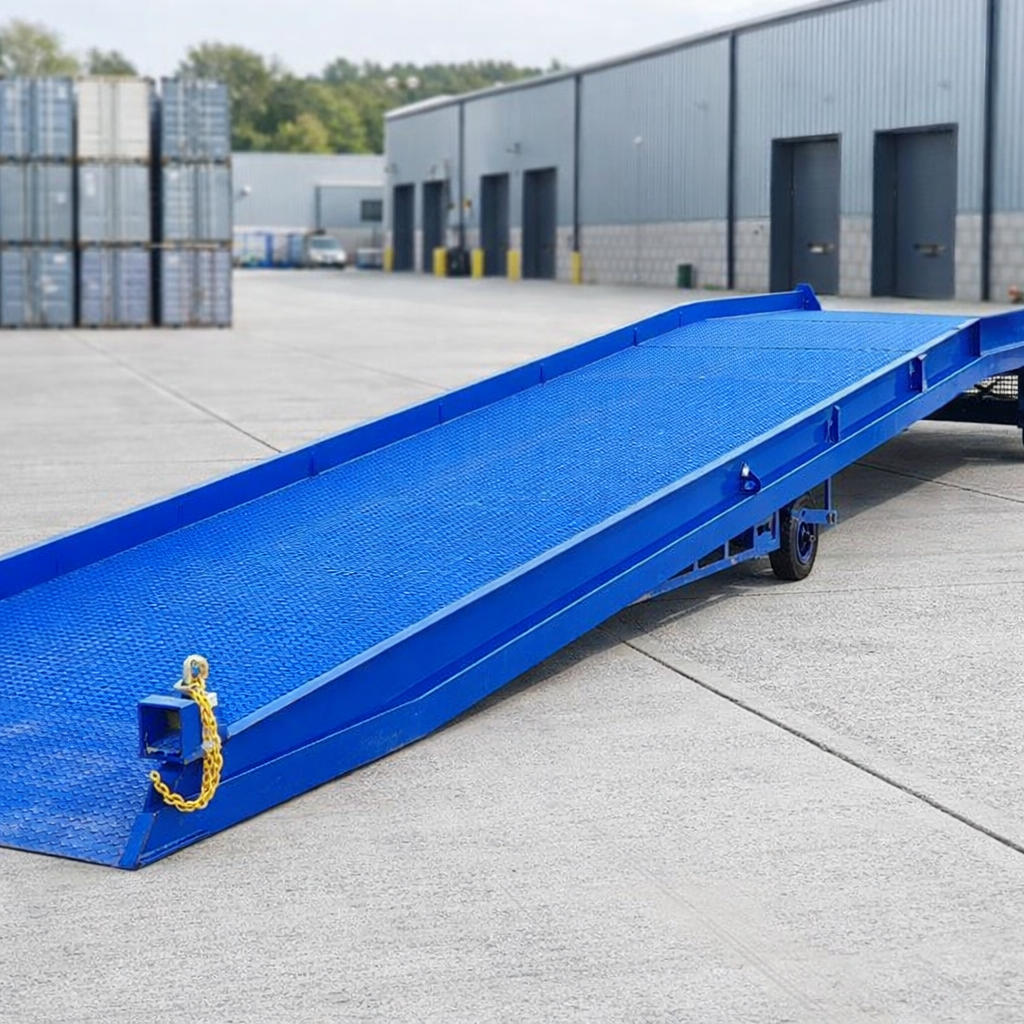

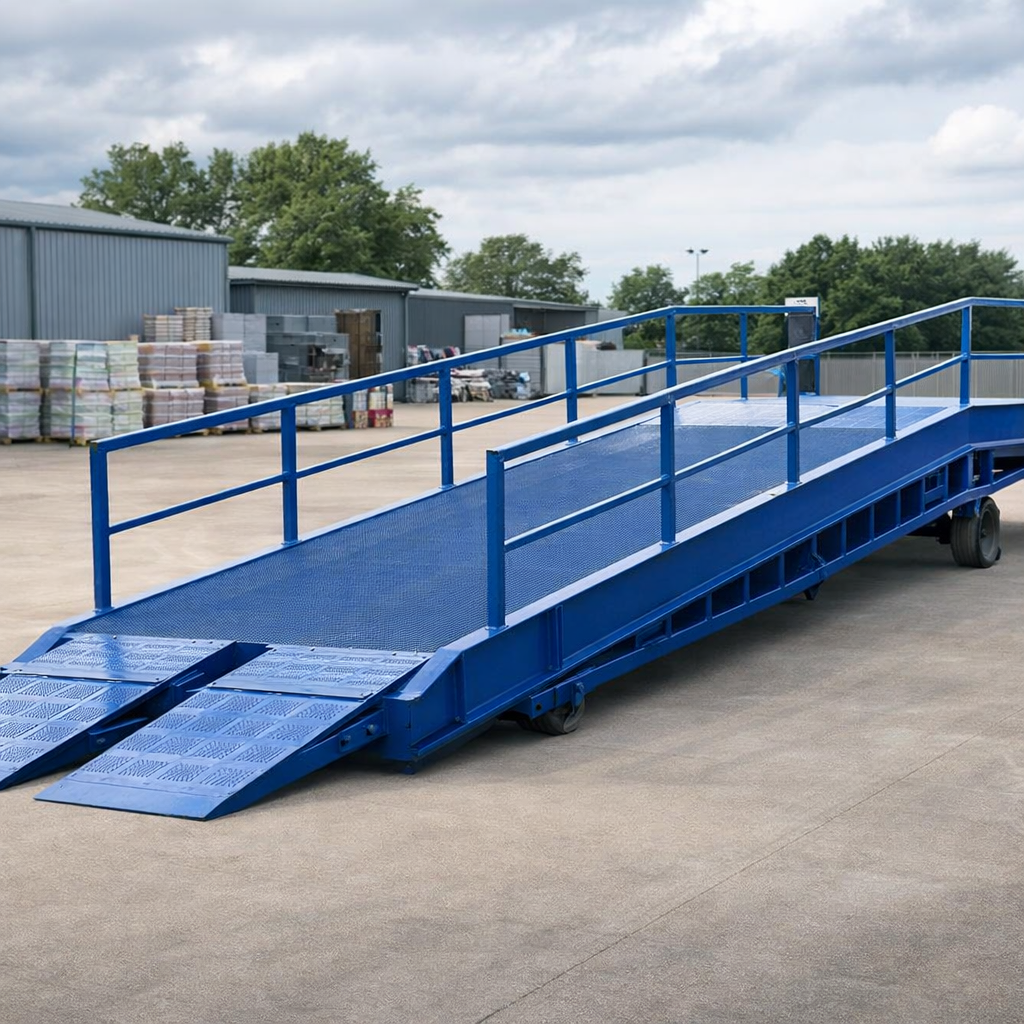

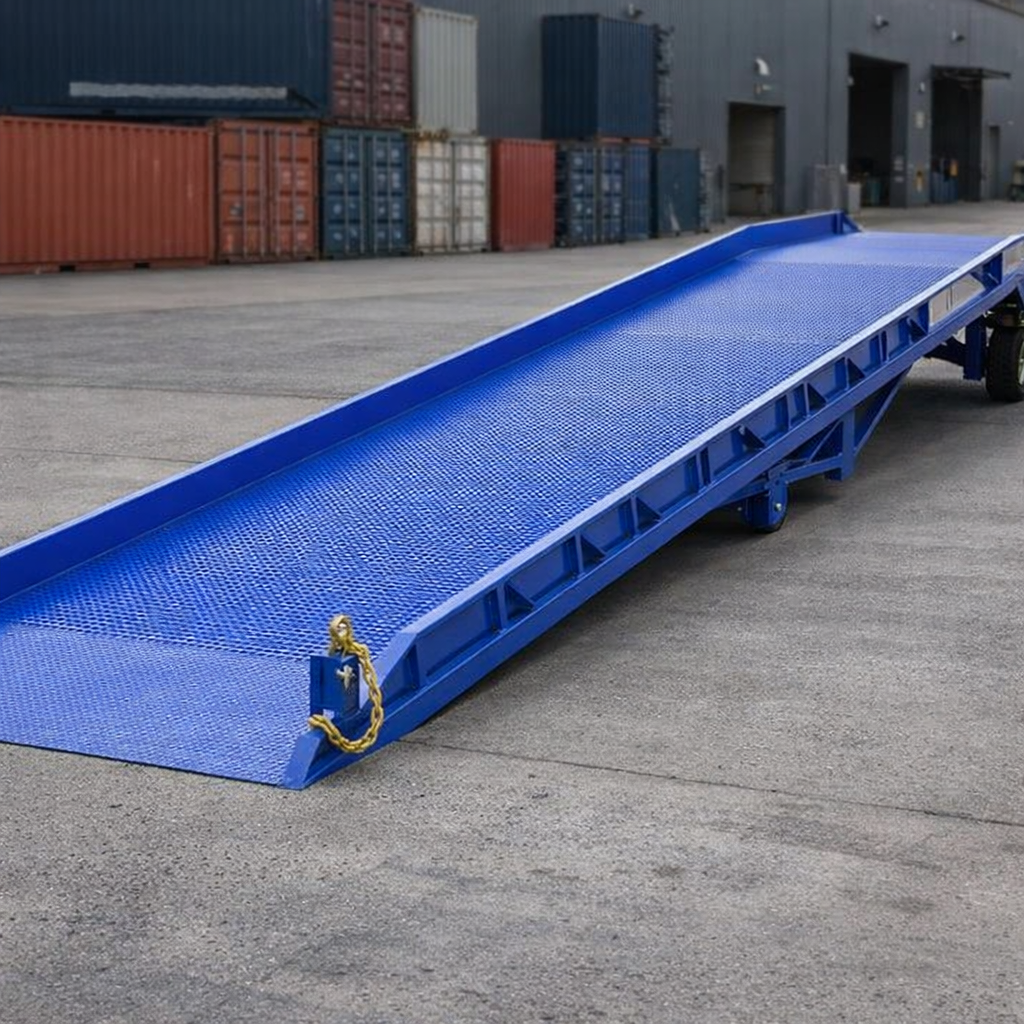

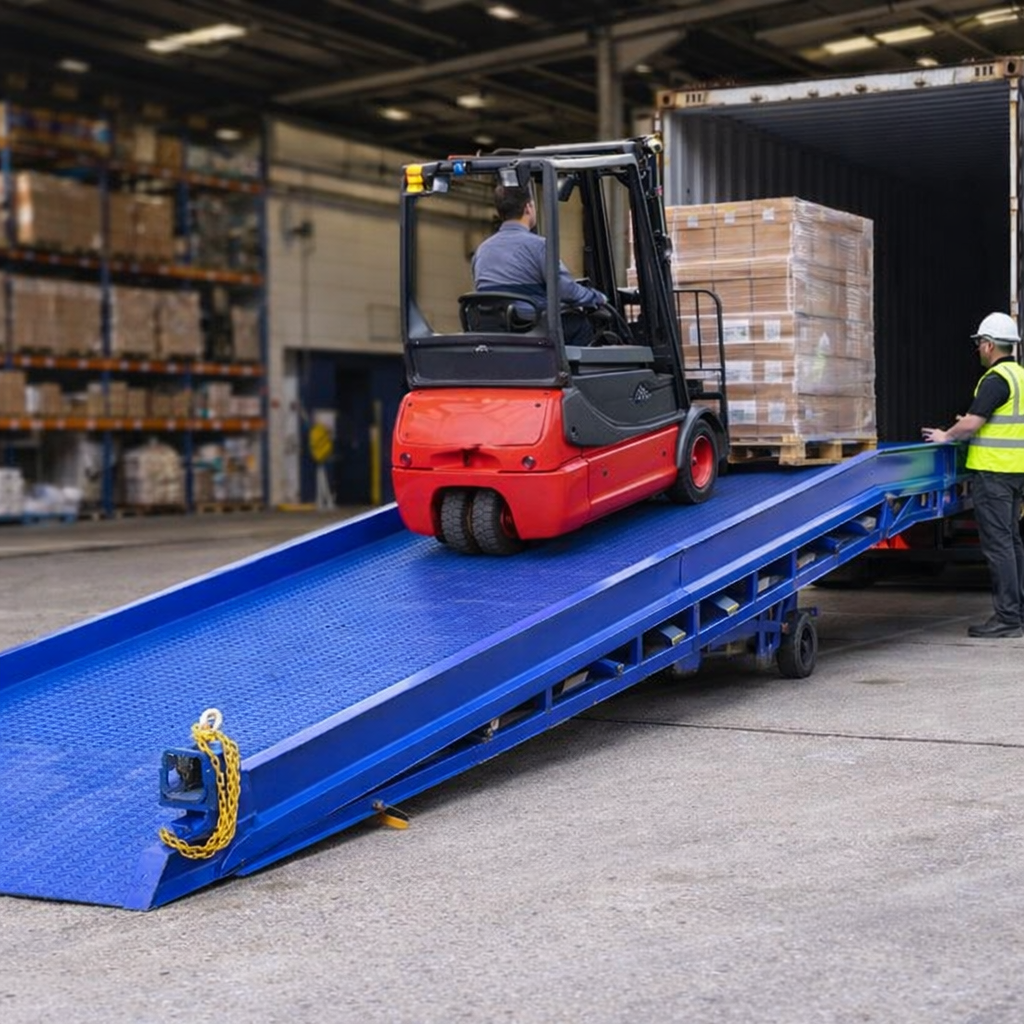

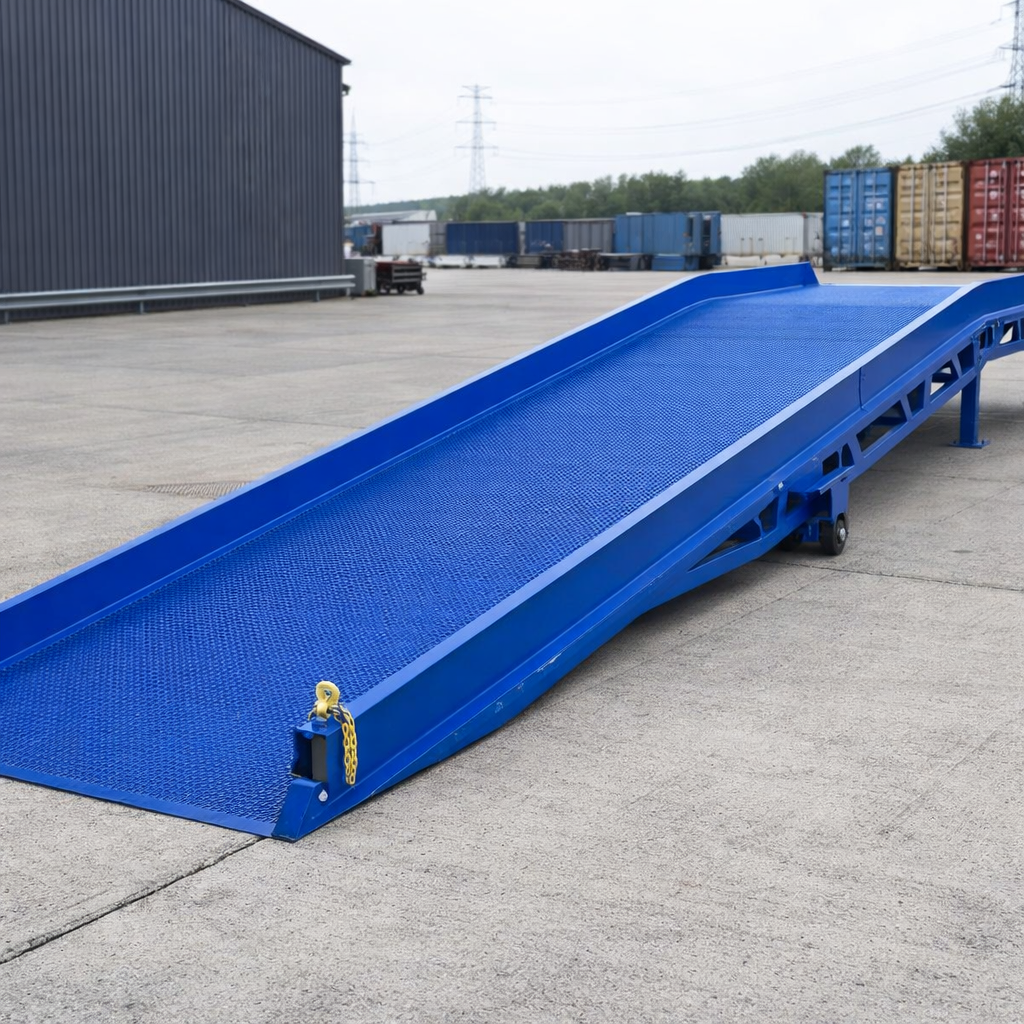

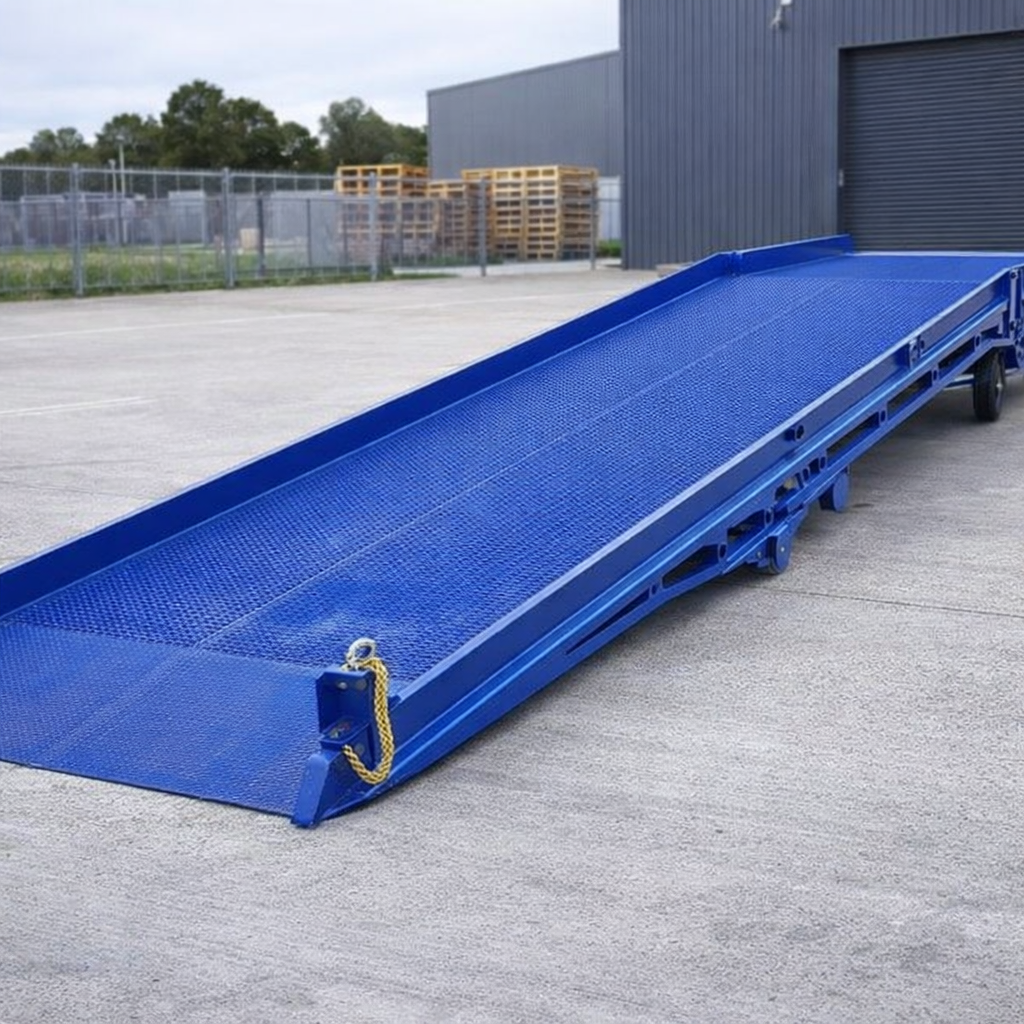

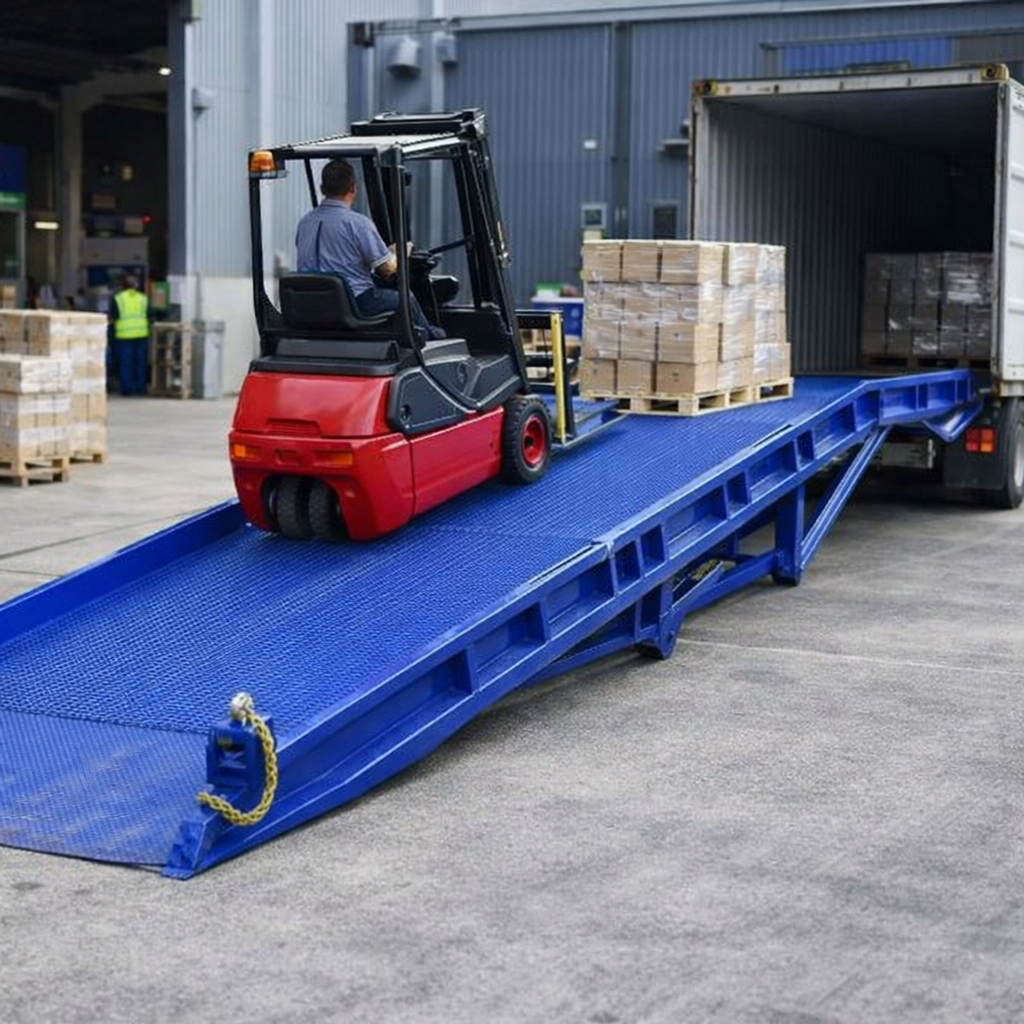

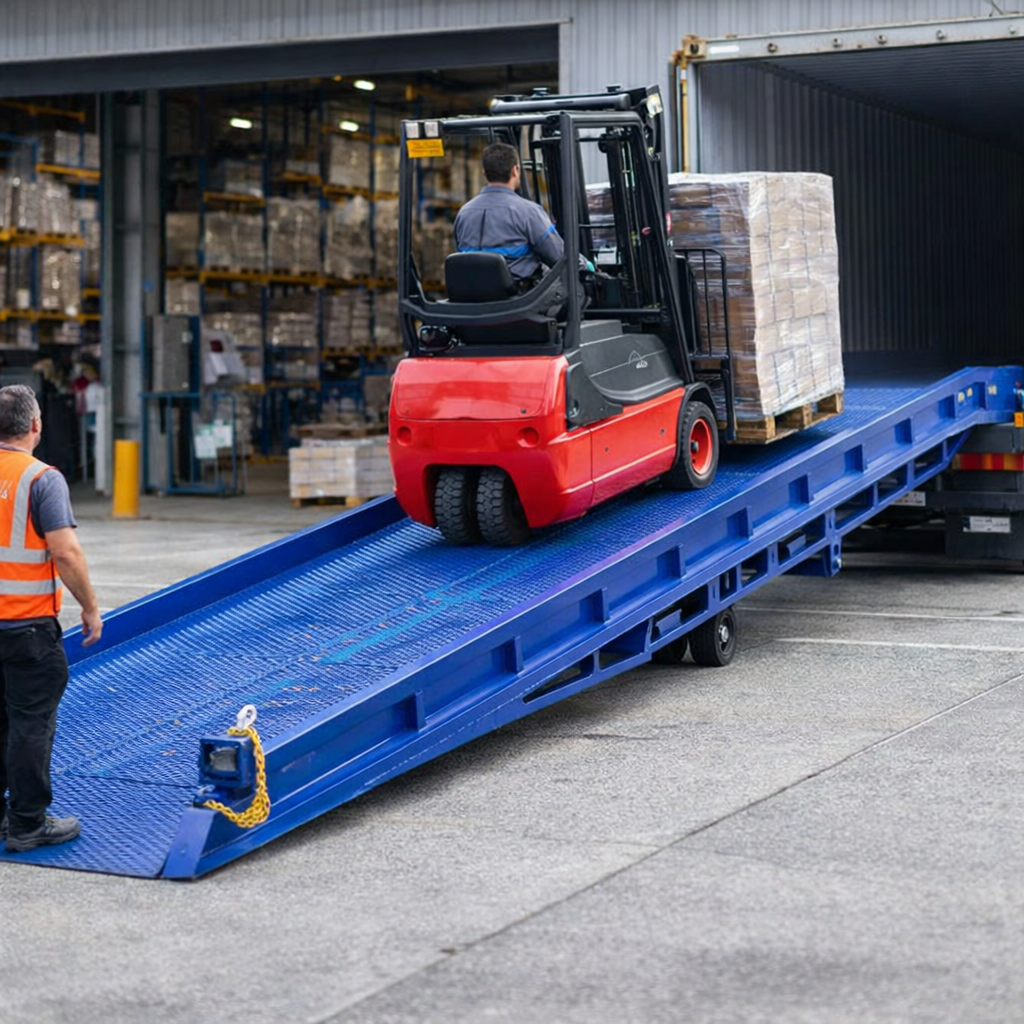

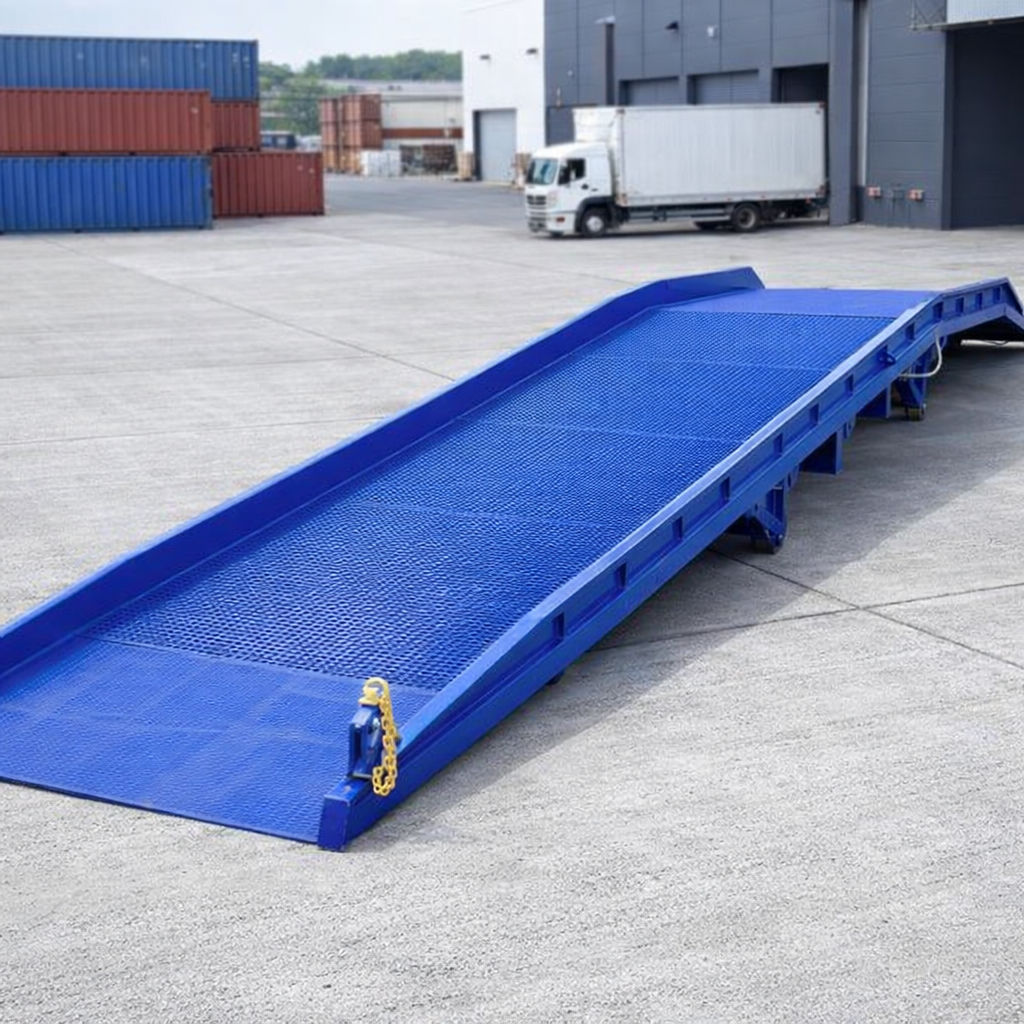

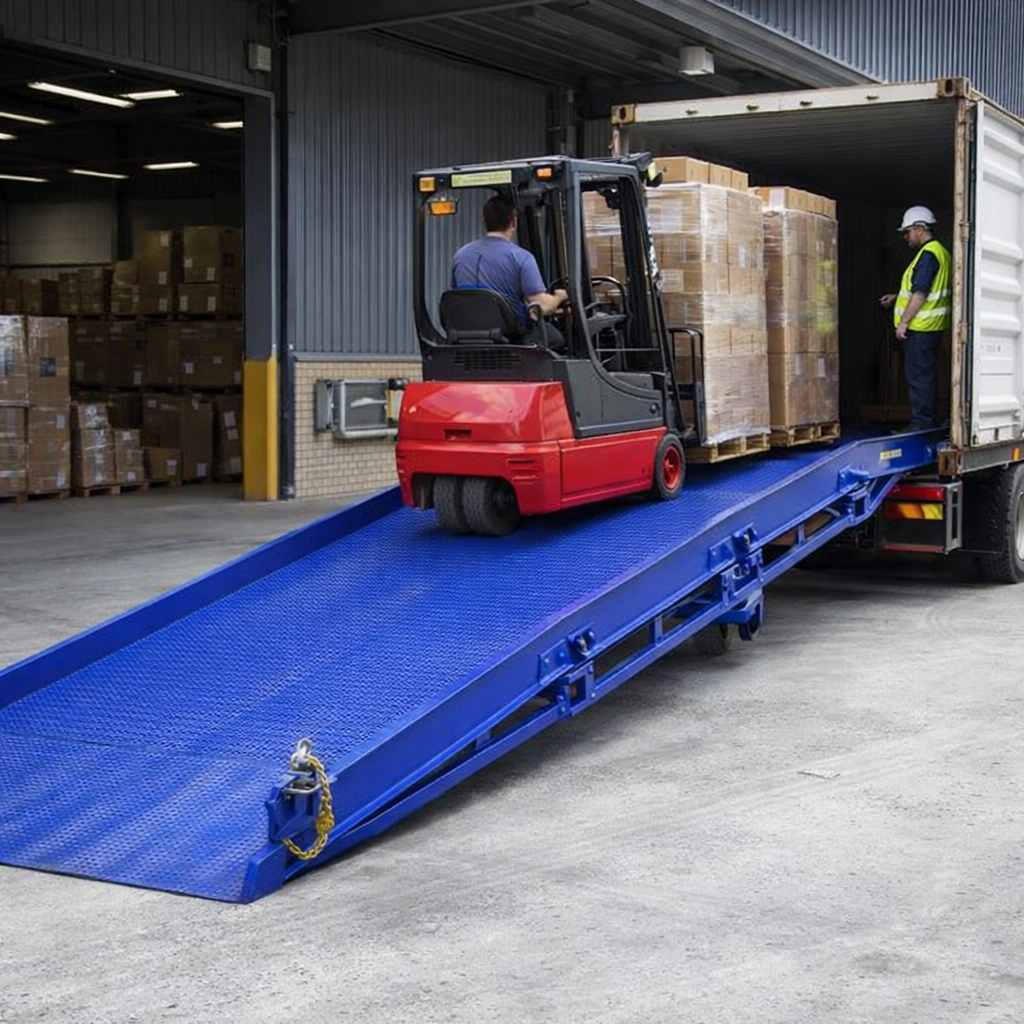

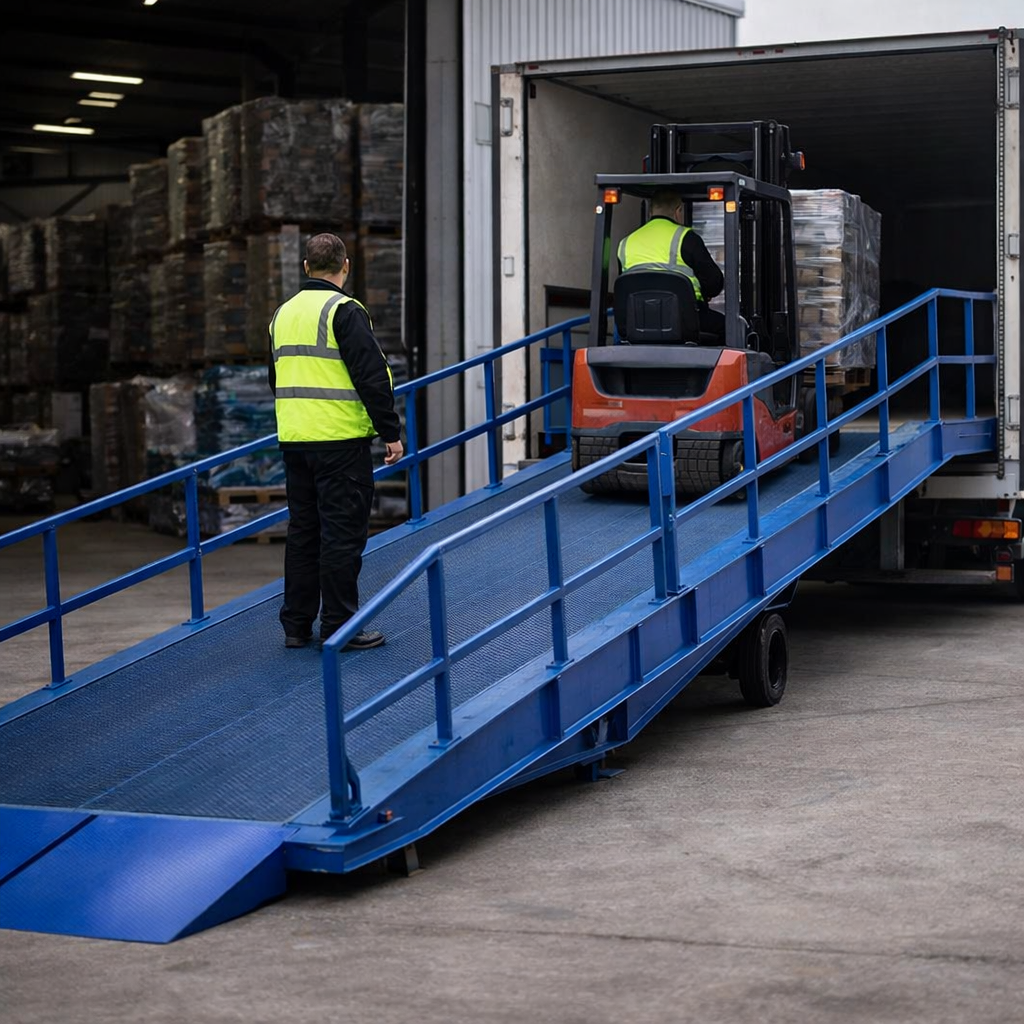

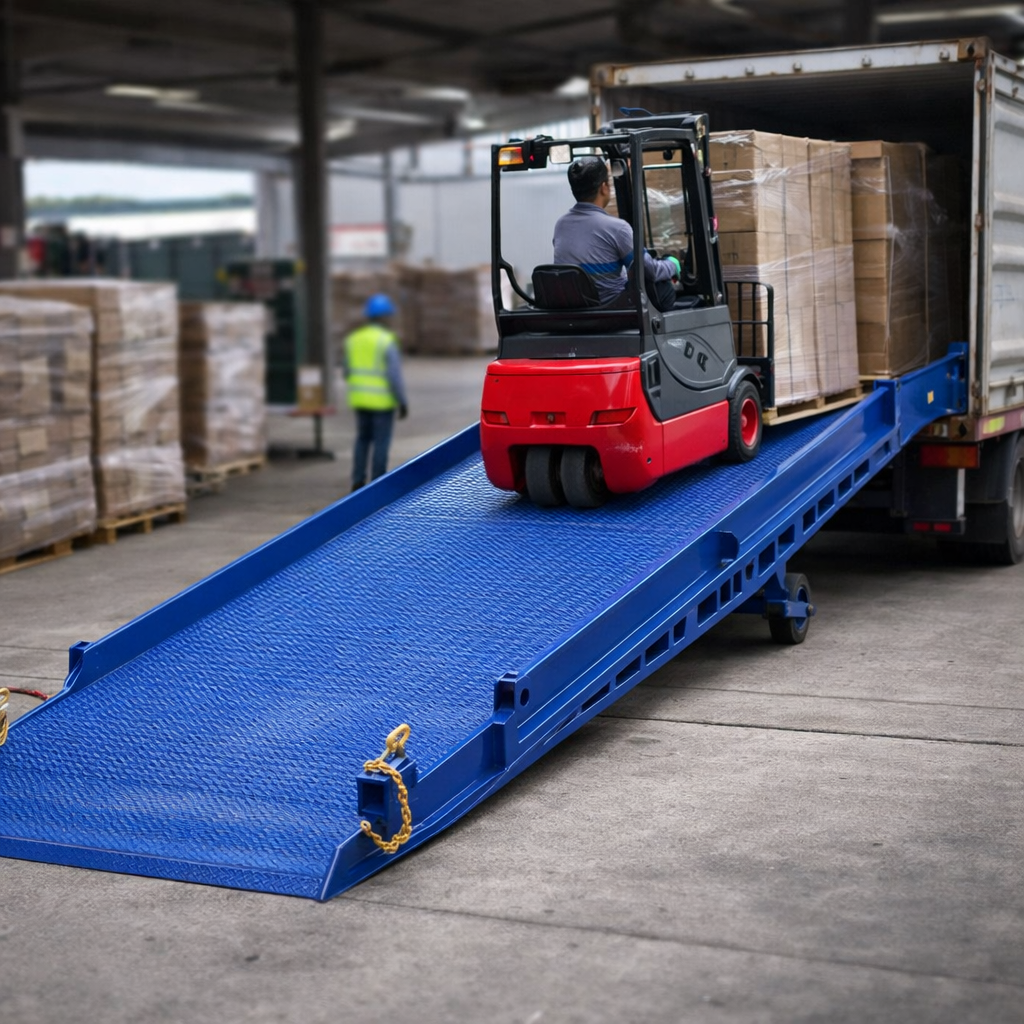

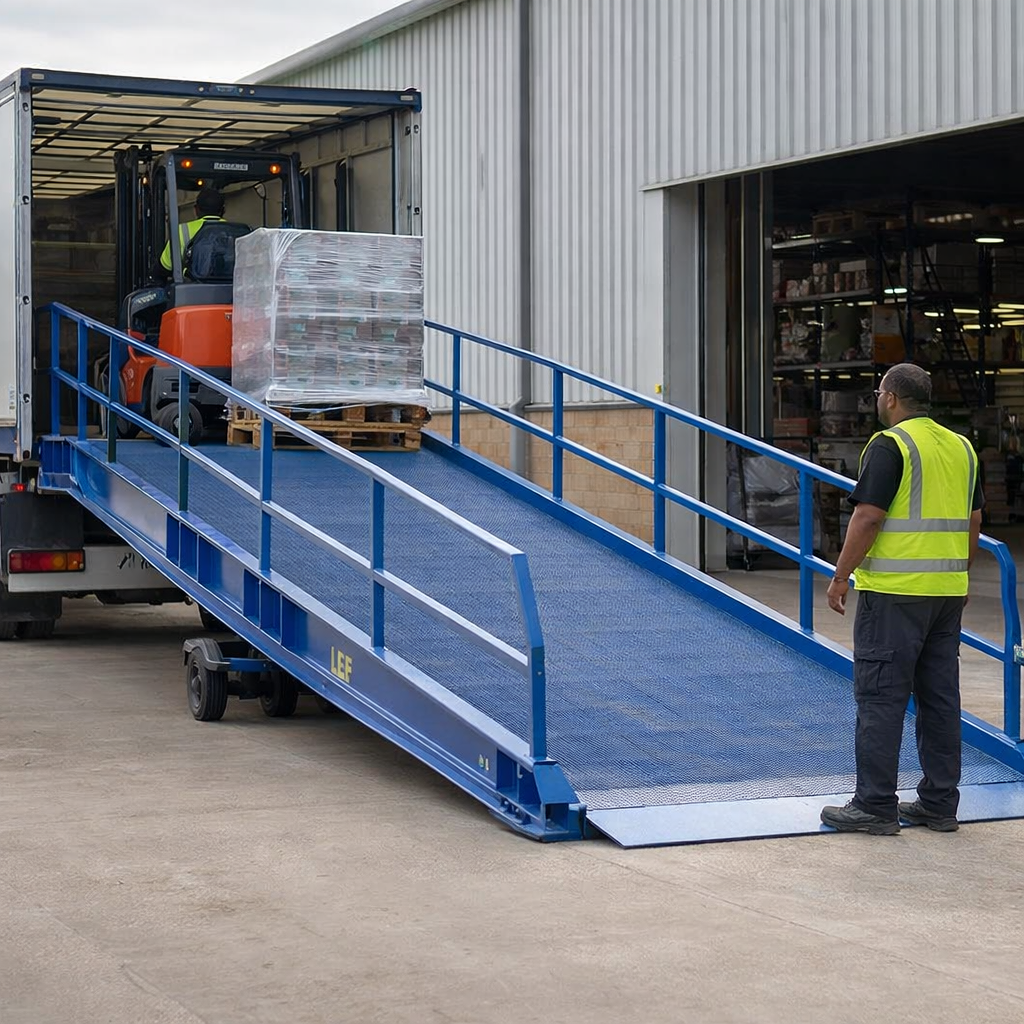

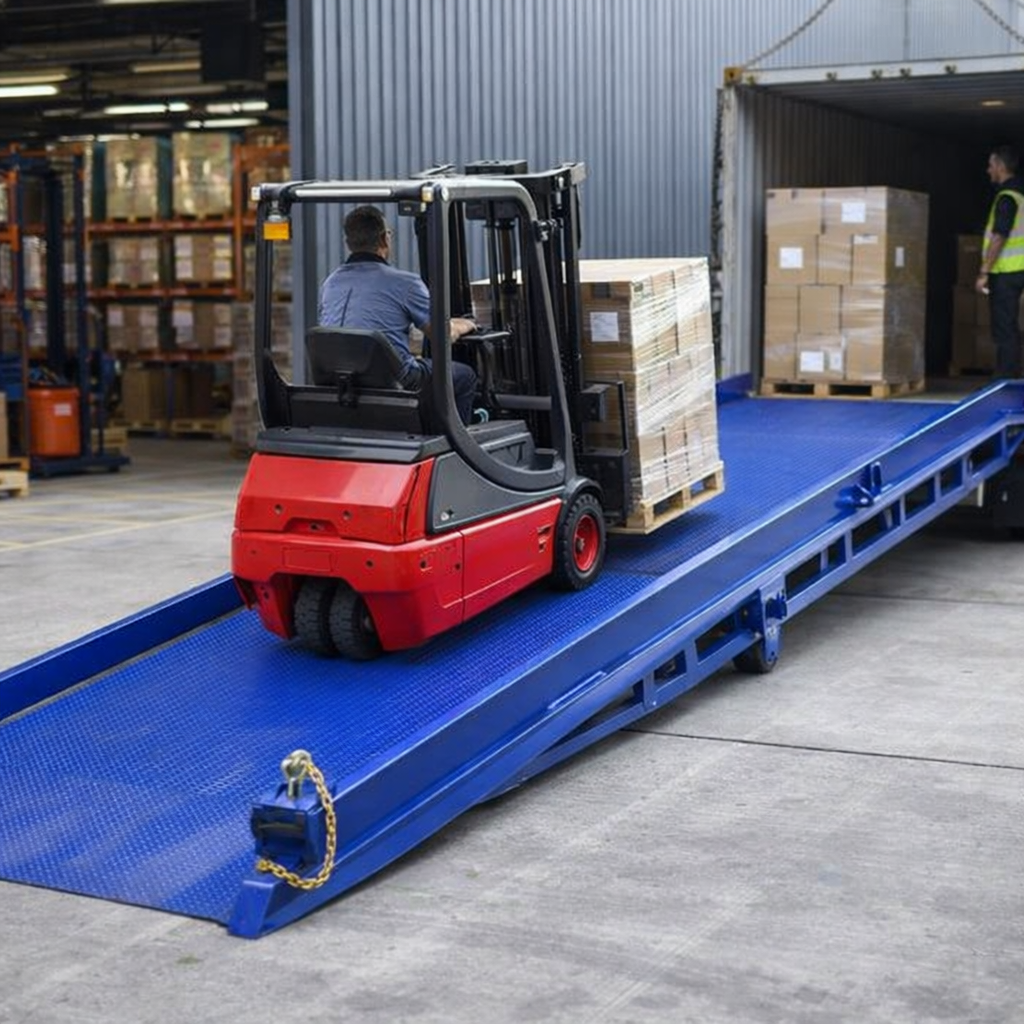

• Mobile Yard Ramps: The most popular option for UK businesses. Mobile ramps are fitted with wheels or castors for repositioning by forklift or tow vehicle. Ideal for multi-bay sites or operations without a fixed dock. Available in capacities from 5,000kg to 8,000kg.
• Fixed Dock Ramps: Permanently anchored to a loading bay wall or dock face. Best suited for high-volume, single-position loading where trailers are always at the same height. Lower maintenance cost over time but no flexibility.
• Portable Loading Ramps: Lighter-duty options for hand pallet trucks, trolleys, and pedestrian traffic. Typically rated 1,000kg–2,000kg and can be lifted manually or with a pallet truck. Suitable for smaller vehicles, vans, and low-height trailers.

Capacity and Size Guide

Selecting the correct capacity is critical for operator safety and compliance with LOLER and PUWER. As a guide:

• 1,000kg ramps: Suitable for pedestrian pallet trucks, trolleys, and light foot traffic. Width range: 1,000–1,500mm.
• 2,000kg ramps: Ideal for electric pallet trucks and ride-on pedestrian vehicles. Width range: 1,200–1,800mm.
• 5,000kg ramps: Standard for counterbalance forklifts (1.5t–3t capacity). Width range: 1,800–2,500mm.
• 8,000kg+ ramps: Required for large reach trucks, 5t+ forklifts, or heavy-duty tow tractors. Consult our technical team for bespoke specifications.

Always calculate: weight of empty forklift + weight of maximum load to determine the minimum ramp capacity required.

PUWER and Manual Handling Regulations Compliance

All yard ramps supplied by BarriersCo are designed to comply with the Provision and Use of Work Equipment Regulations 1998 (PUWER) and the Manual Handling Operations Regulations 1992. Key compliance features include:

• Rated load capacity clearly marked on the ramp
• Non-slip open-bar grating or chequer-plate surface for grip in wet conditions
• Safety kerb edges (minimum 100mm) to prevent vehicles running off the ramp edge
• Smooth lip connection to trailer bed to minimise shock loading
• Maintenance documentation and inspection intervals supplied

Employers are legally required to inspect all work equipment (including ramps) at intervals appropriate to frequency of use. BarriersCo can advise on inspection regimes and supply replacement parts for ongoing compliance.

Yard Ramps for Forklifts vs Hand Pallet Trucks

The choice of ramp differs significantly depending on whether you're using forklifts or hand pallet trucks (HPTs):

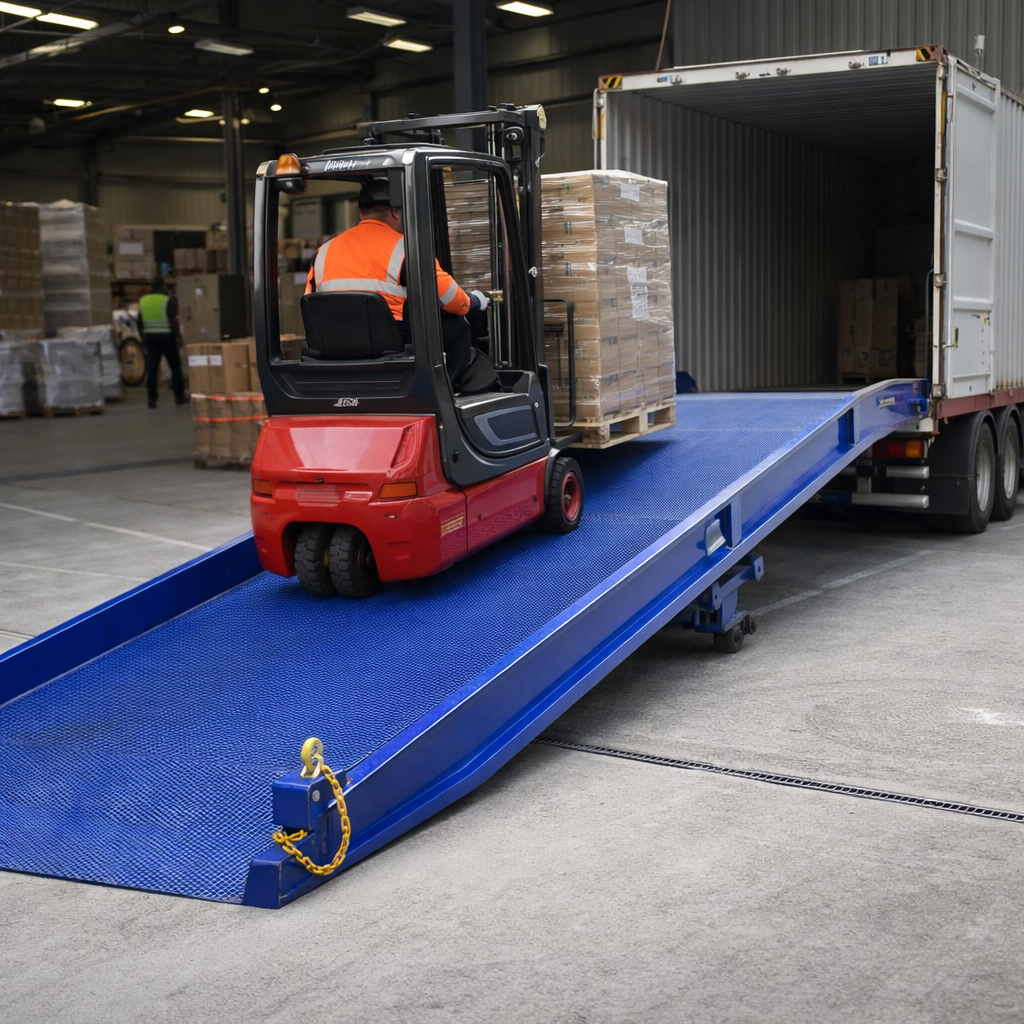

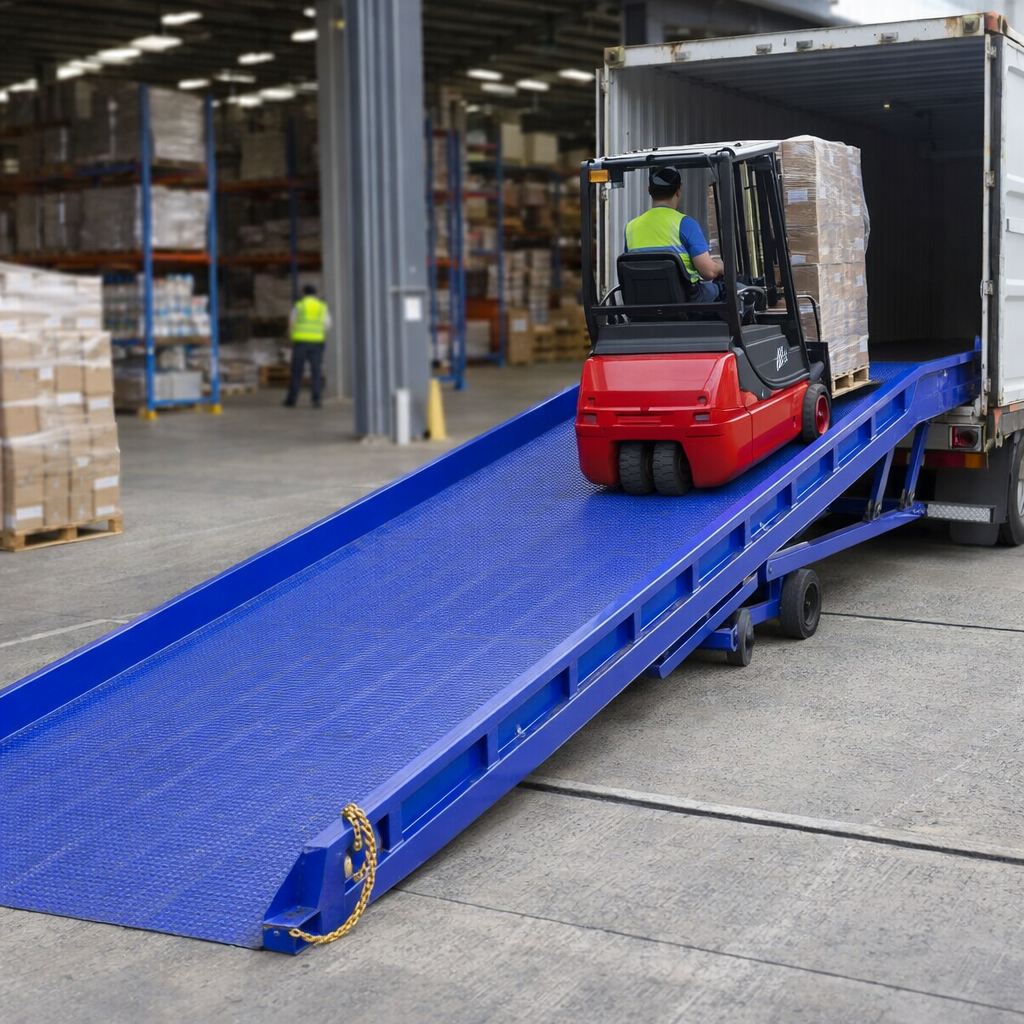

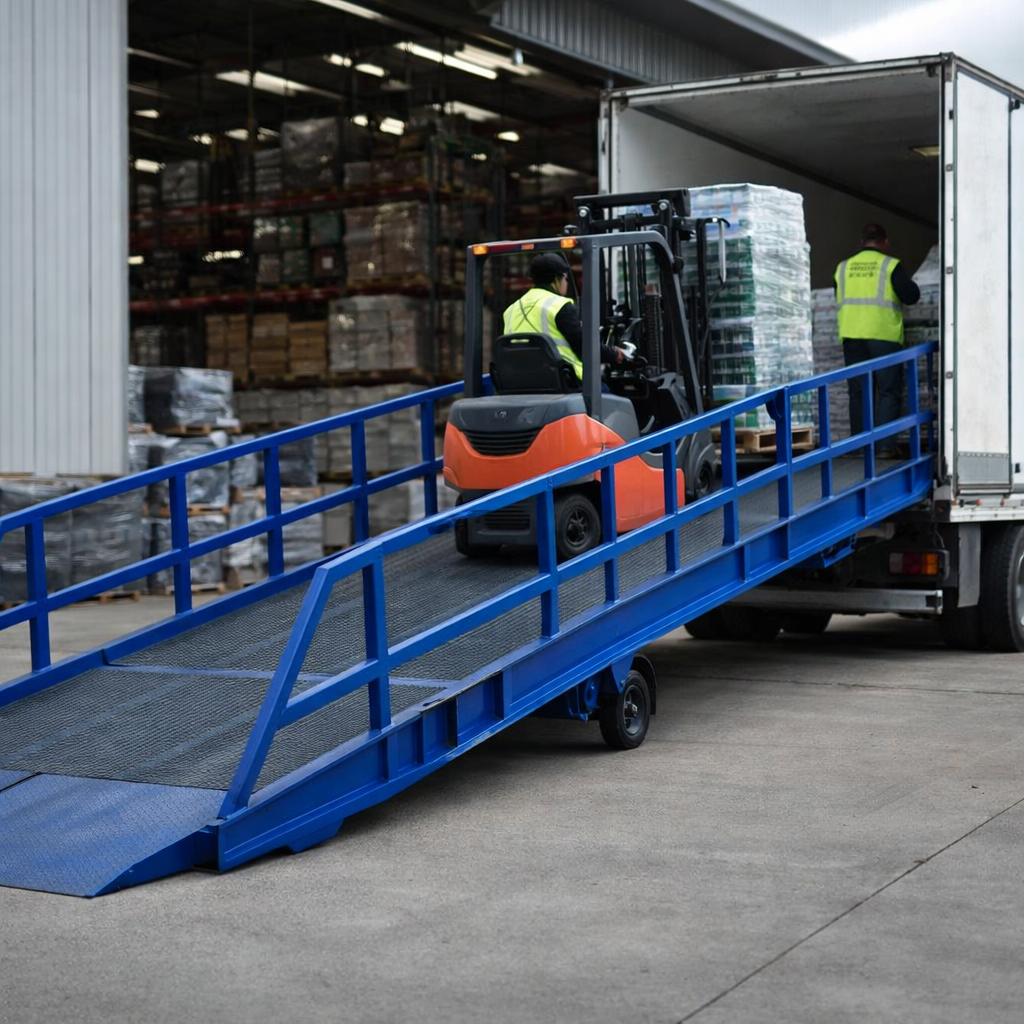

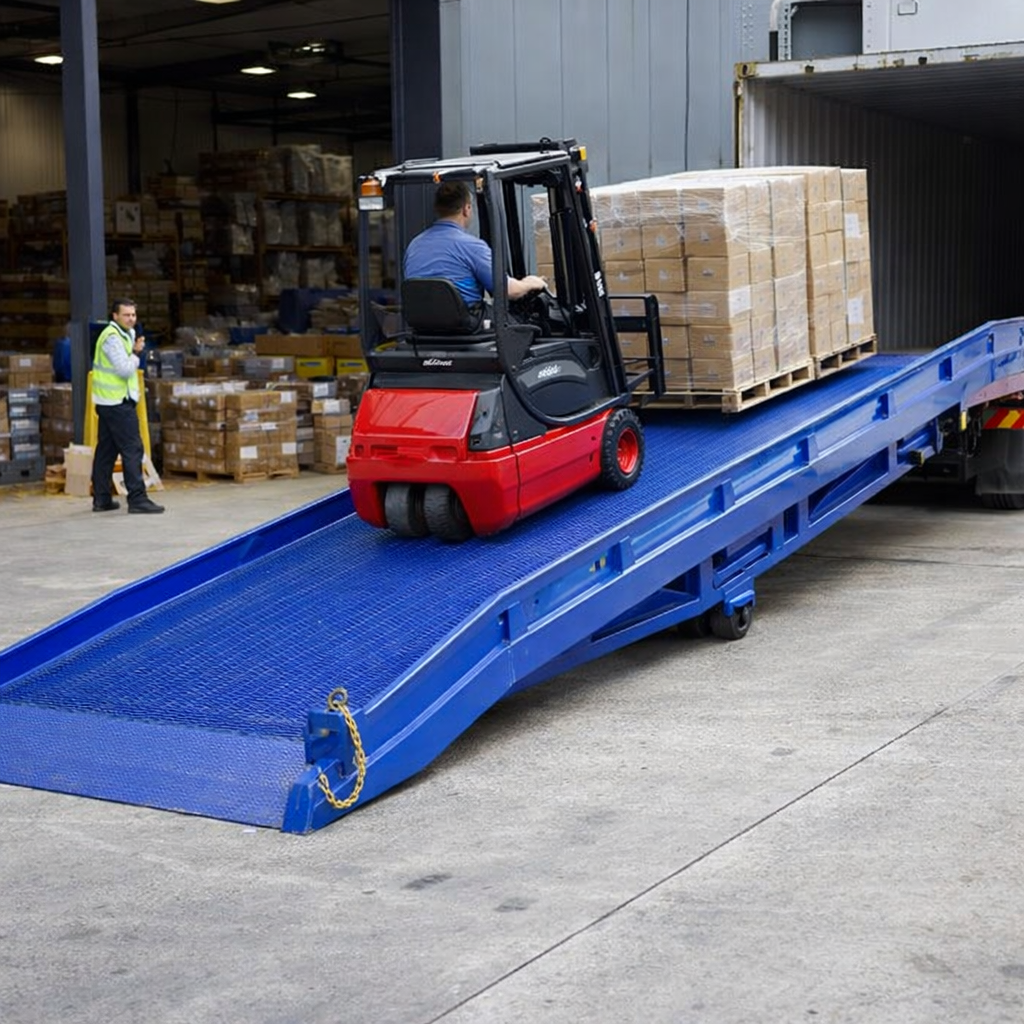

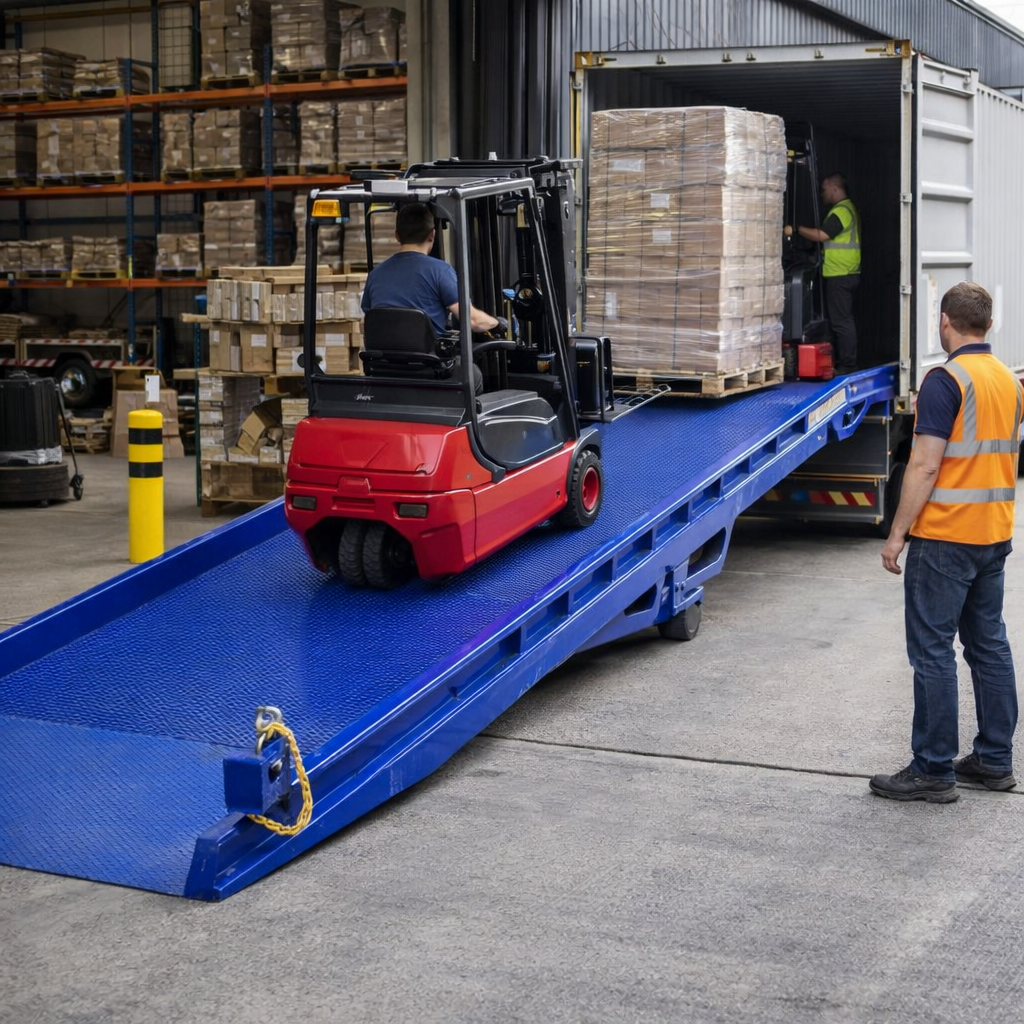

Forklift yard ramps must withstand high dynamic loads as the forklift accelerates and brakes on the ramp surface. A 3-tonne counterbalance forklift with a full load can exert dynamic loads exceeding 7,000kg on the ramp surface. Mobile forklift ramps therefore use heavier structural steel, wider running surfaces, and more robust wheel stops.

Hand pallet truck ramps deal with lower forces but require a smooth, consistent surface to prevent pallets from snagging or HPT wheels from dropping into grating gaps. Solid deck ramps or fine-mesh grating are preferred for HPT applications, especially when handling lighter, unstable loads.

Buying Guide — What to Consider

Before purchasing a yard ramp, consider the following factors:

• Width: Must be at least 600mm wider than your widest vehicle to allow safe kerbing clearance.
• Length: Longer ramps create a shallower approach angle, which is safer and reduces ramp wear. Minimum recommended length is 4m for lorry-height applications.
• Capacity: Always overspec by at least 20% to account for dynamic loads and future equipment changes.
• Slope angle: For forklifts, a maximum slope of 12° is recommended. Steep ramps reduce stability and increase tip-over risk. BITA guidance recommends no more than 1:7 gradient for most FLT operations.
• Surface: Open-bar grating drains water but may be unsuitable for HPTs. Chequer plate is better for HPTs but requires regular cleaning to maintain grip.
• Mobility: Do you need to move the ramp frequently? If yes, choose a model with integrated push bar and castors rated for your site surface.

For expert advice on selecting the right yard ramp, contact the BarriersCo team or browse our related collections: vehicle ramps, warehouse barriers, and wheel chocks.

Frequently Asked Questions

Q: Do yard ramps come with a warranty?
A: Yes. BarriersCo yard ramps are covered by a 12-month structural warranty against manufacturing defects. Extended warranties are available on selected models.

Q: Can I use a yard ramp on gravel or uneven ground?
A: Mobile yard ramps require a reasonably firm, level surface. On soft ground, consider using ground protection mats beneath the ramp feet to prevent sinking. Contact us for site-specific advice.

Q: How do I secure a yard ramp to the trailer?
A: Most BarriersCo ramps feature a lip hook or trailer chain to prevent the ramp sliding away from the trailer during loading. Always secure before use and chock the trailer wheels — see our wheel chocks.

Q: What delivery times are available?
A: Standard delivery is 3–5 working days. Express and next-day options are available on selected stock items. Contact us for current lead times on non-stock sizes.
