Wall-Mounted Steel Pipe Protector – Heavy-Duty Yellow & Black Impact Guard for Warehouse Columns, Pipes & Pillars
Description

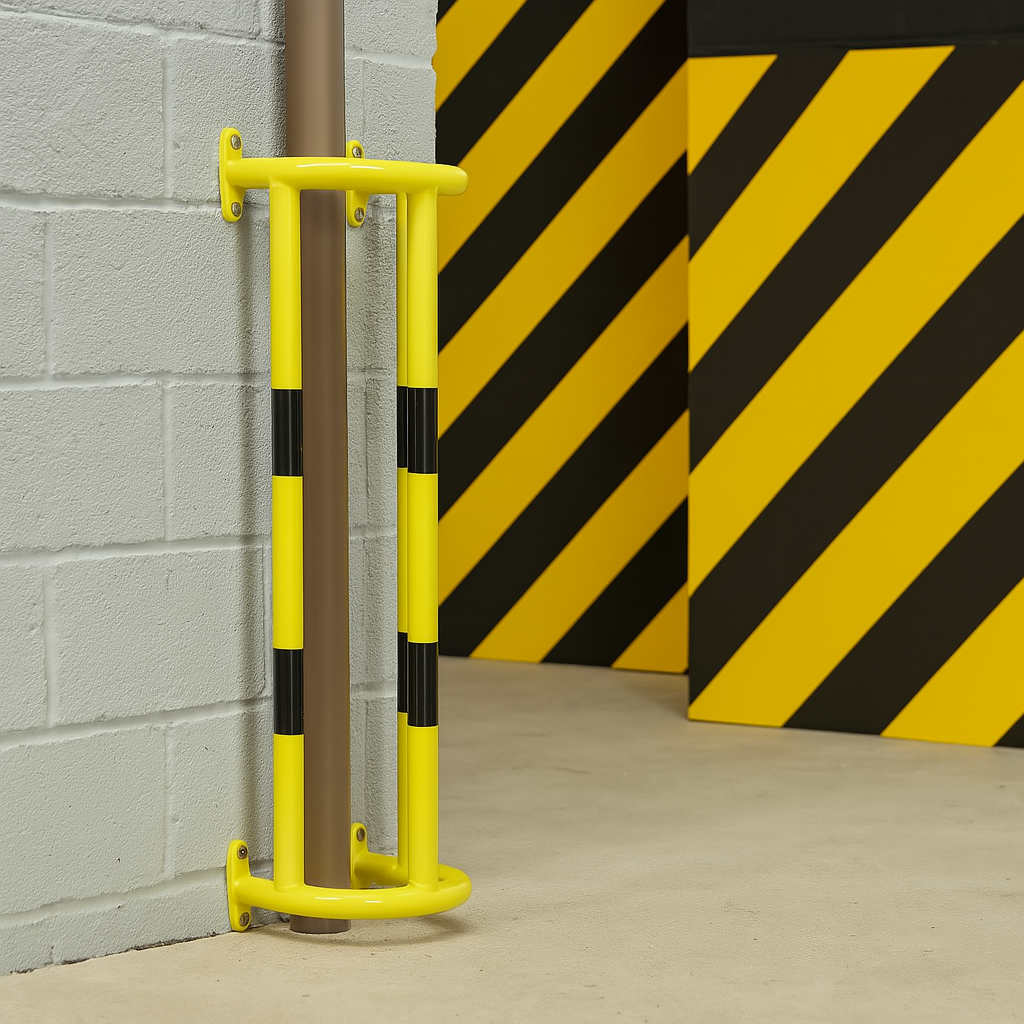

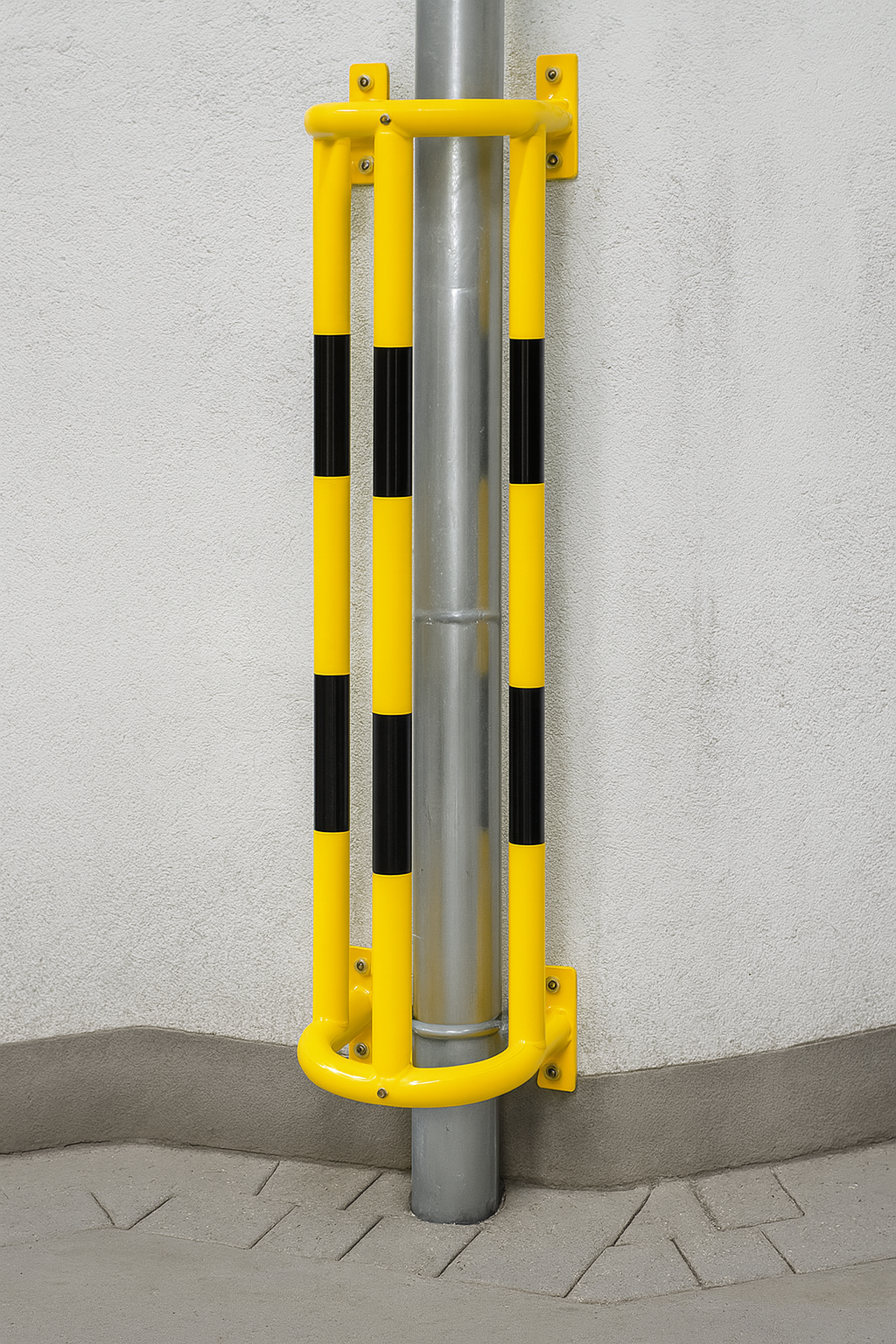

Protect exposed pipes, columns, and structural supports from forklift or vehicle impacts with the BarriersCo Heavy-Duty Wall-Mounted Steel Pipe Protector — engineered to outperform industry standards.
Manufactured from industrial-grade 60 mm diameter steel tube with a 3 mm wall thickness, this fully welded protector delivers exceptional strength and rigidity. The dual-finish system — zinc-primed and powder-coated yellow with black safety bands — ensures maximum corrosion resistance and visibility for both indoor and outdoor installations.
Designed for warehouses, loading bays, logistics centres, car parks, and manufacturing plants, this protector provides wrap-around coverage for pipes and columns up to 250 mm in diameter. The compact wall-mount design saves valuable floor space while providing solid impact protection from forklifts, pallet trucks, and trolleys.
Key Features
-
Premium Industrial Construction – Heavy-duty 60 mm Ø mild steel tubing with 3 mm wall thickness for superior impact resistance.
-
Dual Protective Finish – Zinc-primed and powder-coated for rust prevention, UV stability, and long-term durability.
-
High-Visibility Safety Bands – Black hazard stripes on bright RAL 1021 yellow for compliance with UK workplace safety standards.
-
Tested Impact Strength – Independently tested for forklift impacts up to 3.5 tonnes.
-
Full Wrap-Around Coverage – Protects pipes and columns up to 250 mm Ø without occupying aisle space.
-
Precision Mounting System – Pre-drilled wall and base plates for secure installation; compatible with M10/M12 anchor bolts.
-
Indoor & Outdoor Use – Weather-resistant coating ideal for warehouses, workshops, logistics depots, and exposed sites.
-
All Fixings Included – Supplied ready for installation with bolts, washers, and wall anchors.
-
Made in the UK – Fabricated to BS EN ISO 1461 and BS EN 13438 standards.

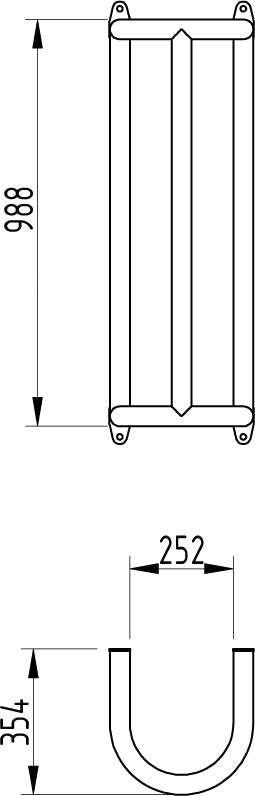

Technical Specifications
| Specification | Detail |
|---|---|
| Material | Mild steel (fully welded, 60 mm Ø × 3 mm wall) |
| Finish | Zinc-primed + powder-coated RAL 1021 yellow with black bands |
| Heights Available | 1000 mm / 1500 mm |
| Overall Width | 350 mm |
| Internal Clearance | Up to 250 mm diameter pipe |
| Fixing Type | Wall + base plate mounting |
| Bolt Hole Size | 10–12 mm pre-drilled |
| Installation Depth | 40 mm anchor bolt embedment |
| Weight | 15–20 kg (depending on height) |
| Use | Internal & external environments |
Installation
-
Position protector flush against wall or column base.
-
Mark and drill fixing holes using a 10–12 mm masonry bit.
-
Insert anchors and tighten bolts securely to wall and floor.
-
Ensure flush alignment for even load distribution.
(Full installation guide included.)
Available Finishes
-

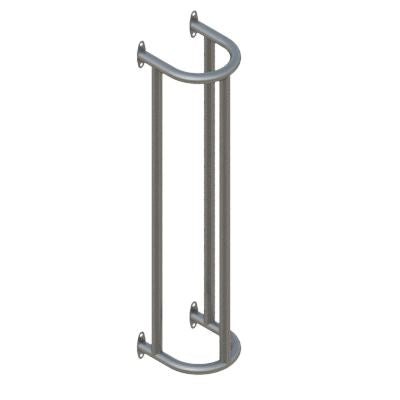

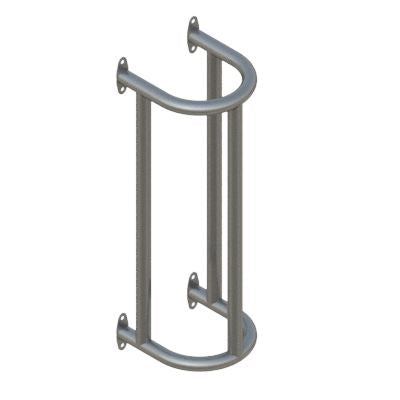

Galvanised Steel (Industrial Silver) – For outdoor and wet-zone applications.
-

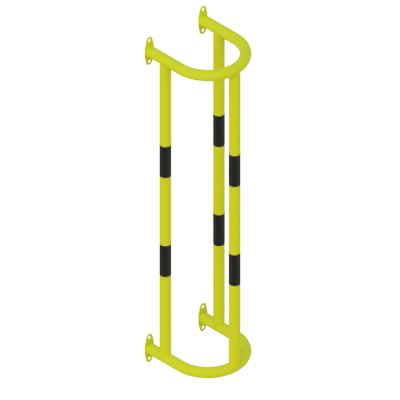

Zinc-Primed & Powder-Coated Yellow/Black – For high-visibility indoor safety zones.
-
Custom Colours & Banding – Available to match site safety schemes (RAL options).
Ideal Applications
-

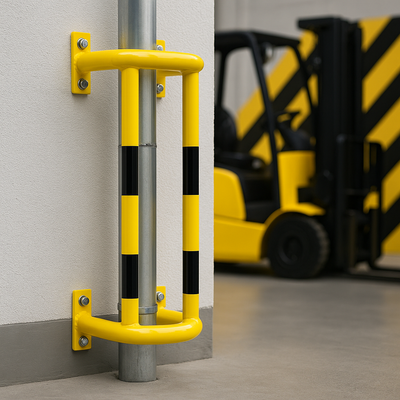

Forklift and pallet-truck traffic zones
-
Wall-mounted service pipes and conduits
-
Structural columns and uprights
-
Car park pillar protection
-
Loading bay and warehouse interiors
