Description

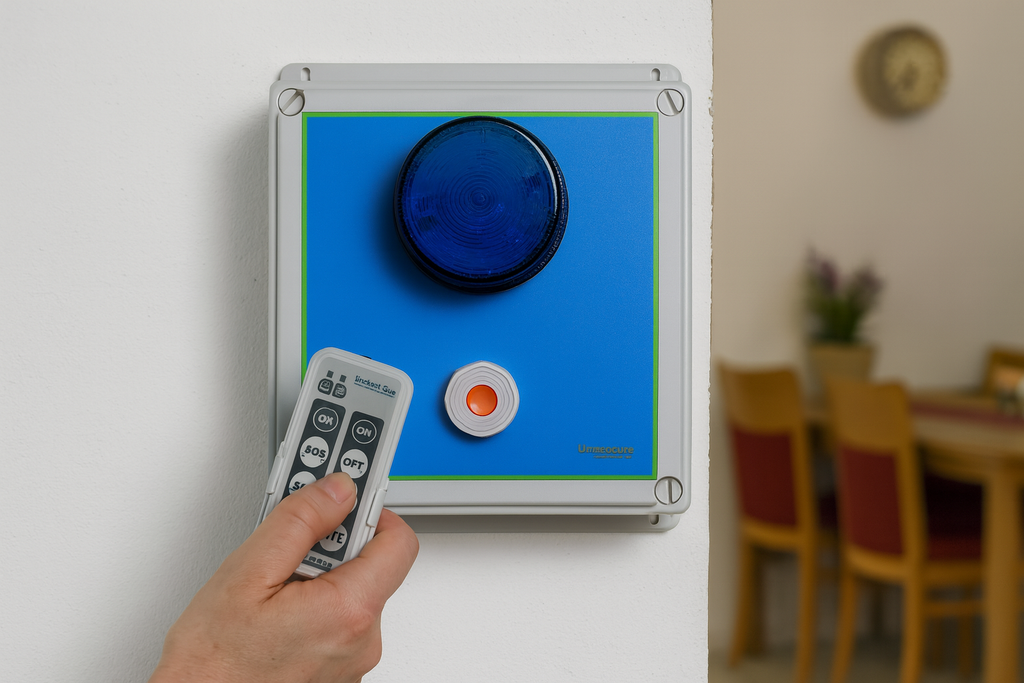

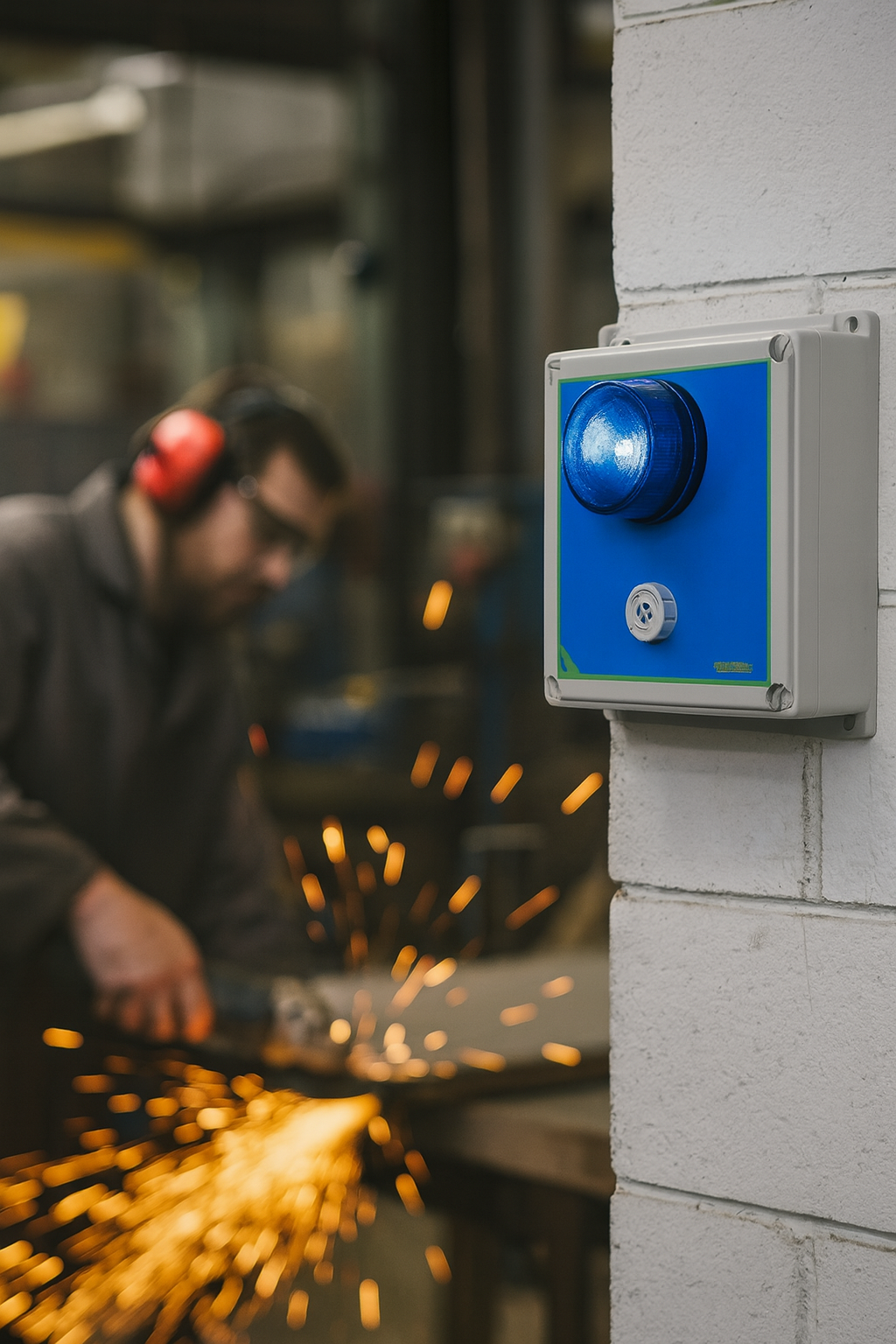

Protect your home, warehouse, office, or commercial property with the Ultra Secure Protect-800 2-Channel Wireless Receiver Kit. With a powerful 800 m range, customizable alerts, and weatherproof durability, this system delivers reliable peace of mind in any environment.
Key Features & Benefits
- Dual-Channel Control: Connect and manage two separate inputs, each supporting up to 4 Protect-800 transmitters (8 total). Perfect for multi-zone coverage.
- Exceptional Wireless Range: Up to 800 m line-of-sight (400–600 m in real-world conditions). Ideal for large properties and industrial setups.
- Custom Alerts: Select from 32 siren tones, adjust the volume up to 106 dB, and set the alert duration (1 second to fully latched).
- Powerful Visual Warning: Built-in blue strobe light ensures alerts are seen in noisy or dimly lit areas.
- Rugged & Weatherproof: Rated IP65—mount it indoors or outdoors with confidence. Quick installation with just 4 screws and a 12 V DC power supply.
- Emergency SOS Remote: Activate siren and strobe instantly with the supplied panic remote. Perfect for emergencies.
- Expandable System: Integrates seamlessly with all Protect-800 transmitters. Add multiple receiver boxes for larger coverage.
- Easy DIY Setup: Pair transmitters, set dip-switches, and mount—ready to use in minutes.

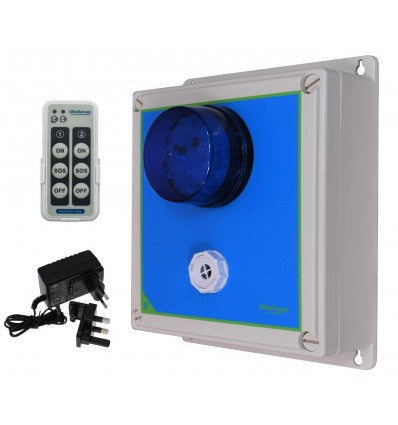

Kit Includes
- 1 × Weatherproof Mounting Box
- 1 × Adjustable 106 dB Siren
- 1 × Blue Flashing Strobe Light
- 1 × Protect-800 External Receiver
- 1 × Protect-800 Remote Control (with SOS function)
- 1 × 3-Pin Plug-in Transformer (2-Pin available upon request)
Technical Specifications

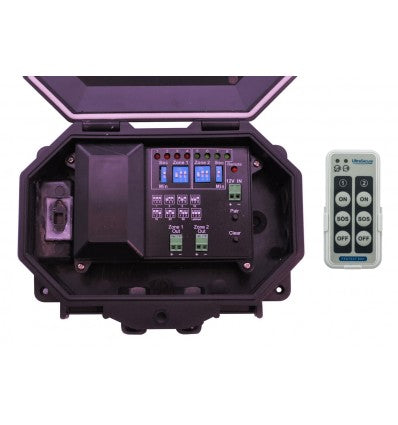

Receiver Unit
- Weatherproof: Yes (IP65)
- Power Supply: 12 V DC, 5 A
- Channels: 2
- Sensors per Channel: 4
- Range: 800 m (line of sight)
- Arming/Disarming: Remote control
- Outputs: 2 × 12 V DC

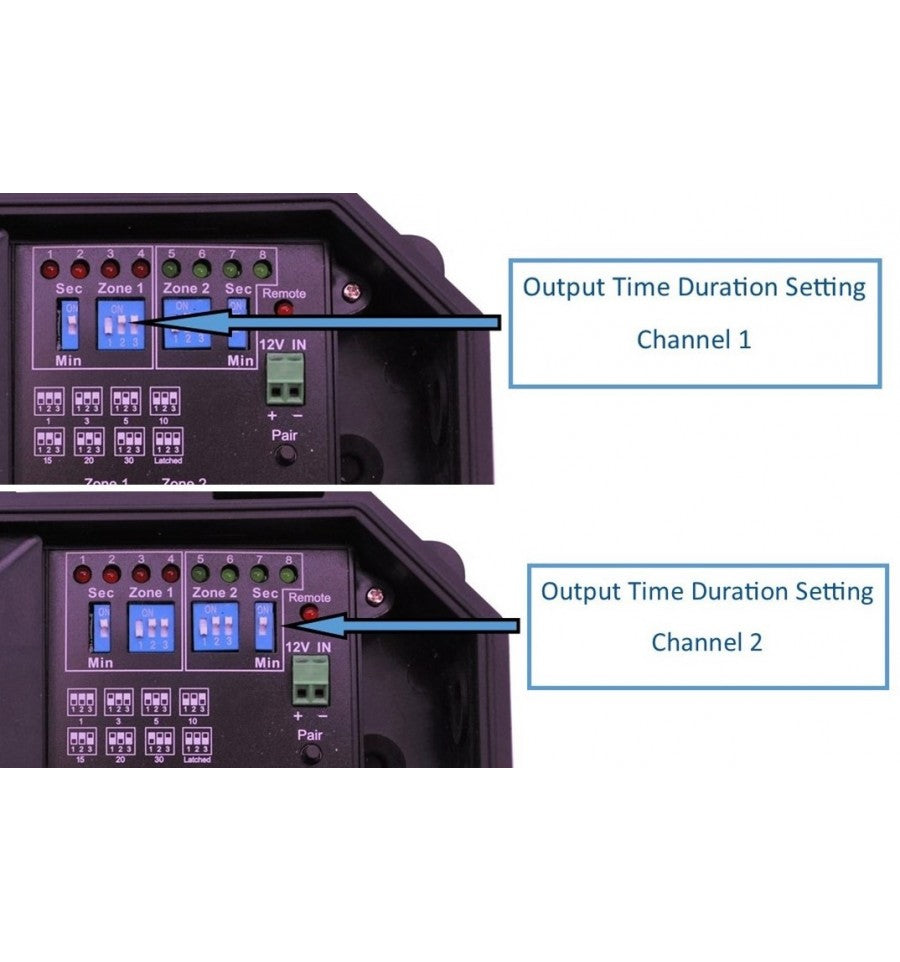

- Duration Options: 1s, 3s, 10s, 15s, 20s, 30s, or latched ON
- Frequency: 869.400–869.650 MHz
- Size: 170 × 125 × 60 mm

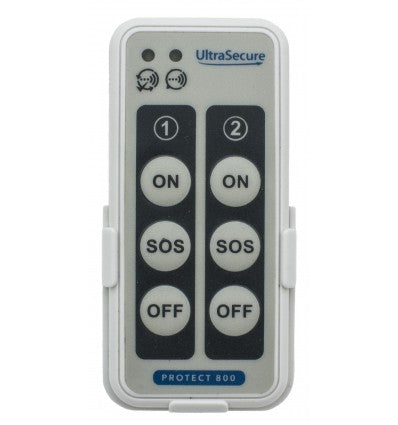

Remote Control
- Functions: Arm, Disarm & SOS for both channels
- Power: 2 × AA batteries (supplied)
- Range: 800 m (line of sight)
- Multiple Remotes Supported: Unlimited
- Feedback Indicator: Confirms successful operation
- Size: 85 × 40 × 25 mm
- Wall Bracket: Included
Mounting Box
- Material: Plastic, IP65 Weatherproof
- External Size: 225 × 185 × 70 mm
- Internal Size: 185 × 185 × 65 mm

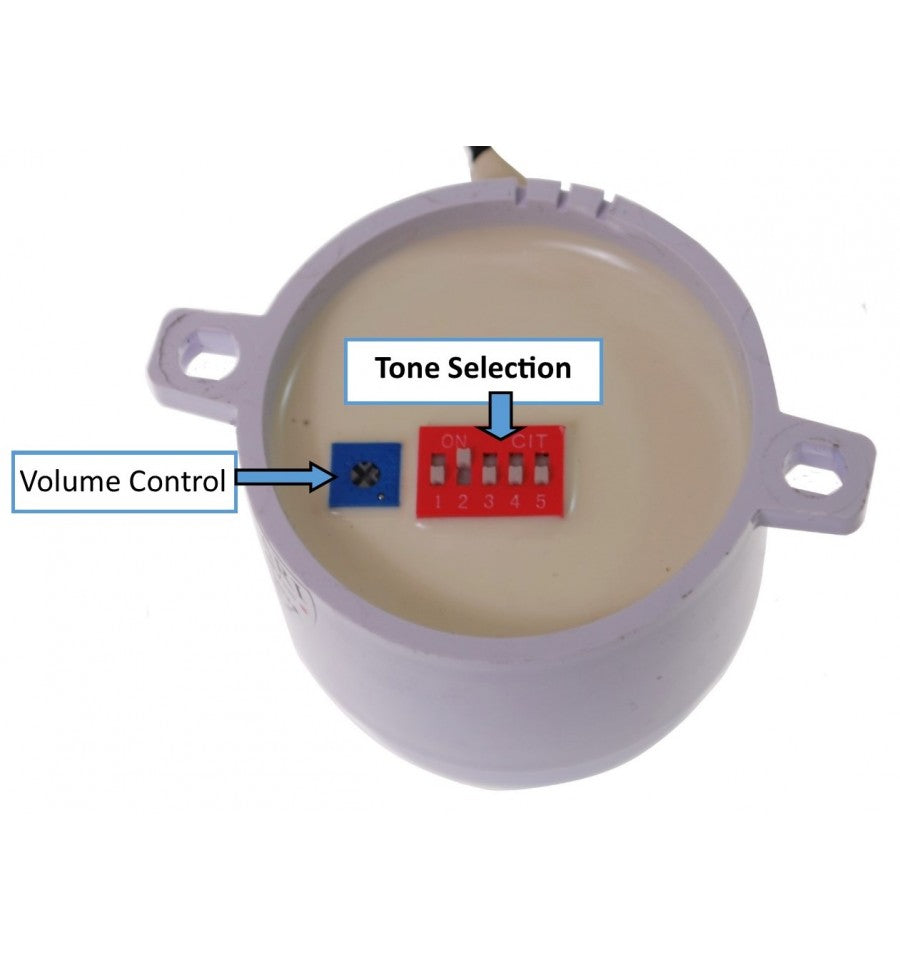

Siren
- Colour: White
- Voltage: 9–28 V DC
- Weatherproof: IP65
- Volume: Up to 106 dB (adjustable)
- Tones: 32 selectable
- Size: 50 mm rear Ø, 25 mm front Ø, 45 mm height

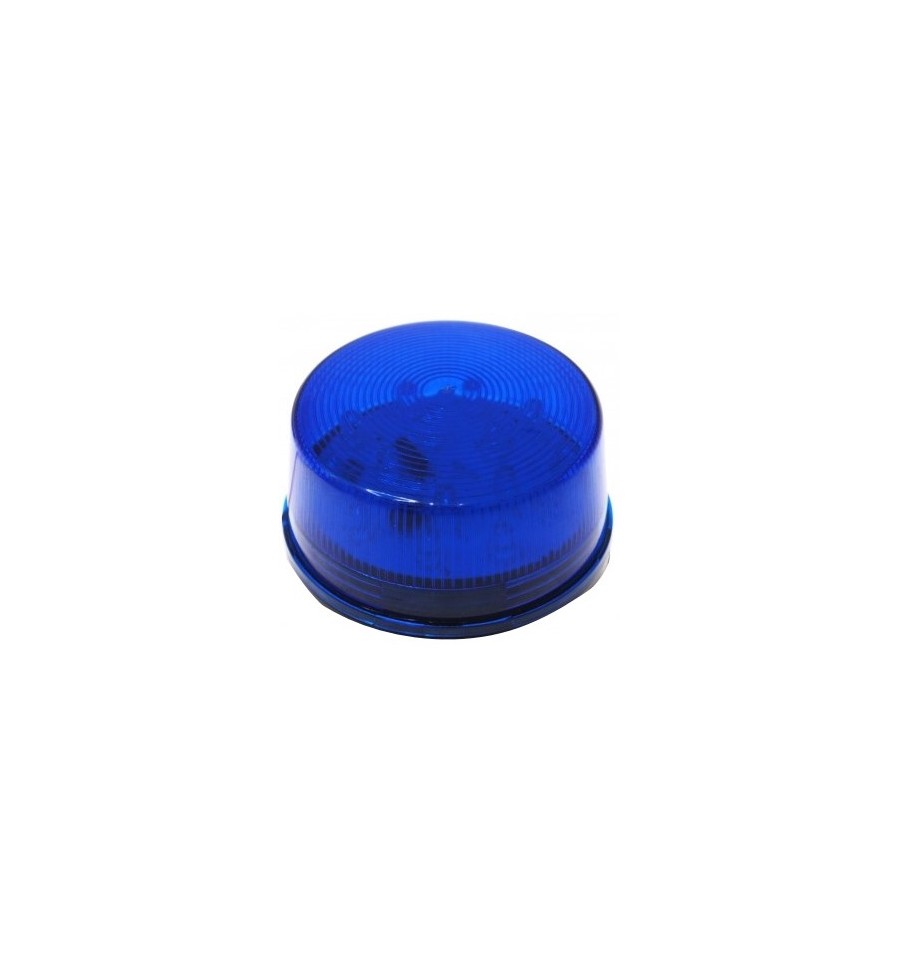

Flashing Strobe
- Colour: Blue
- Voltage: 9–12 V DC
- Diameter: 75 mm
- Depth: 55 mm
