Premium Swiveling Gate with Automatic Pin Latch, Hot-Dip Galvanized Steel Construction for Secure Access Control

Product Overview

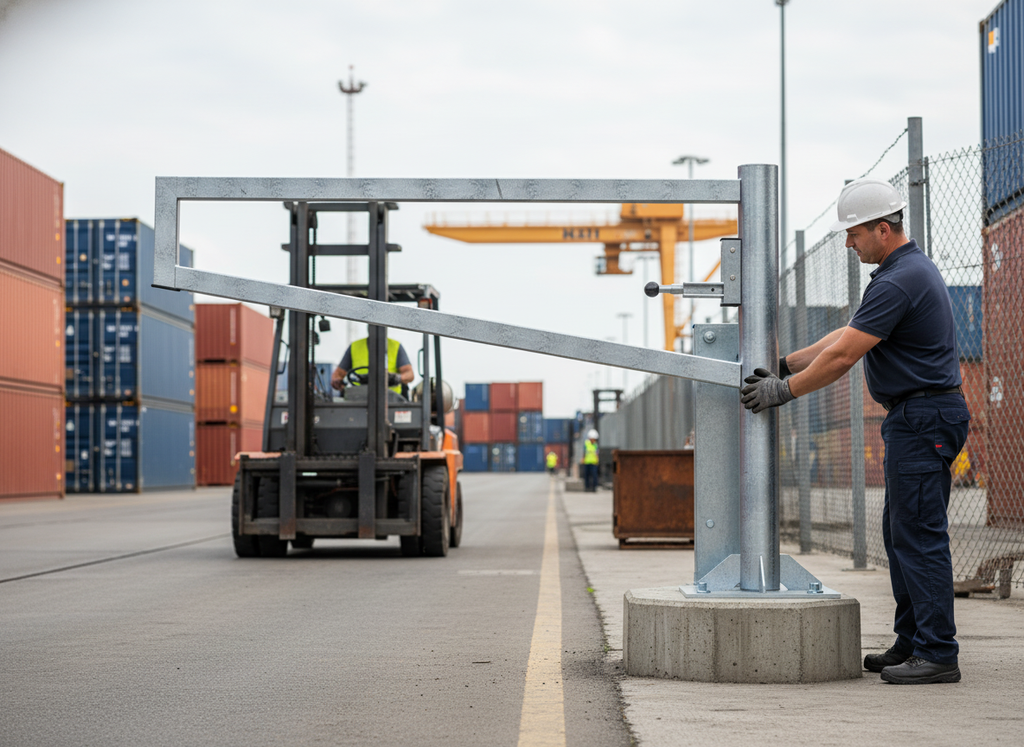

These swiveling gates provide a dependable and adaptable solution for restricting access to roads, industrial areas, construction sites, and pedestrian zones. Designed for smooth horizontal movement, the gate operates without the need for a supporting post, offering maximum clearance and easy handling.

The robust pin-latching mechanism automatically locks the gate in four positions (every 90°), ensuring secure and safe operation. Depending on security level, the gate can be configured for a padlock, triangular lock (DIN 3223), or Euro profile cylinder lock.

Constructed entirely from hot-dip galvanized steel, the gate offers excellent resistance to corrosion and long-term outdoor durability. Multiple installation versions are available—including plug fixing and concrete casting—each with optional reflective markings for increased visibility.

Design & Construction

• Horizontally swiveling gate

• No supporting post required

• Automatic pin latch locking in 4 positions (every 90°)

• Swiveling post: Steel tube Ø 102 mm

• Barrier arm: Steel tube 60 × 40 mm

• Height: Approx. 950 mm above ground

Installation Options

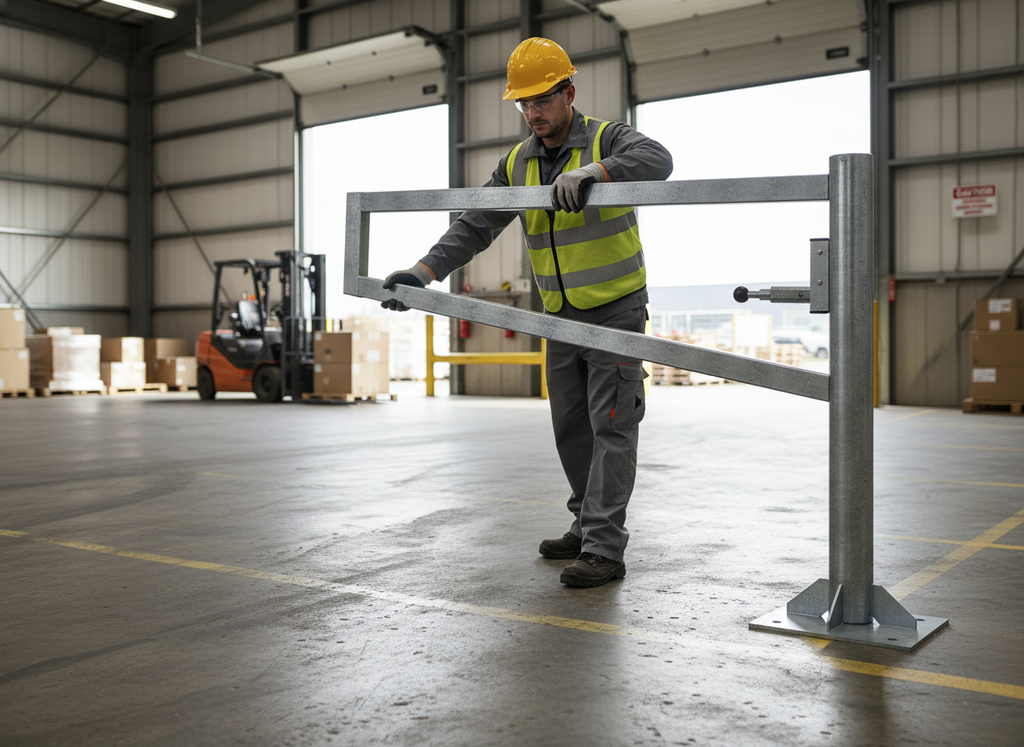

• To be fixed by plugs, hot-dip galvanized

• To be fixed by plugs, hot-dip galvanized and white coated with red reflecting rings

Dimensions & Specifications

Technical Specifications

• Material: Hot-Dip Galvanized Steel
• Locking Mechanism: Automatic pin latch with 4 positions
• Swiveling Post Diameter: 102 mm
• Barrier Arm Dimensions: 60 × 40 mm

FAQs

• Q: What is the height of the gate?
  A: The gate stands approximately 950 mm above the ground.
• Q: Can the gate be locked?
  A: Yes, it features an automatic pin latch that locks in four positions and can be configured for various locking mechanisms.
• Q: What materials are used in the gate's construction?
  A: The gate is constructed from hot-dip galvanized steel for corrosion resistance and durability.
