Description
Product Overview

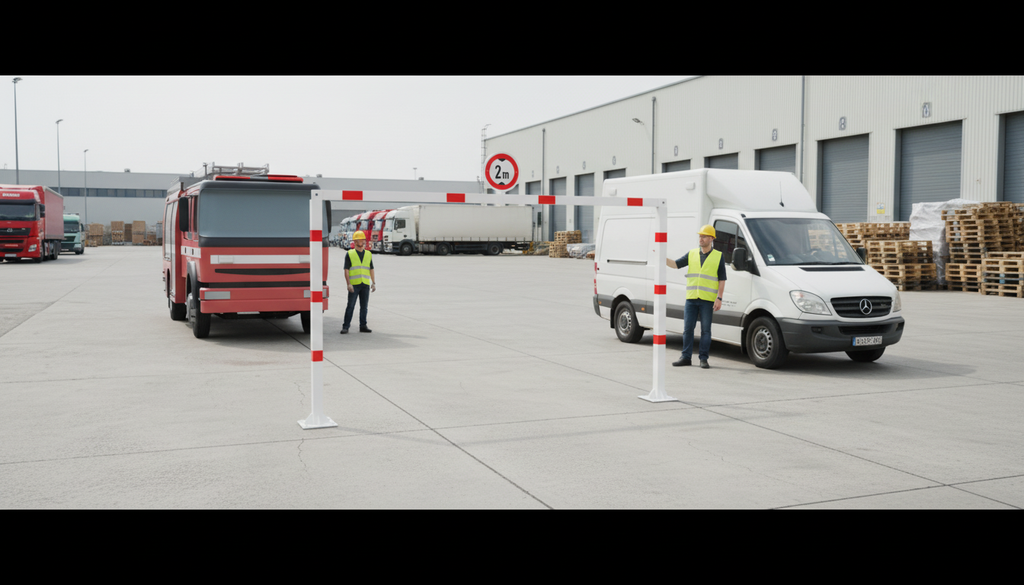

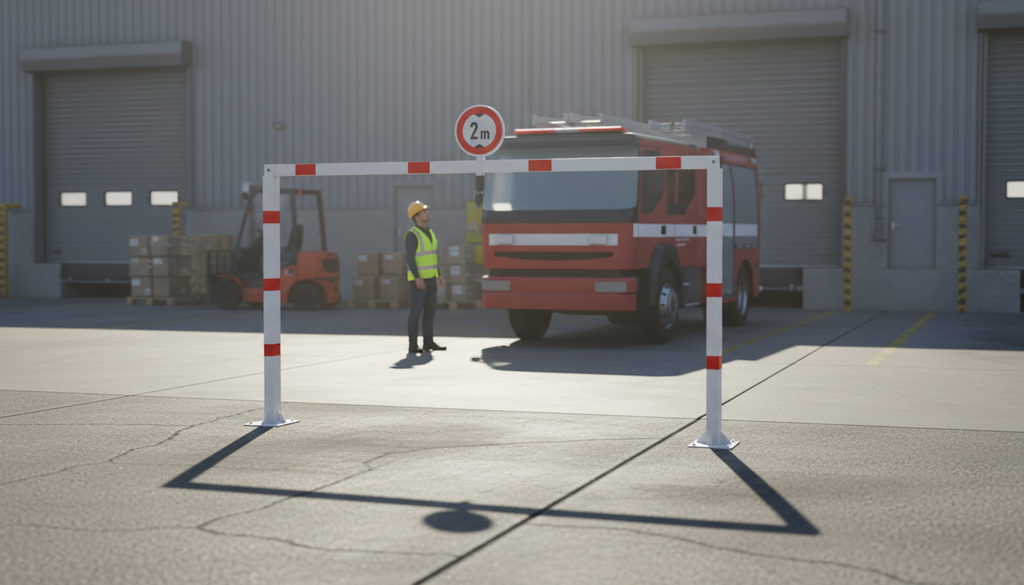

This stationary height restriction barrier is designed to prevent vehicles exceeding the permitted clearance height from passing through. The construction is made from hot-dip galvanized steel pipe, ensuring excellent corrosion resistance and long service life. The barrier is finished in white with red reflective stripes, providing clear visibility in both daylight and low-light conditions.
The barrier is intended for cast-in concrete installation, making it ideal for permanent installations at parking facilities, loading zones, industrial sites, and restricted access areas.
⚠️ Note: Traffic signs are not included and must be ordered separately.
Recommendation: Install a traffic sign indicating the maximum clearance height (not included).
Other height and width dimensions are available on request.
Specifications
- Product type: Height restriction barrier
- Design: Stationary / Fixed
- Material: Steel pipe
- Surface treatment: Hot-dip galvanized
- Finish: White coating with red reflective stripes
-
Profile size:
- 100 × 100 mm
- 70 × 70 mm
- Clear height: 2000 mm (70x70mm posts) - 2300 mm (100x100mm posts)
- Total width options: Available upon request
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Length | 3000–6000 mm |
| Clear Height (70x70mm posts) | 2000 mm |
| Clear Height (100x100mm posts) | 2300 mm |
FAQ
- What is the maximum clearance height? The maximum clearance height varies depending on the post size: 2000 mm for 70x70mm posts and 2300 mm for 100x100mm posts.
- Is installation included? No, the barrier requires cast-in concrete installation, which is not included.
- Are traffic signs included? No, traffic signs must be ordered separately.
