Description
Product Overview

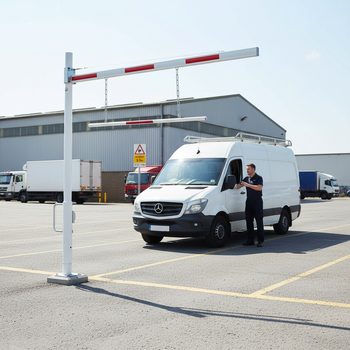

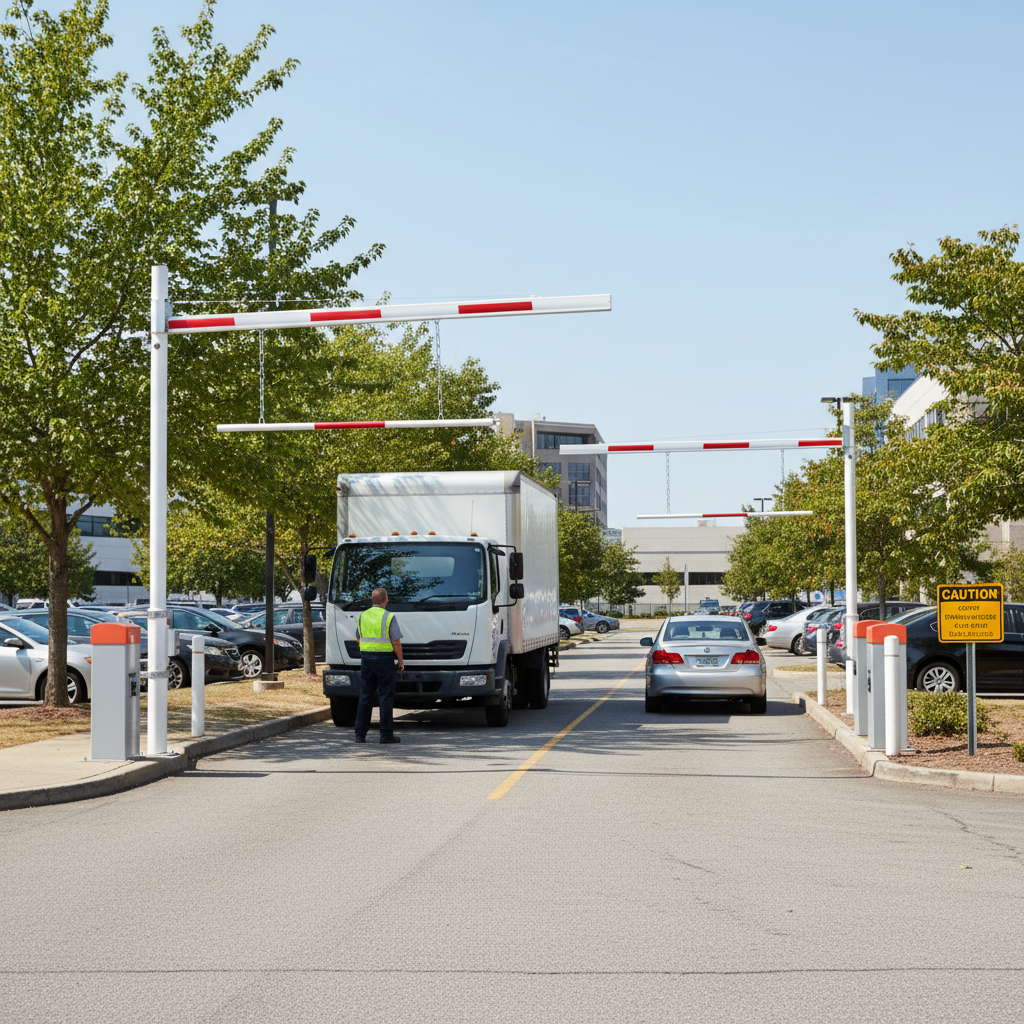

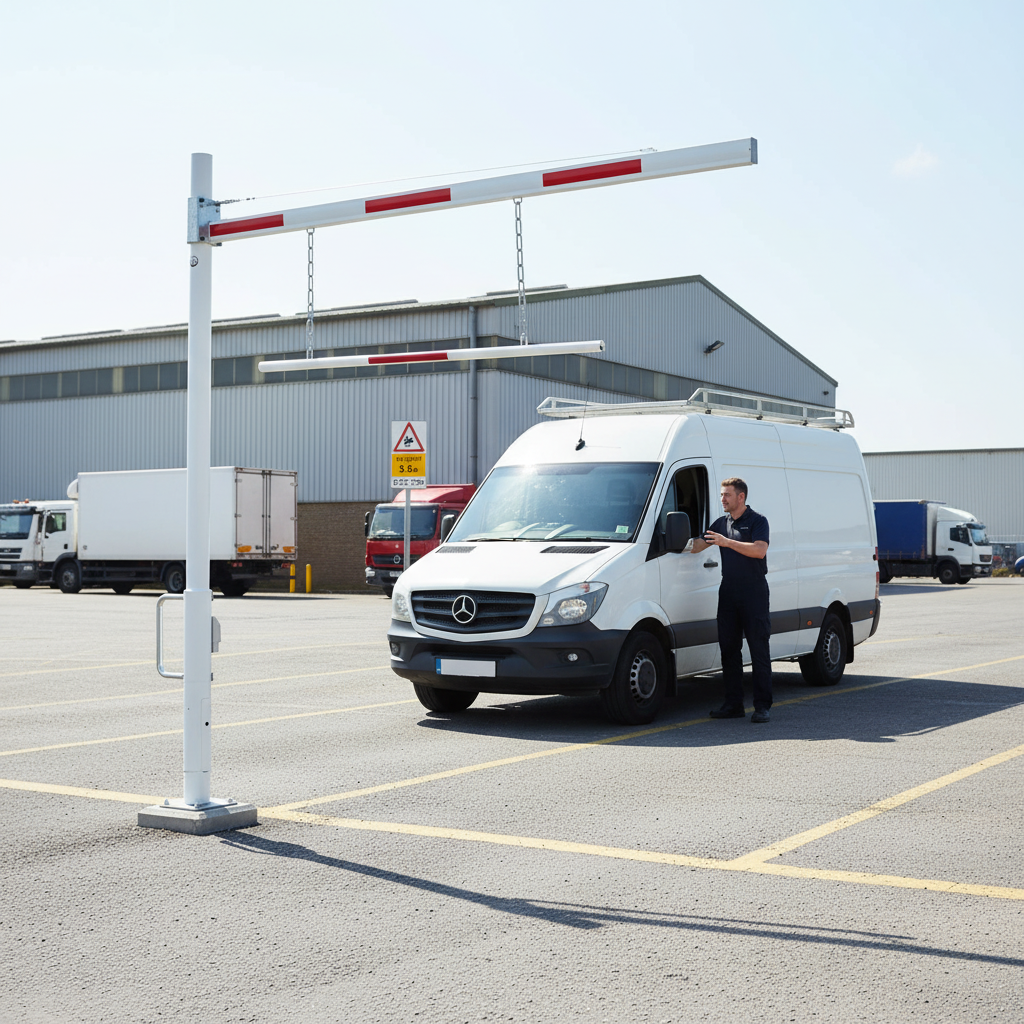

A rotating height restriction barrier with continuously adjustable clearance height, designed for car parks, industrial sites, depots, and service roads where vehicle height control is required. This barrier ensures safety and compliance with height restrictions through its robust design.
Key Features
- Rotating height restriction barrier with adjustable clearance height
- Maximum clearance height options:
- Up to 2.8 m (HBS 50)
- Up to 3.8 m (HBS 54)
- Total system height:
- HBS 50: 3.0 m above ground
- HBS 54: 4.0 m above ground
- Hot-dip galvanised steel components for long-term corrosion protection
- Heavy-duty steel pivot post Ø121 × 4.0 mm
- Aluminium crossbeam 86 × 46 mm with integrated sign/advertising channel
- Cable-reinforced crossbeam for added strength
- Bolt-down installation (base plate mounting)
- Operating height: 0.7 m above ground
- Can be locked with padlock (accessory) or optional fire brigade triangle/profile cylinder lock
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Maximum Clearance Height (HBS 50) | 2.8 m |
| Maximum Clearance Height (HBS 54) | 3.8 m |
| Total System Height (HBS 50) | 3.0 m |
| Total System Height (HBS 54) | 4.0 m |
| Operating Height | 0.7 m |
FAQ
-
What materials are used in the barrier?
It is made from hot-dip galvanised steel and aluminum for durability and corrosion resistance. -
How is the barrier installed?
The barrier features a bolt-down installation with a base plate mounting. -
Is the height adjustable?
Yes, the height can be adjusted to meet specific requirements.
★★★★★
