Professional Heavy Duty Swing Barrier with Pin-Lock System and Reinforced Pull Rope for Secure Access Control

Product Overview

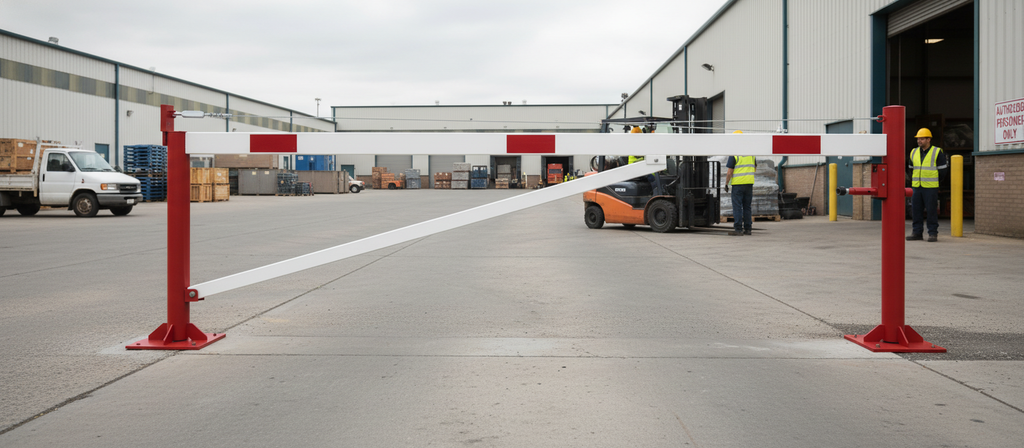

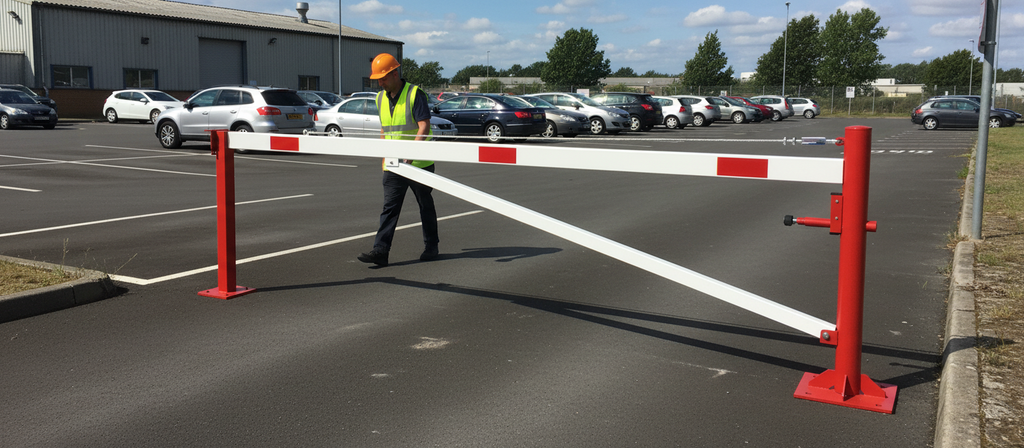

This heavy-duty swing barrier is designed for secure access control in industrial, commercial, and traffic environments. The reinforced pull rope offers improved handling and additional stability, while the horizontal swivelling mechanism allows smooth operation in everyday use.

The barrier features a robust pin-lock system that locks in four positions (every 90°) and can be fitted with a padlock, triangular lock (DIN 3223), or a Euro profile cylinder lock. All steel components are hot-dip galvanized, providing long-lasting corrosion resistance. The aluminum barrier arm includes red reflective stripes for increased visibility.

Ideal for long-term outdoor installation, the barrier is delivered with two supporting posts and is suitable for casting in concrete.

Design & Components

• Swivelling post: Steel tube Ø 102 mm, hot-dip galvanized and red coated
• Barrier arm: Aluminium tube 100 × 50 mm, white coated with red reflective stripes
• Supporting posts (2 pcs): Steel tube 70 × 70 mm, hot-dip galvanized and white coated
• Height: Approx. 950 mm above ground

Operation

• Horizontal swivel function
• Pin locking in 4 positions (90° steps)
• Compatible with locking options:
• Padlock
• Triangular lock (DIN 3223)
• Euro profile cylinder lock

Technical Specifications

FAQs

• What materials are used in the barrier? The barrier is made from hot-dip galvanized steel and aluminum for durability and corrosion resistance.
• Can the barrier be installed outdoors? Yes, it is designed for long-term outdoor installation.
• What locking options are compatible? It is compatible with a padlock, triangular lock (DIN 3223), and Euro profile cylinder lock.
