Overview

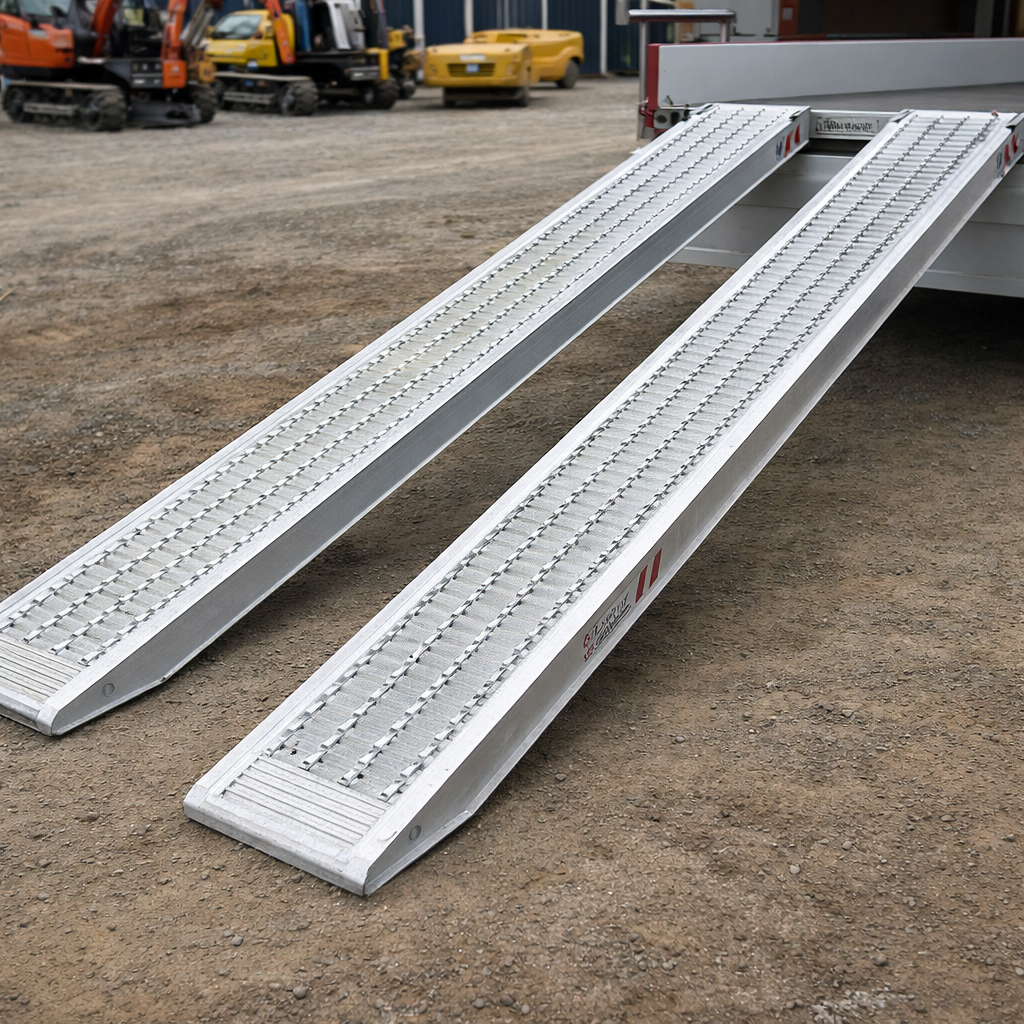

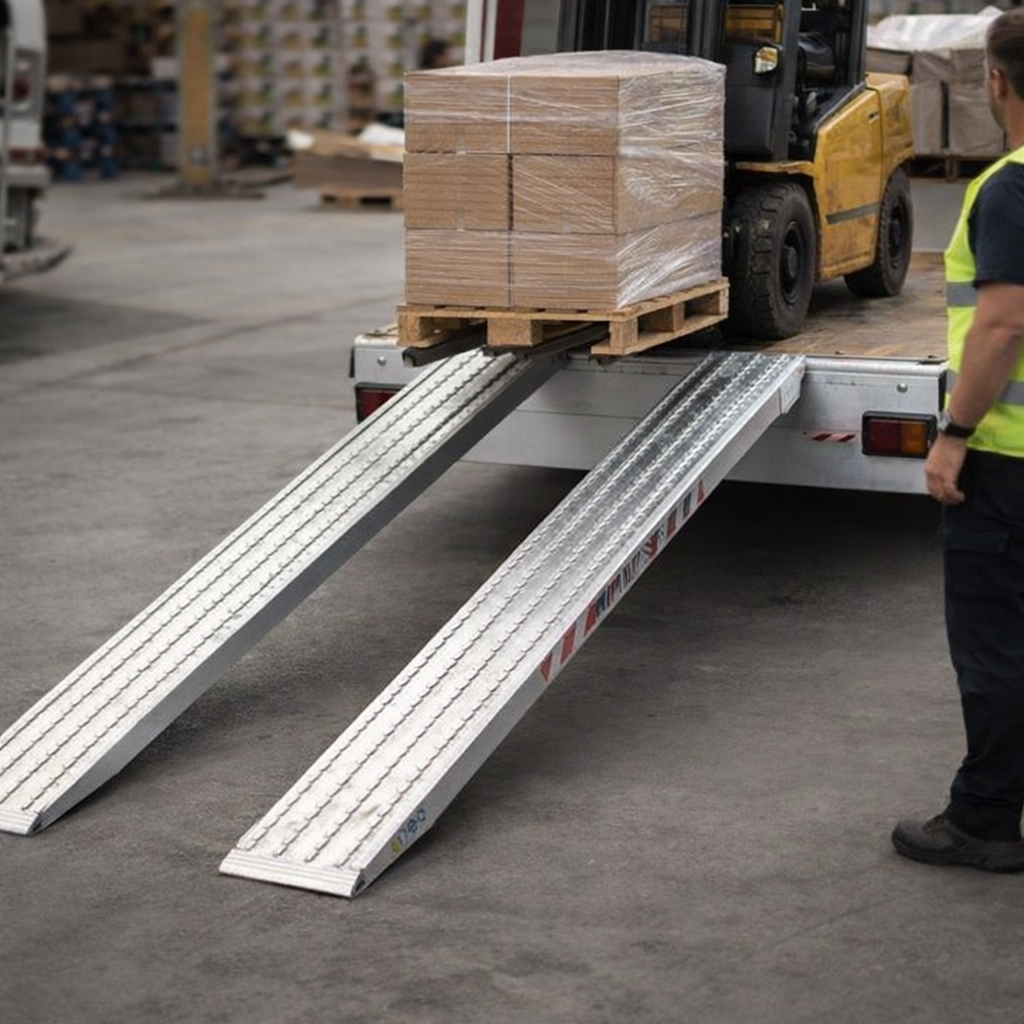

Our heavy duty aluminium loading ramps are engineered for transporting steel tracked vehicles and equipment. These ramps feature a milled surface, ensuring maximum traction and durability for industrial applications.

Features

Flat top design with no external welds
Rest on connection as standard, with alternative options available
Custom load heights can be provided
Special 25/30 surface available for rubber and steel tracked machinery
Fully TUV certified

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	12195
Height of Ramp Profile (mm)	105
Length (mm)	3500
Max Load Height (mm)	1050
Min. Load Height (mm)	900
Weight per Ramp (kg)	80.5
Weight Per Pair (kg)	161
Width (mm)	520
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Capacity Wheelbase 1000mm (kg)	7315
Capacity Wheelbase 1500mm (kg)	9145
Capacity Wheelbase 2000mm (kg)	12195
Colour Option	Black

FAQs

What is the maximum weight capacity?
The ramps can handle up to 12195kg, provided the weight is evenly distributed.

Can the ramps be customised?
Yes, custom load heights and surface options are available.

Are these ramps suitable for rubber tracked machinery?
Yes, the special 25/30 surface is available upon request for such machinery.

★★★★★
