Heavy Duty Aluminium Loading Ramps

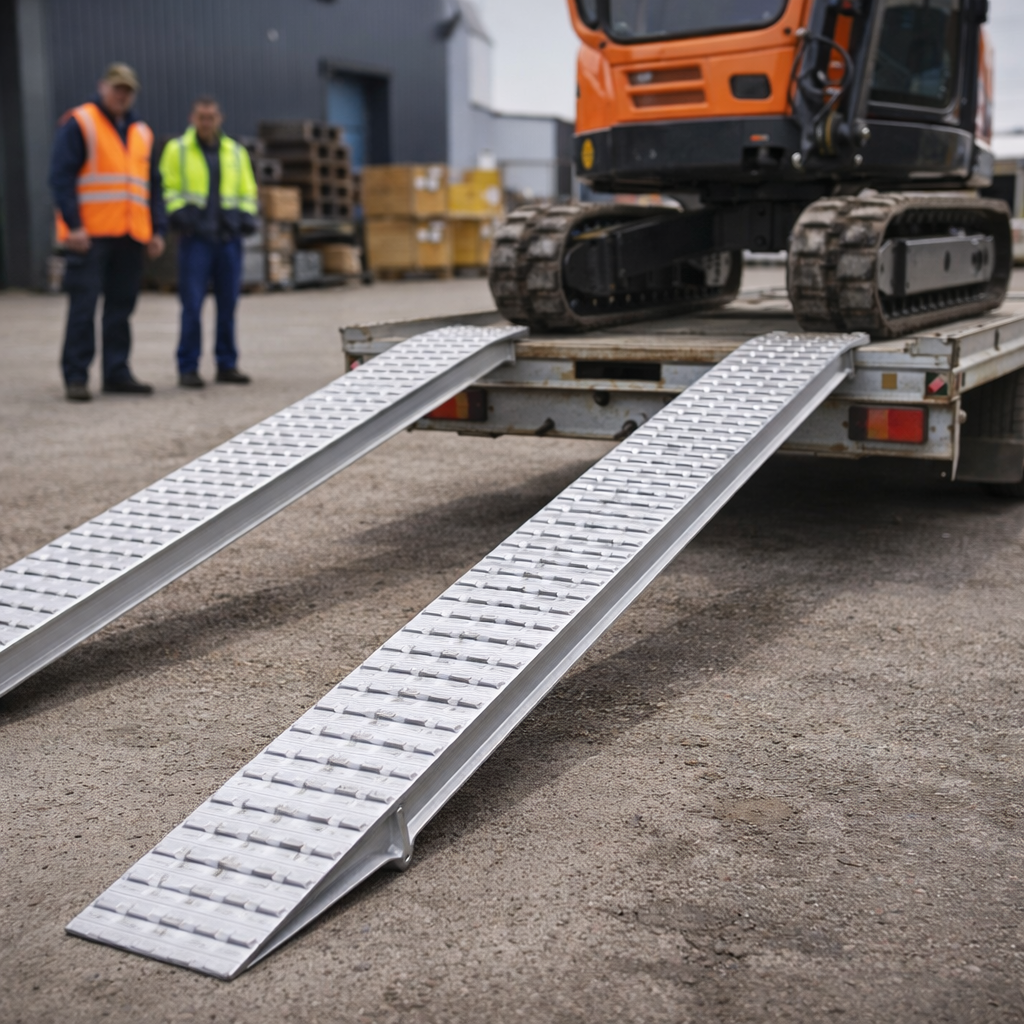

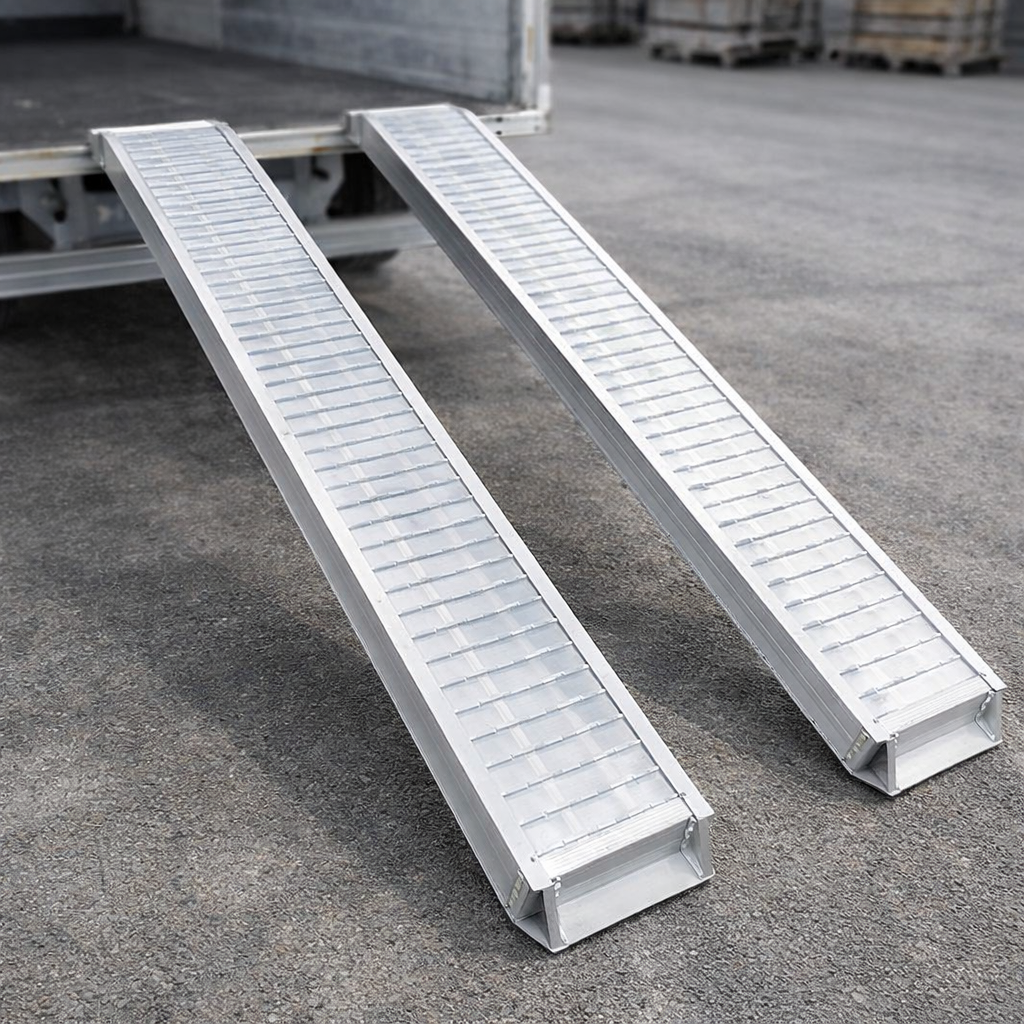

Our heavy duty aluminium loading ramps are engineered for the toughest jobs, designed to accommodate steel tracked vehicles and equipment. Measuring 4500mm in length and 390mm in width, they support loads up to 5485kg.

  • Flat top design with no external welds for enhanced durability.
  • Standard rest on connection with alternative options available.
  • Custom load heights and bespoke ramp quotes upon request.
  • Special 25/30 surface suited for rubber and steel tracked machinery.
  • Note: Maximum weight capacities are valid for vehicles with equally distributed weight.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 5485
Height of Ramp Profile (mm) 105
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 76.5
Weight Per Pair (kg) 153
Width (mm) 390
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1000mm (kg) 3920
Capacity Wheelbase 1500mm (kg) 4575
Capacity Wheelbase 2000mm (kg) 5485
Colour Option Black

FAQs

  • What is the maximum capacity these ramps can support?
    The ramps can support up to 5485kg when weight is equally distributed.
  • Are custom sizes available?
    Yes, custom load heights and bespoke ramp designs are available upon request.
  • Are there different connection options?
    Yes, besides the standard rest on connection, alternative options are available.

Download Spec Sheet
