Description
Product Overview

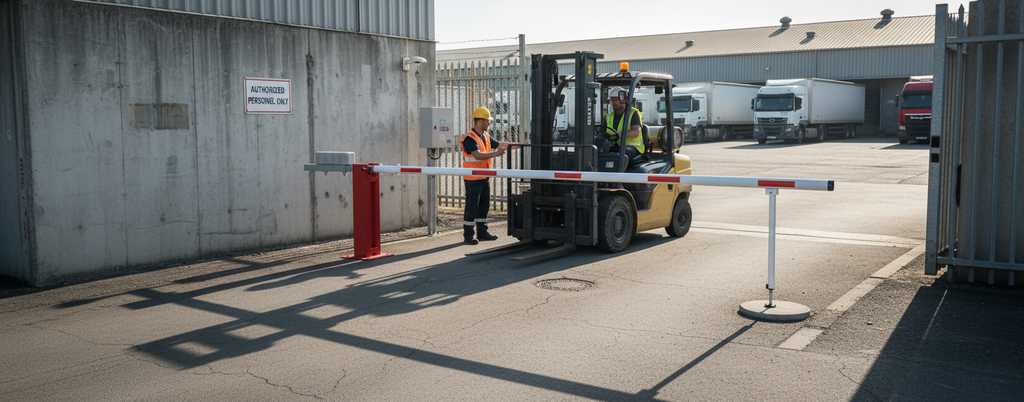

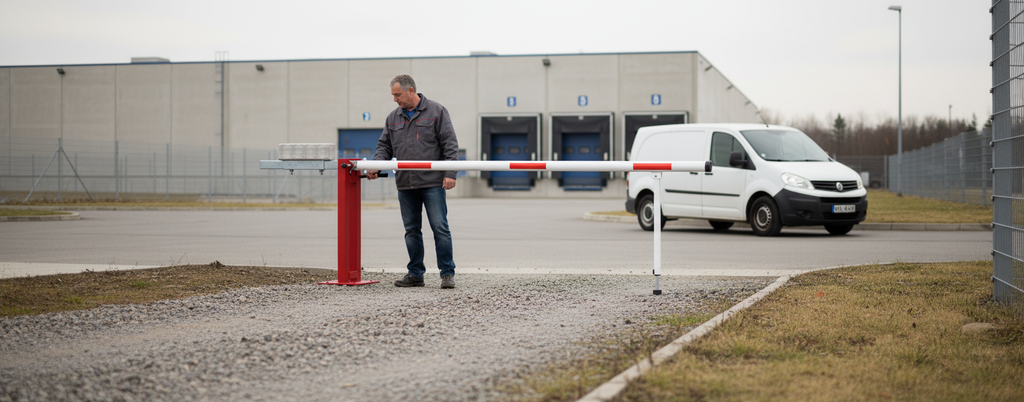

This access barrier with counterweight and swing post offers a durable and practical solution for controlling vehicle access, securing traffic zones, and organizing pedestrian flow. Engineered for smooth operation, the barrier arm is supported by a robust counterweight system that ensures easy lifting and precise balance.
The main support structure is made from hot-dip galvanized steel, providing exceptional resistance to corrosion and long-term outdoor durability. A strong steel base plate with anchoring points ensures stable installation, while the thick-walled aluminium barrier arm delivers high strength with minimal weight. Reflective white/red markings enhance visibility in all lighting conditions.
A locking pin mechanism allows the arm to be securely fixed in the open or closed position, with compatibility for padlock, triangular lock (DIN 3223), or Euro profile cylinder lock.
Construction
-
Main support:
- Steel square tube 70 × 70 mm
- Ground plate 360 × 360 × 8 mm with 4 × Ø 20 mm anchoring holes
- Hot-dip galvanized and powder-coated red
-
Barrier arm:
- Thick-walled aluminium tube Ø 80 mm
- Equipped with counterweight
- Uncoated with white/red reflective stripes
-
Swing post:
- Aluminium tube with foot
- Height: Approx. 950 mm above ground
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Main Support Tube Size | 70 × 70 mm |
| Ground Plate Dimensions | 360 × 360 × 8 mm |
| Barrier Arm Diameter | Ø 80 mm |
| Height Above Ground | Approx. 950 mm |
Technical Specifications
- Material: Hot-dip galvanized steel and thick-walled aluminium
- Finish: Powder-coated red
- Weight: Designed for stability and durability
FAQs
- What locks are compatible with the barrier? The barrier supports padlock, triangular lock (DIN 3223), or Euro profile cylinder lock.
- How can I install the barrier? The barrier includes a strong steel base plate with anchoring points for stable installation.
- Is the barrier visible at night? Yes, it features reflective white/red markings for enhanced visibility in all lighting conditions.
