Extra Wide Aluminium Loading Ramps

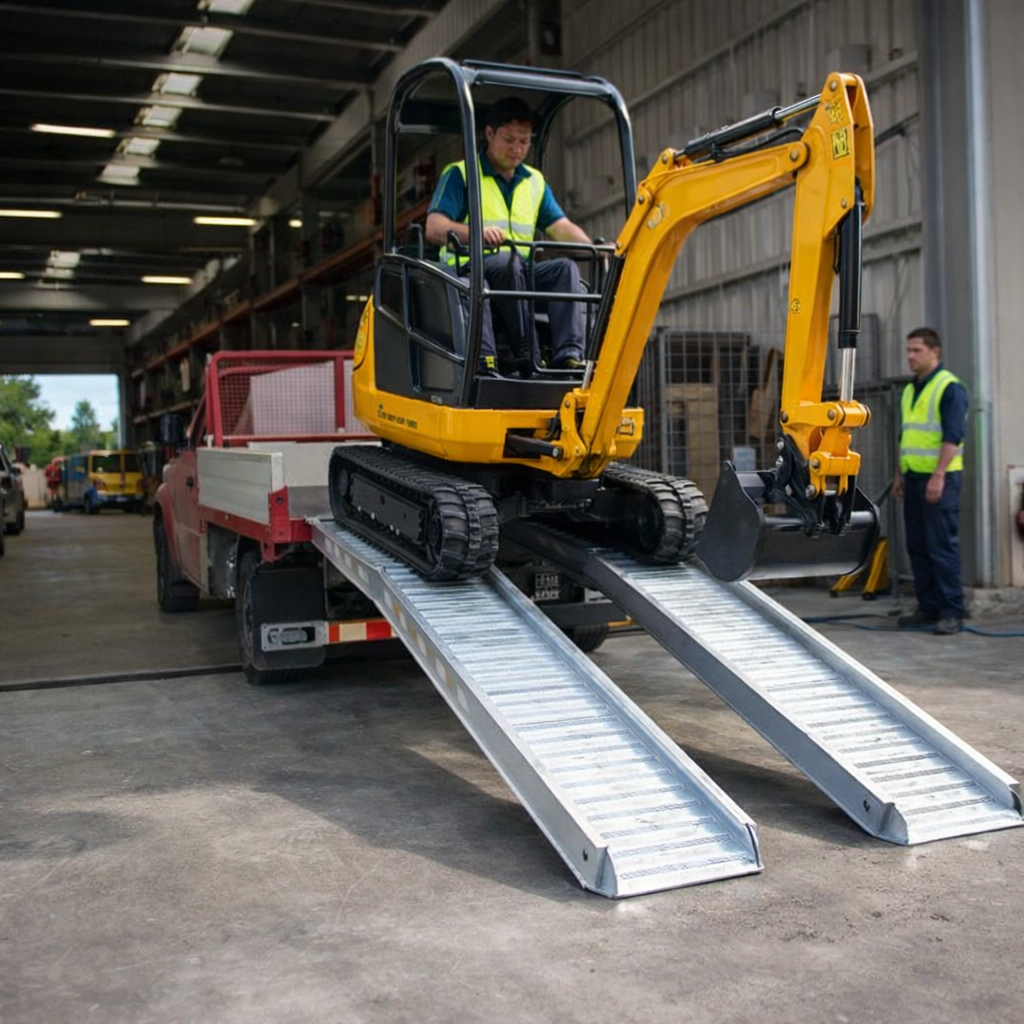

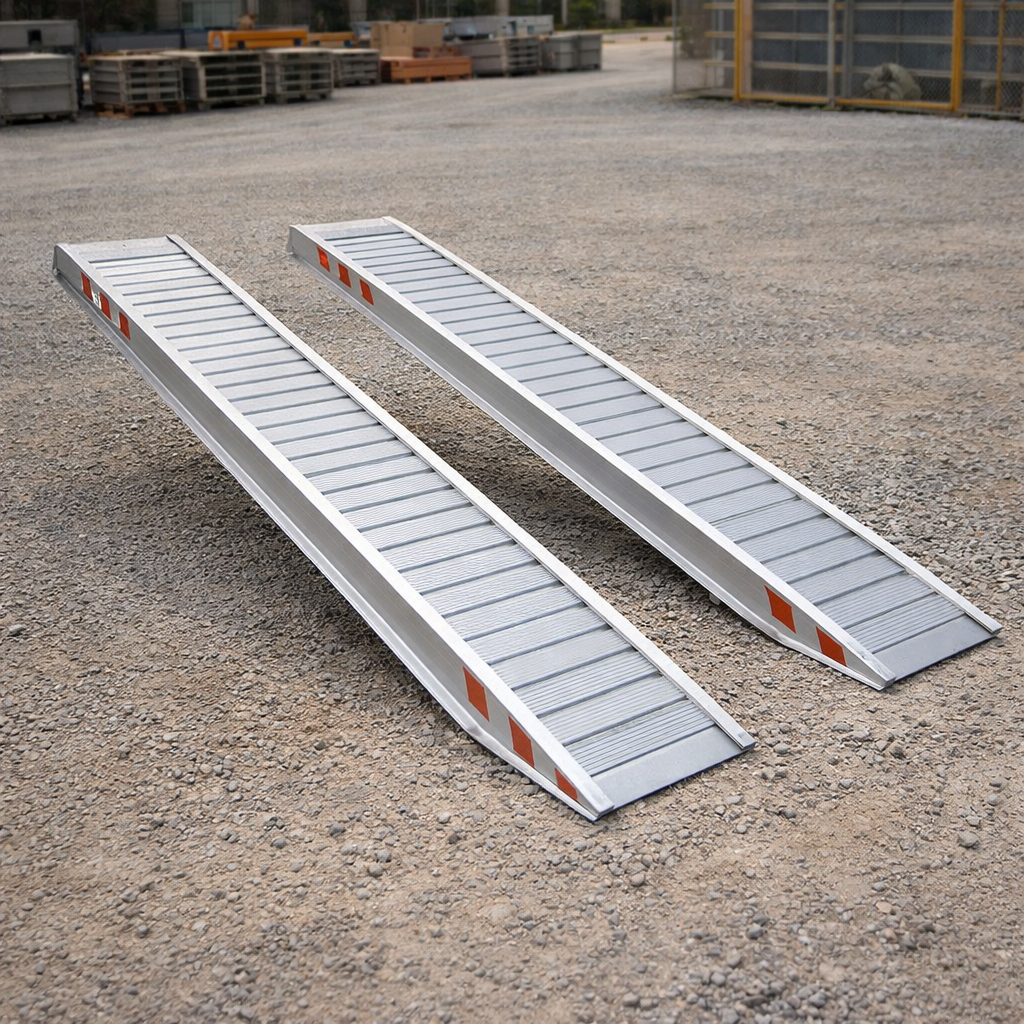

The extra wide aluminium loading ramps are designed to offer high performance and durability for vehicle and lightweight plant equipment applications. With a core profile thickness of 100mm and a width of 400mm, these ramps can support a capacity of up to 1900kg, making them ideal for use as car ramps or lightweight plant ramps. The minimum width of tracks/wheels is 200mm, and these ramps are designed for use at a 30% gradient.

  • Available both with and without edges, with the default being without edges.
  • Four different connection options available, with the default being the rest on connection with a pin.
  • Custom load heights available to suit various requirements.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 1900
Height of Ramps Profile (mm) 100
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 23,5
Weight Per Pair (kg) 47
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1500
Capacity Wheelbase 1250mm (kg) 1680
Capacity Wheelbase 1500mm (kg) 1900
Colour Option Black

FAQs

What is the maximum load capacity of these ramps?

The maximum load capacity is 1900kg.

Are these ramps suitable for solid wheels?

No, these ramps are not suitable for solid wheels found on road surfacing machines.

What are the connection options available?

There are four connection options available, with the default being the rest on connection with a pin.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Extra Wide Aluminium Loading Ramps

The extra wide aluminium loading ramps are designed to offer high performance and durability for vehicle and lightweight plant equipment applications. With a core profile thickness of 100mm and a width of 400mm, these ramps can support a capacity of up to 1900kg, making them ideal for use as car ramps or lightweight plant ramps. The minimum width of tracks/wheels is 200mm, and these ramps are designed for use at a 30% gradient.

  • Available both with and without edges, with the default being without edges.
  • Four different connection options available, with the default being the rest on connection with a pin.
  • Custom load heights available to suit various requirements.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 1900
Height of Ramps Profile (mm) 100
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 23,5
Weight Per Pair (kg) 47
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1500
Capacity Wheelbase 1250mm (kg) 1680
Capacity Wheelbase 1500mm (kg) 1900
Colour Option Black

FAQs

What is the maximum load capacity of these ramps?

The maximum load capacity is 1900kg.

Are these ramps suitable for solid wheels?

No, these ramps are not suitable for solid wheels found on road surfacing machines.

What are the connection options available?

There are four connection options available, with the default being the rest on connection with a pin.

★★★★★
