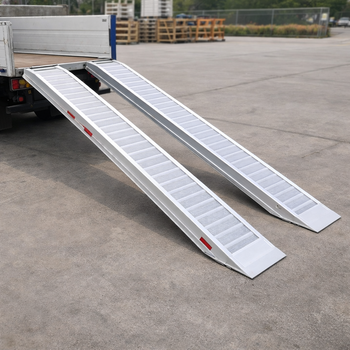

Extra Wide Aluminium Ramps – 2500x460mm – 10000kg Capacity – Industrial Use
Extra Wide Aluminium Ramps – 2500x460mm – 10000kg Capacity – Industrial Use
Roll over image to zoom in Click on image to zoom
Extra Wide Aluminium Ramps – 2500x460mm – 10000kg Capacity – Industrial UseExtra Wide Aluminium Ramps – 2500x460mm – 10000kg Capacity – Industrial Use

Extra Wide Aluminium Ramps – 2500x460mm – 10000kg Capacity – Industrial Use

£2,760.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Extra Wide Aluminium Loading Ramps

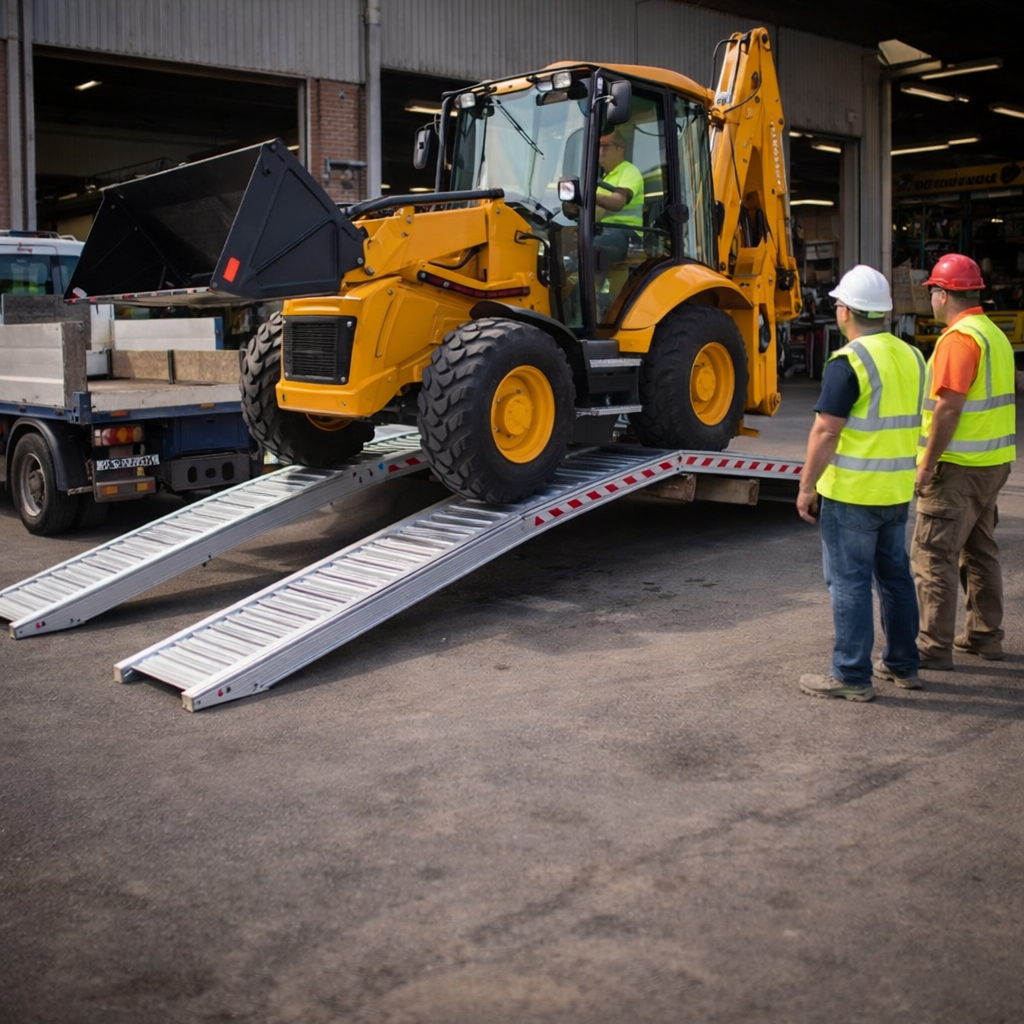

Our high-performance extra wide aluminium loading ramps are designed for medium to heavy-duty applications. With a substantial capacity of up to 10000kg, these ramps are perfect for plant equipment, diggers, and tele-handlers.

  • Core profile thickness of 150mm
  • Width of 460mm
  • Suitable for tracks/wheels with a minimum width of 300mm
  • Not designed for use over a 30% gradient
  • Available with or without edges
  • Four connection options; default is rest-on connection
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 10000
Height of Ramps Profile (mm) 150
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 34.5
Weight Per Pair (kg) 69
Width (mm) 460
Minimum Track Width (mm) 300
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6,870
Capacity Wheelbase 1500mm (kg) 10,000
Capacity Wheelbase 2000mm (kg) 10,000
Colour Option Black

FAQs

Q: Are these ramps customisable?
A: Yes, custom load heights and connection options are available.

Q: Can these ramps support solid wheels?
A: No, these ramps are not suitable for solid wheels found on road surfacing machines.

Q: What is the warranty period for these ramps?
A: These ramps come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
