Product Overview

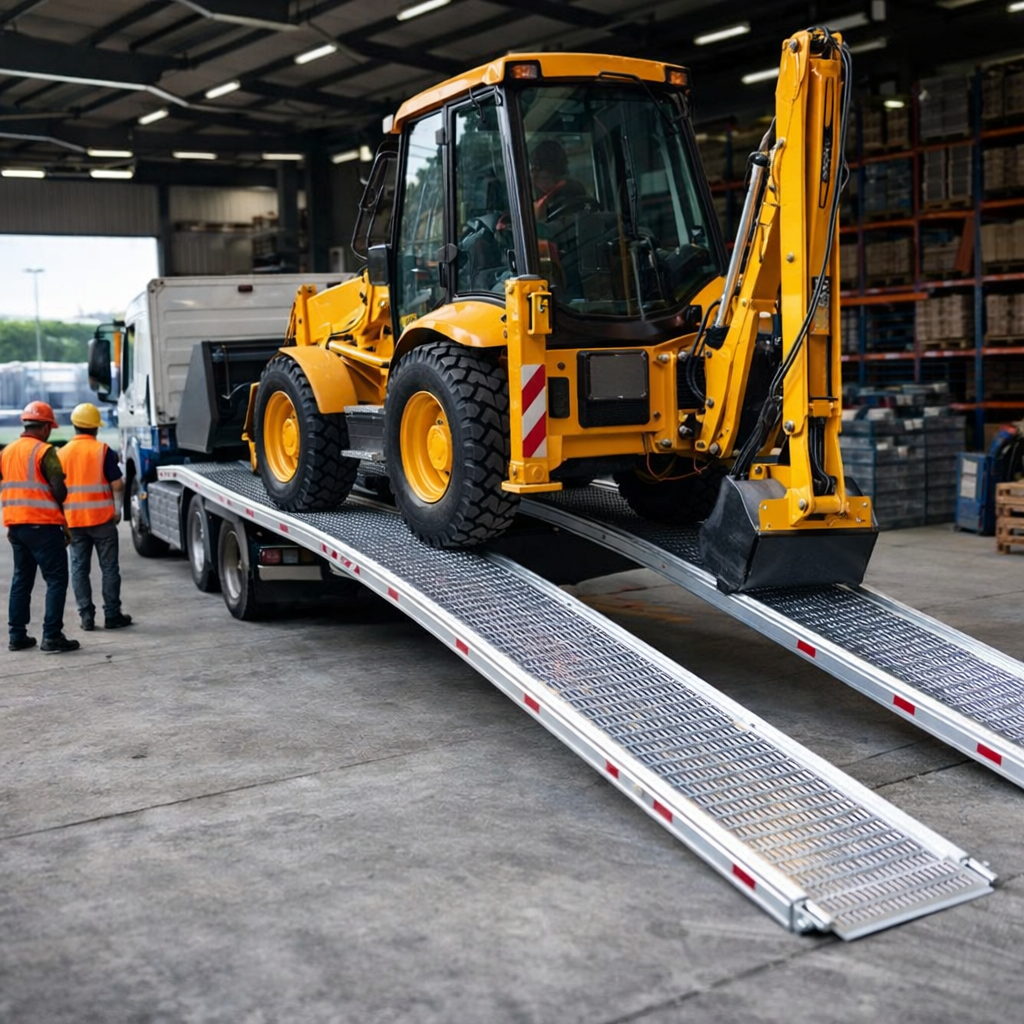

Our extra wide aluminium loading ramps offer incredible strength and durability, designed for industrial use. With a profile thickness of 160mm and width of 510mm, these ramps support up to 5060kg, making them perfect for heavy machinery like rubber tracked excavators, tele-handlers, and more.

  • Available with or without edges, with the default being without edges.
  • Four connection options available, with the default being rest on connection.
  • Custom load heights available to suit specific needs.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 5060
Height of Ramps Profile (mm) 160
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 62.5
Weight Per Pair (kg) 125
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3610
Capacity Wheelbase 1500mm (kg) 4210
Capacity Wheelbase 2000mm (kg) 5060
Colour Option Black

FAQs

  • Can these ramps be customised? Yes, custom load heights are available.
  • Are these ramps suitable for all types of wheels? No, they are not suitable for solid wheels found on road surfacing machines.
  • What is the warranty period for these ramps? They come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Product Overview

Our extra wide aluminium loading ramps offer incredible strength and durability, designed for industrial use. With a profile thickness of 160mm and width of 510mm, these ramps support up to 5060kg, making them perfect for heavy machinery like rubber tracked excavators, tele-handlers, and more.

  • Available with or without edges, with the default being without edges.
  • Four connection options available, with the default being rest on connection.
  • Custom load heights available to suit specific needs.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 5060
Height of Ramps Profile (mm) 160
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 62.5
Weight Per Pair (kg) 125
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3610
Capacity Wheelbase 1500mm (kg) 4210
Capacity Wheelbase 2000mm (kg) 5060
Colour Option Black

FAQs

  • Can these ramps be customised? Yes, custom load heights are available.
  • Are these ramps suitable for all types of wheels? No, they are not suitable for solid wheels found on road surfacing machines.
  • What is the warranty period for these ramps? They come with a two-year warranty.
★★★★★
