Extra Wide Aluminium Loading Ramps – 4000x400mm – 1500kg Capacity – Vehicle Access
Extra Wide Aluminium Loading Ramps – 4000x400mm – 1500kg Capacity – Vehicle Access
Roll over image to zoom in Click on image to zoom
Extra Wide Aluminium Loading Ramps – 4000x400mm – 1500kg Capacity – Vehicle AccessExtra Wide Aluminium Loading Ramps – 4000x400mm – 1500kg Capacity – Vehicle Access

Extra Wide Aluminium Loading Ramps – 4000x400mm – 1500kg Capacity – Vehicle Access

£2,388.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

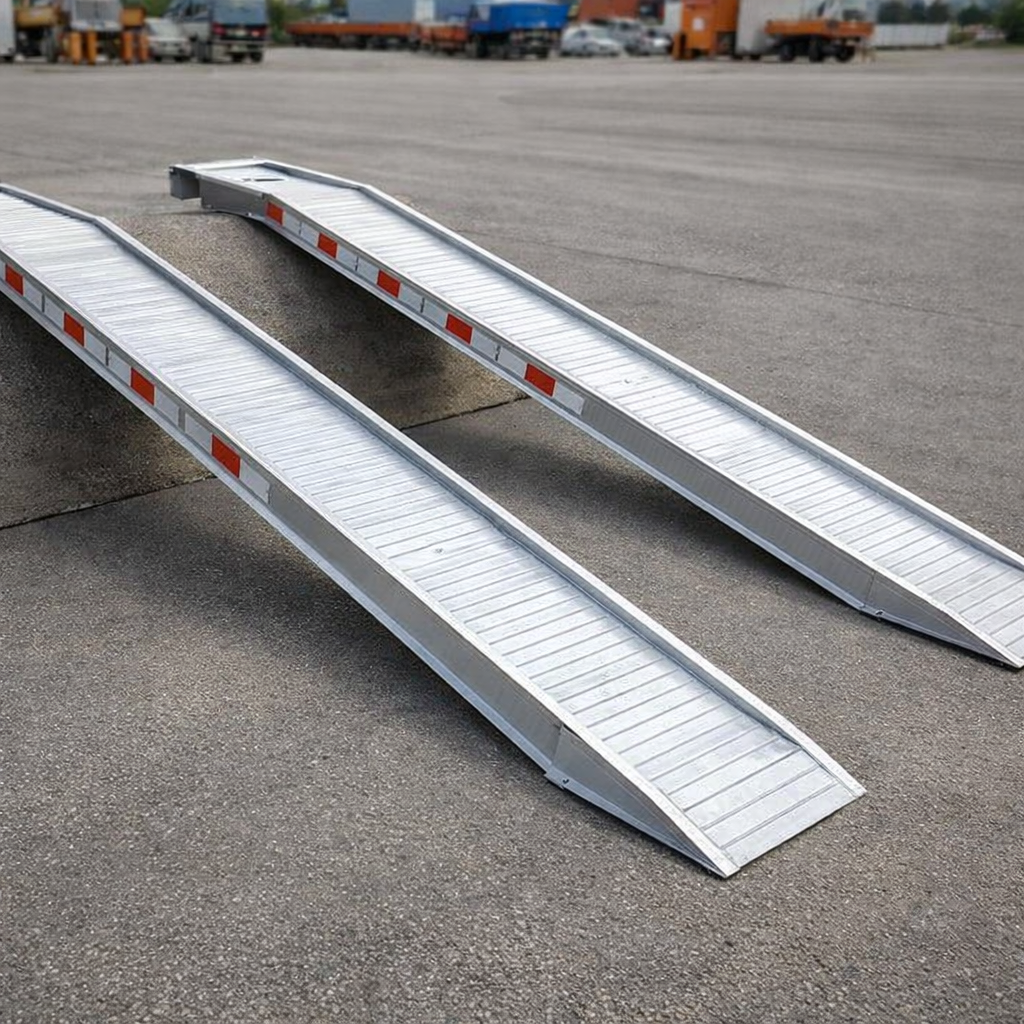

Extra Wide Aluminium Loading Ramps

Our high-performance aluminium loading ramps are designed for optimal vehicle access, boasting impressive specifications for a variety of applications.

  • Core profile thickness: 100mm
  • Width: 400mm
  • Load capacity up to 1500kg

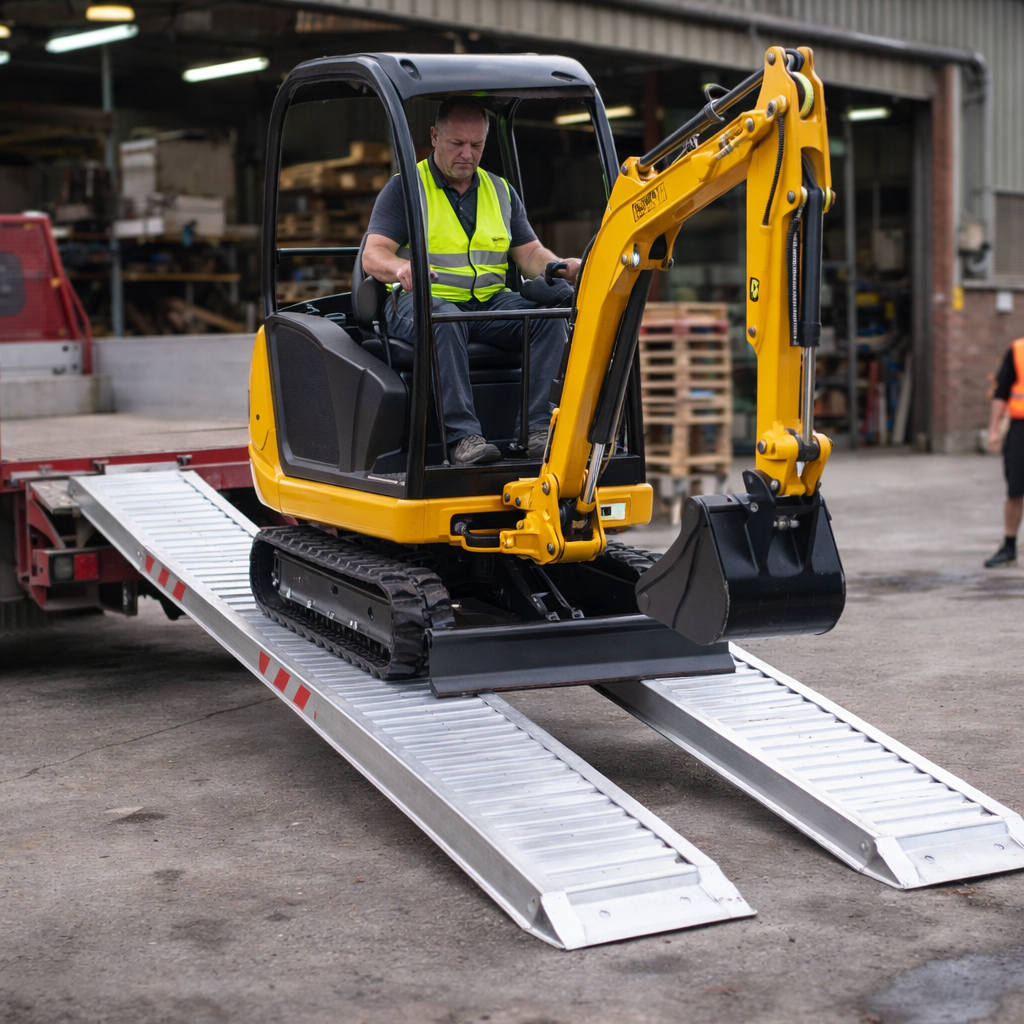

  • Suitable for car ramps and lightweight plant ramps
  • Minimum track/wheel width: 200mm
  • Designed for use at a 30% gradient

These ramps are available with or without edges, with the default being without edges. Choose from four connection options, with the default being a rest-on connection with a pin, ideal for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is recommended. Custom load heights are available upon request.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 1500
Height of Ramps Profile (mm) 100
Length (mm) 4000
Max Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight per Ramp (kg) 27
Weight Per Pair (kg) 54
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1250
Capacity Wheelbase 1250mm (kg) 1370
Capacity Wheelbase 1500mm (kg) 1500
Colour Option Black

Frequently Asked Questions

Are these ramps suitable for all vehicles?

These ramps are ideal for a variety of vehicles, including cars and lightweight plant machinery, but not suitable for solid wheels found on road surfacing machines.

What is the maximum load these ramps can handle?

The ramps can handle up to 1500kg, ensuring robust performance for various uses.

Can these ramps be customised?

Yes, custom load heights and connection options are available to suit specific needs.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Extra Wide Aluminium Loading Ramps

Our high-performance aluminium loading ramps are designed for optimal vehicle access, boasting impressive specifications for a variety of applications.

  • Core profile thickness: 100mm
  • Width: 400mm
  • Load capacity up to 1500kg
  • Suitable for car ramps and lightweight plant ramps
  • Minimum track/wheel width: 200mm
  • Designed for use at a 30% gradient

These ramps are available with or without edges, with the default being without edges. Choose from four connection options, with the default being a rest-on connection with a pin, ideal for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is recommended. Custom load heights are available upon request.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 1500
Height of Ramps Profile (mm) 100
Length (mm) 4000
Max Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight per Ramp (kg) 27
Weight Per Pair (kg) 54
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1250
Capacity Wheelbase 1250mm (kg) 1370
Capacity Wheelbase 1500mm (kg) 1500
Colour Option Black

Frequently Asked Questions

Are these ramps suitable for all vehicles?

These ramps are ideal for a variety of vehicles, including cars and lightweight plant machinery, but not suitable for solid wheels found on road surfacing machines.

What is the maximum load these ramps can handle?

The ramps can handle up to 1500kg, ensuring robust performance for various uses.

Can these ramps be customised?

Yes, custom load heights and connection options are available to suit specific needs.

★★★★★
