Product Description

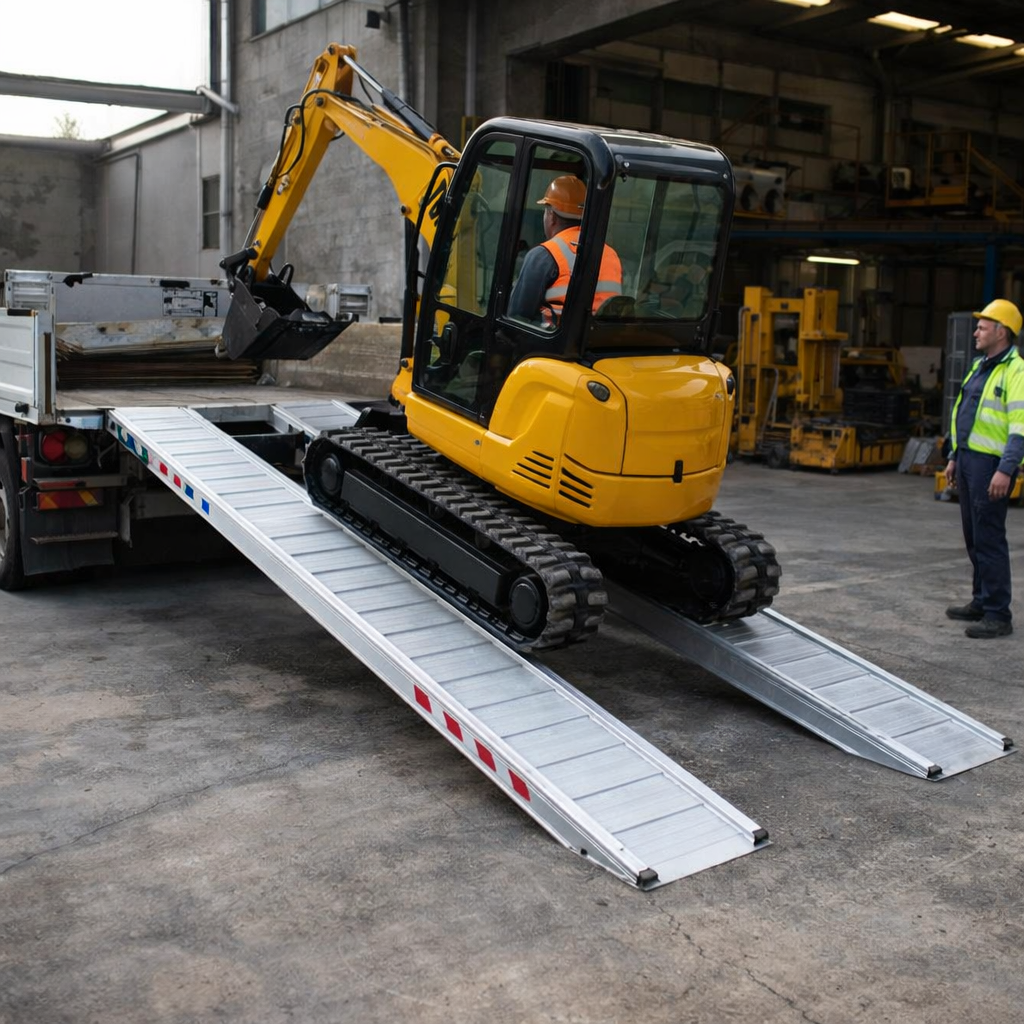

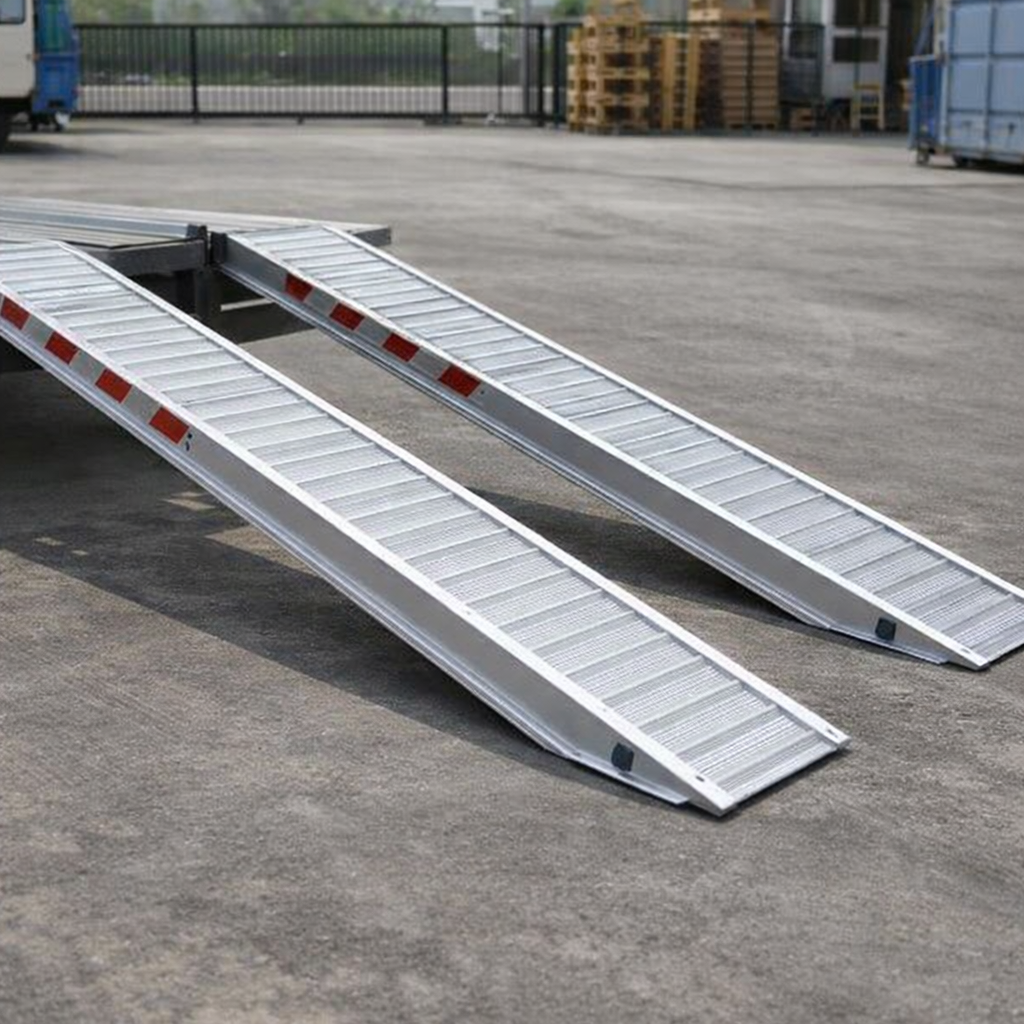

Our heavy-duty aluminium loading ramps are designed for medium to heavy-duty applications, ideal for plant and digger use. Featuring a robust 7000kg capacity, these extra-wide ramps measure 2500x460mm, making them suitable for various machinery, including diggers and tele-handlers.

  • Core profile thickness: 140mm
  • Minimum width of tracks/wheels: 350mm
  • Not designed for use over a 30% gradient
  • Available with or without edges
  • Four connection options; default is rest-on connection
  • Custom load heights available
  • Not suitable for solid wheels on road surfacing machines
  • Fully TÜV certified for safety
  • Quotes for bespoke ramps available on request

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 7000
Height of Ramps Profile (mm) 140
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 29.5
Weight Per Pair (kg) 59
Width (mm) 460
Minimum Track Width (mm) 200
Maximum Track Width (mm) 380
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5540
Capacity Wheelbase 1500mm (kg) 7000
Capacity Wheelbase 2000mm (kg) 7000
Colour Option Black

FAQs

  • Are these ramps suitable for solid wheels? No, these ramps are not suitable for solid wheels found on road surfacing machines.
  • Can these ramps be customised? Yes, custom load heights and bespoke ramp designs are available upon request.
  • What is the warranty on these ramps? These ramps come with a two-year warranty.
