Disabled Toilet Long Range Wireless (800 Metre) Alert System

• Long Range Wireless (800 metre) Disabled Toilet Alert System, comprising of a Wireless Pull Switch & Wireless Receiver.
• Ideal for fitting the Receiver into a nearby Reception area or Office to help monitor the Disabled Toilets.

How it Works:

• If the Pull Switch is activated, a long range Wireless Signal will be transmitted to the 4-channel Indoor Receiver which has a choice of 32 Chimes & Sirens with Volume control (from zero to 85 decibels) and LED Notification.
• You can add up to 15 additional Wireless Pull Switches (or other transmitters) to this Receiver together with unlimited additional Receivers (which could be located in different rooms).
• This is ideal for when you want to monitor the Disabled Toilets from nearby locations.

Wireless Range:

• The Wireless operating range between the Pull Switch & Receiver is an impressive 800 metres (line of sight) which equates to around 400 - 500 metres in most applications.

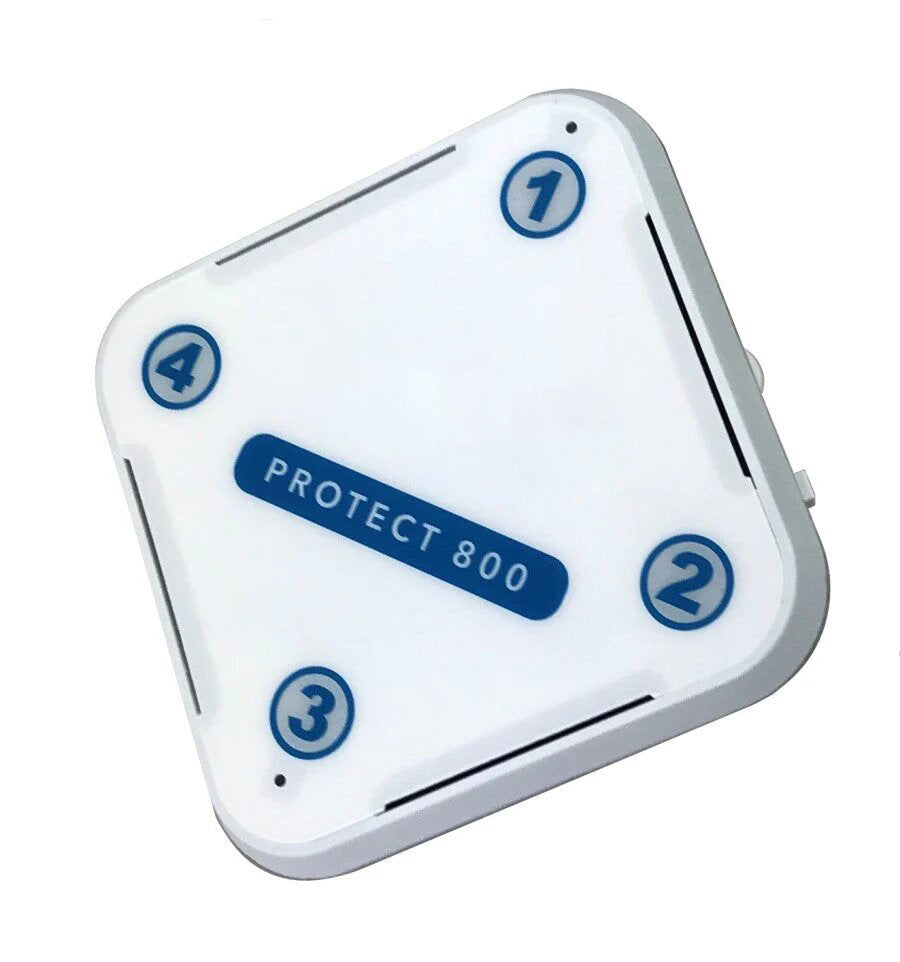

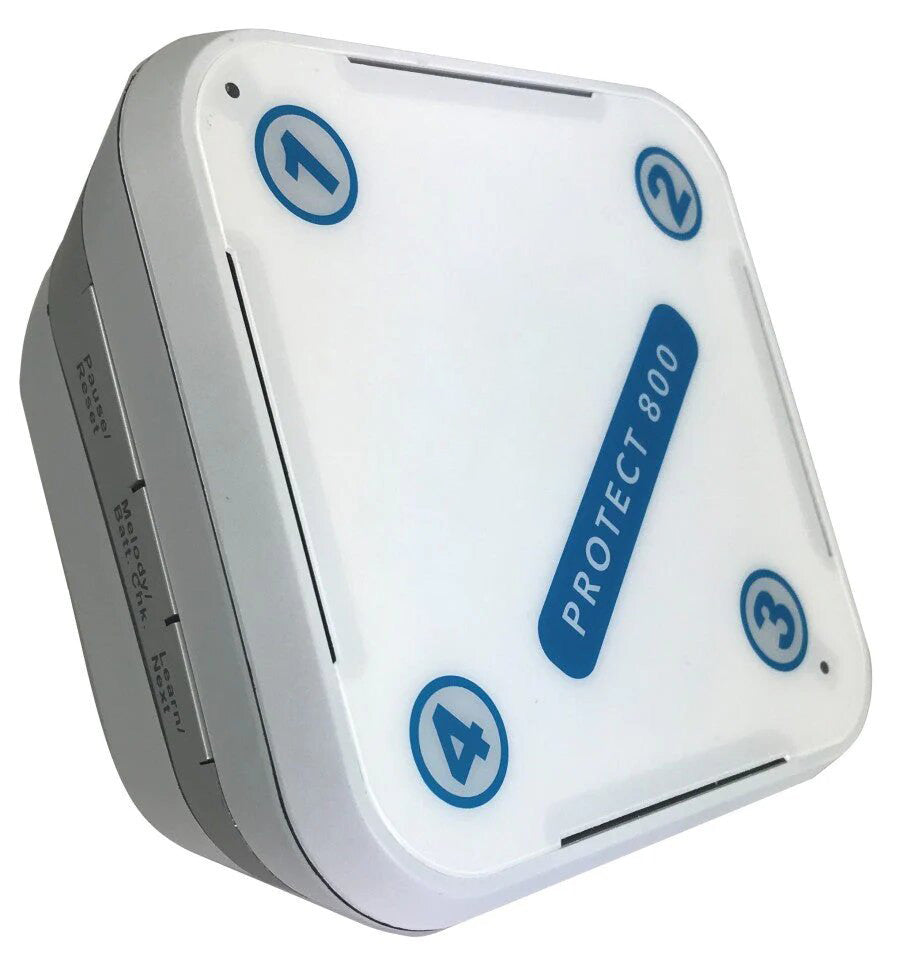

Receiver:

The Wireless Receiver is powered by a plug in transformer (supplied) and has:

• Volume Control (from zero to approximately 85 Decibels depending on which chime is chosen).
• 4 Channel (will indicate which channel has been activated).
• Simple ON/OFF Button.
• 32 Chime Options (can be different with all transmitters).
• 12v DC Output (can be used to trigger Flashing LED's, Siren's, Bells etc).
• 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
• Option to fit AAA Back up Batteries (for applications prone to power cuts).

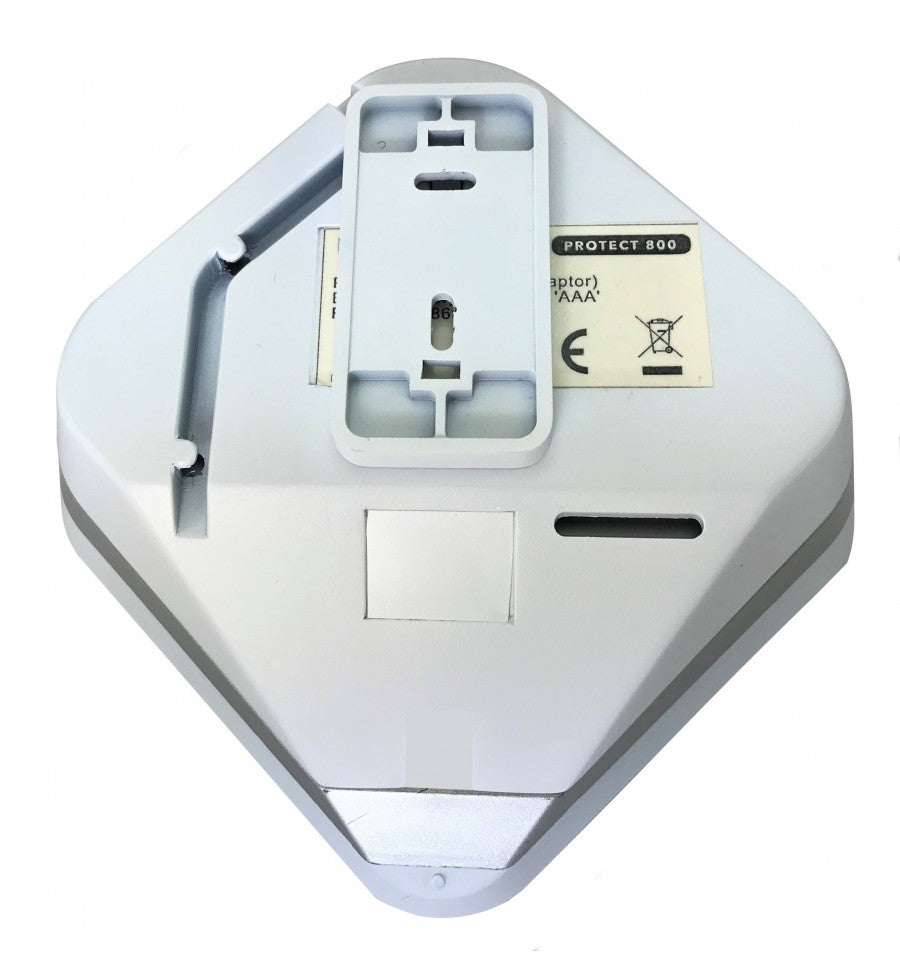

• Can be Wall or Desk Mounted.

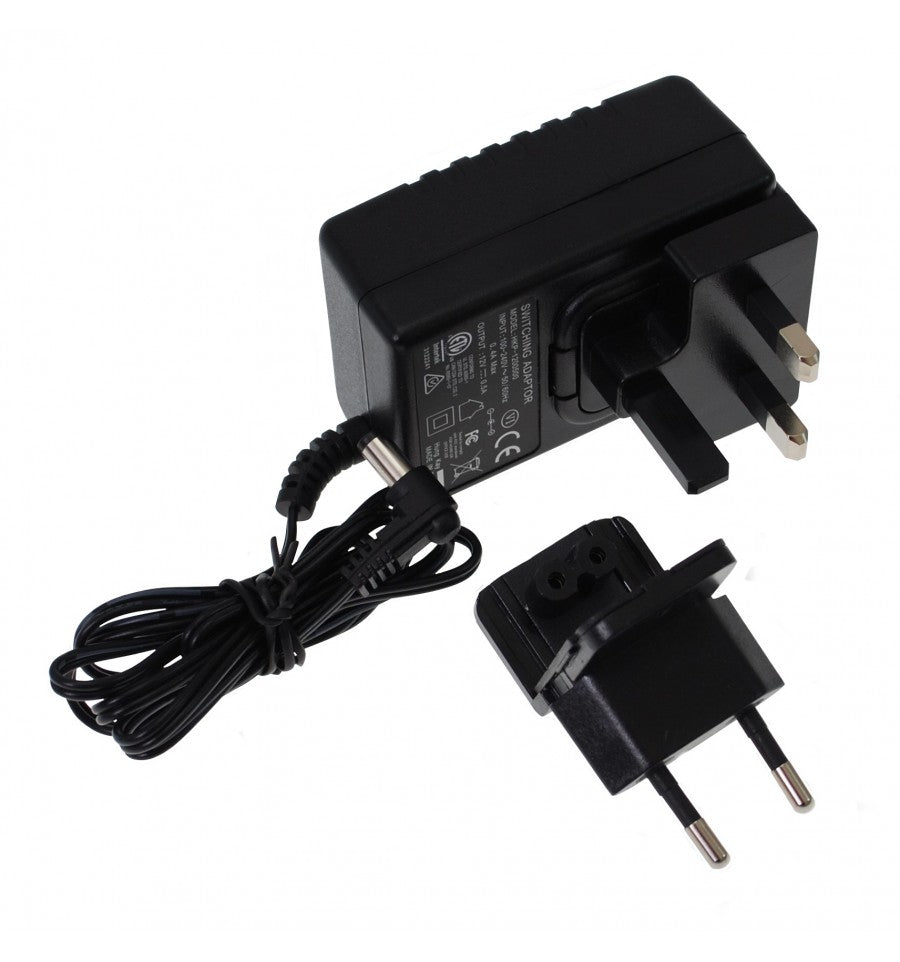

• Mains Powered using a Plug in Transformer (3-pin UK & 2-pin European supplied).
• LED Notification of Loss of Mains Power.
• Low Battery Notification.
• Up to 16 Transmitters could be used.
• Multiple Receivers can be used (no limit).
• Zone Indicator (visual and by chime).
• Dry Relay Outputs (can be used to trigger Diallers, Flashing LED's, Siren's, Bells etc).
• Push Button Check.

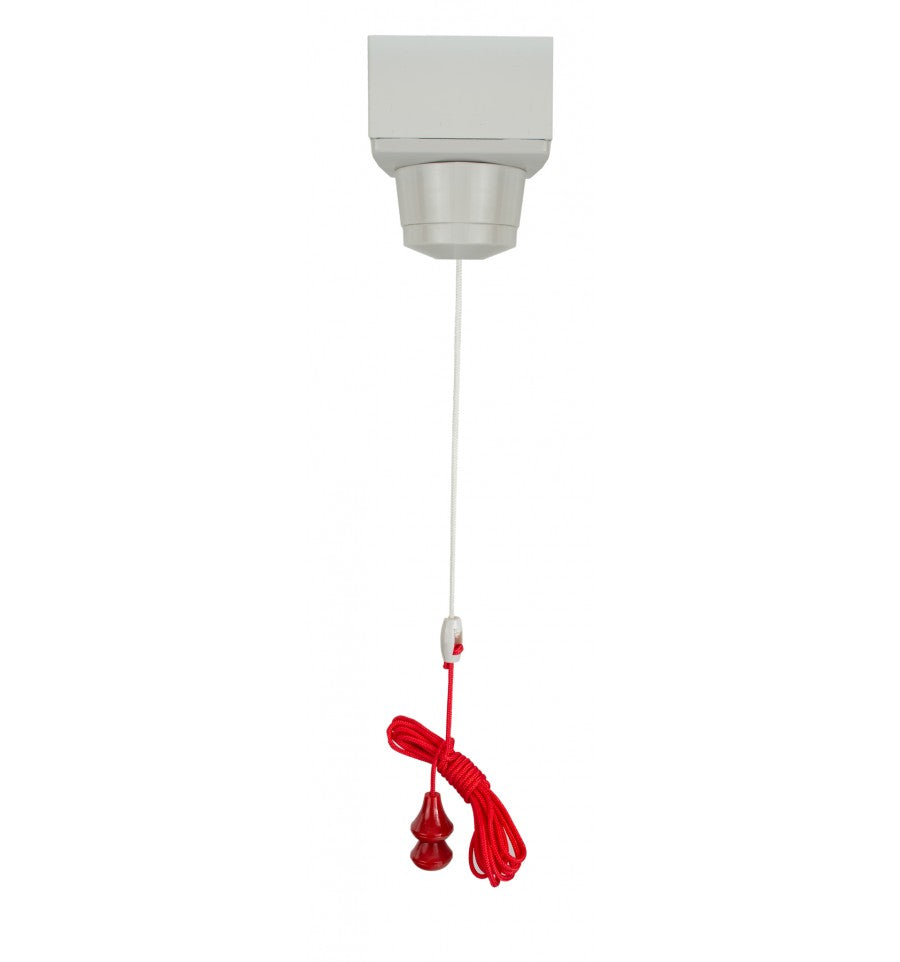

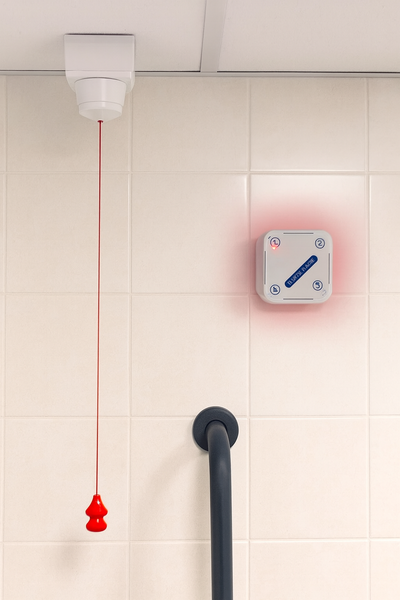

Pull Switch Assembly:

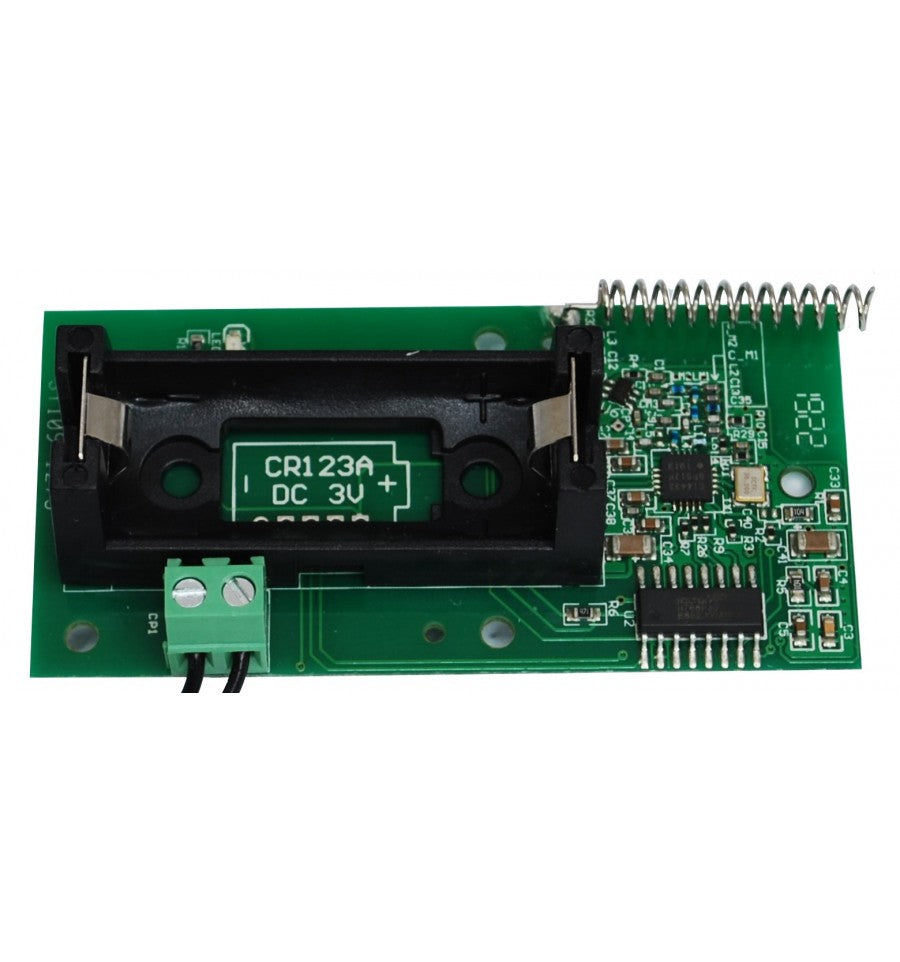

• The Wireless Pull Switch is powered by a built in CR123A Battery (making it very easy to locate) which will operate for between 12 - 18 months in most applications.

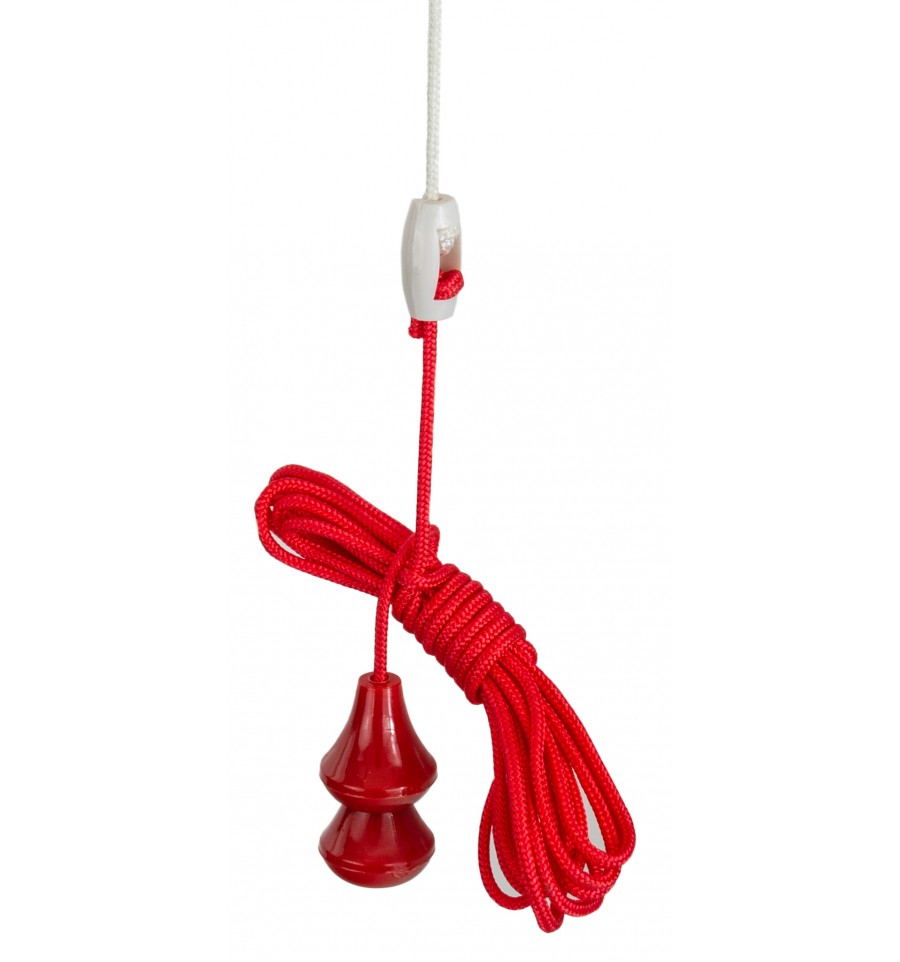

• It is supplied to be ceiling mounted and comes with 2 metres of cord which can easily be shortened to suit the application.
• The maximum number of Pull Cords or other Protect 800 Transmitters that can be used is 16.

Installation:

• The Receiver can be desk or wall mounted and is powered using the transformer supplied into a suitable socket, 4 x AAA batteries can be inserted should you want battery backup.
• The Pull Switch is fitted Firmly onto the Ceiling using suitable fixings (not supplied as surfaces will vary).
• A Disabled Toilet Alert with Long Range Wireless Operation for specific applications.
• If you need further advice, please ASK !!

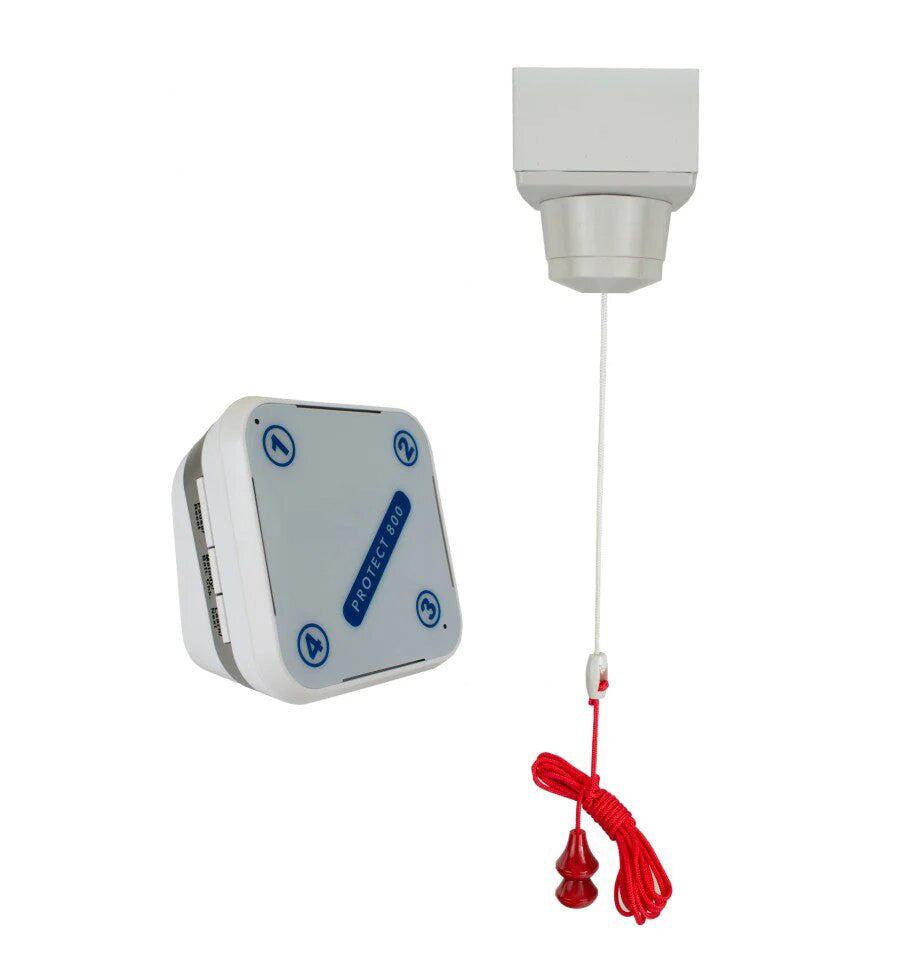

kit Includes:

• 1 x Protect 800 Pull Switch Assembly (009-4220).
• 1 x Protect 800 Receiver (004-4110).

Specifications:

Pull Switch Assembly:

Transmitter:

• Wireless Range: 800 metre (line of sight).
• Power Supply: 1 x 3v Lithium CR123A Battery.
• Battery Life: 12 - 18 months (most applications).
• Size: 65 x 33 x 15 mm.
• Activation Method: Pull Switch.

Pull Switch:

• Size of Assembly Base: 88 (L) x 88 (W) x 100 (D).
• Switch: Momentary.
• Cord Length: 2 metres (can be shortened).

Receiver:

• Wireless Operating Range: 800 metres (line of sight).
• Adjustable Volume: Yes (from low to approximately 85 decibel).
• Melody Options: 32.
• Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
• Battery Back Up: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Maximum Number of Detectors Can Be Used: 16.
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Outputs: 4 (N/O & N/C Momentary).
• 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
• Relay Duration: Momentary.
• Mounting Method: Wall or Desk Mounted.
• PIR Battery Check: Yes.
• Optional Pause Modes: Yes.
• Input Voltage: 12v DC 500 mA.
• Frequency: 869.400 – 869.650.
