Description
The Cantilever GS6 kit is ideal for height restriction in tight spaces. It features a telescopic height of 7.3m and stable base options.
Overview
The Cantilever GS6 kit is designed for situations where space is limited, allowing for height restriction without needing uprights on both sides of the roadway. This makes it particularly useful in narrow areas.
Available with either a steel plate base or a water-fillable metro block, the kit ensures stability, with the metro block variant being tested for wind resistance.
Key Features
- Telescopic upright extends to 7.3 metres
- Top bar length of 1.6 metres
- Base options: steel plate or water-fillable metro block
- MIRA wind tested for stability with metro block
- Compact design suitable for limited space
Applications

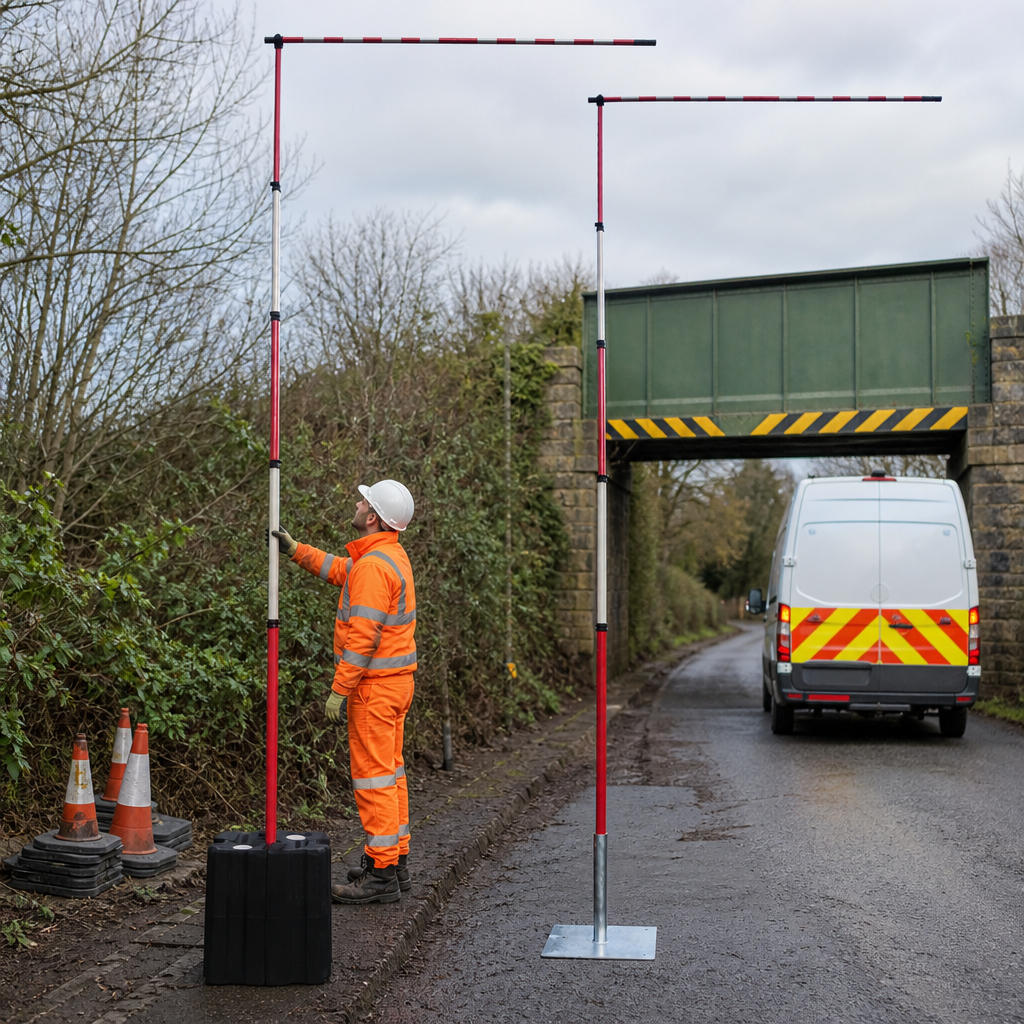

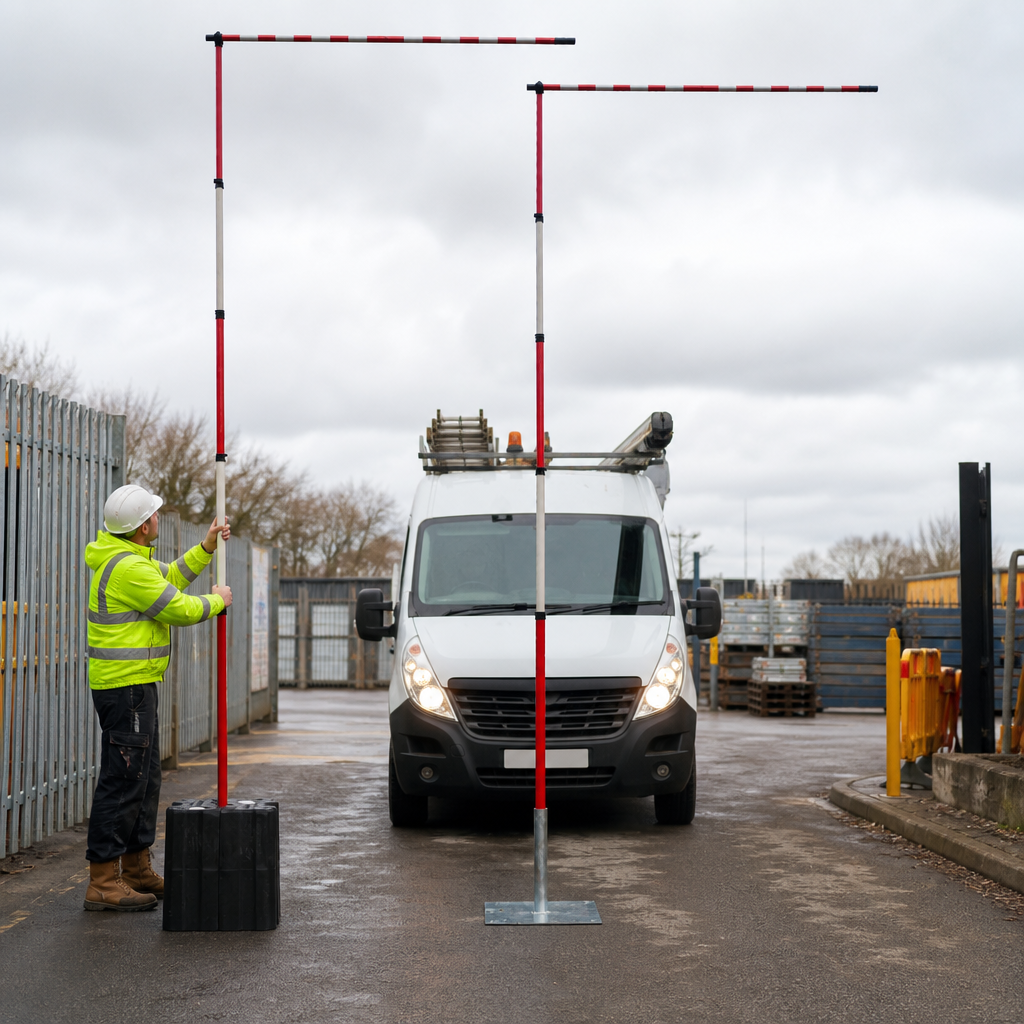

This height restriction kit is commonly used on road works, construction sites, and any locations where large vehicles operate near overhead structures. It effectively provides protection for these structures.
Installation Instructions
- Position the GS6 base as required.
- Insert the upright pole into the base.
- Attach the elbow to the upright pole and secure with the screw.
- Insert the crossbar into the shoulder piece.
- Extend the barrier to the desired height and ensure stability before leaving unattended.
Specifications
| Certifications | |
|---|---|
| Conforms | HSE GS6 Compliant, MIRA wind speed tested Metro Block base upto 50mph, insulated to 75kv |
| Material | |
| Type | Poles: Fibreglass with Nylon hand clamps, Metal Bases: Powder Coated Steel, Metro Block: Polyethylene |
| Colour | High Visibility Red and White alternate sections with Black bases |
| Kit Choice | |
| Cantilever Crossbar & Steel Base - Kit 5 | 1 x 7.3m telescopic poles 1 x 1.6m cantilever crossbar 1 x Galvanised steel base |
| Cantilever Crossbar & Metro Base - Kit 6 | 2 x 7.3m telescopic poles 1 x 1.6m cantilever crossbar 1 x Metro block |
Steel Base + Cantilever
| Dimensions | |
|---|---|
| Base Height | 490mm |
| Base Depth | 500mm |
| Base Weight | 13.16kg |
| Collapsed Height | 1800mm |
| Base Width | 500mm |
Metro Block + Cantilever
| Dimensions | |
|---|---|
| Base Height | 520mm |
| Base Depth | 500mm |
| Base Weight | 8.6kg |
| Base Width | 500mm |
| Collapsed Length | 1800mm |
FAQ
Q: What is the maximum height of the GS6 Cantilever kit?
A: The GS6 Cantilever kit can extend to a maximum height of 7.3 metres.
Q: What are the base options available for this kit?
A: The kit is available with either a steel plate base or a water-fillable metro block.
Q: Where can I use the Cantilever GS6 kit?
A: It is ideal for road works, construction sites, and any area where large vehicles operate near overhead structures.
