Description

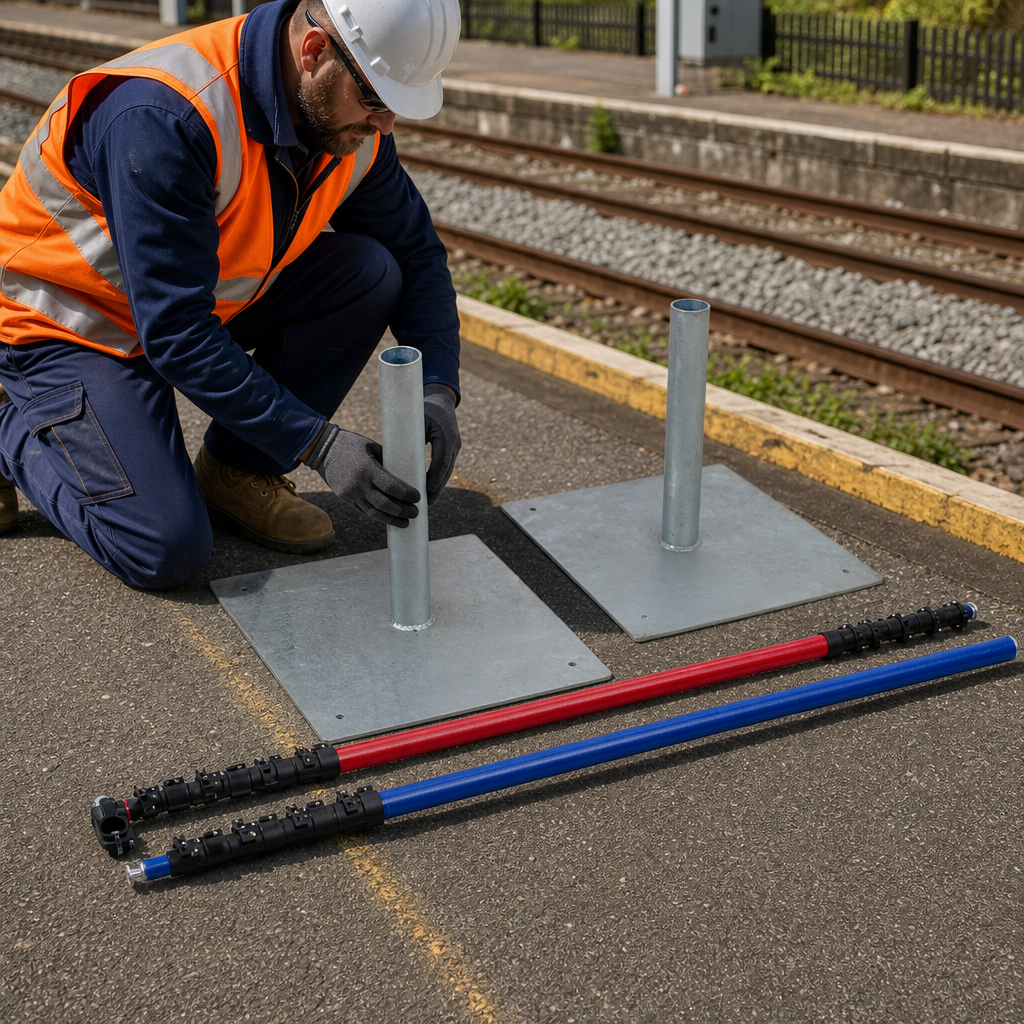

These blue height restriction kits are specifically designed for the rail industry, providing clear warnings for overhead obstacles during construction work.
Overview
The Blue height restriction kits are tailored for the rail industry, where red items are avoided to prevent confusion with signals. These kits serve as a crucial safety measure by marking overhead obstacles such as power lines and bridges.
When positioned on either side of an overhead obstacle, these kits act as a height restriction barrier, alerting vehicles to the height limit.
Key Features
- Contrasting blue and white sections enhance visibility from a distance.
- Telescopic uprights and optional telescopic rigid crossbar allow for adjustable height.
- Multiple kit options available, including different bases and top bars.
Usage Instructions

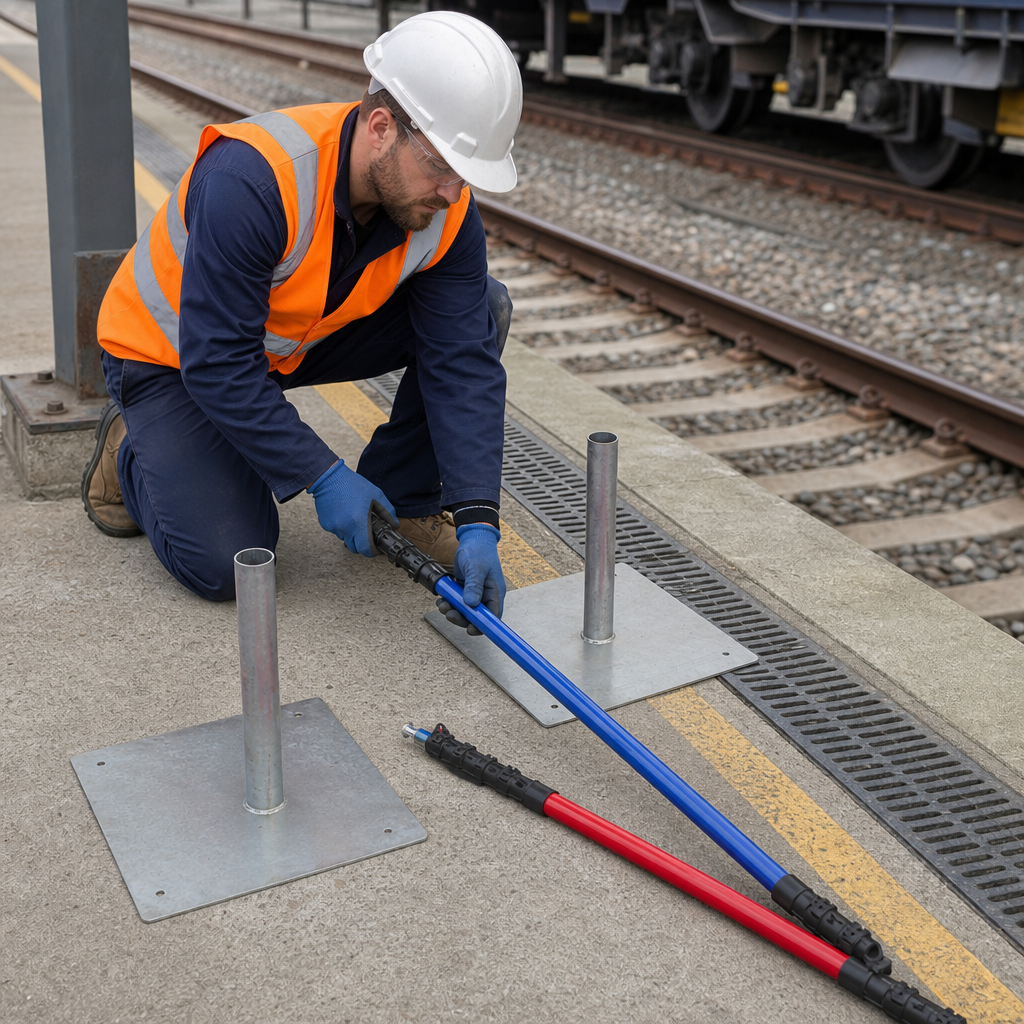

Install the GS6 posts on either side of the overhead obstacle to effectively create a height restriction barrier.
Ensure the kits are clearly visible to provide advanced warning to vehicles regarding height limits.
Specifications
| Certifications | |
|---|---|
| Conforms | HSE GS6 Compliant, MIRA wind speed tested Metro Block base upto 50mph, insulated to 75kv |
| Material | |
| Type | Poles: Fibreglass with Nylon hand clamps, Metal Bases: Powder Coated Steel, Metro Block: Polyethylene |
| Colour | Blue & White alternate sections with Black bases |
Bunting / No Base
| Dimensions | |
|---|---|
| Deployed Height | 7476mm |
| Deployed Width | 25m |
Bunting / Steel Base
| Dimensions | |
|---|---|
| Base Height | 500mm |
| Base Depth | 490mm |
| Base Weight | 13.16kg |
| Collapsed Height | 1800mm |
| Deployed Height | 7476mm |
| Base Width | 500mm |
| Deployed Width | 25m |
| Weight | 32.98kg |
Bunting / Metro Block
| Dimensions | |
|---|---|
| Base Height | 520mm |
| Base Depth | 500mm |
| Base Weight | 8.6kg |
| Collapsed Height | 1800mm |
| Deployed Height | 7476mm |
| Base Width | 500mm |
| Deployed Width | 25m |
| Weight | 23.86kg |
Telescopic Crossbar / No Base
| Dimensions | |
|---|---|
| Deployed Height | 7476mm |
| Deployed Width | 8000mm |
Telescopic Crossbar / Steel Base
| Dimensions | |
|---|---|
| Base Height | 500mm |
| Base Depth | 490mm |
| Base Weight | 13.16kg |
| Collapsed Height | 1800mm |
| Deployed Height | 7476mm |
| Base Width | 500mm |
| Deployed Width | 8000mm |
| Weight | 36.62kg |
Telescopic Crossbar / Metro Block
| Dimensions | |
|---|---|
| Base Height | 520mm |
| Base Depth | 500mm |
| Base Weight | 8.6kg |
| Collapsed Height | 1800mm |
| Deployed Height | 7476mm |
| Base Width | 500mm |
| Deployed Width | 8000mm |
| Weight | 27.5kg |
FAQ
Q: What is the purpose of the height restriction kits?
A: These kits are used to mark overhead obstacles in the rail industry, providing warnings to vehicles about height limits.
Q: Are the kits adjustable?
A: Yes, the kits feature telescopic uprights and an optional telescopic crossbar for height adjustment.
