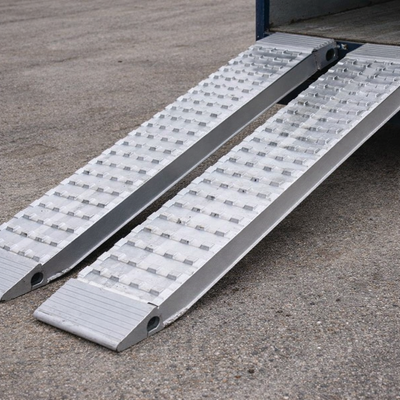

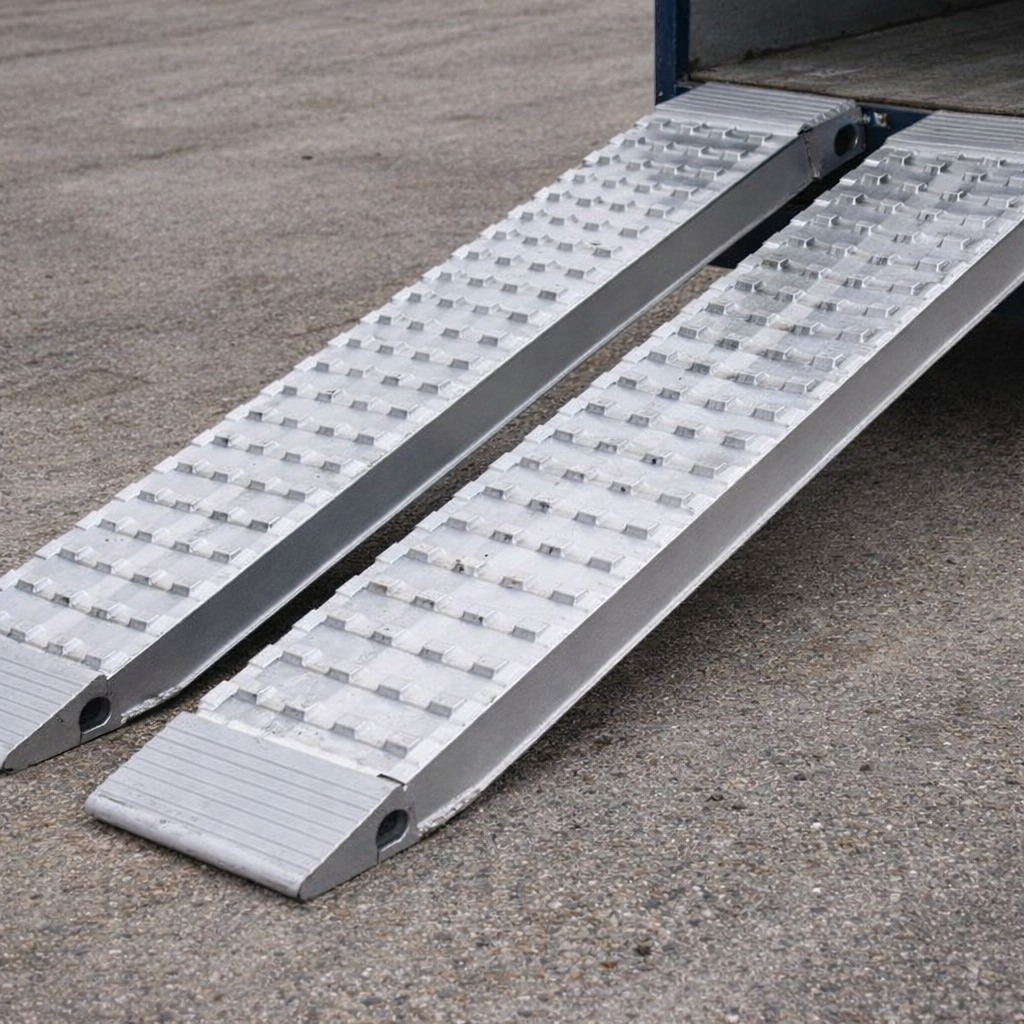

Aluminium Loading Ramps – 2000x520mm – 29000kg Capacity – Industrial Use

Roll over image to zoom in Click on image to zoom

Aluminium Loading Ramps – 2000x520mm – 29000kg Capacity – Industrial Use

Name: Aluminium Loading Ramps – 2000x520mm – 29000kg Capacity – Industrial Use
Brand: Barriers Co
SKU: TRP-BC1478
Price: 5040.0 GBP
Availability: InStock

£5,040.00

Incl. VAT

In Stock & Ready to Ship

Free UK Shipping

In Stock — Order by 2pm for same-day dispatch

Free UK Delivery — arrives 1-3 days

UK & EU Safety Standards

Expert Support — 01282 270 214

14-Day Returns

🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product

Free UK mainland delivery included
Same-day dispatch when ordered before 2pm

Download Spec Sheet

PDF with image, specifications & dimensions

→

Chat With Us on WhatsApp

Added to Cart!

View Cart

- Payment
- Secure transaction
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Dispatches from
- UK warehouse

★★★★★

"Amazing quality and quick shipping!"

- Sarah K.

★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.

★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Product Overview

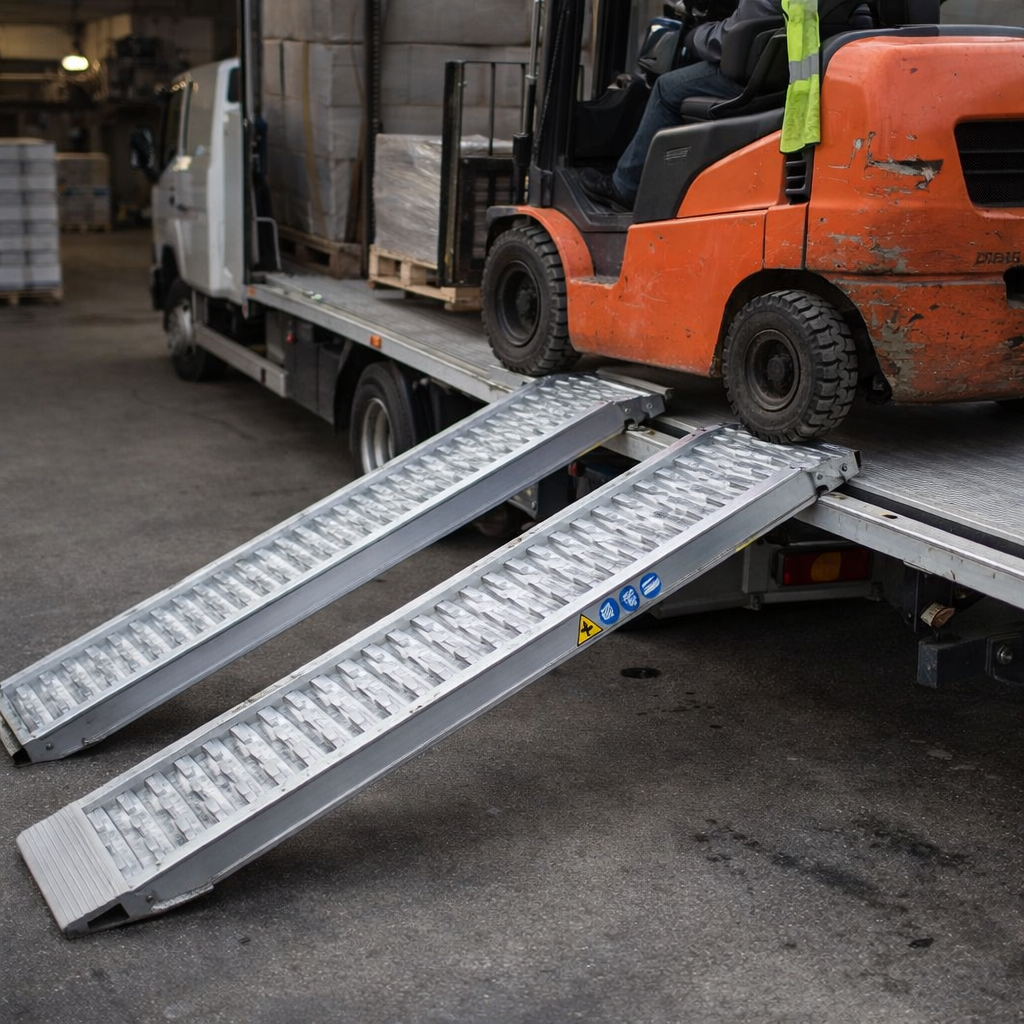

These heavy-duty aluminium loading ramps are designed for industrial applications, supporting steel tracked vehicles and equipment. With a core profile thickness of 105mm, these ramps are built to handle loads up to 29,000kg.

Flat top with no external welds
Standard rest on connection with alternative options available
Custom load heights upon request
Special 25/30 surface available for rubber and steel tracked machinery
Illustrative images may differ from the actual product
Fully TUV certified for safety and quality assurance

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	29000
Height of Ramp Profile (mm)	105
Length (mm)	2000
Max Load Height (mm)	600
Min. Load Height (mm)	450
Weight per Ramp (kg)	49
Weight Per Pair (kg)	98
Width (mm)	520
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Capacity Wheelbase 1000mm (kg)	18290
Capacity Wheelbase 1500mm (kg)	29000
Capacity Wheelbase 2000mm (kg)	29000
Colour Option	Black

FAQs

What is the maximum capacity of these ramps?
These ramps can support up to 29,000kg, making them ideal for heavy-duty applications.
Are these ramps customisable?
Yes, custom load heights and surface options are available upon request.
What type of connection do these ramps use?
The default connection is a rest on connection, with alternative options available.

★★★★★
