Aluminium Loading Ramps – 3500mm x 510mm – 9600kg Capacity – Heavy Duty Use
Aluminium Loading Ramps – 3500mm x 510mm – 9600kg Capacity – Heavy Duty Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 3500mm x 510mm – 9600kg Capacity – Heavy Duty UseAluminium Loading Ramps – 3500mm x 510mm – 9600kg Capacity – Heavy Duty Use

Our Clients

Client logo Client logo Client logo Client logo Client logo Client logo Client logo Client logo Client logo Client logo Client logo

Aluminium Loading Ramps – 3500mm x 510mm – 9600kg Capacity – Heavy Duty Use

£3,900.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

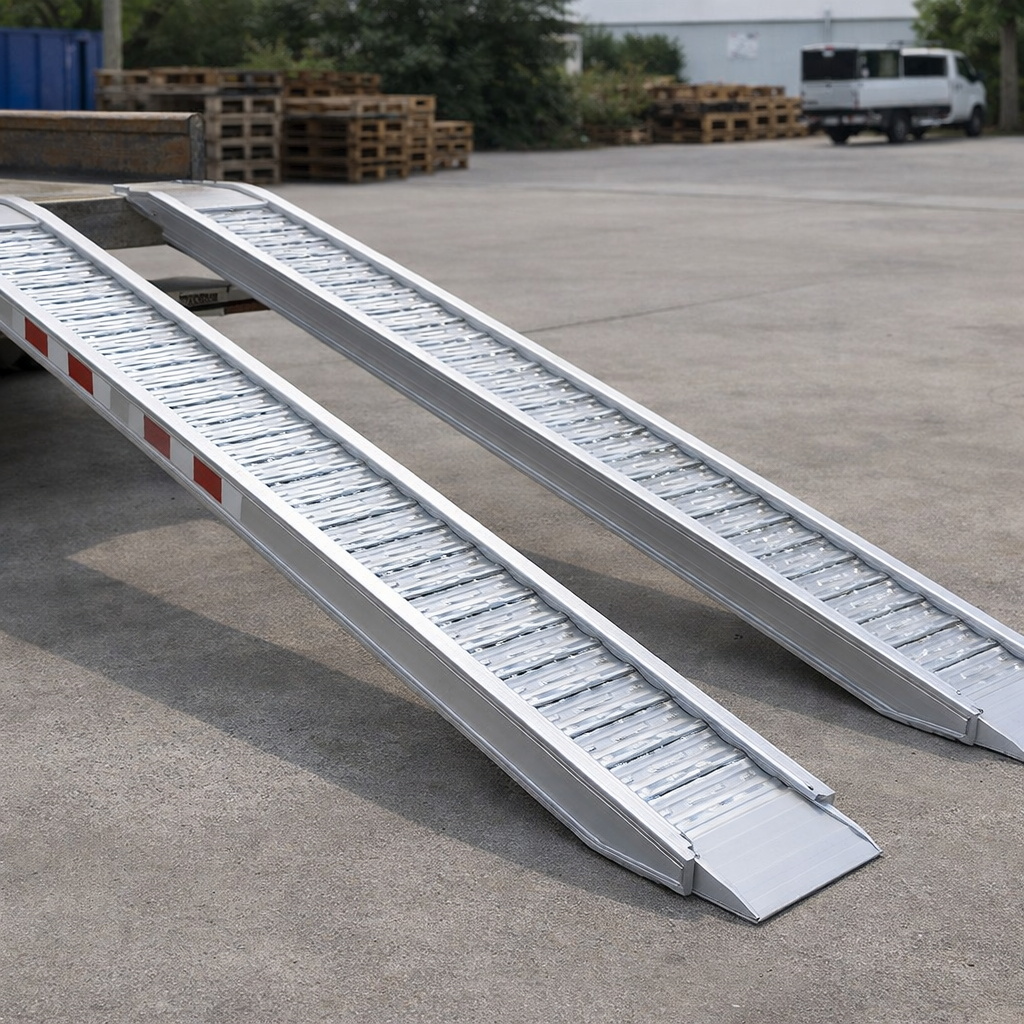

Aluminium Loading Ramps

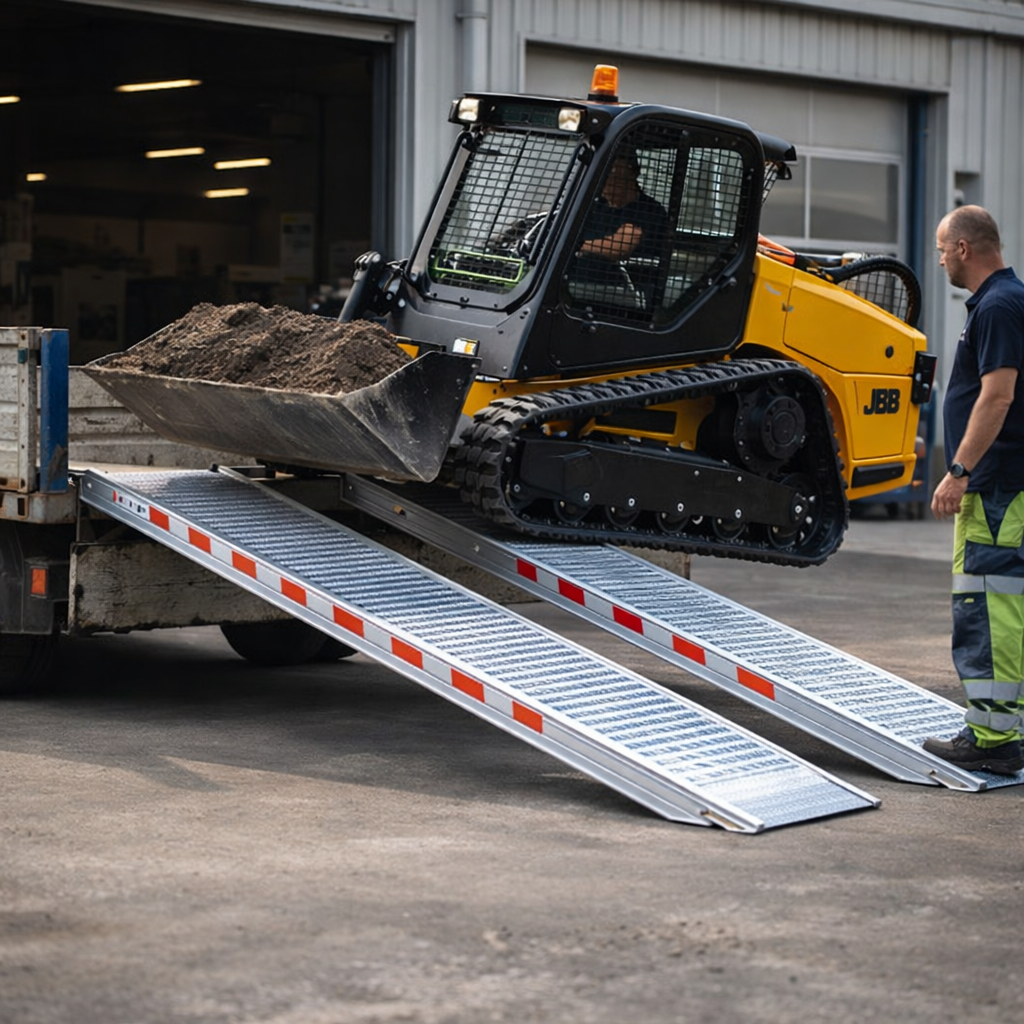

Our premium aluminium loading ramps are perfect for heavy-duty applications, offering a robust and reliable solution for loading your plant machinery. With a core profile thickness of 170mm, these ramps provide stability and peace of mind.

  • Available both with and without edges; default is without edges.
  • Four connection options available; default is rest on connection.
  • Custom load heights available for versatile usage.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for safety and quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 9600
Height of Ramps Profile (mm) 170
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 51.5
Weight Per Pair (kg) 103
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5760
Capacity Wheelbase 1500mm (kg) 7200
Capacity Wheelbase 2000mm (kg) 9600
Colour Option Black

FAQs

Can these ramps be customized? Yes, custom load heights are available.

Are they suitable for all types of machinery? Not suitable for solid wheels found on road surfacing machines.

What is the warranty period? These ramps come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Aluminium Loading Ramps

Our premium aluminium loading ramps are perfect for heavy-duty applications, offering a robust and reliable solution for loading your plant machinery. With a core profile thickness of 170mm, these ramps provide stability and peace of mind.

  • Available both with and without edges; default is without edges.
  • Four connection options available; default is rest on connection.
  • Custom load heights available for versatile usage.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for safety and quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 9600
Height of Ramps Profile (mm) 170
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 51.5
Weight Per Pair (kg) 103
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5760
Capacity Wheelbase 1500mm (kg) 7200
Capacity Wheelbase 2000mm (kg) 9600
Colour Option Black

FAQs

Can these ramps be customized? Yes, custom load heights are available.

Are they suitable for all types of machinery? Not suitable for solid wheels found on road surfacing machines.

What is the warranty period? These ramps come with a two-year warranty.

★★★★★
