Aluminium Loading Ramps – 5000mm x 580mm – 10000kg Capacity – Industrial Use
Aluminium Loading Ramps – 5000mm x 580mm – 10000kg Capacity – Industrial Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 5000mm x 580mm – 10000kg Capacity – Industrial UseAluminium Loading Ramps – 5000mm x 580mm – 10000kg Capacity – Industrial Use

Aluminium Loading Ramps – 5000mm x 580mm – 10000kg Capacity – Industrial Use

£7,668.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

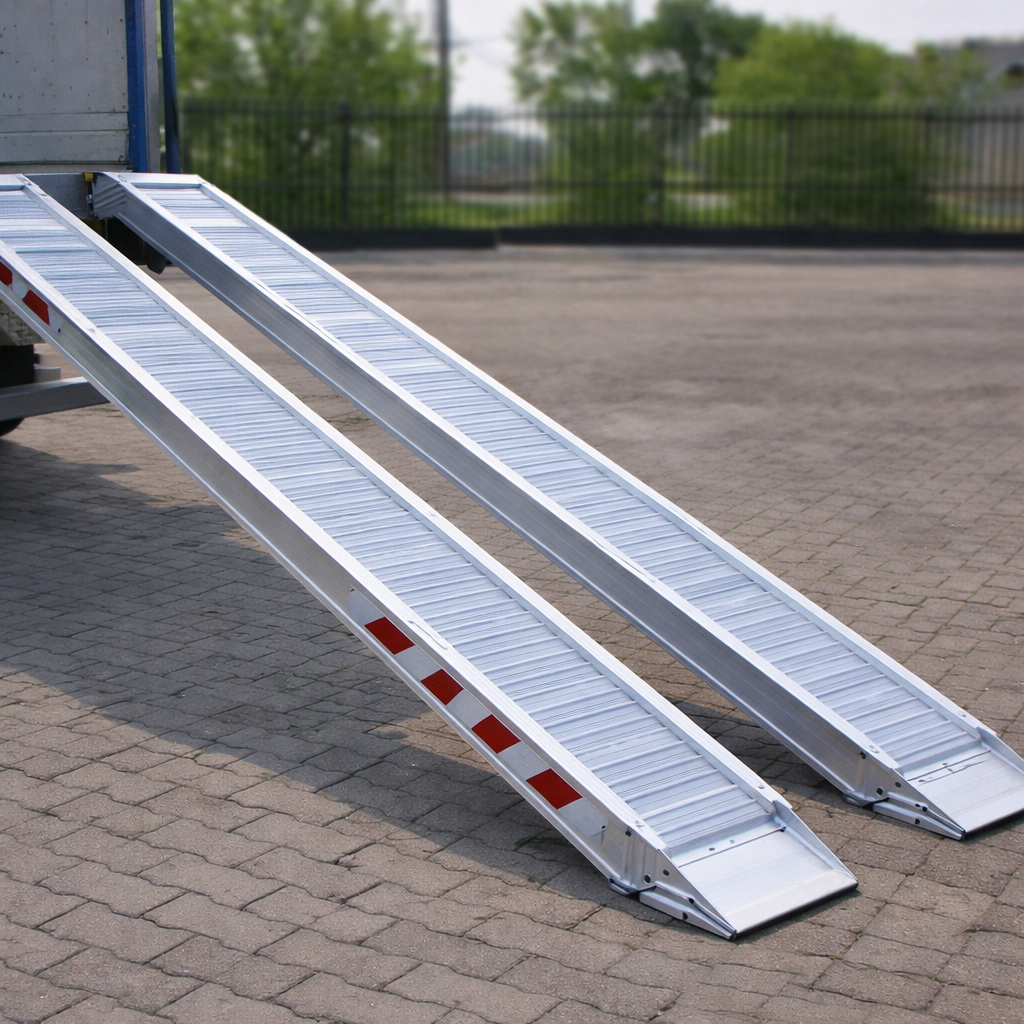

Heavy Duty Aluminium Loading Ramps

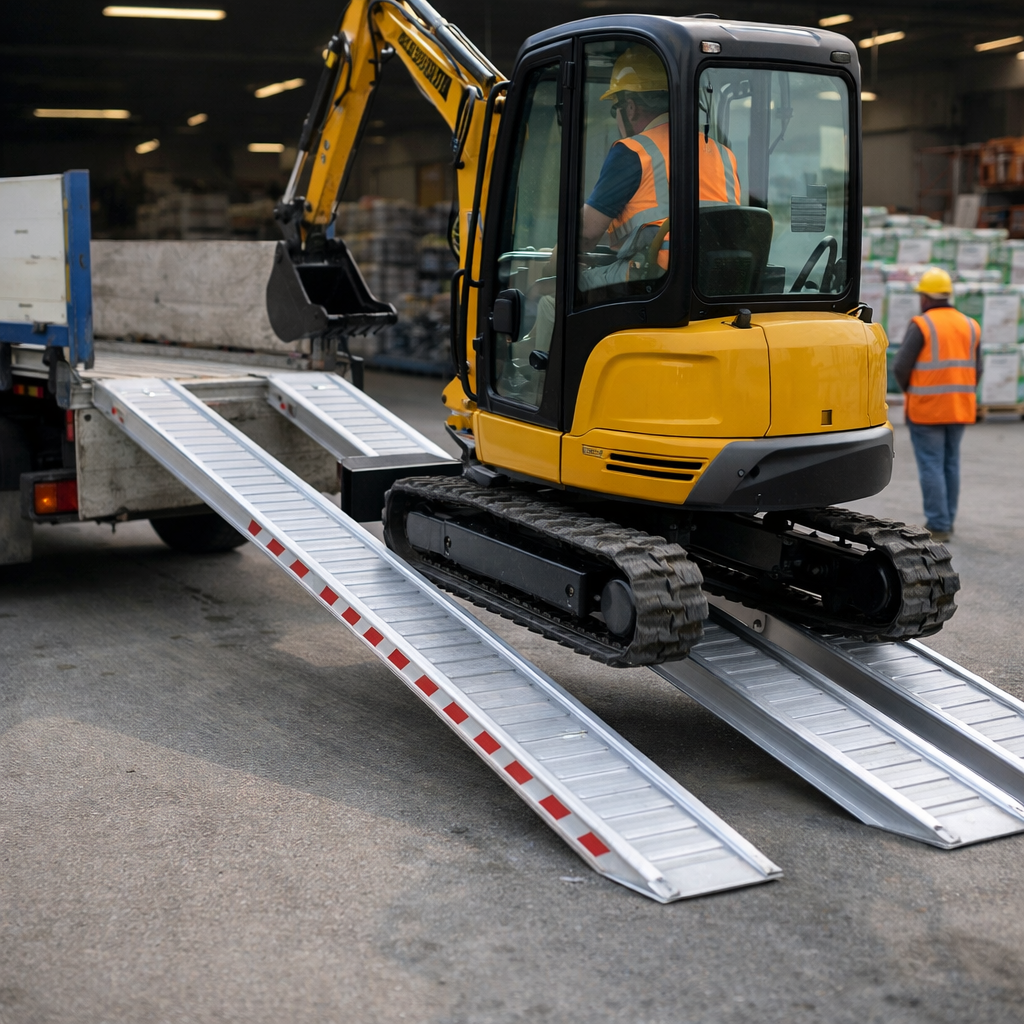

Our aluminium loading ramps are designed for industrial use, offering robust support for heavy machinery and vehicles. These ramps are 5000mm long and 580mm wide, ensuring a stable and wide platform for loading and unloading operations. With a capacity of up to 10000kg, they are perfect for heavy-duty and commercial applications.

  • Available with or without edges.
  • Four connection options, default is rest on connection.
  • Custom load heights available.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 10000
Height of Ramps Profile (mm) 230
Length (mm) 5000
Max Load Height (mm) 1500
Min. Load Height (mm) 1350
Weight per Ramp (kg) 109.5
Weight Per Pair (kg) 219
Width (mm) 580
Minimum Track Width (mm) 300
Maximum Track Width (mm) 480
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 7500
Capacity Wheelbase 1500mm (kg) 8570
Capacity Wheelbase 2000mm (kg) 10000
Colour Option Black

FAQs

  • What is the maximum load capacity?
    The ramps can support up to 10000kg.
  • Are the ramps customisable?
    Yes, custom load heights are available.
  • Is there a warranty?
    The ramps come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Heavy Duty Aluminium Loading Ramps

Our aluminium loading ramps are designed for industrial use, offering robust support for heavy machinery and vehicles. These ramps are 5000mm long and 580mm wide, ensuring a stable and wide platform for loading and unloading operations. With a capacity of up to 10000kg, they are perfect for heavy-duty and commercial applications.

  • Available with or without edges.
  • Four connection options, default is rest on connection.
  • Custom load heights available.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 10000
Height of Ramps Profile (mm) 230
Length (mm) 5000
Max Load Height (mm) 1500
Min. Load Height (mm) 1350
Weight per Ramp (kg) 109.5
Weight Per Pair (kg) 219
Width (mm) 580
Minimum Track Width (mm) 300
Maximum Track Width (mm) 480
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 7500
Capacity Wheelbase 1500mm (kg) 8570
Capacity Wheelbase 2000mm (kg) 10000
Colour Option Black

FAQs

  • What is the maximum load capacity?
    The ramps can support up to 10000kg.
  • Are the ramps customisable?
    Yes, custom load heights are available.
  • Is there a warranty?
    The ramps come with a two-year warranty.
★★★★★
