Aluminium Loading Ramps – 5500x580 – 8570kg Capacity – Industrial
Aluminium Loading Ramps – 5500x580 – 8570kg Capacity – Industrial
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 5500x580 – 8570kg Capacity – IndustrialAluminium Loading Ramps – 5500x580 – 8570kg Capacity – Industrial

Aluminium Loading Ramps – 5500x580 – 8570kg Capacity – Industrial

£8,280.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

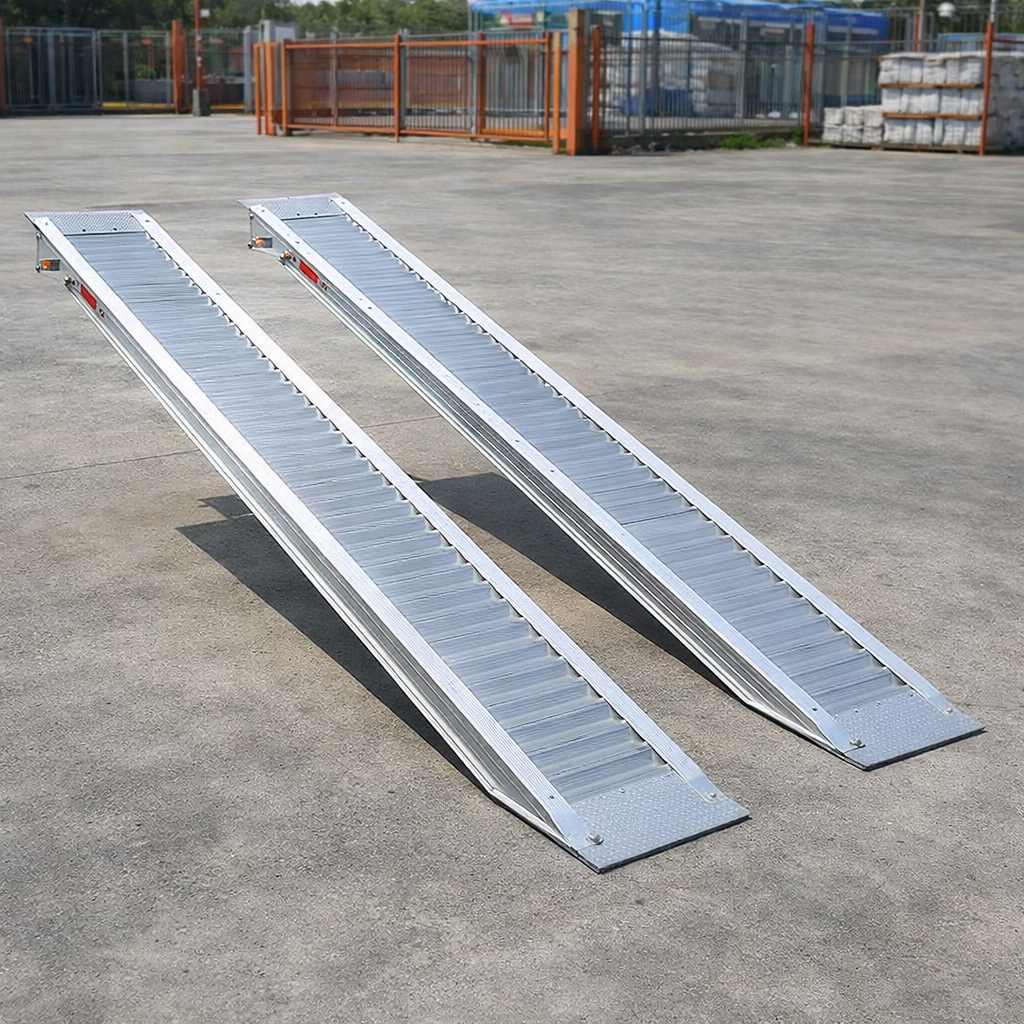

High-Performance Aluminium Loading Ramps

These high-performance aluminium loading ramps are one of our two heaviest duty options from the standard range. With a core profile thickness of 230mm, these ramps are robustly designed for industrial and heavy-duty commercial use.

  • Width: 580mm, allowing over half a metre of loading space.
  • Capacity: Up to 8570kg, suitable for a variety of heavy equipment.

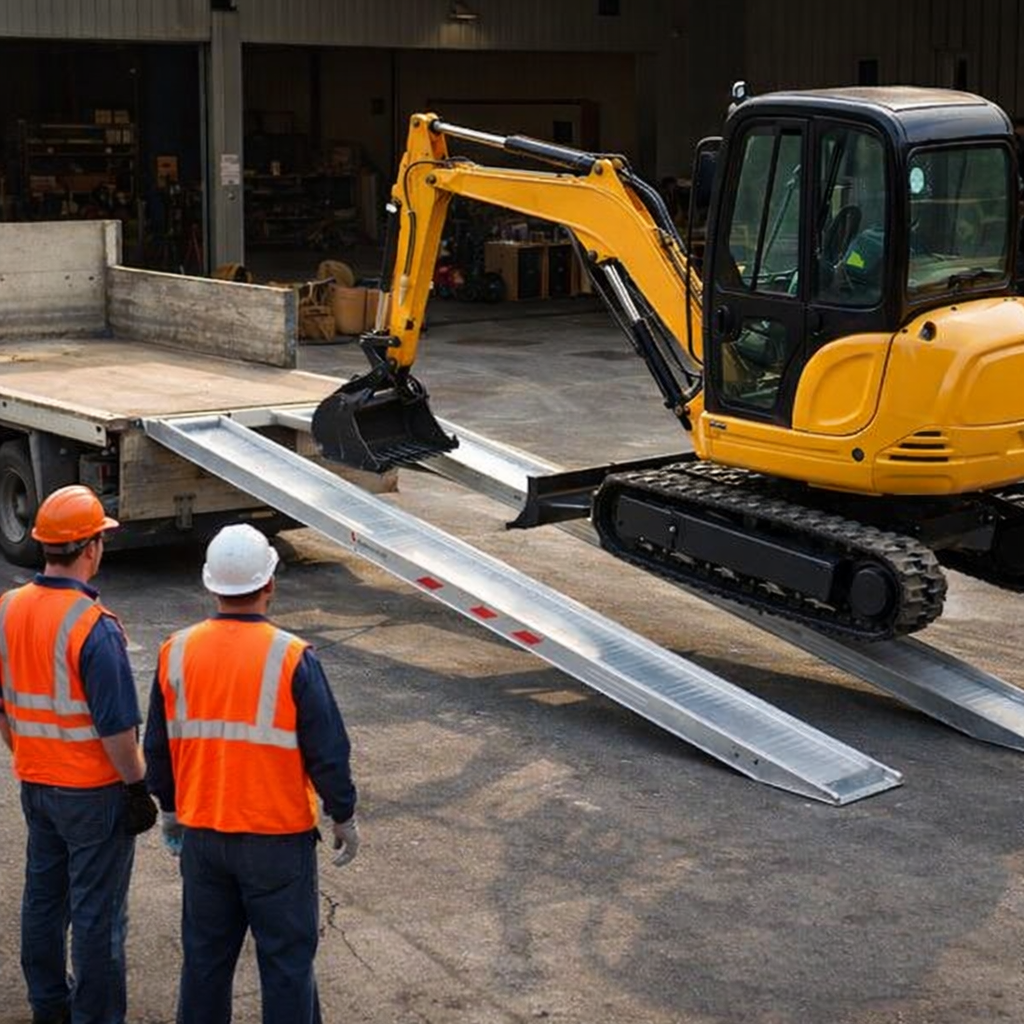

  • Ideal for use as industrial plant ramps and heavy-duty commercial ramps.
  • Available both with and without edges; default is without edges.
  • Four connection options available; the default is the rest on connection.
  • Custom load heights are available upon request.
  • Not suitable for solid wheels found on road surfacing machines; consult our industrial steel track ramps for these applications.
  • Fully TÜV certified for quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 8570
Height of Ramps Profile (mm) 230
Length (mm) 5500
Max Load Height (mm) 1650
Min. Load Height (mm) 1500
Weight per Ramp (kg) 120.5
Weight Per Pair (kg) 241
Width (mm) 580
Minimum Track Width (mm) 300
Maximum Track Width (mm) 480
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6670
Capacity Wheelbase 1500mm (kg) 7500
Capacity Wheelbase 2000mm (kg) 8570
Colour Option Black

FAQs

Q: Are these ramps suitable for solid wheels?
A: No, these ramps are not suitable for solid wheels found on road surfacing machines. Please refer to our steel track ramps for such uses.

Q: Can I customise the load height?
A: Yes, custom load heights are available upon request.

Q: What is the default connection type?
A: The default connection type is the rest on connection.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

High-Performance Aluminium Loading Ramps

These high-performance aluminium loading ramps are one of our two heaviest duty options from the standard range. With a core profile thickness of 230mm, these ramps are robustly designed for industrial and heavy-duty commercial use.

  • Width: 580mm, allowing over half a metre of loading space.
  • Capacity: Up to 8570kg, suitable for a variety of heavy equipment.
  • Ideal for use as industrial plant ramps and heavy-duty commercial ramps.
  • Available both with and without edges; default is without edges.
  • Four connection options available; the default is the rest on connection.
  • Custom load heights are available upon request.
  • Not suitable for solid wheels found on road surfacing machines; consult our industrial steel track ramps for these applications.
  • Fully TÜV certified for quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 8570
Height of Ramps Profile (mm) 230
Length (mm) 5500
Max Load Height (mm) 1650
Min. Load Height (mm) 1500
Weight per Ramp (kg) 120.5
Weight Per Pair (kg) 241
Width (mm) 580
Minimum Track Width (mm) 300
Maximum Track Width (mm) 480
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6670
Capacity Wheelbase 1500mm (kg) 7500
Capacity Wheelbase 2000mm (kg) 8570
Colour Option Black

FAQs

Q: Are these ramps suitable for solid wheels?
A: No, these ramps are not suitable for solid wheels found on road surfacing machines. Please refer to our steel track ramps for such uses.

Q: Can I customise the load height?
A: Yes, custom load heights are available upon request.

Q: What is the default connection type?
A: The default connection type is the rest on connection.

★★★★★
