Aluminium Loading Ramps – 3500mm x 550mm – 18000kg Capacity – Industrial Use

Roll over image to zoom in Click on image to zoom

Aluminium Loading Ramps – 3500mm x 550mm – 18000kg Capacity – Industrial Use

Name: Aluminium Loading Ramps – 3500mm x 550mm – 18000kg Capacity – Industrial Use
Brand: Barriers Co
SKU: TRP-BC5443
Price: 5508.0 GBP
Availability: InStock

£5,508.00

Incl. VAT

In Stock & Ready to Ship

Free UK Shipping

In Stock — Order by 2pm for same-day dispatch

Free UK Delivery — arrives 1-3 days

UK & EU Safety Standards

Expert Support — 01282 270 214

14-Day Returns

🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product

Free UK mainland delivery included
Same-day dispatch when ordered before 2pm

Download Spec Sheet

PDF with image, specifications & dimensions

→

Chat With Us on WhatsApp

Added to Cart!

View Cart

- Payment
- Secure transaction
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Dispatches from
- UK warehouse

★★★★★

"Amazing quality and quick shipping!"

- Sarah K.

★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.

★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

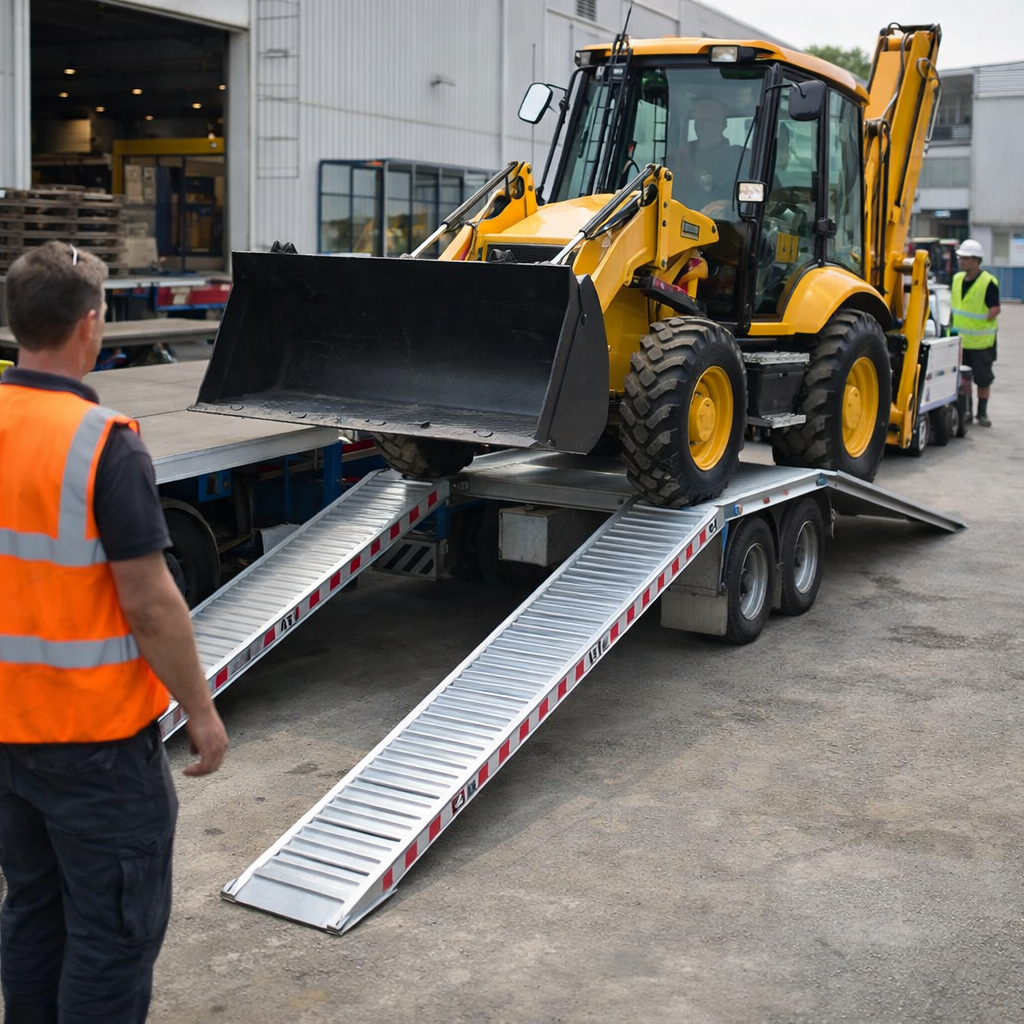

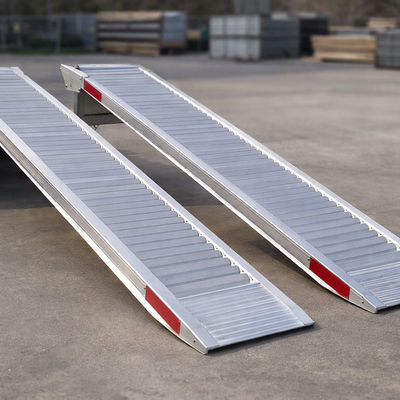

Heavy Duty Aluminium Loading Ramps

Introducing our industrial-grade aluminium loading ramps, engineered for maximum durability and strength. With a substantial capacity of 18,000kg, these ramps are ideal for industrial plant and commercial applications.

Core profile thickness: 230mm
Width: 550mm, accommodating a minimum track width of 450mm
Available with or without edges
Four connection options available, default is rest on connection
Custom load heights available
Not suitable for solid wheels found on road surfacing machines
Fully TÜV certified
One-year warranty included

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	18000
Height of Ramps Profile (mm)	230
Length (mm)	3500
Max Load Height (mm)	1050
Min. Load Height (mm)	900
Weight per Ramp (kg)	81
Weight Per Pair (kg)	162
Width (mm)	550
Minimum Track Width (mm)	400
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	12,010
Capacity Wheelbase 1500mm (kg)	15,010
Capacity Wheelbase 2000mm (kg)	18,000
Colour Option	Black

Frequently Asked Questions

Are the ramps customisable?

Yes, custom load heights and configurations are available upon request.

What is the default connection type?

The default connection type is the rest on connection.

What kind of warranty is provided?

A one-year warranty is included with each purchase.

★★★★★
