Aluminium Loading Ramps – 510mm Wide – 9600kg Capacity – Industrial Use
Aluminium Loading Ramps – 510mm Wide – 9600kg Capacity – Industrial Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 510mm Wide – 9600kg Capacity – Industrial UseAluminium Loading Ramps – 510mm Wide – 9600kg Capacity – Industrial Use

Aluminium Loading Ramps – 510mm Wide – 9600kg Capacity – Industrial Use

£3,900.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

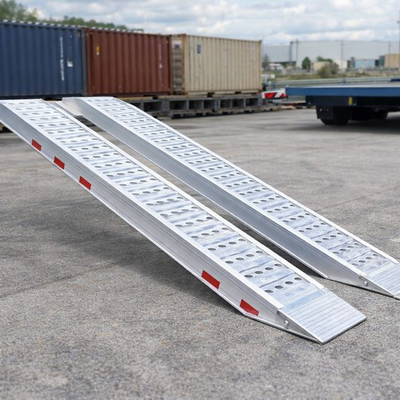

Heavy Duty Aluminium Loading Ramps

These professional aluminium loading ramps are designed for heavy-duty use, supporting up to 9600kg. Ideal for plant machinery, diggers, and tele-handlers, these ramps are versatile and robust.

  • Available with or without edges – default is without edges
  • Four connection options, with rest on connection as default
  • Custom load heights available
  • Not suitable for solid wheel machinery – refer to industrial ramps for steel tracks
  • Fully TÜV certified for safety and quality

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 9600
Height of Ramps Profile (mm) 170
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 51.5
Weight Per Pair (kg) 103
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5760
Capacity Wheelbase 1500mm (kg) 7200
Capacity Wheelbase 2000mm (kg) 9600
Colour Option Black

FAQs

Q: Can these ramps be customised?

A: Yes, custom load heights and connection options are available.

Q: Are these ramps suitable for all machinery?

A: They are not suitable for solid wheels found on road surfacing machines.

Q: Is there a warranty?

A: Yes, a two-year warranty is provided.
