About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Product Overview

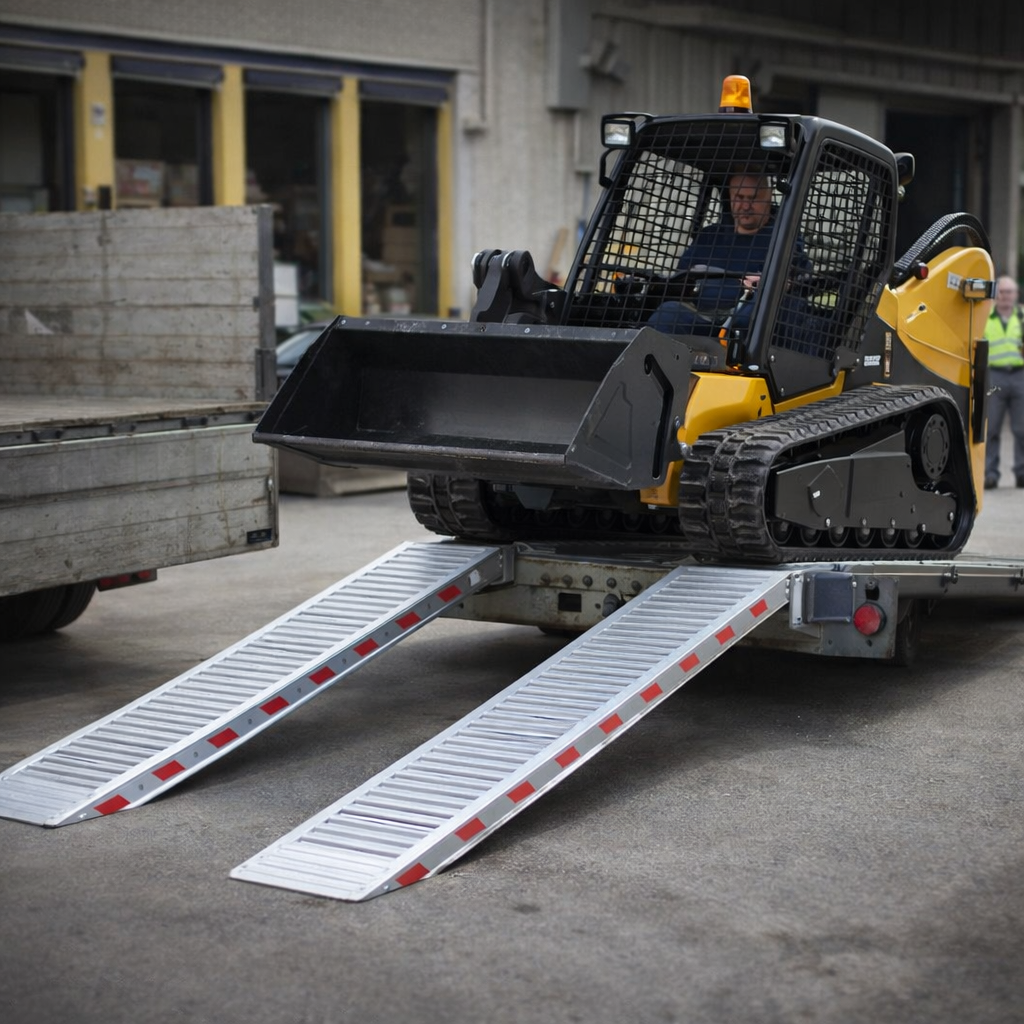

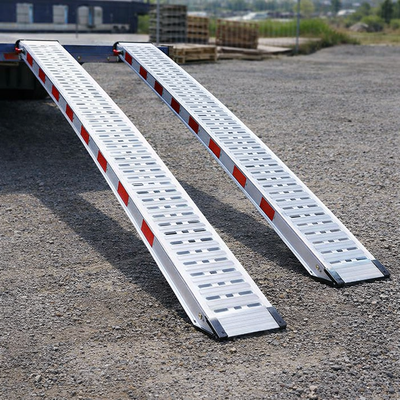

These aluminium loading ramps are designed for heavy-duty use, providing reliable support for plant equipment, diggers, and tele-handlers. With a robust capacity of up to 5910kg, they are perfect for various industrial applications.

  • Available with or without edges; default is without edges.
  • Four connection options available, default is rest on connection.
  • Custom load heights available.
  • Not suitable for solid wheels found on road surfacing machines.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 5910
Height of Ramps Profile (mm) 185
Length (mm) 5000
Max Load Height (mm) 1500
Min. Load Height (mm) 1350
Weight per Ramp (kg) 78.5
Weight Per Pair (kg) 157
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 4430
Capacity Wheelbase 1500mm (kg) 5070
Capacity Wheelbase 2000mm (kg) 5910
Colour Option Black

FAQs

Are these ramps suitable for all types of vehicles?
These ramps are not suitable for vehicles with solid wheels, such as road surfacing machines. For such vehicles, please consider industrial ramps for steel tracks.

Can the loading ramps be customised?
Yes, custom load heights are available, and bespoke ramps can be quoted upon request.

What is the warranty period for these ramps?
The ramps come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
