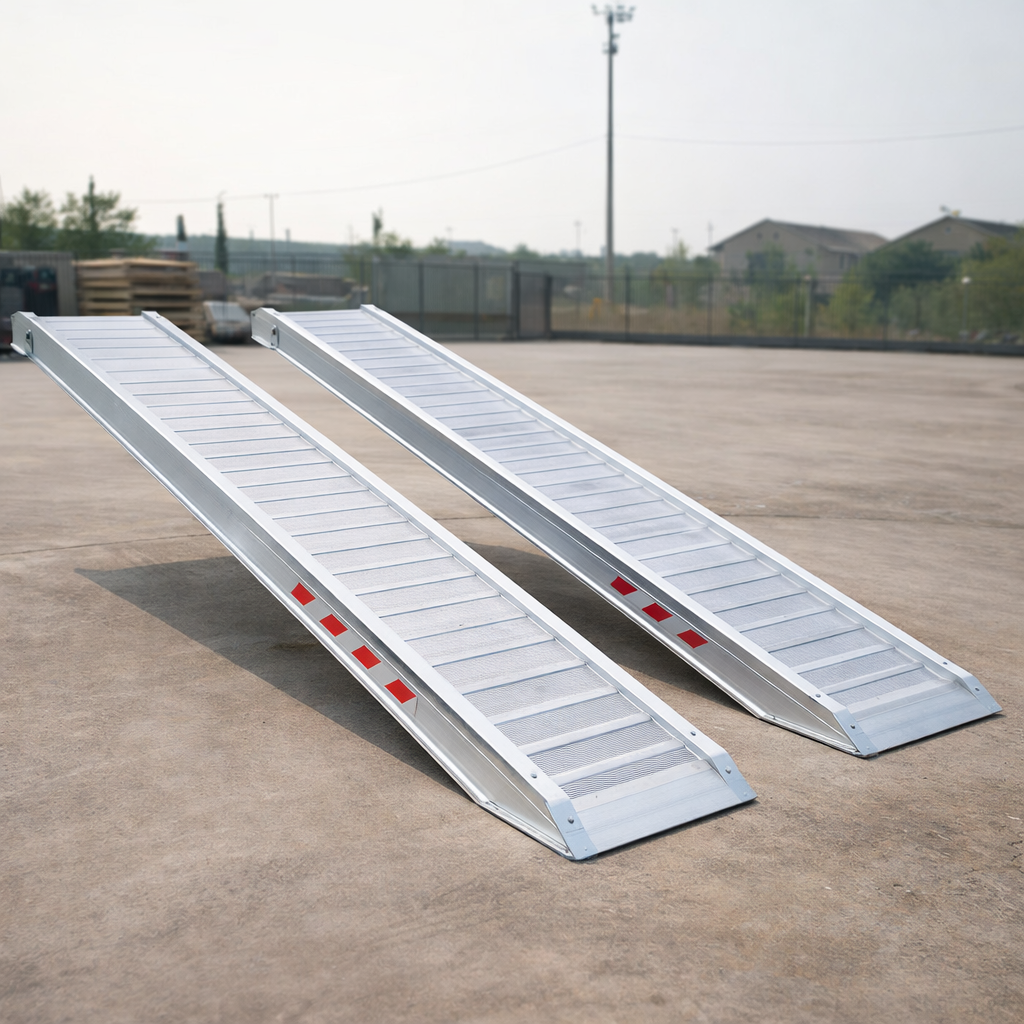

Aluminium Loading Ramps – 4500x480mm – 3325kg Capacity – Industrial Use

Roll over image to zoom in Click on image to zoom

Aluminium Loading Ramps – 4500x480mm – 3325kg Capacity – Industrial Use

Name: Aluminium Loading Ramps – 4500x480mm – 3325kg Capacity – Industrial Use
Brand: Barriers Co
SKU: TRP-BC2581
Price: 4068.0 GBP
Availability: InStock

£4,068.00

Incl. VAT

In Stock & Ready to Ship

Free UK Shipping

In Stock — Order by 2pm for same-day dispatch

Free UK Delivery — arrives 1-3 days

UK & EU Safety Standards

Expert Support — 01282 270 214

14-Day Returns

🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product

Free UK mainland delivery included
Same-day dispatch when ordered before 2pm

Download Spec Sheet

PDF with image, specifications & dimensions

→

Chat With Us on WhatsApp

Added to Cart!

View Cart

- Payment
- Secure transaction
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Dispatches from
- UK warehouse

★★★★★

"Amazing quality and quick shipping!"

- Sarah K.

★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.

★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Overview

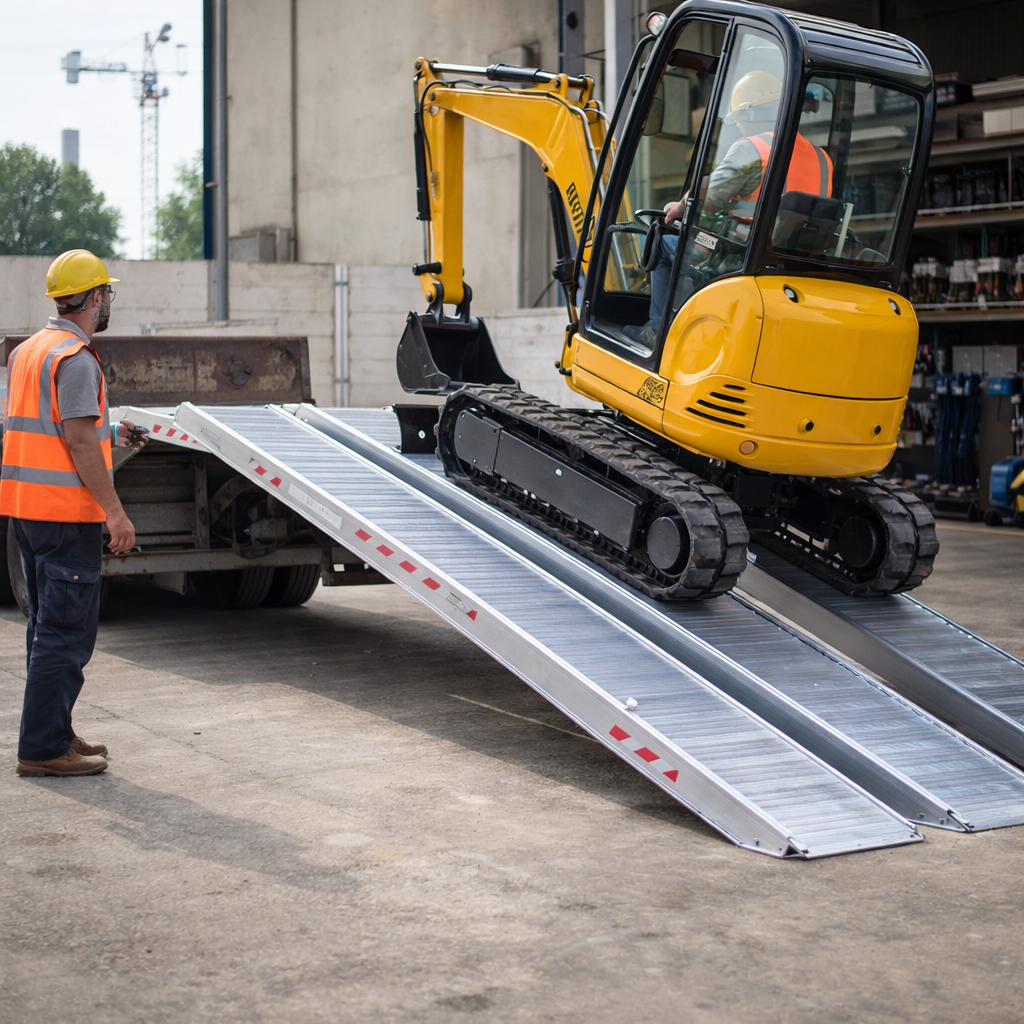

Our extra wide aluminium loading ramps offer a robust solution for medium to heavy-duty equipment. With a core profile thickness of 140mm and a width of 480mm, these ramps can handle capacities up to 3325kg, making them ideal for plant, digger, and tele-handler use.

Available with or without edges, default without edges
Four connection options; default is rest on connection
Custom load heights available
Not suitable for solid wheels on road surfacing machines
Contact for bespoke ramp quotes
Fully TÜV certified

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	3325
Height of Ramps Profile (mm)	140
Length (mm)	4500
Max Load Height (mm)	1350
Min. Load Height (mm)	1200
Weight per Ramp (kg)	48
Weight Per Pair (kg)	96
Width (mm)	480
Minimum Track Width (mm)	200
Maximum Track Width (mm)	380
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	2375
Capacity Wheelbase 1500mm (kg)	2770
Capacity Wheelbase 2000mm (kg)	3325
Colour Option	Black

FAQs

Can these loading ramps be customised?
Yes, custom load heights and bespoke ramp quotes are available upon request.

Are these ramps suitable for all types of machinery?
They are not suitable for solid wheels found on road surfacing machines. Please refer to our industrial ramps for such machinery.

What is the warranty period for these ramps?
These ramps come with a two-year warranty.

★★★★★
