Product Overview

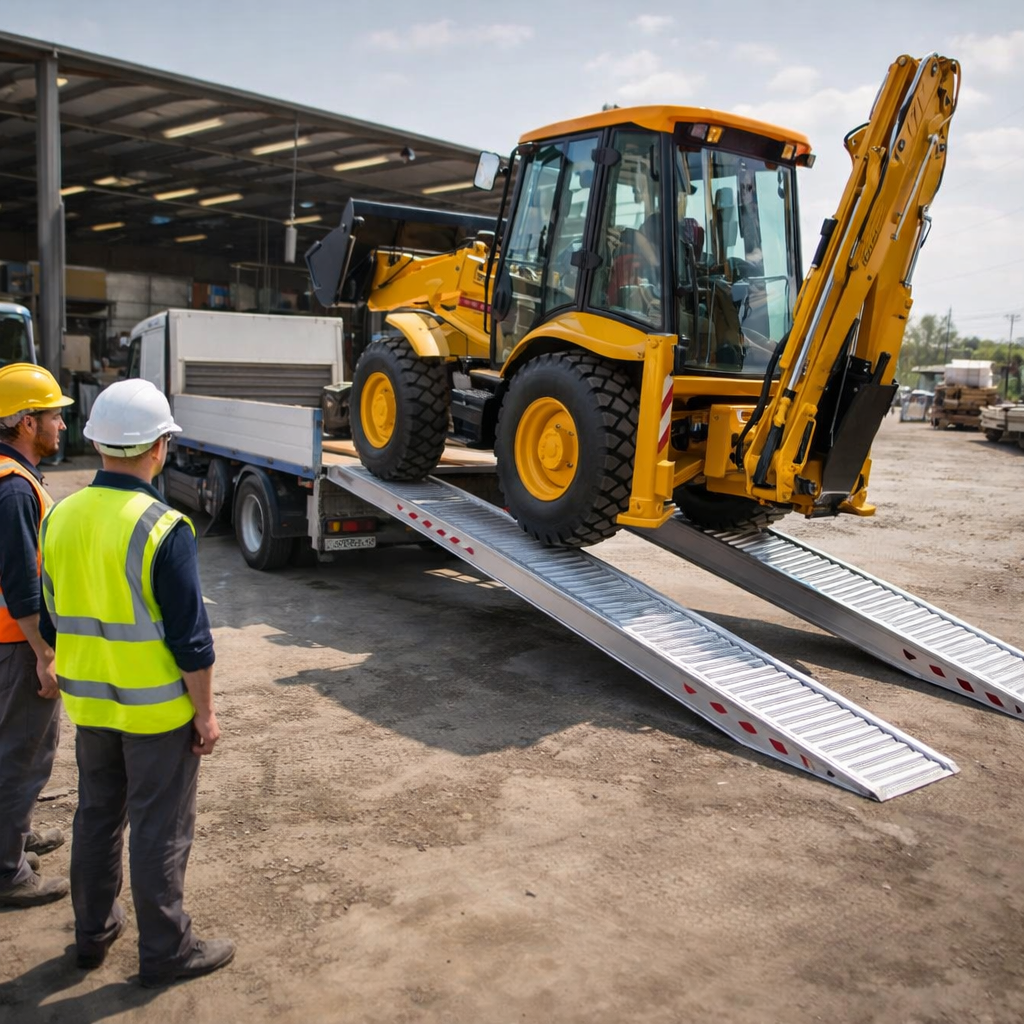

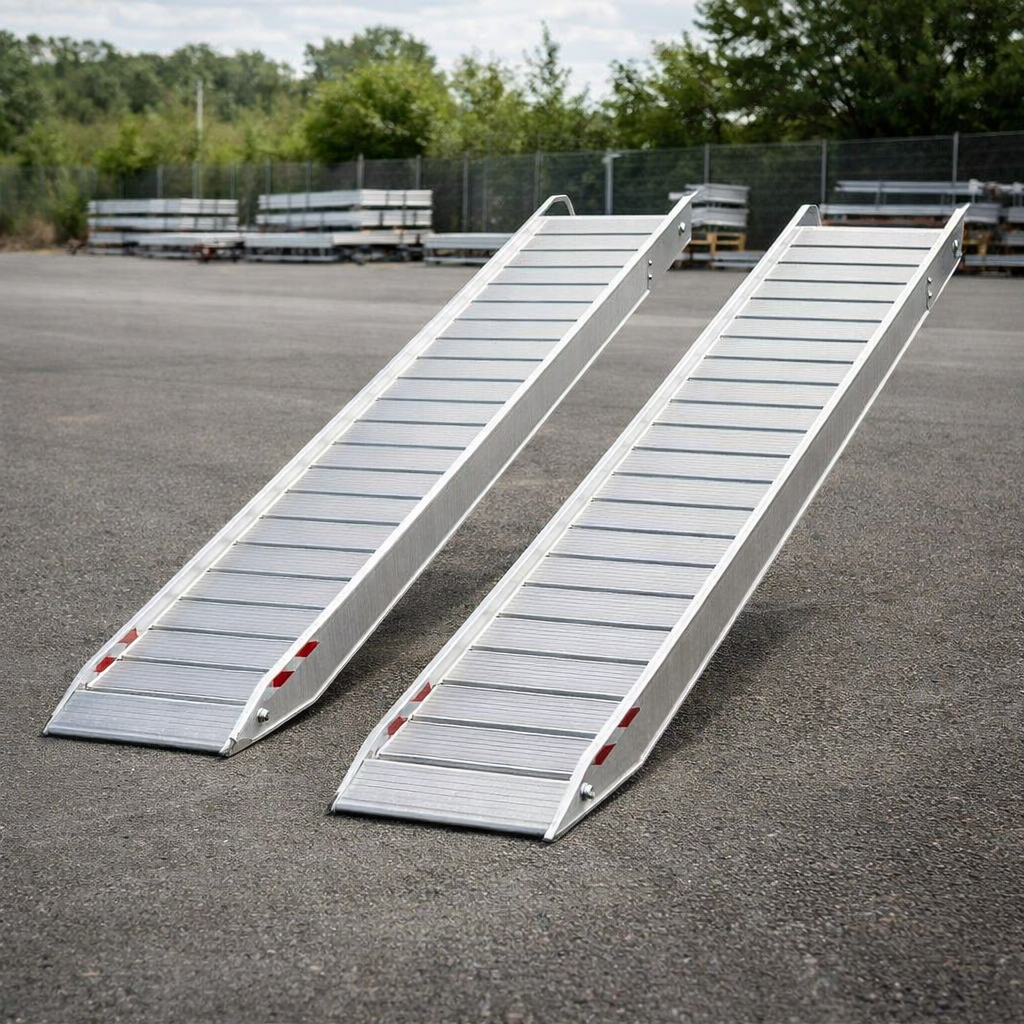

Our premium aluminium loading ramps are designed for medium to heavy-duty use, providing a robust solution for plant and digger ramps. With a core profile thickness of 150mm, these ramps are ideal for tele-handlers and other heavy machinery. The ramps feature a width of 400mm and can support up to 5150kg, making them suitable for various industrial applications.

Available with or without edges
Four connection options available, default is rest on connection
Custom load heights available
Not suitable for solid wheels on road surfacing machines
Fully TÜV certified for safety and reliability

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	5150
Height of Ramps Profile (mm)	150
Length (mm)	4000
Max Load Height (mm)	1200
Min. Load Height (mm)	1050
Weight per Ramp (kg)	43.5
Weight Per Pair (kg)	87
Width (mm)	400
Minimum Track Width (mm)	200
Maximum Track Width (mm)	320
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	3435
Capacity Wheelbase 1500mm (kg)	4120
Capacity Wheelbase 2000mm (kg)	5150
Usable Width (mm)	340
Colour Option	Black

FAQs

What is the maximum load capacity? The maximum load capacity is 5150kg.
Are these ramps TÜV certified? Yes, these ramps are fully TÜV certified.
Can the ramps be customised? Yes, customisable options are available.

★★★★★
