Product Overview

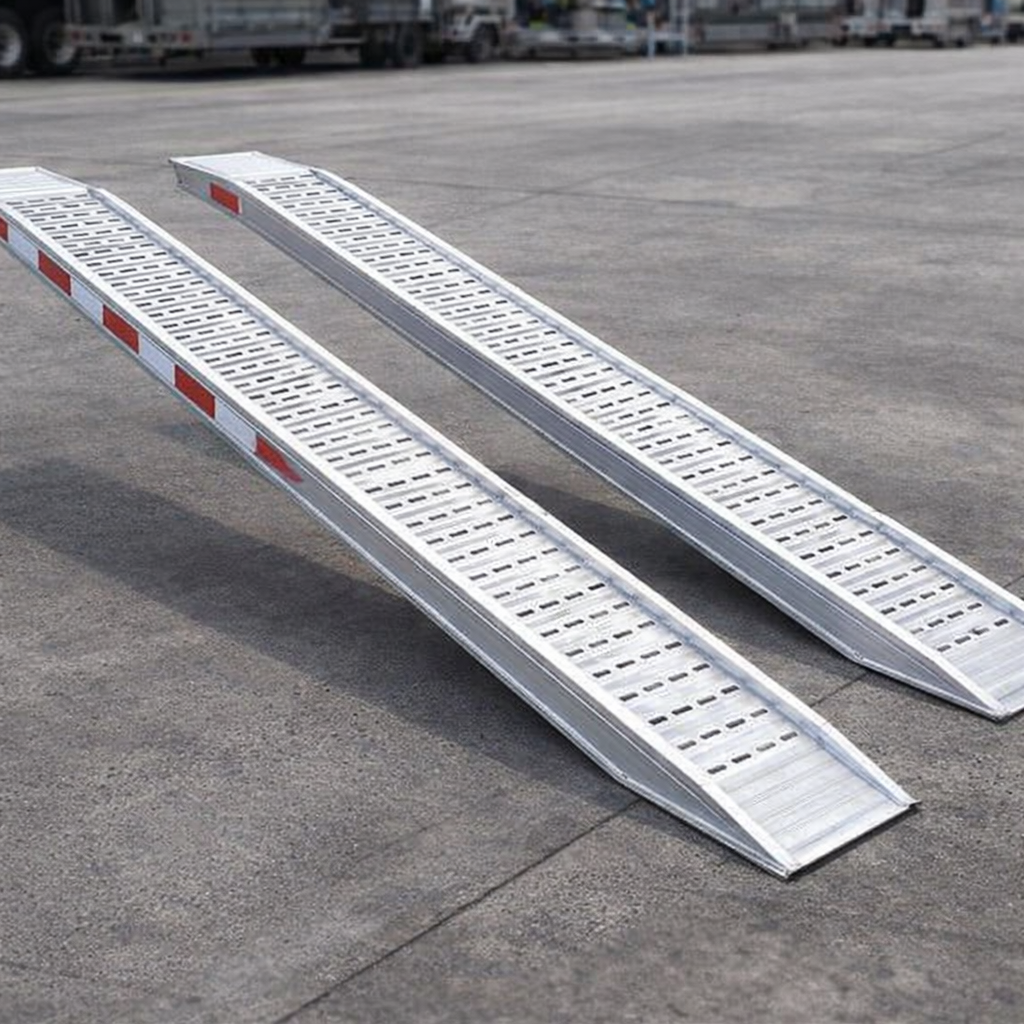

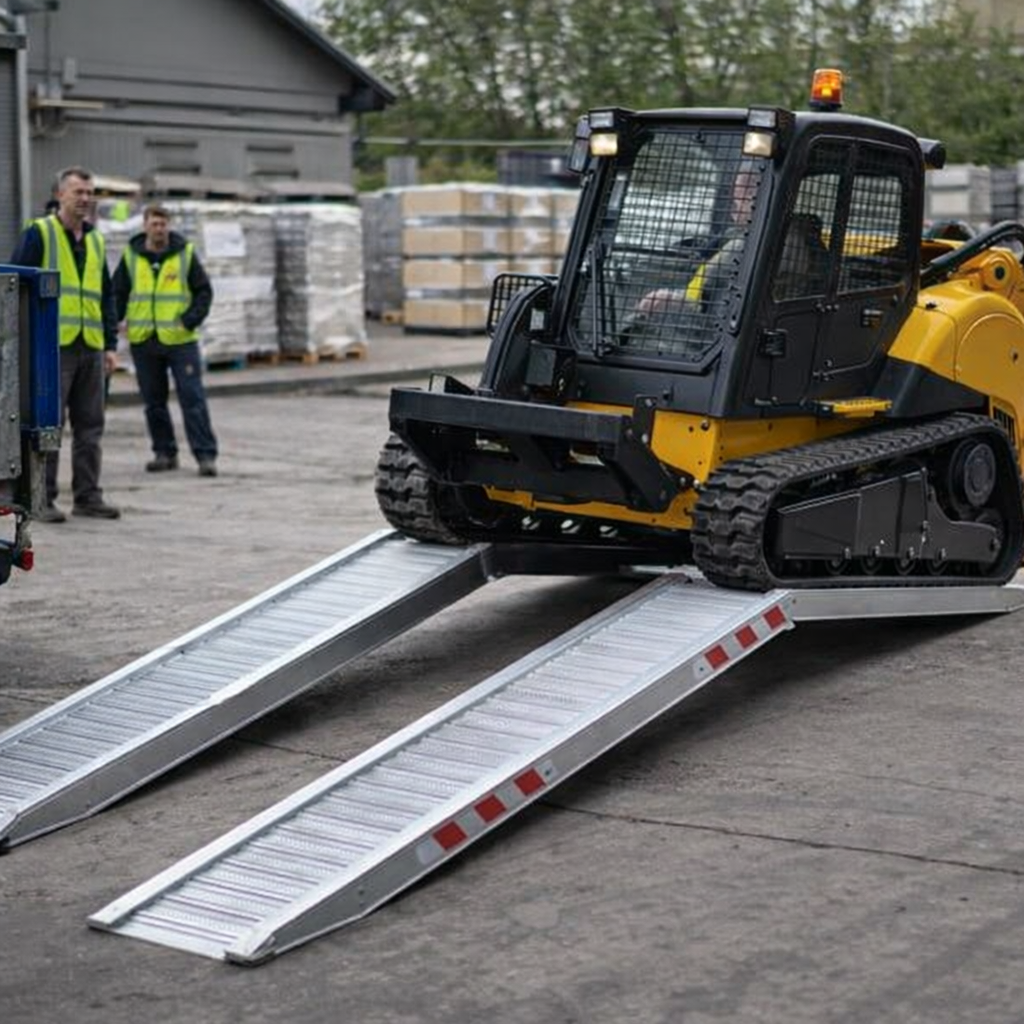

Introducing our heavy-duty aluminium loading ramps, perfect for plant, digger, and tele-handler applications. Designed with a core profile thickness of 185mm, these ramps offer robust durability and reliability. Each ramp measures 4000mm in length and 510mm in width, providing ample space for a variety of vehicles.

Features & Benefits

Capacity of up to 8870kg per pair
Minimum track width of 200mm
Available with or without edges
Four connection options with a default 'rest on' connection
Custom load heights available
Fully TÜV certified for safety and quality

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	8870
Height of Ramps Profile (mm)	185
Length (mm)	4000
Max Load Height (mm)	1200
Min. Load Height (mm)	1050
Weight per Ramp (kg)	63.5
Weight Per Pair (kg)	127
Width (mm)	510
Minimum Track Width (mm)	200
Maximum Track Width (mm)	430
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	5910
Capacity Wheelbase 1500mm (kg)	7100
Capacity Wheelbase 2000mm (kg)	8870
Colour Option	Black

FAQs

Are custom sizes available?

Yes, custom load heights are available upon request.

What is the minimum track width?

The minimum track width for these ramps is 200mm.

Are these ramps suitable for all vehicle types?

These ramps are not suitable for solid wheels found on road surfacing machines. Please consider industrial ramps for such vehicles.

★★★★★
