Aluminium Loading Ramps – 4000x400mm – 2500kg Capacity – Plant & Digger Use

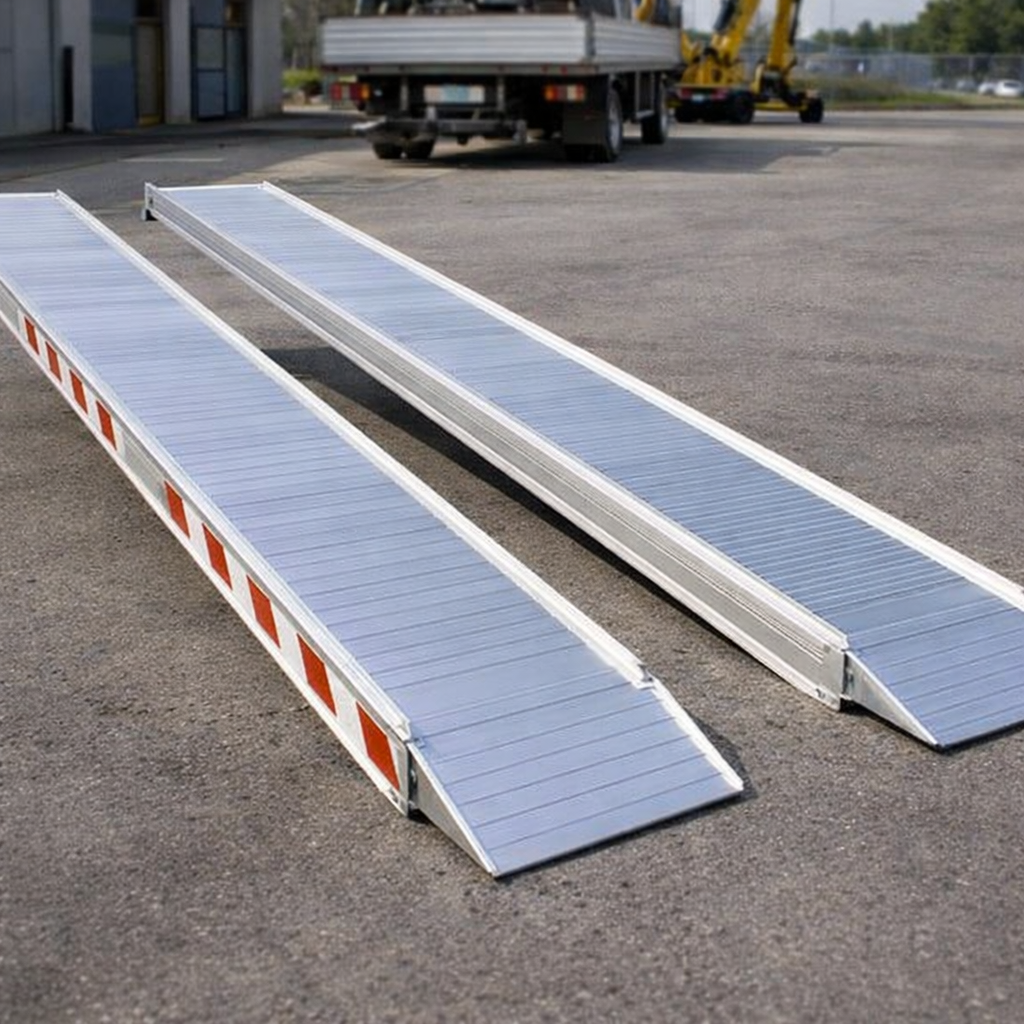

Aluminium Loading Ramps

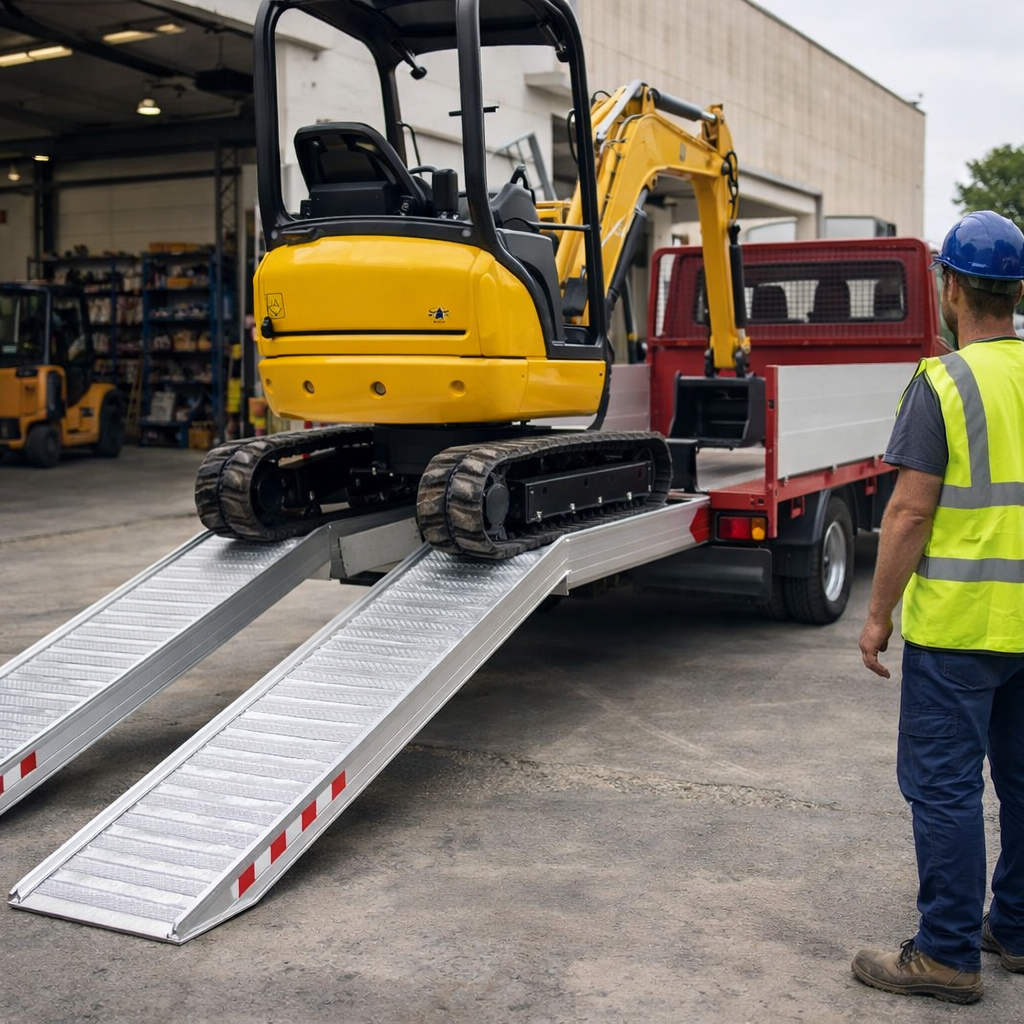

These premium aluminium loading ramps are designed for heavy-duty use with plant machinery and mini diggers. With a robust capacity of up to 2500kg, they offer reliable support for your equipment loading needs.

• Core profile thickness of 115mm for enhanced durability.
• 400mm width with recommended minimum track width of 200mm and a max track width of 320mm.
• Not suitable for gradients over 30%.
• Available with or without edges; default is without edges.
• Four connection options, with a popular 'rest on' pin connection.
• Custom load heights available upon request.
• Fully TÜV certified for safety and reliability.

Product Specifications

FAQs

What is the maximum load capacity of these ramps?
The ramps have a robust load capacity of 2500kg.

What is the recommended gradient for these ramps?
These ramps are not designed for use over a 30% gradient.

Are these ramps customisable?
Yes, custom load heights and various connection options are available.
