Aluminium Loading Ramps – 3000x580mm – 14000kg Capacity – Industrial Use

Roll over image to zoom in Click on image to zoom

Aluminium Loading Ramps – 3000x580mm – 14000kg Capacity – Industrial Use

Name: Aluminium Loading Ramps – 3000x580mm – 14000kg Capacity – Industrial Use
Brand: Barriers Co
SKU: TRP-BC2653
Price: 4668.0 GBP
Availability: InStock

£4,668.00

Incl. VAT

In Stock & Ready to Ship

Free UK Shipping

In Stock — Order by 2pm for same-day dispatch

Free UK Delivery — arrives 1-3 days

UK & EU Safety Standards

Expert Support — 01282 270 214

14-Day Returns

🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product

Free UK mainland delivery included
Same-day dispatch when ordered before 2pm

Download Spec Sheet

PDF with image, specifications & dimensions

→

Chat With Us on WhatsApp

Added to Cart!

View Cart

- Payment
- Secure transaction
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Dispatches from
- UK warehouse

★★★★★

"Amazing quality and quick shipping!"

- Sarah K.

★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.

★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

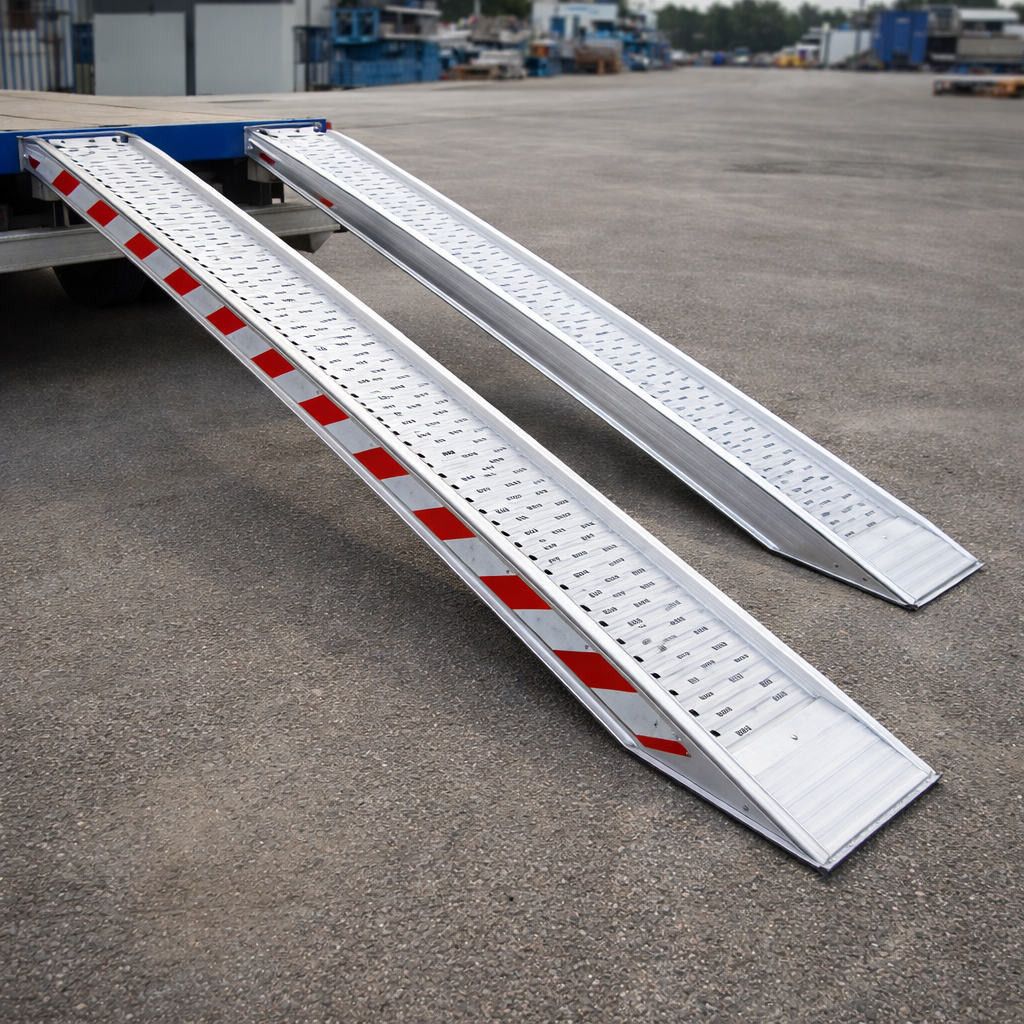

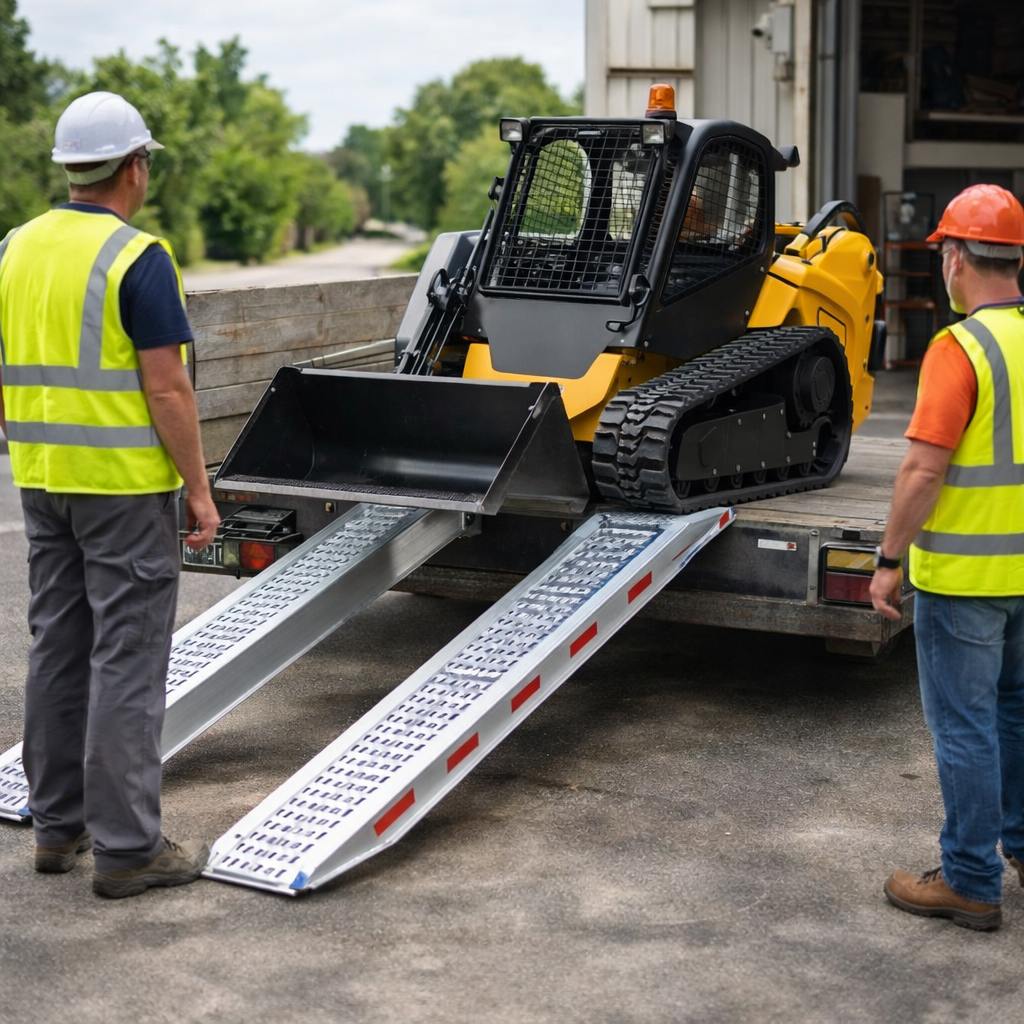

Aluminium Loading Ramps for Heavy Duty Industrial Use

Our aluminium loading ramps are designed for heavy-duty industrial applications. With a width of 580mm and a length of 3000mm, these ramps can support up to 14000kg, making them ideal for use with commercial and industrial plant machinery.

Core profile thickness of 200mm
Minimum track width of 300mm
Available with or without edges
Four connection options available, default is rest on connection
Custom load heights available

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	14000
Height of Ramps Profile (mm)	200
Length (mm)	3000
Max Load Height (mm)	900
Min. Load Height (mm)	750
Weight per Ramp (kg)	61
Weight Per Pair (kg)	122
Width (mm)	580
Minimum Track Width (mm)	300
Maximum Track Width (mm)	480
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	10620
Capacity Wheelbase 1500mm (kg)	14000
Capacity Wheelbase 2000mm (kg)	14000
Colour Option	Black

FAQ

What is the maximum capacity of these ramps?
The ramps can support up to 14000kg.
Are the ramps customisable?
Yes, custom load heights are available.
What type of connection is standard?
The standard connection is the rest on connection.

★★★★★
