Aluminium Loading Ramps – 3000x510mm – 9000kg Capacity – Industrial Use
Aluminium Loading Ramps – 3000x510mm – 9000kg Capacity – Industrial Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 3000x510mm – 9000kg Capacity – Industrial UseAluminium Loading Ramps – 3000x510mm – 9000kg Capacity – Industrial Use

Aluminium Loading Ramps – 3000x510mm – 9000kg Capacity – Industrial Use

£3,324.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Overview

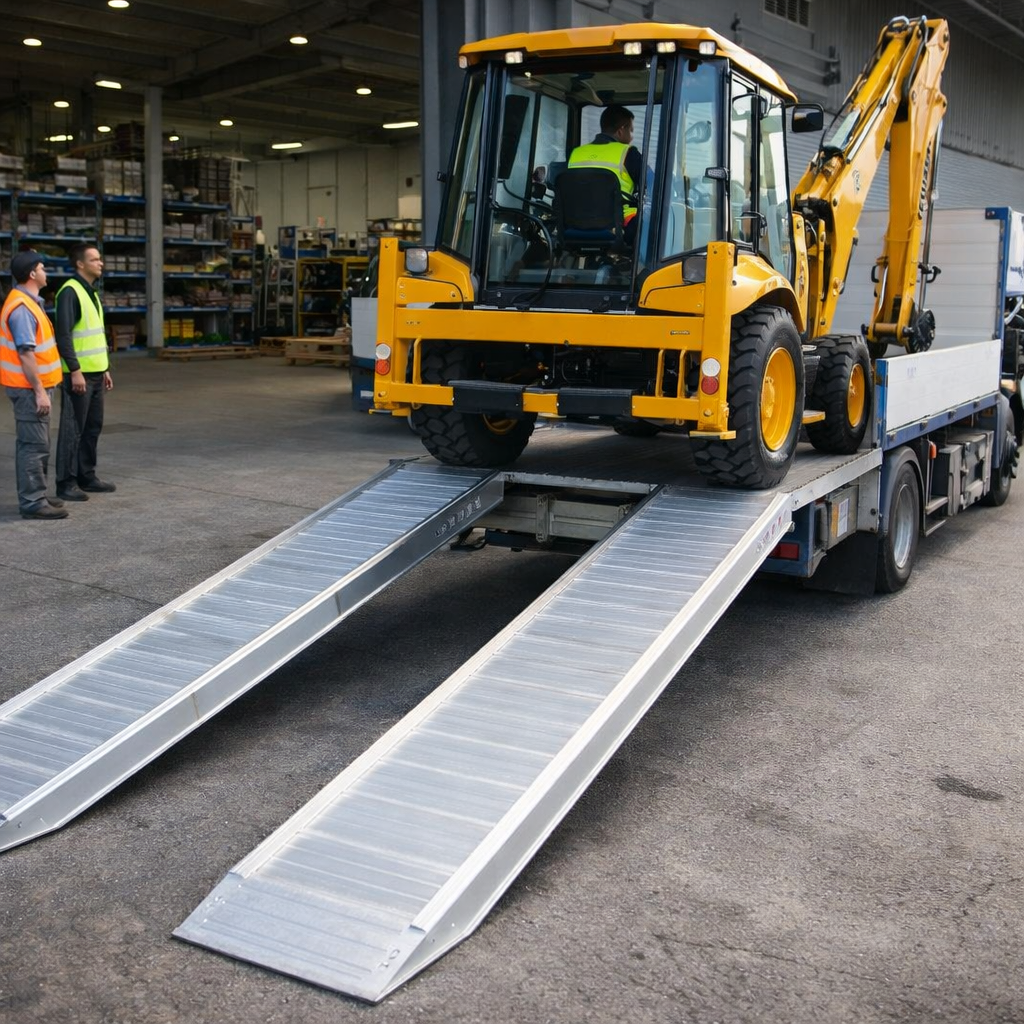

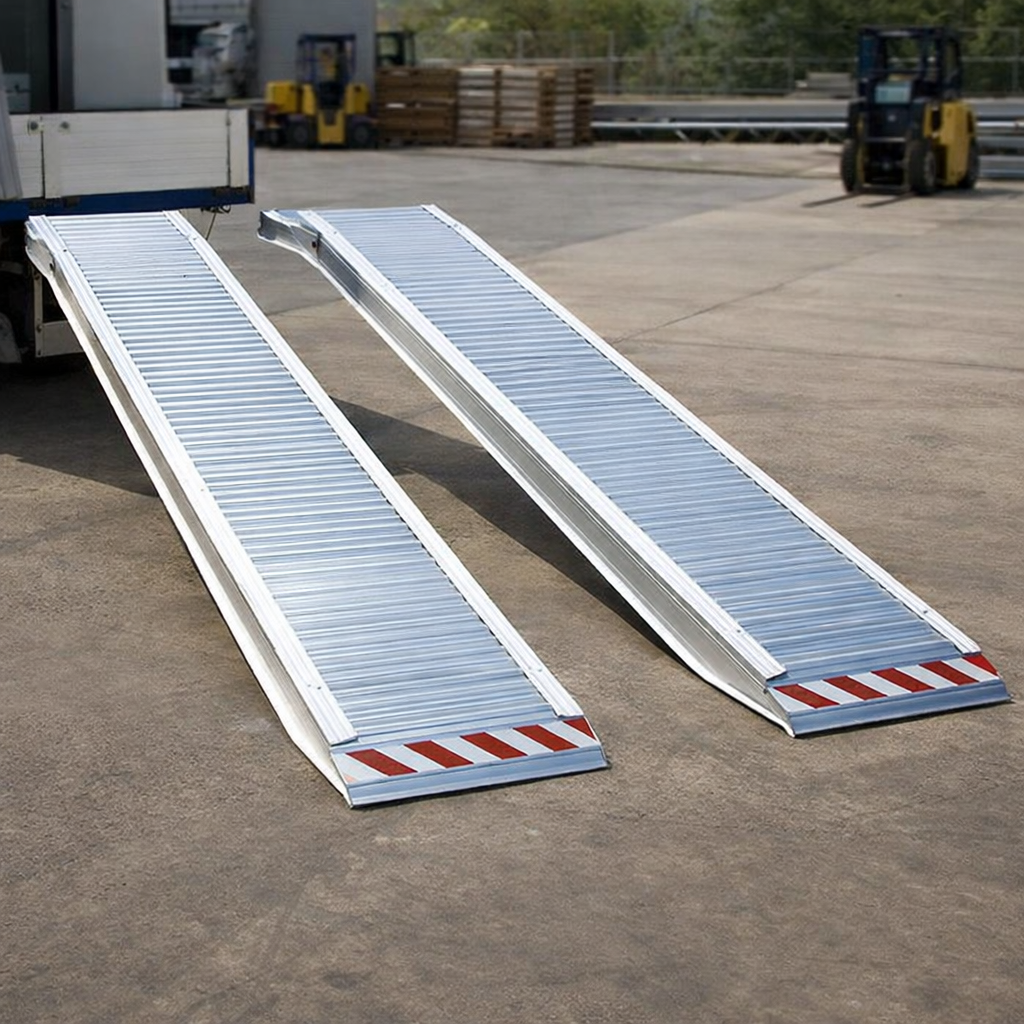

These high-performance aluminium loading ramps are designed for industrial-grade applications. With a robust capacity of up to 9000kg, they are perfect for use with rubber tracked excavators, plant ramps, and tele-handlers. The ramps feature a core profile thickness of 160mm, a width of 510mm, and are available with various connection options.

  • Capacity: 9000kg
  • Profile Height: 160mm
  • Length: 3000mm
  • Width: 510mm
  • Available with or without edges
  • Four connection options; default is rest on connection
  • Custom load heights available
  • Not suitable for solid wheels on road surfacing machines
  • Fully TÜV certified
  • Bespoke ramp quotes available on request

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 9000
Height of Ramps Profile (mm) 160
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 43
Weight Per Pair (kg) 86
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6320
Capacity Wheelbase 1500mm (kg) 8430
Capacity Wheelbase 2000mm (kg) 9000
Colour Option Black

FAQs

  • Q: What is the maximum load capacity of these ramps?
    A: The maximum load capacity is 9000kg.
  • Q: Can these ramps be customized?
    A: Yes, custom load heights and configurations are available.
  • Q: Are these ramps suitable for solid wheels?
    A: No, they are not suitable for solid wheels found on road surfacing machines.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Overview

These high-performance aluminium loading ramps are designed for industrial-grade applications. With a robust capacity of up to 9000kg, they are perfect for use with rubber tracked excavators, plant ramps, and tele-handlers. The ramps feature a core profile thickness of 160mm, a width of 510mm, and are available with various connection options.

  • Capacity: 9000kg
  • Profile Height: 160mm
  • Length: 3000mm
  • Width: 510mm
  • Available with or without edges
  • Four connection options; default is rest on connection
  • Custom load heights available
  • Not suitable for solid wheels on road surfacing machines
  • Fully TÜV certified
  • Bespoke ramp quotes available on request

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 9000
Height of Ramps Profile (mm) 160
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 43
Weight Per Pair (kg) 86
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6320
Capacity Wheelbase 1500mm (kg) 8430
Capacity Wheelbase 2000mm (kg) 9000
Colour Option Black

FAQs

  • Q: What is the maximum load capacity of these ramps?
    A: The maximum load capacity is 9000kg.
  • Q: Can these ramps be customized?
    A: Yes, custom load heights and configurations are available.
  • Q: Are these ramps suitable for solid wheels?
    A: No, they are not suitable for solid wheels found on road surfacing machines.
★★★★★
