About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

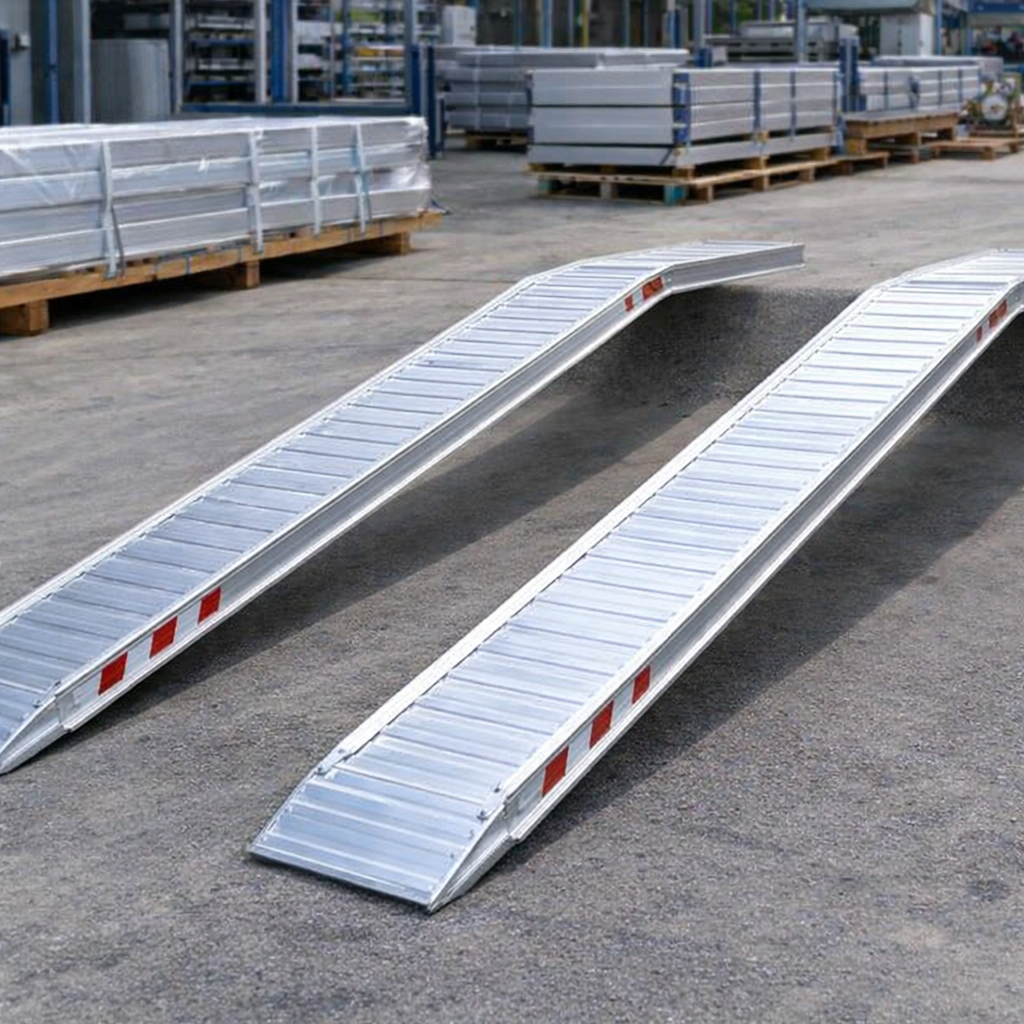

Aluminium Loading Ramps

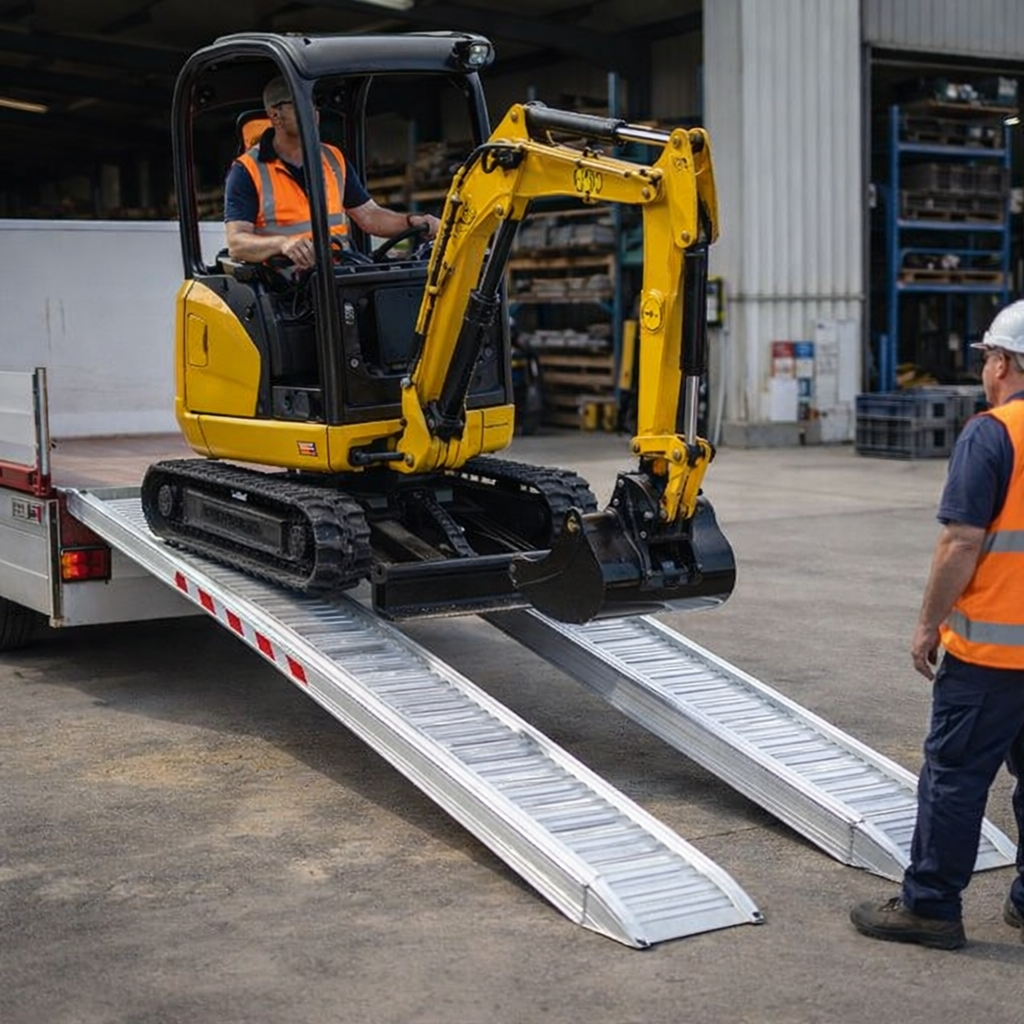

Our aluminium loading ramps are designed for heavy-duty applications, providing reliable performance for plant and mini digger use. Featuring a robust capacity of up to 6000kg and a core profile thickness of 125mm, these ramps offer exceptional durability and strength.

  • Available with or without edges; default is without edges
  • Four connection options available; default is rest on connection with a pin
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 6000
Height of Ramps Profile (mm) 125
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 26
Weight Per Pair (kg) 52
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3435
Capacity Wheelbase 1500mm (kg) 4580
Capacity Wheelbase 2000mm (kg) 6000
Colour Option Black

FAQs

Q: Can these ramps be customised?

A: Yes, custom load heights are available to suit your specific requirements.

Q: Are these ramps suitable for vehicles with solid wheels?

A: No, these ramps are not suitable for solid wheels found on road surfacing machines.

Q: What is the default connection option?

A: The default connection option is a rest on connection with a pin, ideal for flatbed vehicles and tipper trucks.
