Aluminium Loading Ramps – 3500mm x 360mm – 3000kg Capacity – Plant & Mini Digger Use
Aluminium Loading Ramps – 3500mm x 360mm – 3000kg Capacity – Plant & Mini Digger Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 3500mm x 360mm – 3000kg Capacity – Plant & Mini Digger UseAluminium Loading Ramps – 3500mm x 360mm – 3000kg Capacity – Plant & Mini Digger Use

Aluminium Loading Ramps – 3500mm x 360mm – 3000kg Capacity – Plant & Mini Digger Use

£2,316.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Aluminium Loading Ramps

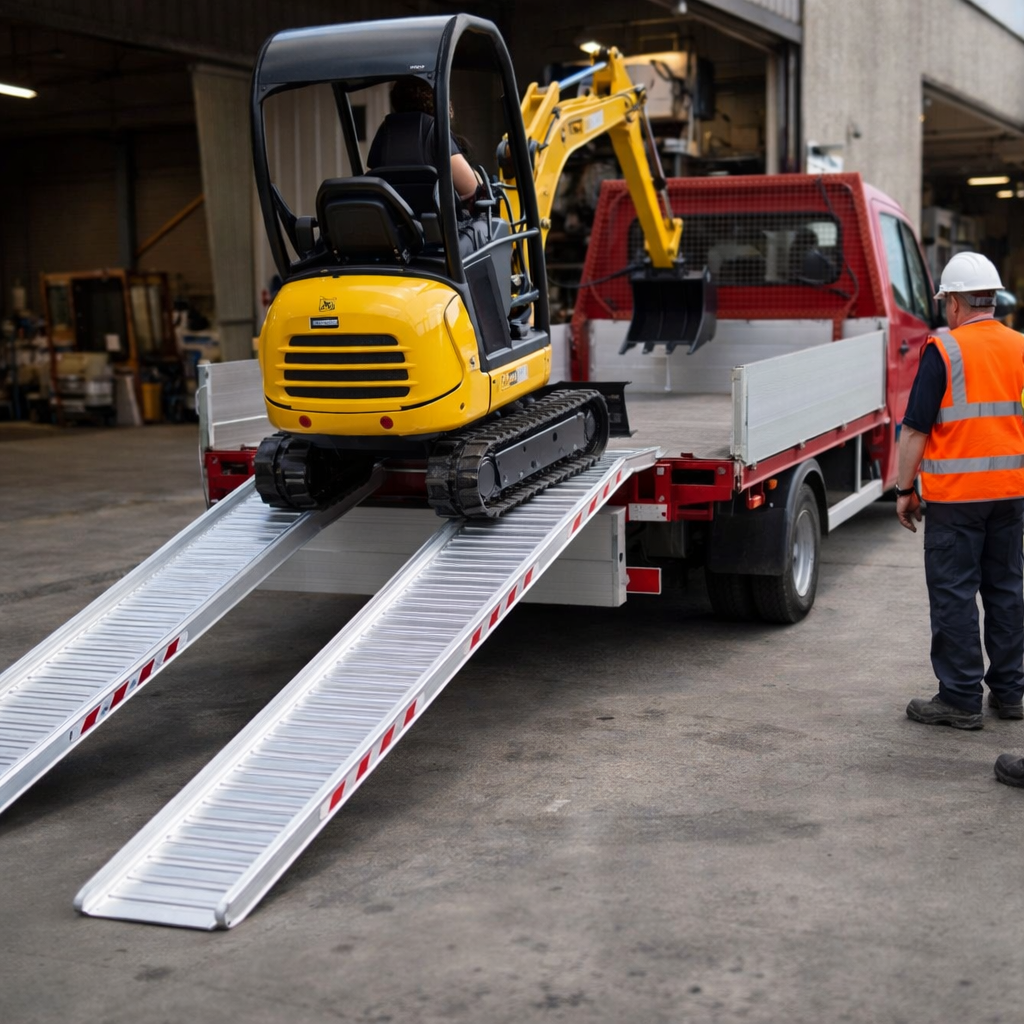

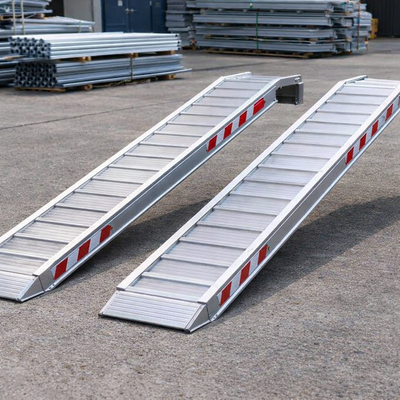

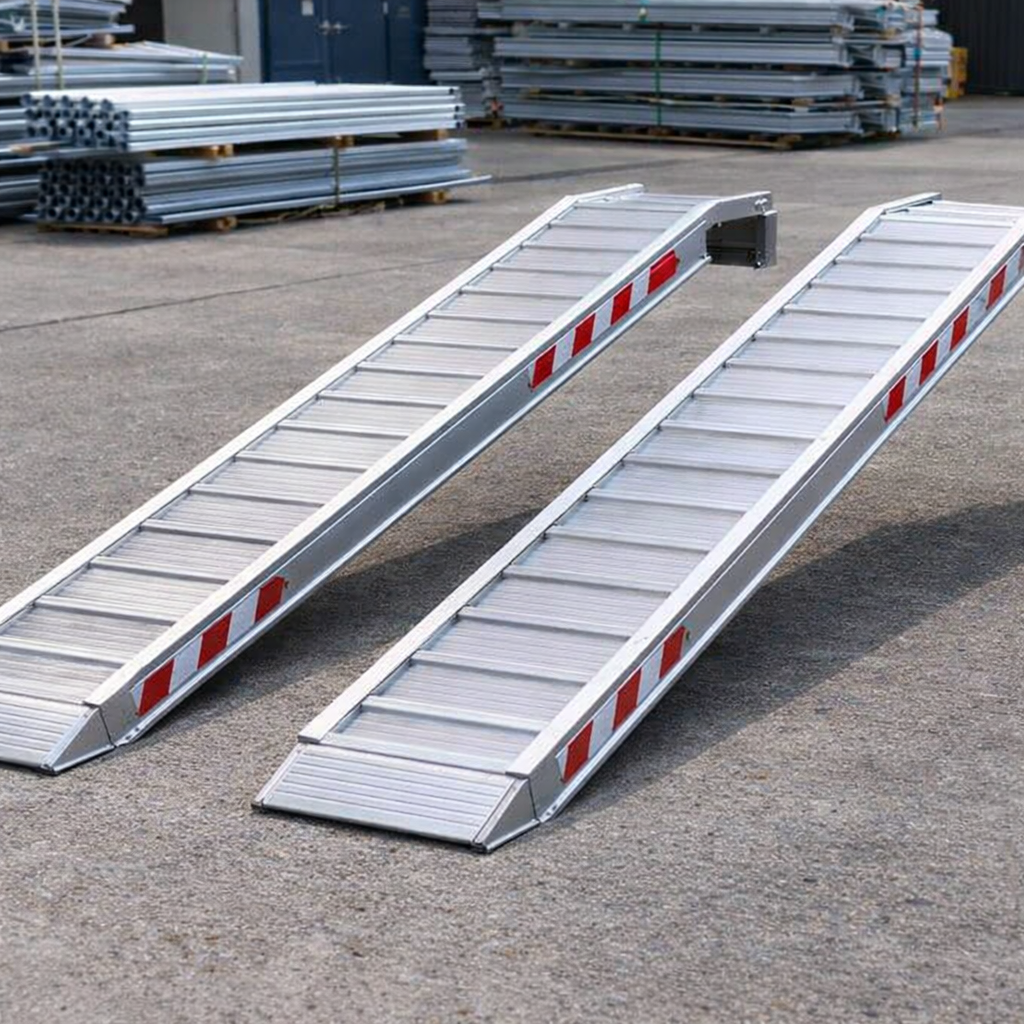

Introducing our premium aluminium loading ramps, designed for plant and mini digger applications. These ramps offer a significant load capacity of 3000kg, making them ideal for heavy-duty tasks. With a core profile thickness of 115mm and a width of 360mm, they provide reliable support for your equipment.

  • Available with or without edges, default is without edges.
  • Features four connection options, with 'rest on' connection as the default.
  • Custom load heights available upon request.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for safety and reliability.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3000
Height of Ramps Profile (mm) 115
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 25.5
Weight Per Pair (kg) 51
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2000
Capacity Wheelbase 1500mm (kg) 2500
Capacity Wheelbase 2000mm (kg) 3000
Colour Option Black

FAQs

What is the maximum load capacity of the ramps?
The ramps have a maximum load capacity of 3000kg, suitable for heavy-duty use.

What connection options are available?
There are four connection options available, with the 'rest on' connection as the default.

Are these ramps suitable for all types of machinery?
These ramps are not suitable for solid wheels found on road surfacing machines.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Aluminium Loading Ramps

Introducing our premium aluminium loading ramps, designed for plant and mini digger applications. These ramps offer a significant load capacity of 3000kg, making them ideal for heavy-duty tasks. With a core profile thickness of 115mm and a width of 360mm, they provide reliable support for your equipment.

  • Available with or without edges, default is without edges.
  • Features four connection options, with 'rest on' connection as the default.
  • Custom load heights available upon request.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for safety and reliability.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3000
Height of Ramps Profile (mm) 115
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 25.5
Weight Per Pair (kg) 51
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2000
Capacity Wheelbase 1500mm (kg) 2500
Capacity Wheelbase 2000mm (kg) 3000
Colour Option Black

FAQs

What is the maximum load capacity of the ramps?
The ramps have a maximum load capacity of 3000kg, suitable for heavy-duty use.

What connection options are available?
There are four connection options available, with the 'rest on' connection as the default.

Are these ramps suitable for all types of machinery?
These ramps are not suitable for solid wheels found on road surfacing machines.

★★★★★
