About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

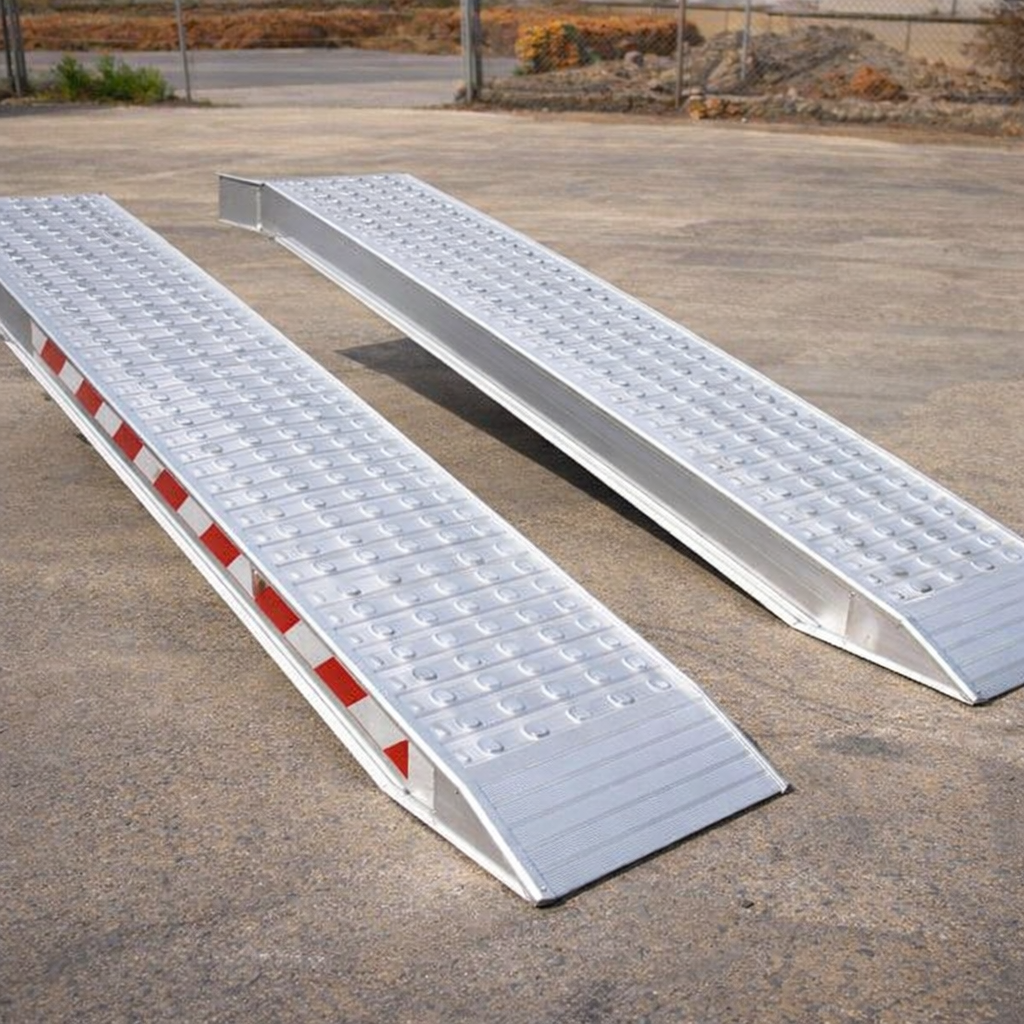

High-Performance Aluminium Loading Ramps

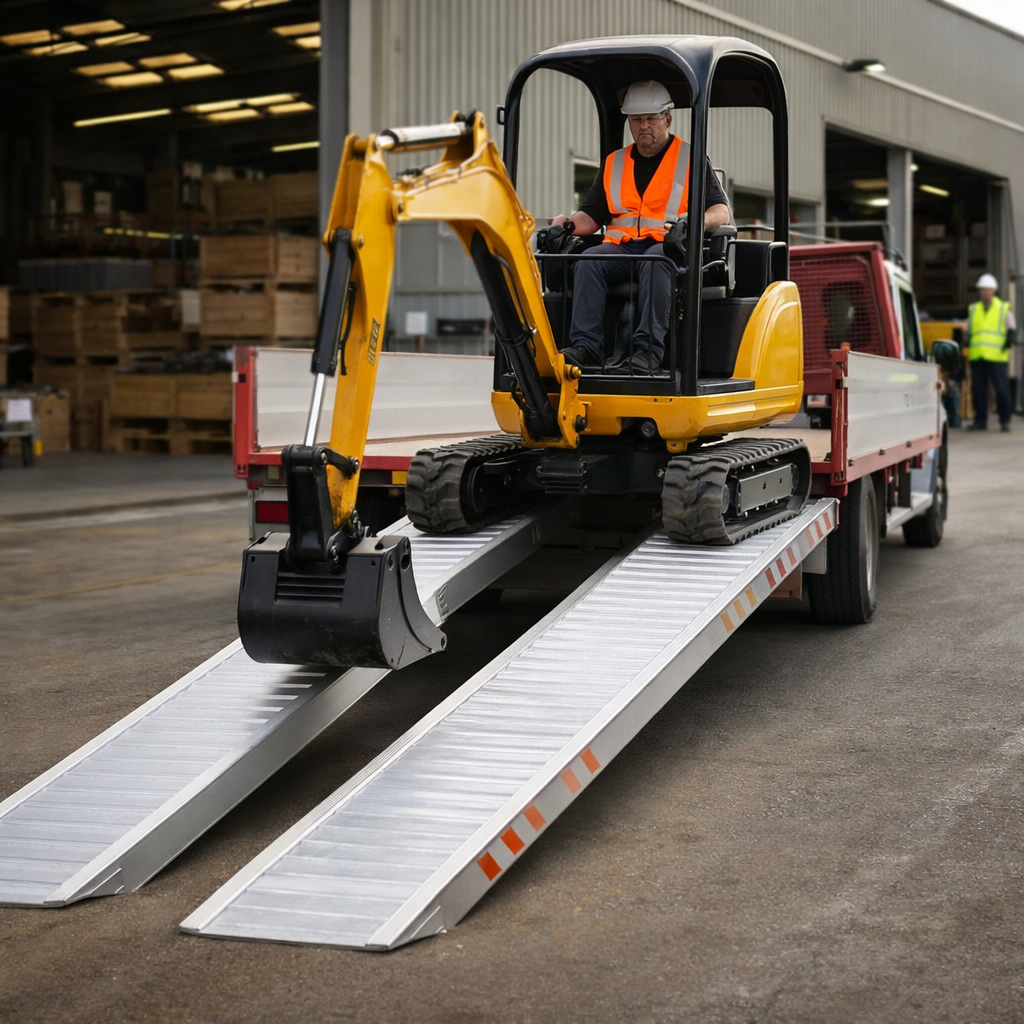

Our aluminium loading ramps are expertly designed to handle a capacity of up to 3800kg, making them perfect for vehicle access including cars and lightweight plant machinery. Each ramp measures 2500mm in length and 400mm in width, featuring a core profile thickness of 100mm. These ramps are engineered for use at a 30% gradient.

  • Available with or without edges as per your requirement.
  • Four connection options available, with the default being a rest on connection with a pin, ideal for flatbed vehicles and tipper trucks.
  • Custom load heights available upon request.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for your peace of mind.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3800
Height of Ramps Profile (mm) 100
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 19
Weight Per Pair (kg) 38
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2500
Capacity Wheelbase 1250mm (kg) 3020
Capacity Wheelbase 1500mm (kg) 3800
Colour Option Black

Frequently Asked Questions

Q: Are these ramps suitable for all vehicles?
A: These ramps are suitable for vehicles with distributed weight and are not ideal for solid wheels found on road surfacing machines.

Q: What is the maximum load height these ramps can accommodate?
A: The maximum load height is 750mm, with a minimum of 600mm.

Q: Are custom sizes available?
A: Yes, custom load heights and other specifications can be arranged upon request.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

High-Performance Aluminium Loading Ramps

Our aluminium loading ramps are expertly designed to handle a capacity of up to 3800kg, making them perfect for vehicle access including cars and lightweight plant machinery. Each ramp measures 2500mm in length and 400mm in width, featuring a core profile thickness of 100mm. These ramps are engineered for use at a 30% gradient.

  • Available with or without edges as per your requirement.
  • Four connection options available, with the default being a rest on connection with a pin, ideal for flatbed vehicles and tipper trucks.
  • Custom load heights available upon request.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for your peace of mind.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3800
Height of Ramps Profile (mm) 100
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 19
Weight Per Pair (kg) 38
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2500
Capacity Wheelbase 1250mm (kg) 3020
Capacity Wheelbase 1500mm (kg) 3800
Colour Option Black

Frequently Asked Questions

Q: Are these ramps suitable for all vehicles?
A: These ramps are suitable for vehicles with distributed weight and are not ideal for solid wheels found on road surfacing machines.

Q: What is the maximum load height these ramps can accommodate?
A: The maximum load height is 750mm, with a minimum of 600mm.

Q: Are custom sizes available?
A: Yes, custom load heights and other specifications can be arranged upon request.

★★★★★
