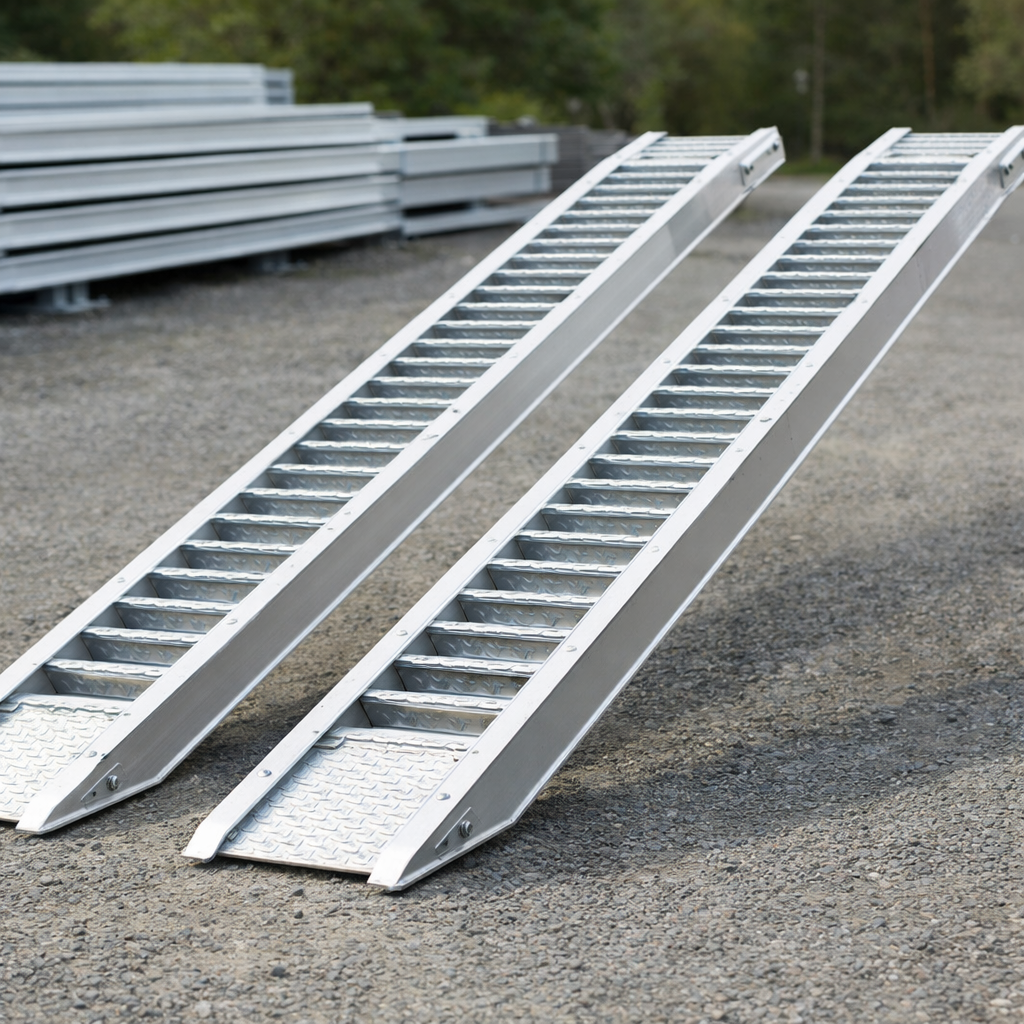

Aluminium Loading Ramps – 2500x360mm – 3800kg Capacity – Commercial Use

Roll over image to zoom in Click on image to zoom

Aluminium Loading Ramps – 2500x360mm – 3800kg Capacity – Commercial Use

Name: Aluminium Loading Ramps – 2500x360mm – 3800kg Capacity – Commercial Use
Brand: Barriers Co
SKU: TRP-BC970
Price: 1704.0 GBP
Availability: InStock

£1,704.00

Incl. VAT

In Stock & Ready to Ship

Free UK Shipping

In Stock — Order by 2pm for same-day dispatch

Free UK Delivery — arrives 1-3 days

UK & EU Safety Standards

Expert Support — 01282 270 214

14-Day Returns

🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product

Free UK mainland delivery included
Same-day dispatch when ordered before 2pm

Download Spec Sheet

PDF with image, specifications & dimensions

→

Chat With Us on WhatsApp

Added to Cart!

View Cart

- Payment
- Secure transaction
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Dispatches from
- UK warehouse

★★★★★

"Amazing quality and quick shipping!"

- Sarah K.

★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.

★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Features

Core profile thickness: 100mm
Width: 360mm
Capacity: 3800kg
Ideal for car and lightweight plant ramps
Minimum track width: 200mm
Designed for a gradient of 30%
Available with or without edges; default is without edges
Four connection options; default is rest on connection with a pin
Foot of the ramp cut for smooth entry
Non-slip surface

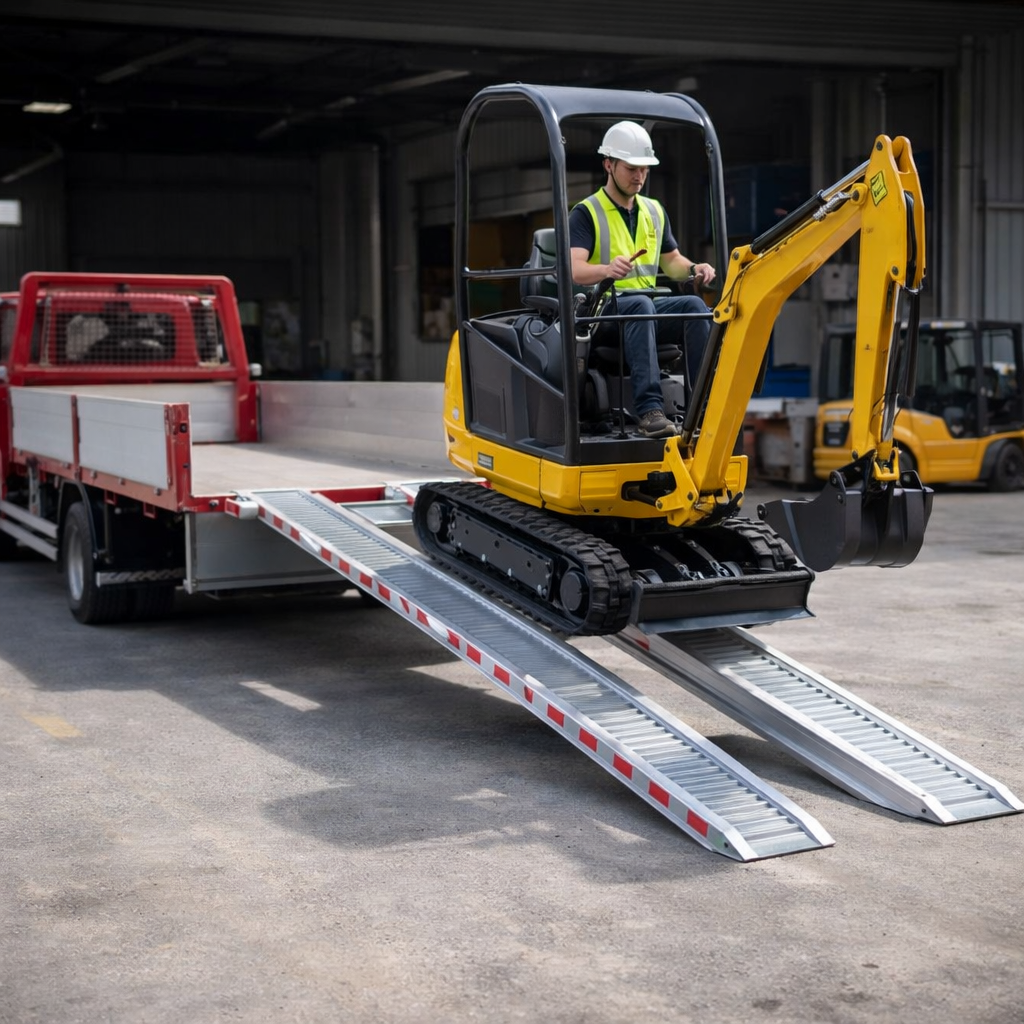

Suitable for loading tracked machinery and vehicles
Custom load heights available
European made
Not suitable for solid wheels on road surfacing machines
Fully TÜV certified

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	3800
Height of Ramps Profile (mm)	100
Length (mm)	2500
Max Load Height (mm)	750
Min. Load Height (mm)	600
Weight per Ramp (kg)	18
Weight Per Pair (kg)	36
Width (mm)	360
Minimum Track Width (mm)	200
Maximum Track Width (mm)	280
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	2500
Capacity Wheelbase 1250mm (kg)	3020
Capacity Wheelbase 1500mm (kg)	3800
Colour Option	Black

FAQs

What is the maximum capacity of these ramps? The maximum capacity is 3800kg.
Are these ramps suitable for solid wheels? No, these ramps are not suitable for solid wheels found on road surfacing machines.
Can these ramps be customised? Yes, custom load heights are available upon request.

★★★★★
