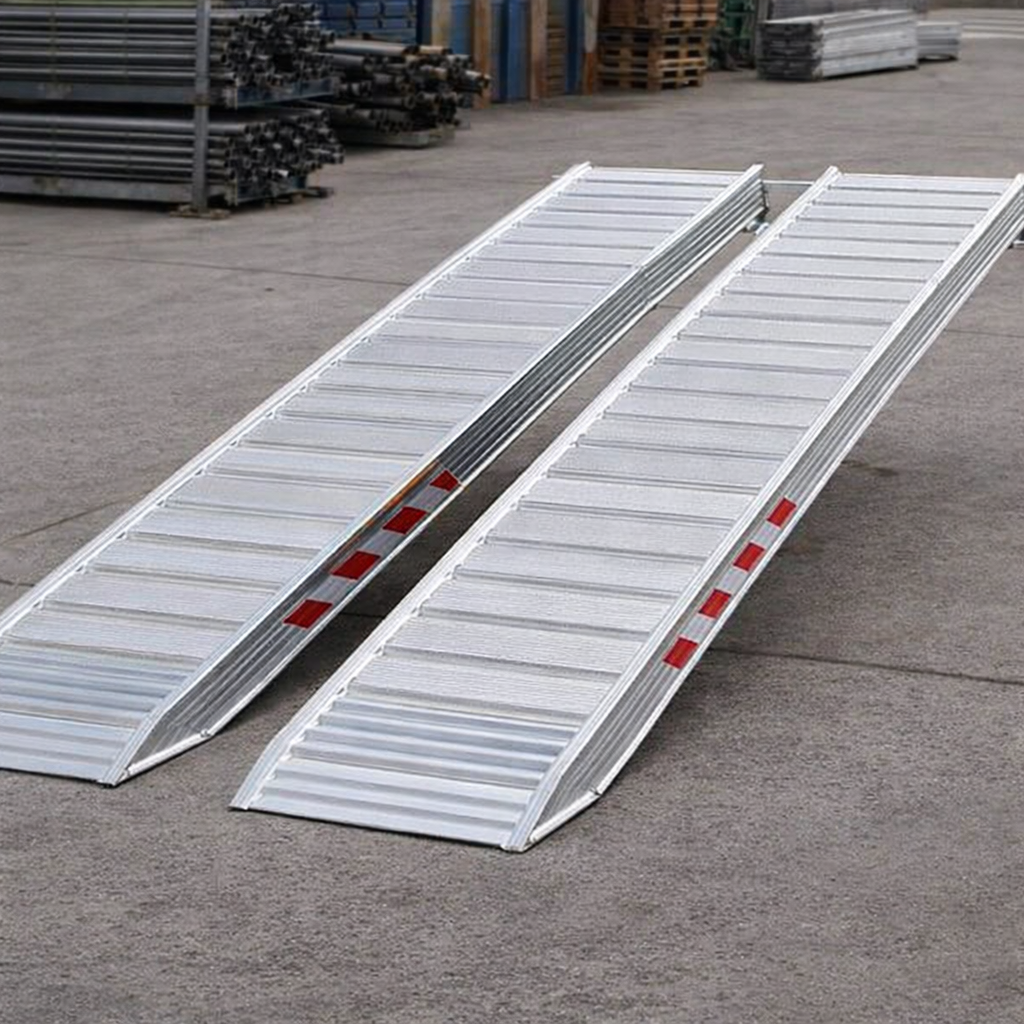

Aluminium Loading Ramps for Plant & Machinery

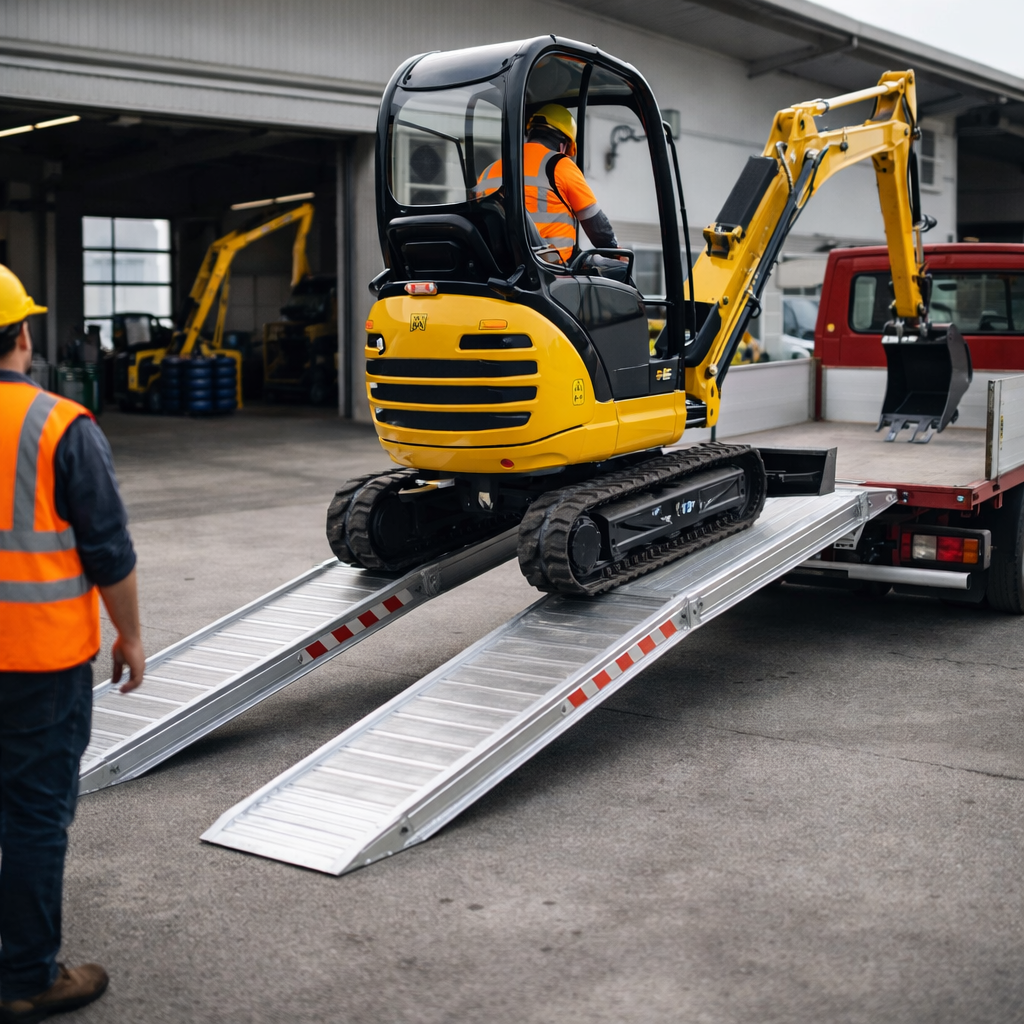

Our industrial-grade aluminium loading ramps are designed to support a range of machinery including mini diggers, excavators, and ride-on mowers. With a robust capacity of up to 2450kg, these ramps ensure safe and efficient loading operations.

Core profile thickness: 65mm
Width: 500mm
Minimum track width: 300mm
Available with or without edges (default is without)
Four connection options available, default is rest on connection
Custom load heights available
Not suitable for solid wheels
Fully TÜV certified for quality assurance

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	2450
Height of Ramps Profile (mm)	65
Length (mm)	1500
Max Load Height (mm)	450
Min. Load Height (mm)	300
Weight per Ramp (kg)	12
Weight Per Pair (kg)	24
Width (mm)	500
Minimum Track Width (mm)	300
Maximum Track Width (mm)	420
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	2450
Capacity Wheelbase 1250mm (kg)	2450
Capacity Wheelbase 1500mm (kg)	2450
Colour Option	Black

FAQs

What is the maximum capacity of these ramps?

The ramps have a maximum capacity of 2450kg when weight is equally distributed.

Are these ramps TÜV certified?

Yes, these ramps are fully TÜV certified.

Can these ramps be customised?

Yes, custom load heights and other specifications can be accommodated.

★★★★★
