Aluminium Loading Ramps – 3500mm x 300mm – 1250kg Capacity – Plant Machinery
Aluminium Loading Ramps – 3500mm x 300mm – 1250kg Capacity – Plant Machinery
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 3500mm x 300mm – 1250kg Capacity – Plant MachineryAluminium Loading Ramps – 3500mm x 300mm – 1250kg Capacity – Plant Machinery

Aluminium Loading Ramps – 3500mm x 300mm – 1250kg Capacity – Plant Machinery

£1,944.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

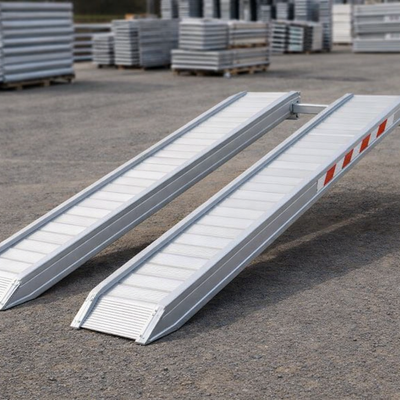

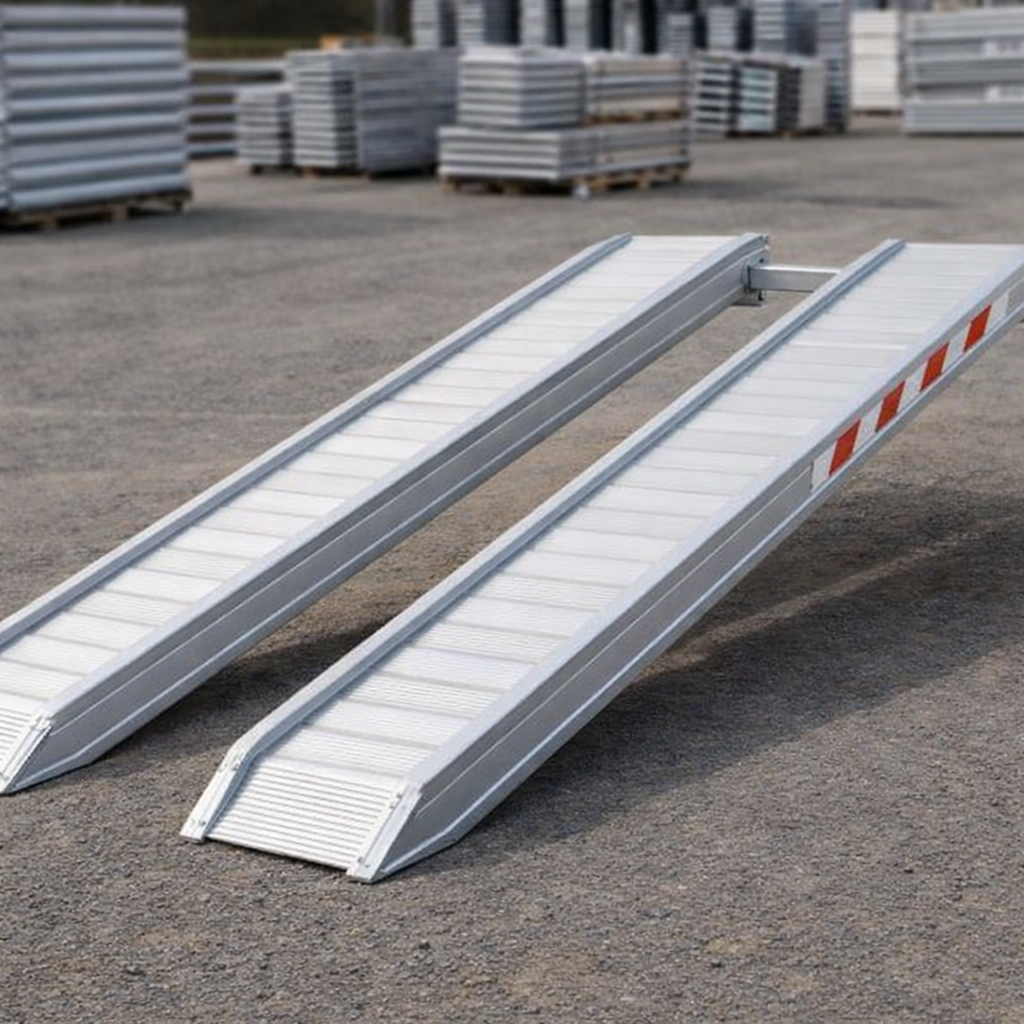

Aluminium Loading Ramps for Plant Machinery

These industrial-grade aluminium loading ramps are designed for efficient and safe loading of plant machinery including diggers, tractors, and ride-on mowers. With a capacity of up to 1250kg, these ramps are ideal for various commercial applications.

  • Available with and without edges; default is without edges.
  • Four connection options available; the default is the rest on connection, suitable for flatbed vehicles and tipper trucks.
  • Foot of the ramp is cut for the load height to ensure smooth entry.
  • Customisations available including custom load heights and sizes.
  • Made in Europe and fully TÜV certified.
  • Not suitable for solid wheels found on road surfacing machines.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 1250
Height of Ramps Profile (mm) 75
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 20
Weight Per Pair (kg) 40
Width (mm) 300
Minimum Track Width (mm) 150
Maximum Track Width (mm) 220
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1000
Capacity Wheelbase 1250mm (kg) 1110
Capacity Wheelbase 1500mm (kg) 1250
Colour Option Black

Frequently Asked Questions

What is the maximum weight capacity of these ramps?
The maximum weight capacity is 1250kg, suitable for evenly distributed loads.

Are these ramps customisable?
Yes, custom sizes and load heights are available upon request.

What types of vehicles are these ramps suitable for?
These ramps are ideal for tracked plant machinery such as diggers, tractors, and ride-on mowers.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Aluminium Loading Ramps for Plant Machinery

These industrial-grade aluminium loading ramps are designed for efficient and safe loading of plant machinery including diggers, tractors, and ride-on mowers. With a capacity of up to 1250kg, these ramps are ideal for various commercial applications.

  • Available with and without edges; default is without edges.
  • Four connection options available; the default is the rest on connection, suitable for flatbed vehicles and tipper trucks.
  • Foot of the ramp is cut for the load height to ensure smooth entry.
  • Customisations available including custom load heights and sizes.
  • Made in Europe and fully TÜV certified.
  • Not suitable for solid wheels found on road surfacing machines.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 1250
Height of Ramps Profile (mm) 75
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 20
Weight Per Pair (kg) 40
Width (mm) 300
Minimum Track Width (mm) 150
Maximum Track Width (mm) 220
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1000
Capacity Wheelbase 1250mm (kg) 1110
Capacity Wheelbase 1500mm (kg) 1250
Colour Option Black

Frequently Asked Questions

What is the maximum weight capacity of these ramps?
The maximum weight capacity is 1250kg, suitable for evenly distributed loads.

Are these ramps customisable?
Yes, custom sizes and load heights are available upon request.

What types of vehicles are these ramps suitable for?
These ramps are ideal for tracked plant machinery such as diggers, tractors, and ride-on mowers.

★★★★★
