Aluminium Loading Ramps – 5000mm x 400mm – 3435kg Capacity – Plant & Digger Use
Aluminium Loading Ramps – 5000mm x 400mm – 3435kg Capacity – Plant & Digger Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 5000mm x 400mm – 3435kg Capacity – Plant & Digger UseAluminium Loading Ramps – 5000mm x 400mm – 3435kg Capacity – Plant & Digger Use

Aluminium Loading Ramps – 5000mm x 400mm – 3435kg Capacity – Plant & Digger Use

£4,548.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Overview

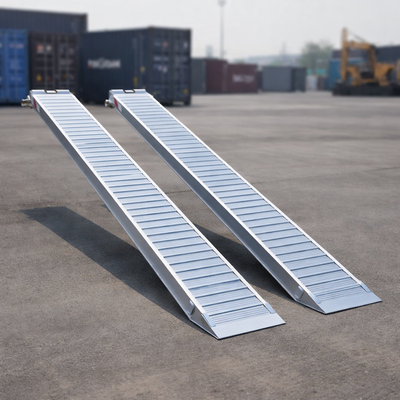

These high-performance aluminium loading ramps are designed for medium to heavy-duty applications, making them perfect for use with plant and digger machinery. With a core profile thickness of 150mm and a width of 400mm, these ramps support a capacity of up to 3435kg, ensuring reliable performance for various industrial needs.

  • Available both with and without edges; default is without edges.
  • Four connection options available; default is rest on connection.
  • Custom load heights available.
  • Not suitable for solid wheels on road surfacing machines; see industrial ramps for steel tracks.
  • Fully TUV certified for safety and reliability.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3435
Height of Ramps Profile (mm) 150
Length (mm) 5000
Max Load Height (mm) 1500
Min. Load Height (mm) 1350
Weight per Ramp (kg) 53.5
Weight Per Pair (kg) 107
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2575
Capacity Wheelbase 1500mm (kg) 2945
Capacity Wheelbase 2000mm (kg) 3435
Usable Width (mm) 340
Colour Option Black

FAQs

  • What is the maximum load capacity? The maximum load capacity is 3435kg.
  • Are custom sizes available? Yes, custom load heights can be requested.
  • Are these ramps suitable for all vehicle types? These ramps are not suitable for vehicles with solid wheels, such as those found on road surfacing machines.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Overview

These high-performance aluminium loading ramps are designed for medium to heavy-duty applications, making them perfect for use with plant and digger machinery. With a core profile thickness of 150mm and a width of 400mm, these ramps support a capacity of up to 3435kg, ensuring reliable performance for various industrial needs.

  • Available both with and without edges; default is without edges.
  • Four connection options available; default is rest on connection.
  • Custom load heights available.
  • Not suitable for solid wheels on road surfacing machines; see industrial ramps for steel tracks.
  • Fully TUV certified for safety and reliability.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3435
Height of Ramps Profile (mm) 150
Length (mm) 5000
Max Load Height (mm) 1500
Min. Load Height (mm) 1350
Weight per Ramp (kg) 53.5
Weight Per Pair (kg) 107
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2575
Capacity Wheelbase 1500mm (kg) 2945
Capacity Wheelbase 2000mm (kg) 3435
Usable Width (mm) 340
Colour Option Black

FAQs

  • What is the maximum load capacity? The maximum load capacity is 3435kg.
  • Are custom sizes available? Yes, custom load heights can be requested.
  • Are these ramps suitable for all vehicle types? These ramps are not suitable for vehicles with solid wheels, such as those found on road surfacing machines.
★★★★★
