Aluminium Loading Ramps – 3500x360mm – 3000kg Capacity – Plant & Mini Digger Use

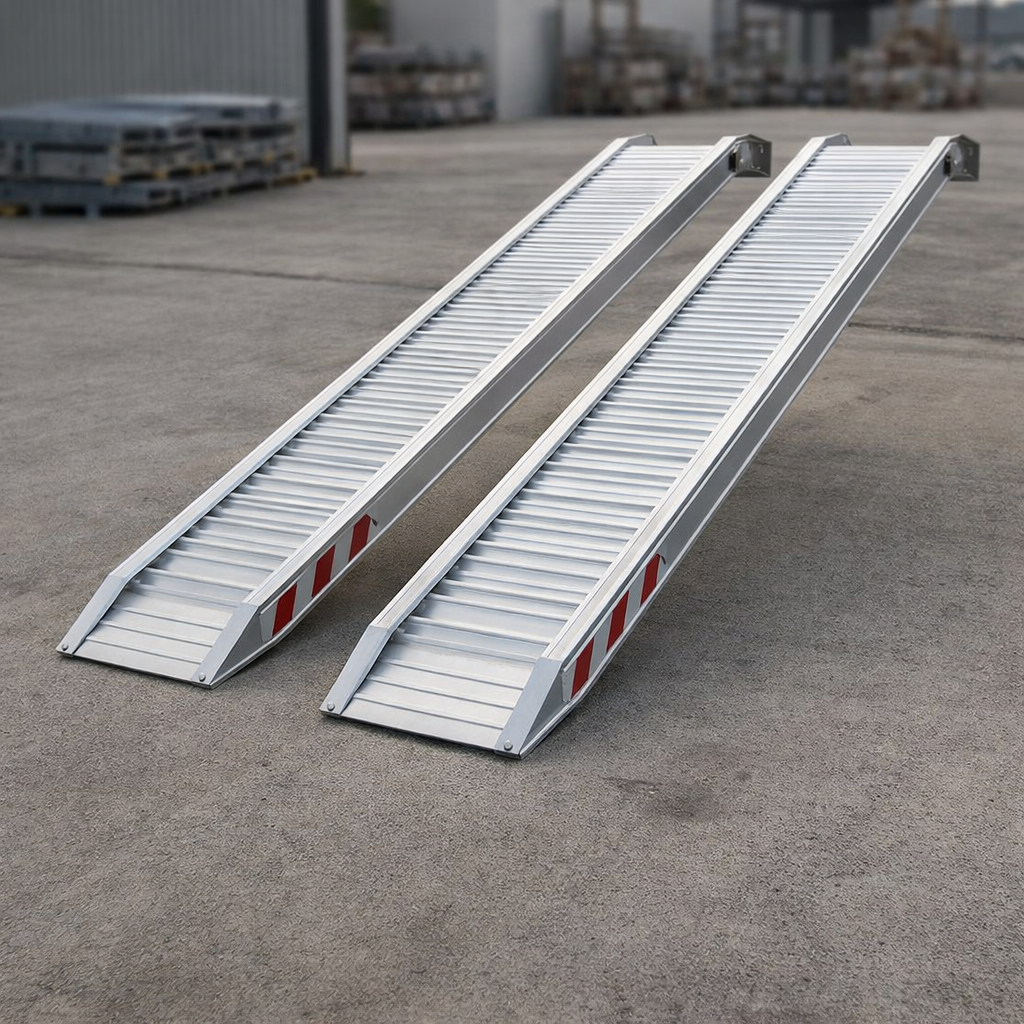

Aluminium Loading Ramps

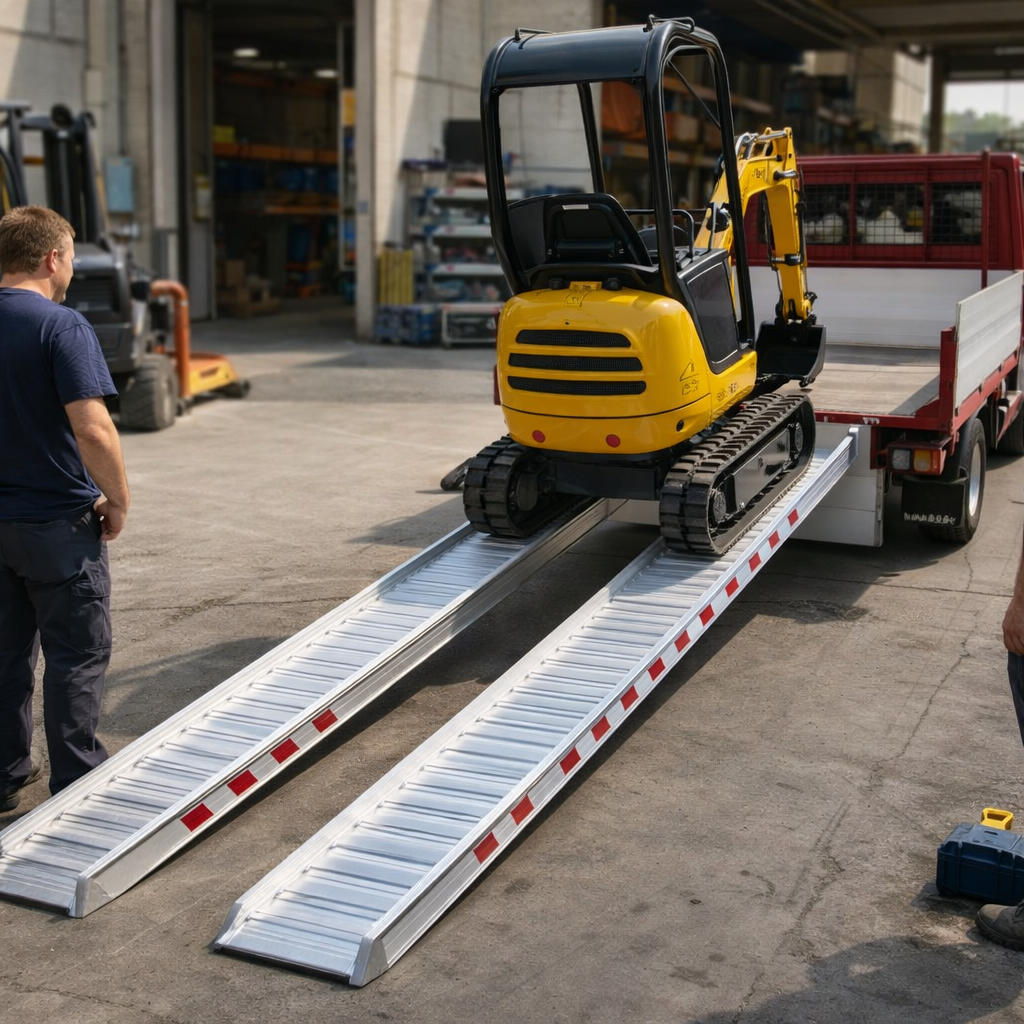

These high-performance aluminium loading ramps are designed to support heavy loads up to 3000kg, making them ideal for plant and mini digger applications. With a core profile thickness of 115mm and a width of 360mm, these ramps ensure stability and safety.

• Available with or without edges; default is without edges
• Four connection options, including popular rest on connection with a pin
• Custom load heights available for tailored solutions
• Not suitable for solid wheels found on road surfacing machines
• Fully TÜV certified for safety and reliability

Usage Guidelines

Please adhere to recommended track widths: minimum 200mm, maximum 280mm. Not designed for use over a 30% gradient. Ensure weight distribution is equal for stated capacities to remain valid. For solid wheel machinery, consider alternative ramps.

Product Specifications

FAQs

• Are these ramps suitable for solid wheels? No, these ramps are not suitable for solid wheels found on road surfacing machines.
• What is the recommended track width? The recommended track width is a minimum of 200mm and a maximum of 280mm.
• Can these ramps be customised? Yes, custom load heights and other features can be tailored to your needs.
