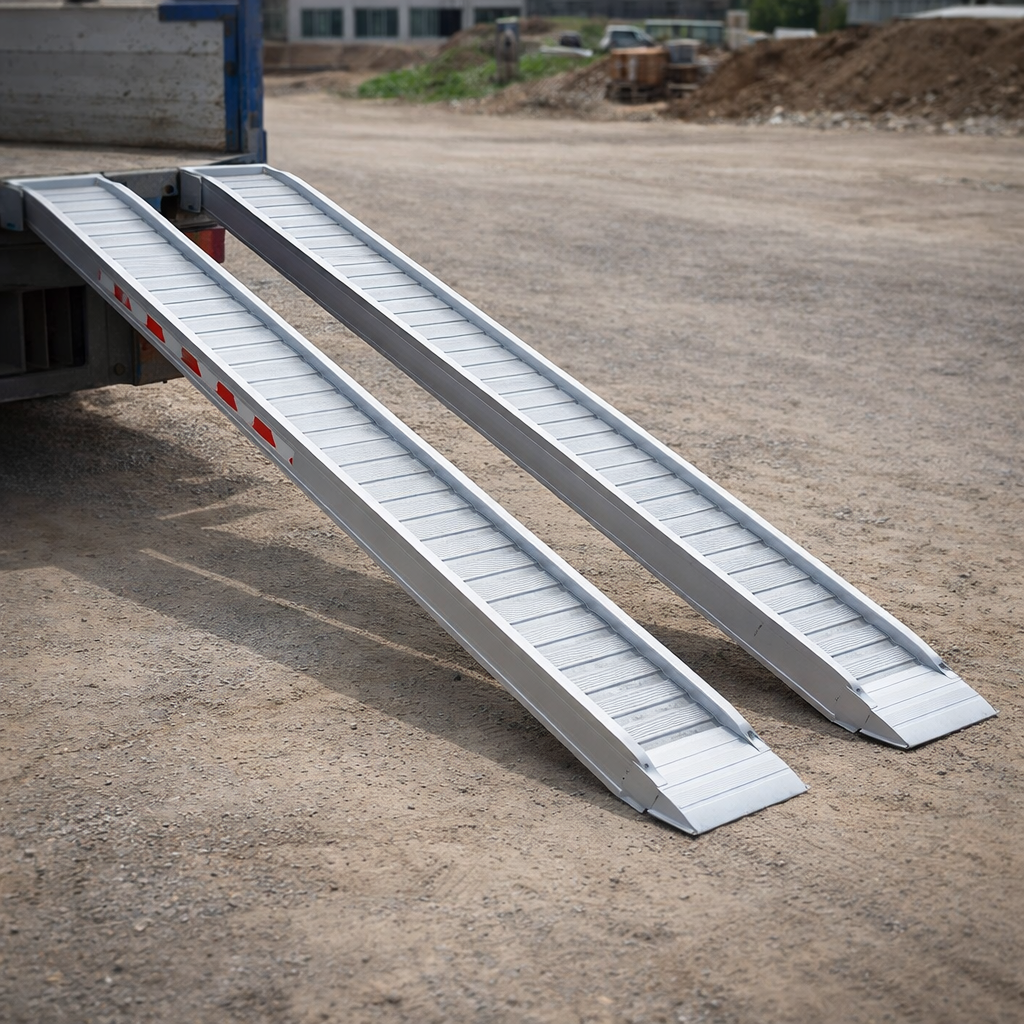

Heavy-Duty Aluminium Loading Ramps

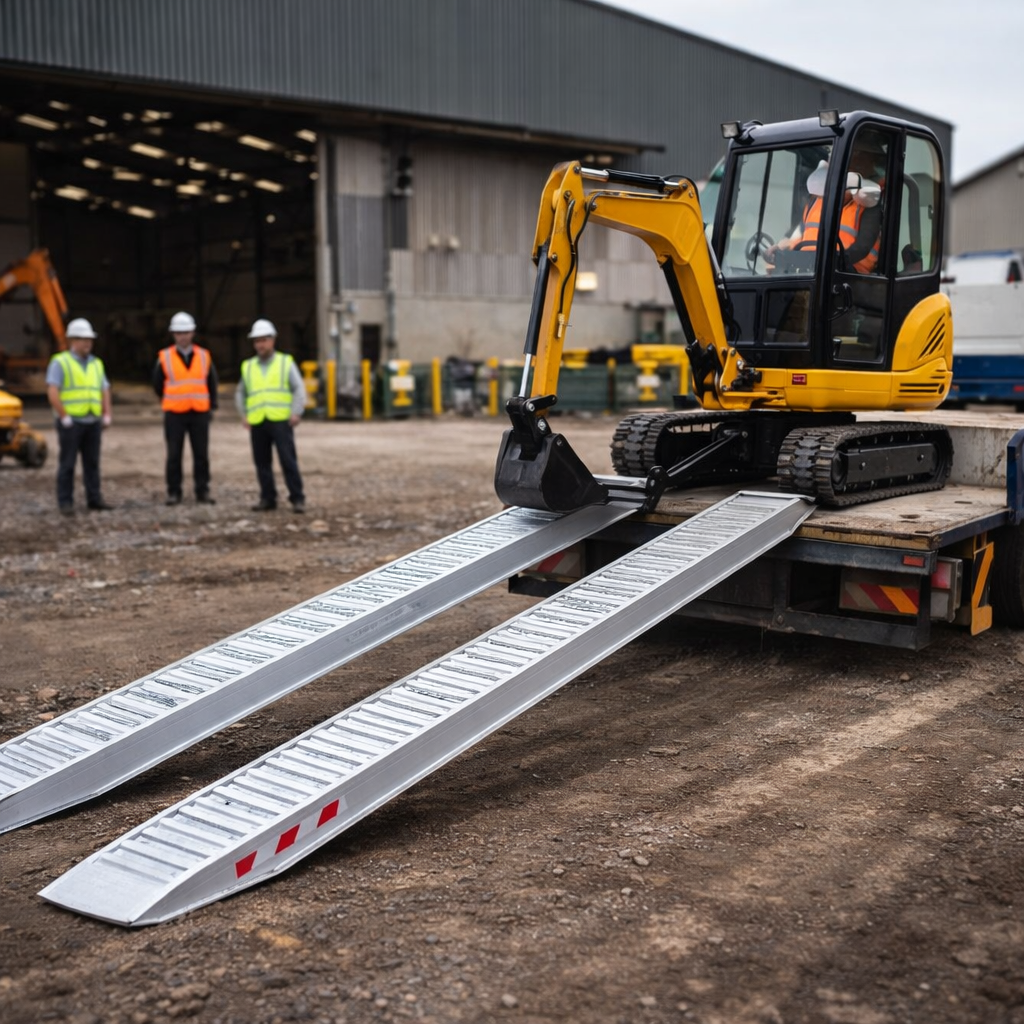

Experience the strength and durability of our industrial-grade aluminium loading ramps, designed to support up to 7000kg. Whether you're using them as plant ramps, digger ramps, or for tele-handlers, these ramps provide a safe and reliable solution for heavy machinery loading.

Core profile thickness: 140mm
Width: 460mm, accommodating a minimum track width of 350mm
Four connection options available; default is rest on connection
Custom load heights available
Not suitable for solid wheels; consult for specific machinery requirements
Fully TÜV certified for safety and reliability

Product Specifications

Specification	Details
Default Connection	Rest On Connection
Capacity (kg)	7000
Height of Ramps Profile (mm)	140
Length (mm)	2500
Max Load Height (mm)	750
Min. Load Height (mm)	600
Weight per Ramp (kg)	29.5
Weight Per Pair (kg)	59
Width (mm)	460
Minimum Track Width (mm)	200
Maximum Track Width (mm)	380
Two Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	5540
Capacity Wheelbase 1500mm (kg)	7000
Capacity Wheelbase 2000mm (kg)	7000
Colour Option	Black

FAQs

What is the maximum weight capacity? The ramps support up to 7000kg.
Are these ramps suitable for solid wheels? No, they are not suitable for solid wheels.
Can I customise the ramps? Yes, custom load heights and configurations are available.

★★★★★
