About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Aluminium Loading Ramps

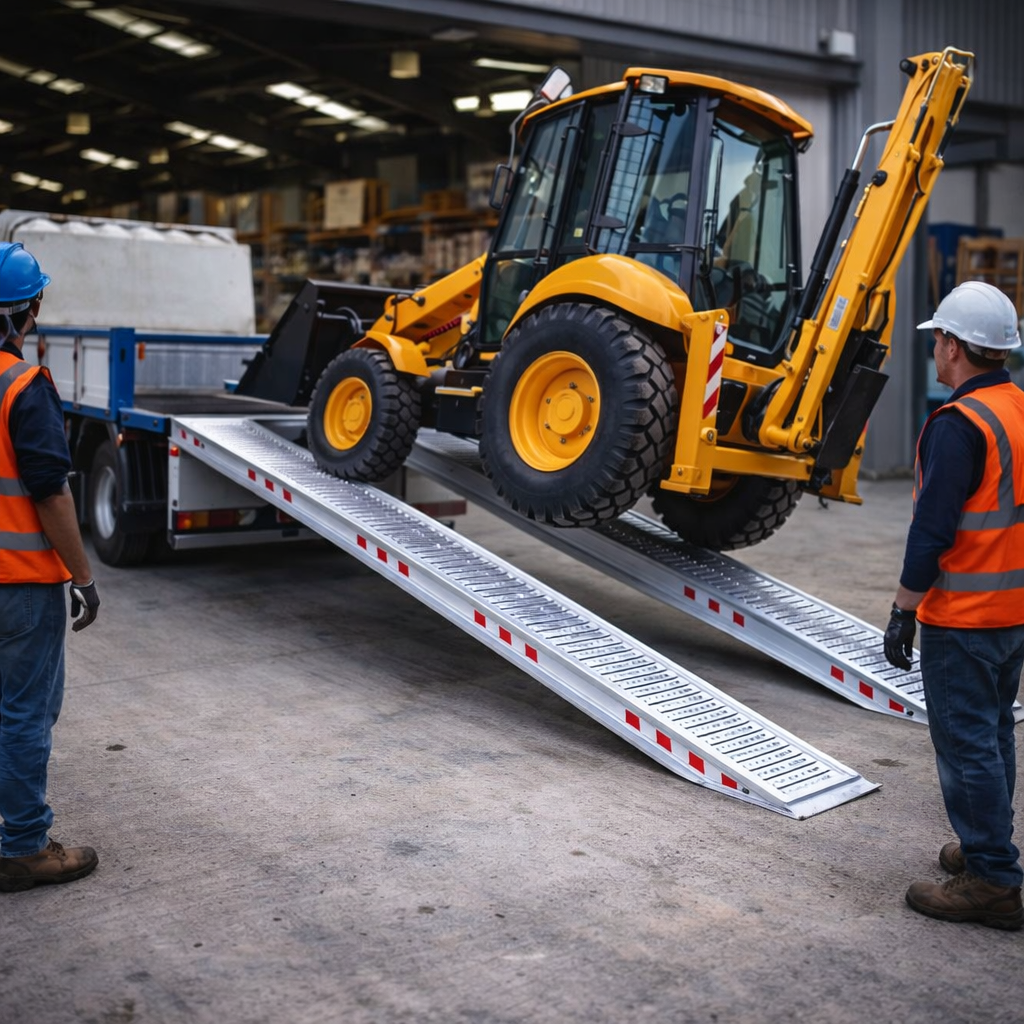

These high-performance aluminium loading ramps are designed to handle demanding tasks with ease. With a length of 4500mm, width of 460mm, and a remarkable capacity of 5060kg, they are perfect for use with rubber-tracked excavators, plant ramps, digger ramps, and tele-handlers.

  • Available with or without edges; one raised edge option available.
  • Four connection options available; default is rest on connection.
  • Custom load heights can be arranged.
  • Not suitable for solid wheels found on road surfacing machines.
  • Fully TÜV certified for safety and quality assurance.

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 5060
Height of Ramps Profile (mm) 160
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 59.5
Weight Per Pair (kg) 119
Width (mm) 460
Minimum Track Width (mm) 200
Maximum Track Width (mm) 380
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3610
Capacity Wheelbase 1500mm (kg) 4210
Capacity Wheelbase 2000mm (kg) 5060
Colour Option Black

FAQs

  • Can I customise the ramps? Yes, custom load heights and configurations are available upon request.
  • Are these ramps suitable for all machinery? They are ideal for rubber-tracked machinery but not suitable for solid wheels found on road surfacing machines.
  • What is the warranty on these ramps? They come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
