Aluminium Loading Ramps – 2500mm x 510mm – 10000kg Capacity – Heavy Duty Plant Use
Aluminium Loading Ramps – 2500mm x 510mm – 10000kg Capacity – Heavy Duty Plant Use
Roll over image to zoom in Click on image to zoom
Aluminium Loading Ramps – 2500mm x 510mm – 10000kg Capacity – Heavy Duty Plant UseAluminium Loading Ramps – 2500mm x 510mm – 10000kg Capacity – Heavy Duty Plant Use

Aluminium Loading Ramps – 2500mm x 510mm – 10000kg Capacity – Heavy Duty Plant Use

£3,228.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

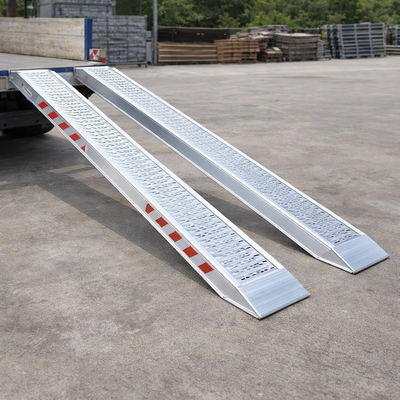

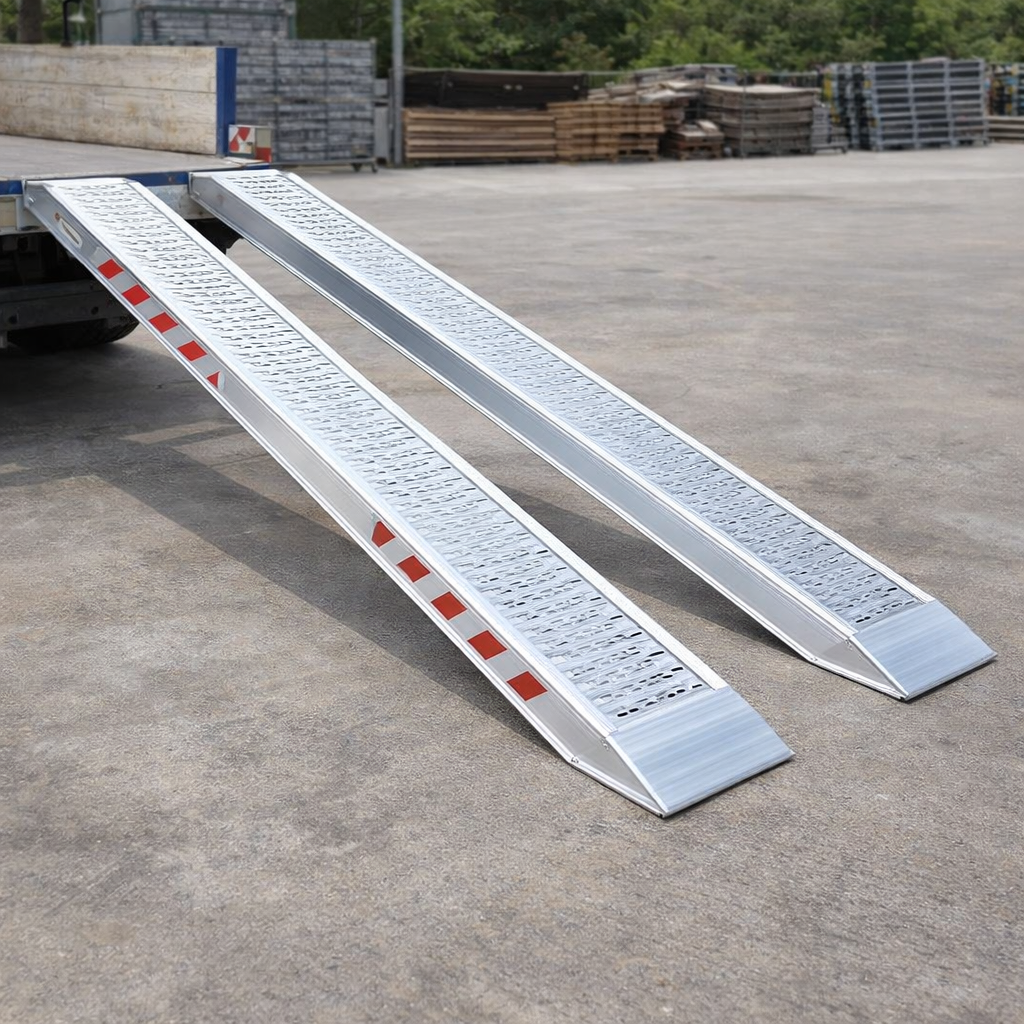

Heavy Duty Aluminium Loading Ramps

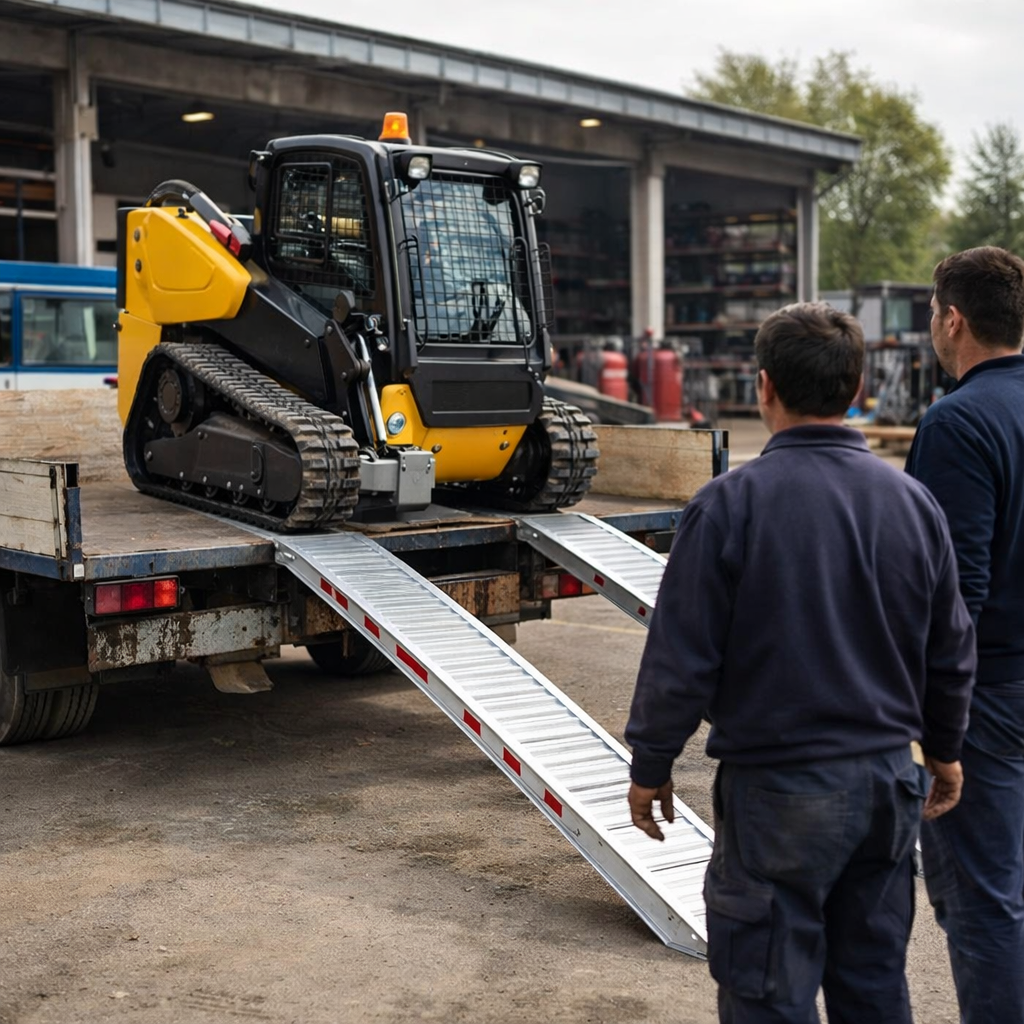

Our best-selling heavy duty aluminium loading ramps are engineered for high-performance use with plant machinery, diggers, and tele-handlers. These ramps offer exceptional strength and durability, supporting up to 10,000kg.

  • Core profile thickness of 170mm
  • Width of 530mm, ideal for versatile applications
  • Available with or without edges
  • Four connection options, default is rest on connection
  • Custom load heights available
  • Not suitable for solid wheels
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 10000
Height of Ramps Profile (mm) 170
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 38
Weight Per Pair (kg) 76
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 9600
Capacity Wheelbase 1500mm (kg) 10000
Capacity Wheelbase 2000mm (kg) 10000
Colour Option Black

Frequently Asked Questions

Are these ramps suitable for all vehicle types?

No, these ramps are not suitable for vehicles with solid wheels found on road surfacing machines.

Can the ramps be customized?

Yes, custom load heights and specifications can be arranged upon request.

Is there a warranty on these ramps?

Yes, these ramps come with a two-year warranty.

Download Spec Sheet

PDF with image, specifications & dimensions

→
Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse
★★★★★

"Amazing quality and quick shipping!"

- Sarah K.
★★★★★

"Customer support was top-notch. Definitely recommend!"

- Jamal T.
★★★★☆

"Super smooth experience. Will shop again."

- Amanda R.

Description

Heavy Duty Aluminium Loading Ramps

Our best-selling heavy duty aluminium loading ramps are engineered for high-performance use with plant machinery, diggers, and tele-handlers. These ramps offer exceptional strength and durability, supporting up to 10,000kg.

  • Core profile thickness of 170mm
  • Width of 530mm, ideal for versatile applications
  • Available with or without edges
  • Four connection options, default is rest on connection
  • Custom load heights available
  • Not suitable for solid wheels
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 10000
Height of Ramps Profile (mm) 170
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 38
Weight Per Pair (kg) 76
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 9600
Capacity Wheelbase 1500mm (kg) 10000
Capacity Wheelbase 2000mm (kg) 10000
Colour Option Black

Frequently Asked Questions

Are these ramps suitable for all vehicle types?

No, these ramps are not suitable for vehicles with solid wheels found on road surfacing machines.

Can the ramps be customized?

Yes, custom load heights and specifications can be arranged upon request.

Is there a warranty on these ramps?

Yes, these ramps come with a two-year warranty.

★★★★★
