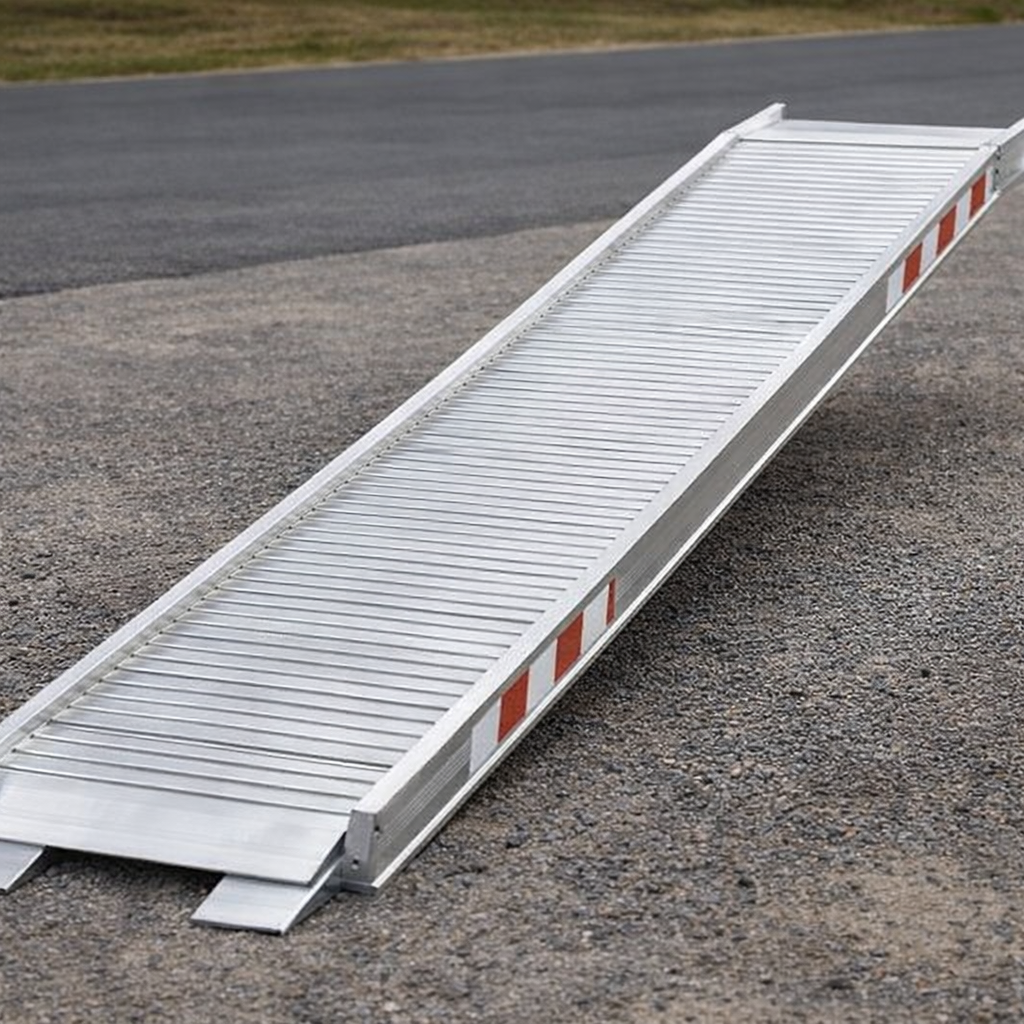

Aluminium Loading Ramp – 3000mm x 400mm – 4500kg Capacity – Plant & Mini Digger

Sale price£2,124.00
Incl. VAT
In Stock & Ready to Ship
Free UK Shipping
In Stock — Order by 2pm for same-day dispatch
Free UK Delivery — arrives 1-3 days
UK & EU Safety Standards
Expert Support — 01282 270 214
14-Day Returns
🏗️ Ordering 10+ Units?

Get trade pricing on bulk orders. Request a Quote →

About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

Key Features

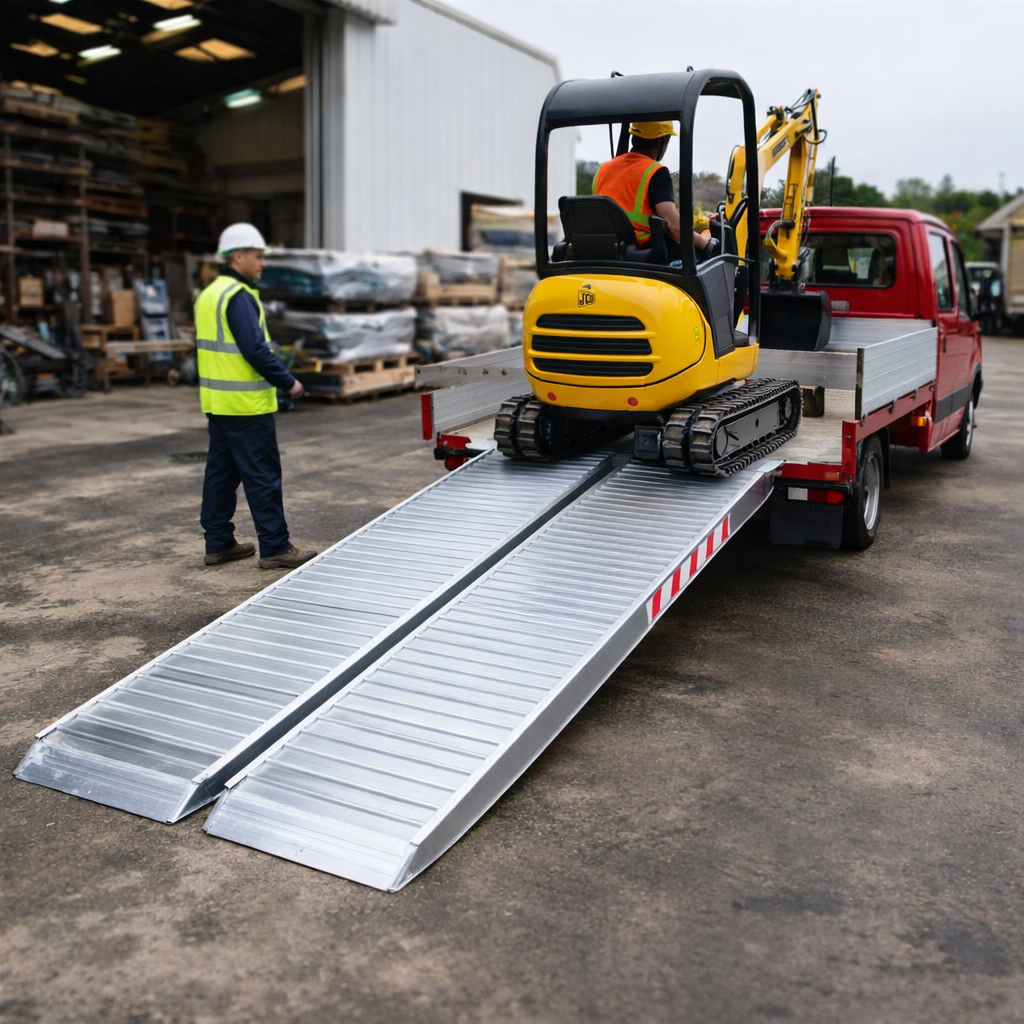

Our aluminium loading ramps are designed for heavy-duty applications, providing a reliable solution for plant and mini digger transportation. With a remarkable load capacity and robust construction, these ramps ensure safety and efficiency.

  • Core profile thickness of 115mm
  • Width of 400mm
  • Capacity of up to 4500kg
  • Not suitable for gradients over 30%
  • Available with or without edges
  • Four connection options including rest on connection
  • Custom load heights available
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 4500
Height of Ramps Profile (mm) 115
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 24.5
Weight Per Pair (kg) 49
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2500
Capacity Wheelbase 1500mm (kg) 3000
Capacity Wheelbase 2000mm (kg) 4500
Colour Option Black

FAQs

  • Can these ramps accommodate different vehicle types? Yes, they are ideal for plant and mini diggers, with customizable options available.
  • What connection options are available? There are four connection options, with the rest on connection being the default.
  • Are these ramps TÜV certified? Yes, they are fully TÜV certified, ensuring quality and safety.

Download Spec Sheet

PDF with image, specifications & dimensions

Added to Cart!
View Cart
    • Payment
    • Secure transaction
    American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard Shop Pay Union Pay Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    • Dispatches from
    • UK warehouse

Description

Key Features

Our aluminium loading ramps are designed for heavy-duty applications, providing a reliable solution for plant and mini digger transportation. With a remarkable load capacity and robust construction, these ramps ensure safety and efficiency.

  • Core profile thickness of 115mm
  • Width of 400mm
  • Capacity of up to 4500kg
  • Not suitable for gradients over 30%
  • Available with or without edges
  • Four connection options including rest on connection
  • Custom load heights available
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 4500
Height of Ramps Profile (mm) 115
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 24.5
Weight Per Pair (kg) 49
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2500
Capacity Wheelbase 1500mm (kg) 3000
Capacity Wheelbase 2000mm (kg) 4500
Colour Option Black

FAQs

  • Can these ramps accommodate different vehicle types? Yes, they are ideal for plant and mini diggers, with customizable options available.
  • What connection options are available? There are four connection options, with the rest on connection being the default.
  • Are these ramps TÜV certified? Yes, they are fully TÜV certified, ensuring quality and safety.
