About This Product
  • Free UK mainland delivery included
  • Same-day dispatch when ordered before 2pm

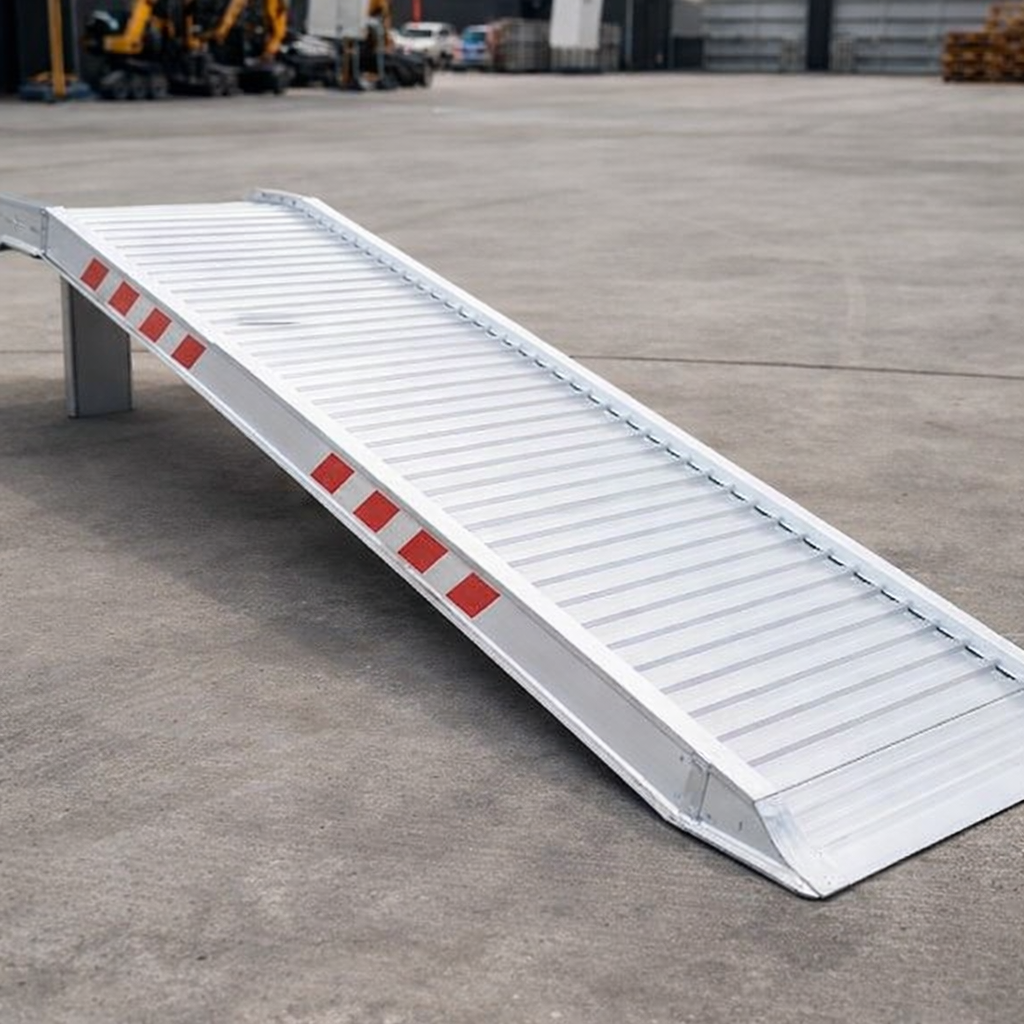

Heavy Duty Aluminium Loading Ramp

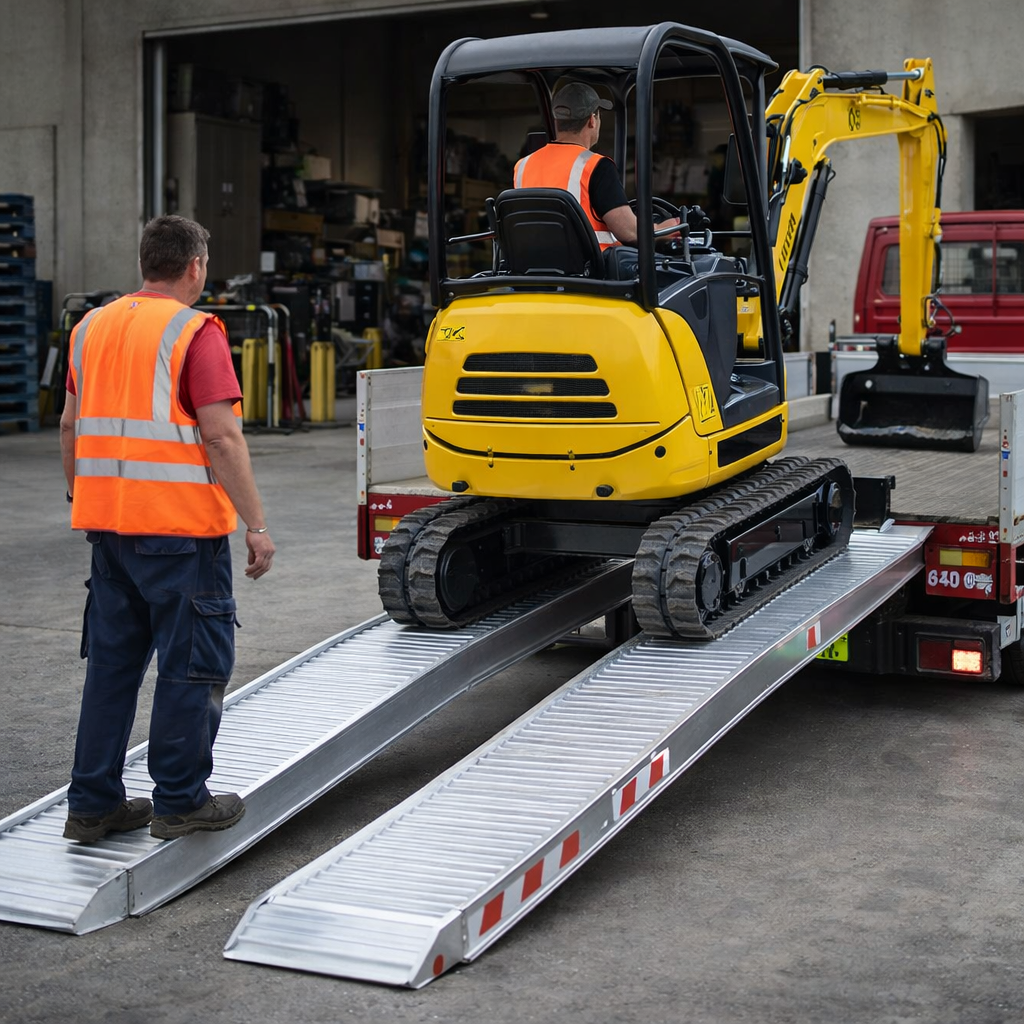

This premium aluminium loading ramp is one of our best-selling solutions for plant and mini digger applications. With a core profile thickness of 115mm and a width of 400mm, it supports a maximum capacity of 3000kg.

It is essential to maintain a minimum track width of 200mm and not exceed a maximum track width of 320mm. These ramps are designed for gradients up to 30%.

  • Available with or without edges, default is without edges
  • Four connection options: default is rest-on with a pin, ideal for flatbed vehicles and tipper trucks; hook connection recommended for beaver tail trailers
  • Custom load heights available
  • Maximum weight capacities are valid for evenly distributed weight
  • Not suitable for solid wheels on road surfacing machines
  • Fully TÜV certified

Product Specifications

Specification Details
Default Connection Rest On Connection
Capacity (kg) 3000
Height of Ramps Profile (mm) 115
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 28
Weight Per Pair (kg) 56
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
Two Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2000
Capacity Wheelbase 1500mm (kg) 2500
Capacity Wheelbase 2000mm (kg) 3000
Colour Option Black

FAQs

Q: Can the ramp handle uneven weight distribution?

A: The stated maximum capacity is valid for evenly distributed weight. For uneven weight, please adjust accordingly.

Q: Are the ramps suitable for all vehicles?

A: They are not suitable for solid wheels found on road surfacing machines.

Q: Can I customize my ramp?

A: Yes, custom load heights are available, and various connection options can be chosen.
