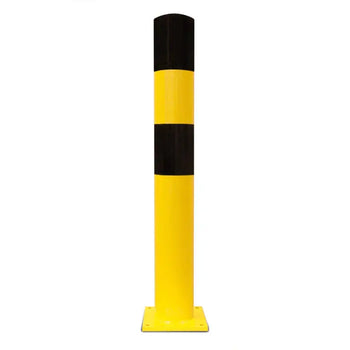

Black Bull Heavy Duty Bollard Type XL - 194mmØ x 1200mmH

The BLACK BULL Heavy Duty Bollard range has a wide spread of protective capabilities that meet most eventualities.

• Heavy duty protection.
• Manufactured from high grade steels.
• Highly visible finish.
• Hot Dip Galvanised and powder coated for Indoor and Outdoor use.

Applications:

Use bollards ‘L’ to ‘XXL’ in traffic areas where lorries and forklifts operate, loading bays, site entrances, corners of buildings etc. The use of bollard ‘S’ is recommended where space is restricted. The ‘XXL’ bollard is equipped with a removable cap, which enables the bollard to be filled with concrete when in situ if required.

Specifications:

• Height: 1,200mm above surface
• Fixing: Surface – Surface plate with pre-drilled 4 fixing holes. Sub-surface – 400mm depth with ground anchor

Finishes:

• Hot Dip Galvanised and Powder coated yellow with black bands
• Types ‘S’ and ‘L’ also available in HDG & Powder coated White/Red

Dimensions:

Protection Bollard ‘XL’

• Diameter: 194mm
• Wall thickness: 4.5mm
• Suitability: Very heavy impacts

Note:

We can also supply removable and/or lockable versions of the range by triangular key or cylinder lock. Bollards from type L upwards (except Type XXL) are supplied with lifting aid feature. Please ask for details.

Additional Info:

• Material: Top grade steel
• Finish: hot-dip galvanised and powder-coated
• Colour: yellow/black
• Overall height: 1200 mm
• Height above ground: 1200 mm
• Diameter: 194 mm
• Thickness: 4,5 mm
• Fixture: for screw anchoring
• Applications: indoor and outdoor
• Type: XL
• Floor mat dimensions: 250 x 250 x 15 mm
• Number of anchors: 4
• Weight: 42,00 kg
