Wireless Gate Contact Kit For UltraDIAL & UltraPIR GSM Alarms

• Wireless Magnetic Gate Contact Kit for use with the Covert UltraDIAL & UltraPIR 3G GSM Alarms, with a wireless transmission range of 100 metres (line of sight).
• The Battery powered Wireless Transmitter is fitted inside a weatherproof box which would normally be fitted onto the back of the gatepost, the Magnetic Contact is connected into this weatherproof box by 300 mm of armoured cable (this could be extended but we recommend protecting the new cable). The Magnetic Contact would normally be fitted onto the Gatepost with the Magnet being fitted onto the Gate, in a position that both parts are within 5 mm of each other when the Gate is closed.
• The Contact would be Armed & Disarmed using the same Remote Control that is Arming & Disarming the UltraDIAL or UltraPIR Alarm.

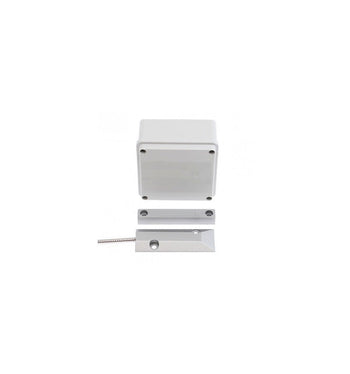

kit Includes:

• 1 x Wireless Transmitter.
• 1 x Wireless Magnetic Contact & Magnet.
• 1 x Weatherproof Box.

Specifications:

• Size of Magnetic Switch: 105 (L) x 37 (W) x 10 (D) mm.
• Size of Magnet: 105 (L) x 15 (W) x 15 (D) mm.
• Length of Cable: 300 mm.
• Cable Protection: Armoured Sleeve.
• Switch Type: N/C.
• Weatherproof: Yes.
• Size of Weatherproof Box: 110 x 110 x 60 mm.
• Fixing Method: 2 x 5mm Screw Mounting Holes in Each Section.
• Wireless Transmission Range: 100 metres (line of sight).
