Wireless Doorbell With 'Please Ring' Push Button & Std Receiver

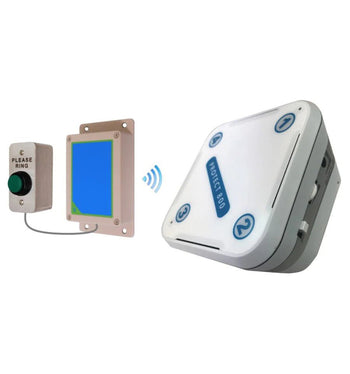

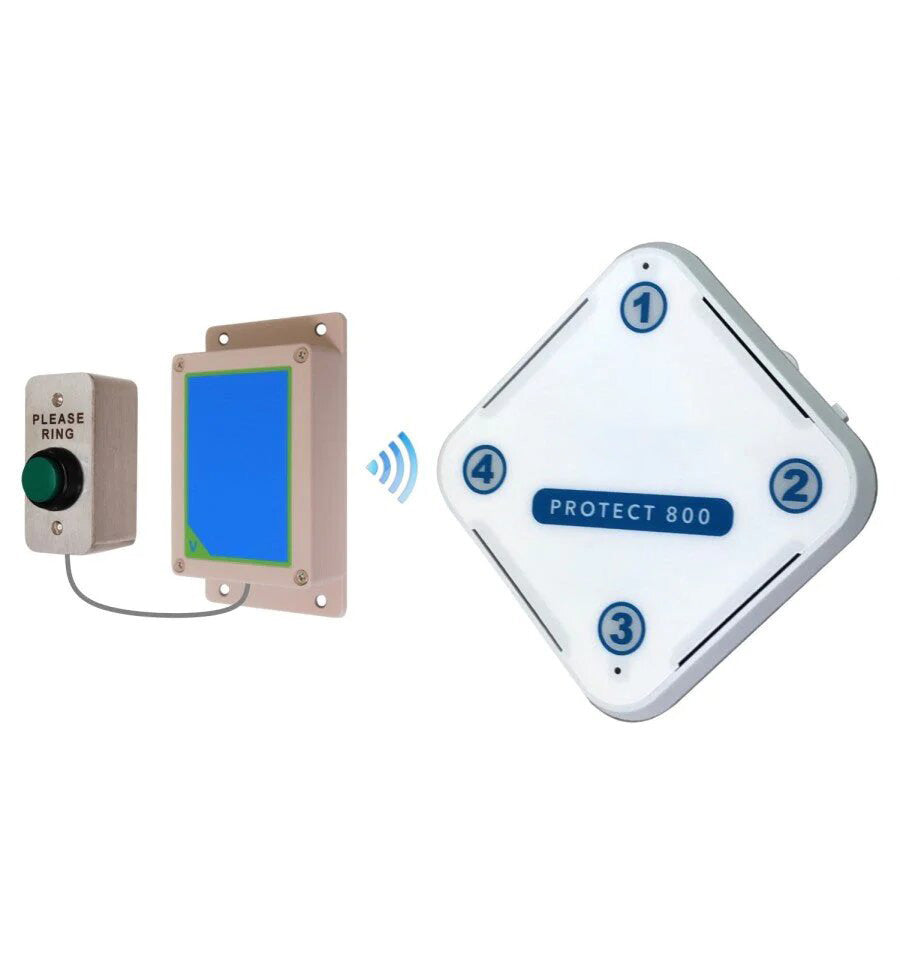

• Long Range (800 metre) Protect 800 Warehouse Wireless Bell Kit, supplied with a Heavy Duty Push Button (with please ring etched onto it), a Battery powered Transmitter (fitted inside a weatherproof box) & Plug in Receiver (which can be desk or wall mounted).

Ideal for many applications including:

• Gated Entrances.
• Warehouses.
• Farms.
• Business Premises.
• The Transmission range between the Battery Transmitter & Receiver is an impressive 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.

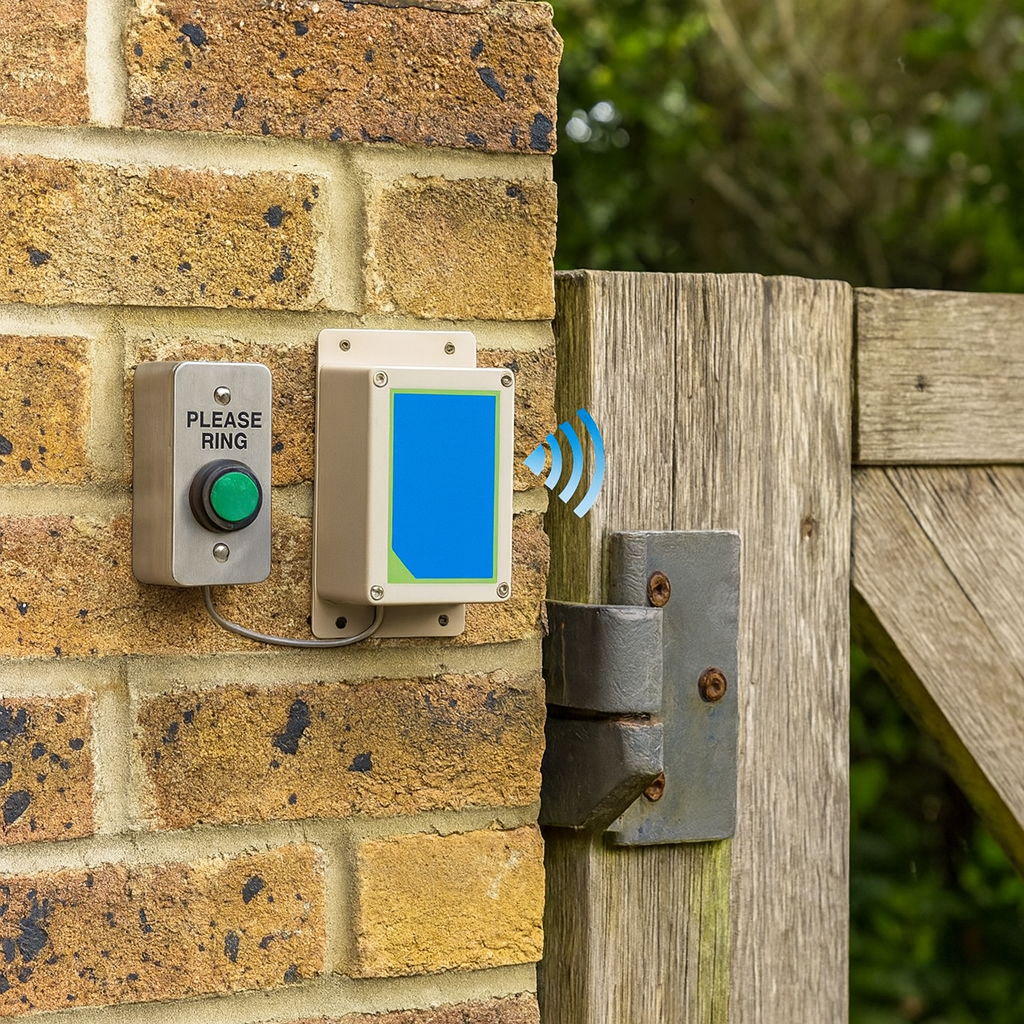

• The Heavy Duty Steel Push Button is connected to the Wireless Transmitter by 3 metres of cable (which could be lengthened), the transmitter is mounted into a fully weatherproof box making it idea for mounting onto the rear of a Gatepost or simply on the other side of a factory wall.

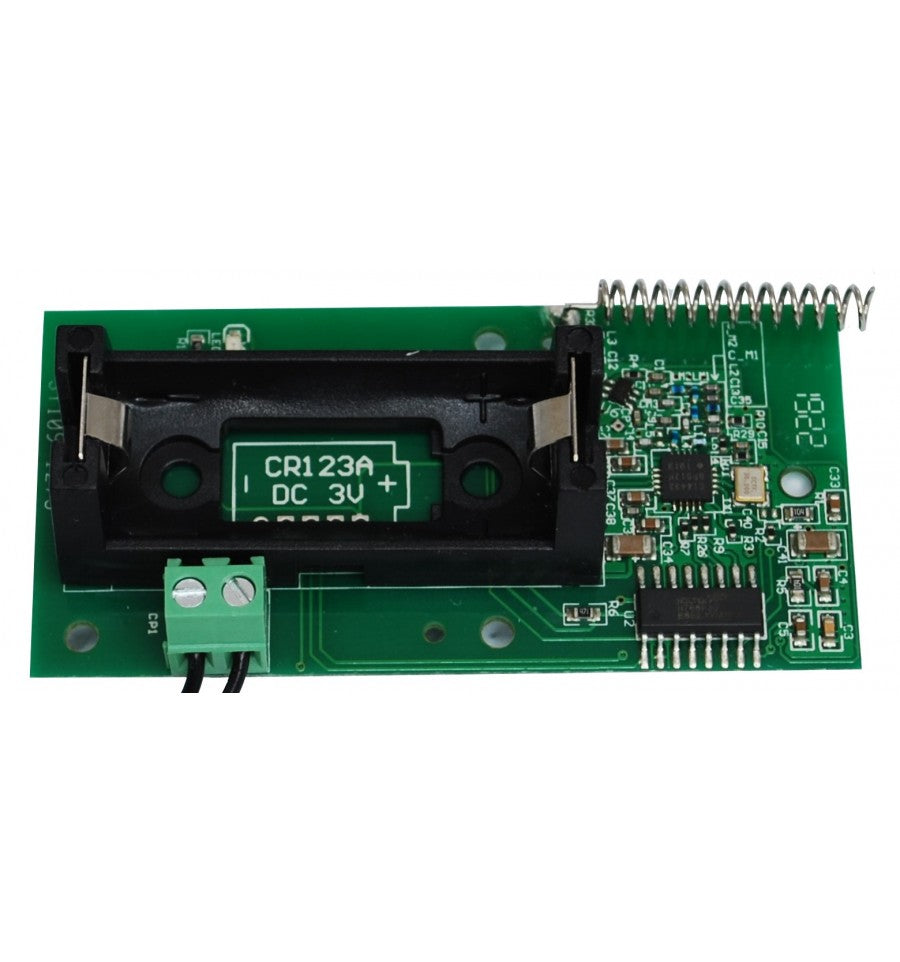

• The V range Wireless Transmitter is powered by a 3v CR123A Battery (supplied) making installation Easy & Quick.
• Additional Transmitters & Push Buttons could be added for additional entrances.

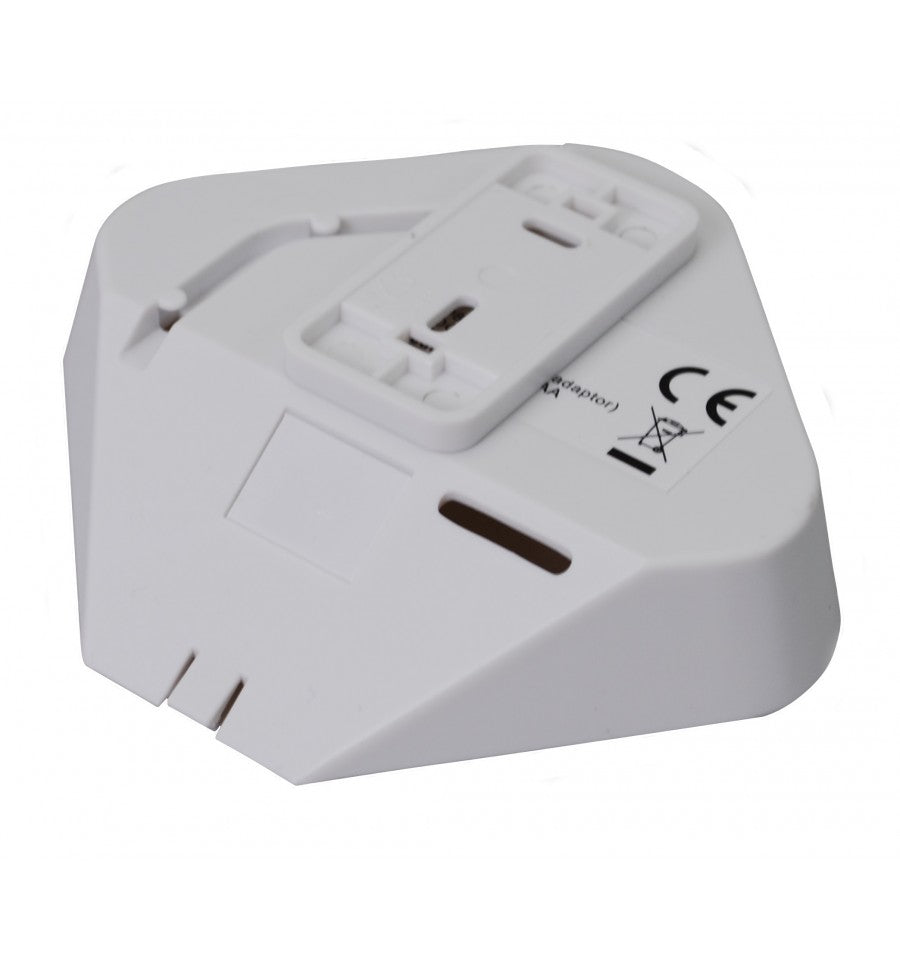

The Wireless 4 channel Receiver has:

• Volume Control (from off to 85 decibel).
• Is can be Wall or Desk Mounted.
• It has a choice of 32 Chimes (for each transmitter used).

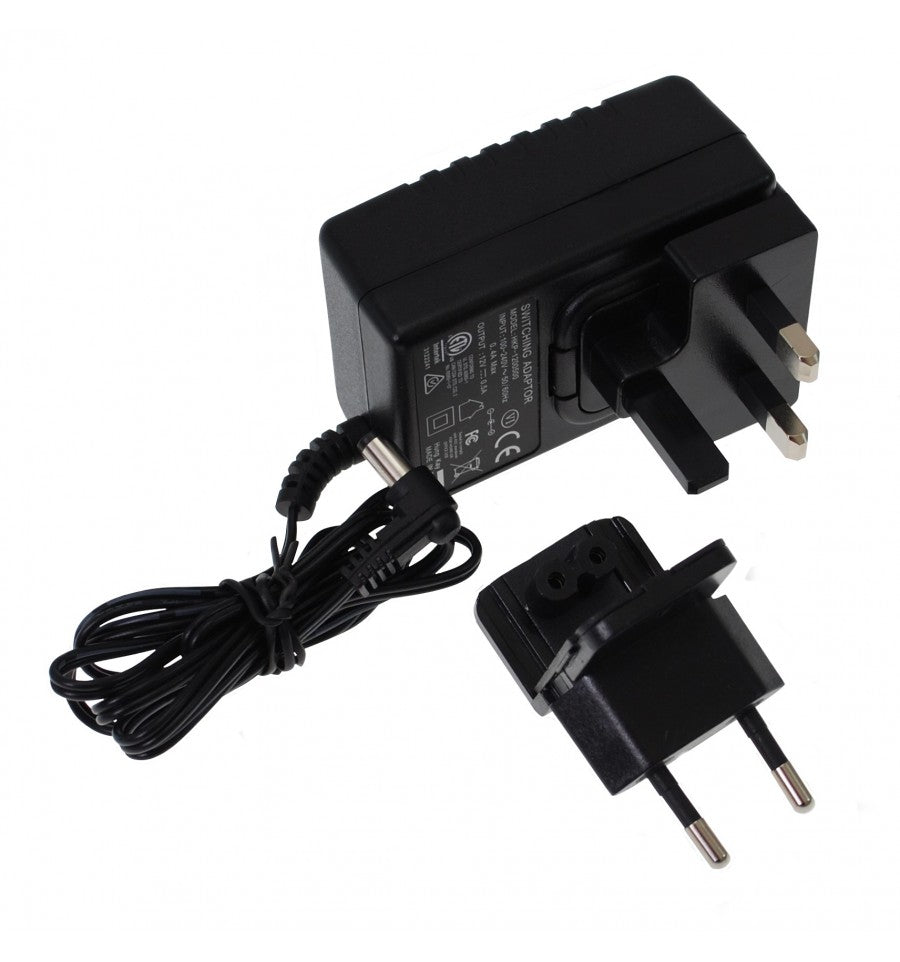

• Power Supply: Simple 3-pin UK & 2-pin European Transformer Supplied.
• Battery Backup: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Additional Transmitters can be used (maximum of 16).
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Outputs: Yes (N/O & N/C Momentary).
• 12v DC Output: Yes (bells & buzzers can be added).
• 12v DC Output Times (adjustable 5, 30 or 60 seconds or 10 minutes).
• Transmitter Battery Check: Yes

Operation:

• When the H/D Push Button is pressed, the Receiver will activate the chosen Chime or Melody (which do vary in duration).

Installation Guide:

These Bell Systems are very Easy to Install, the basic process would be:

1. Mount the H/D Push Button.
2. Mount the Battery Transmitter & Box (4 x Screws).
3. You may need to Remove the Cable between the Push Button & Transmitter Box to guide it through a hole in a Wall or Post (the cable can be lengthened or shortened to suit the installation).
4. Mount the Receiver.
5. Connect the Plug in Transformer into a standard 3-pin wall socket.

Additional Accessories:

You could add a multitude of additional accessories with this Bell System, options include:

• Additional Bells.
• Chime Receivers.
• Portable Push Buttons.
• Indoor Push Buttons.
• PIR's.
• Wall SOS Buttons.
• Please Contact Us for Advice !!

kit Includes:

• 1 x H/D Push Button.
• 1 x V range Transmitter & Mounting Box.
• 1 x Plug in Wireless Receiver.
• 1 x 3-pin Plin Transformer (2-pin available upon request).
• 1 x 3 metre Bell Cable.

Specifications:

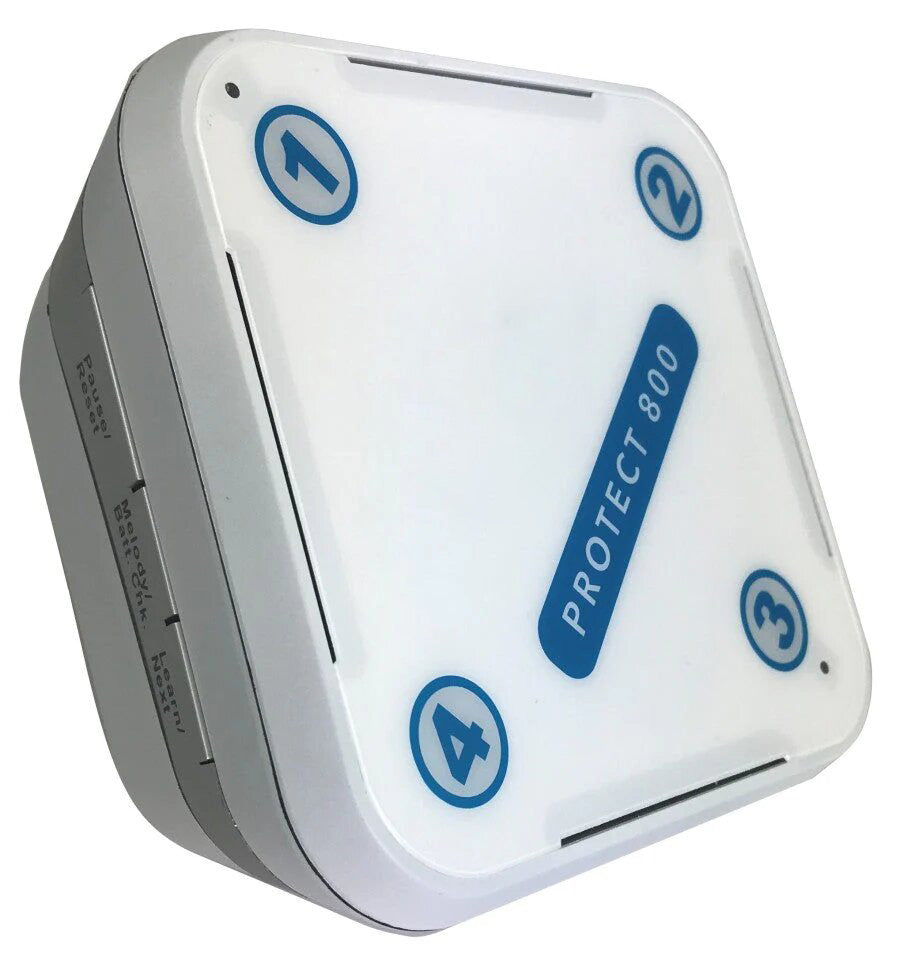

Wireless Receiver:

• Wireless Operating Range: 800 metres (line of sight).
• Adjustable Volume: Yes (from low to approximately 85 decibel).
• Melody Options: 32.
• Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
• Battery Back Up: Yes 4 x AAA Batteries (not supplied).
• Loss of Mains Power Notification: Yes (LED).
• Low Battery Notification: Yes.
• Maximum Number of Detectors Can Be Used: 16.
• Multiple Receivers can be used: Yes (no limit).
• Zone Indicator: Yes (visual and by chime).
• Dry Relay Outputs: 4 (N/O & N/C Momentary).
• 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
• Relay Duration: Momentary.
• Mounting Method: Wall or Desk Mounted.
• PIR Battery Check: Yes.
• Optional Pause Modes: Yes.
• Input Voltage: 12v DC 500 mA.
• Frequency: 869.400 – 869.650.

Wireless Transmitter:

• Wireless Range: 800 metres (line of sight).
• Power Supply: 1 x 3v Lithium CR123A Battery.
• Frequency: 868 Mhz.

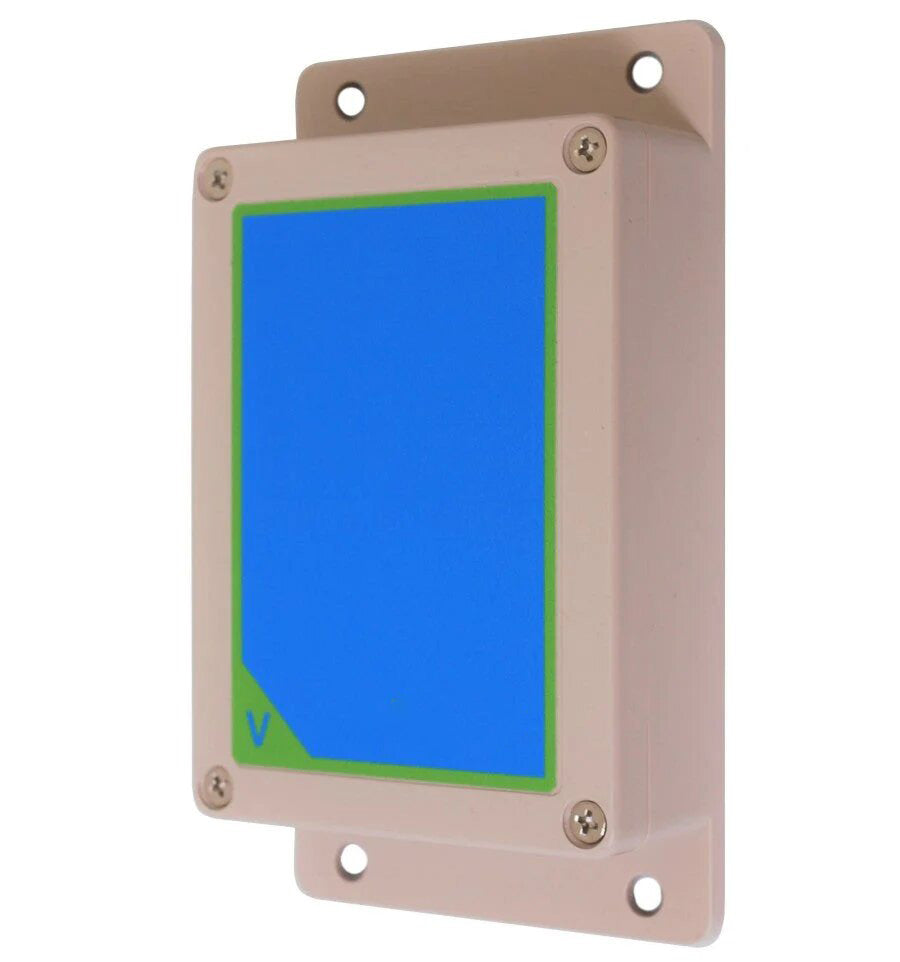

Transmitter Mounting Box:

• Material: Plastic.
• Weatherproof: IP65.
• External Size: 195 (L) x 90 (W) x 45 (D) mm.
• Internal Size: 133 (L) x 83 (W) x 35 (D) mm.

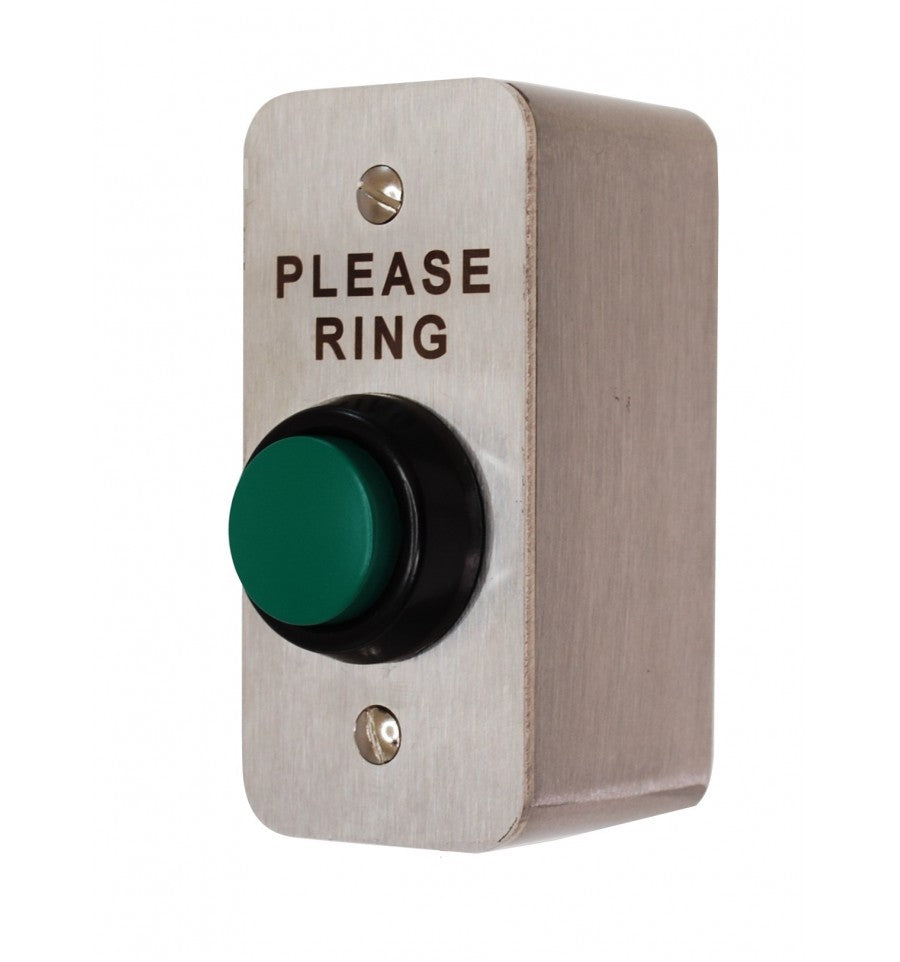

Push Button Specification:

• Material: Steel.
• Size: 85mm (L) x 40mm (W) x 40mm (D)
• Contact Type: NO or NC.
• Sealed Wired Contacts.
• Words: Please Ring.
