Wireless Commercial Doorbell Included Heavy Duty Push Button - Siren & Flashing Strobe With Adjustable Duration Options

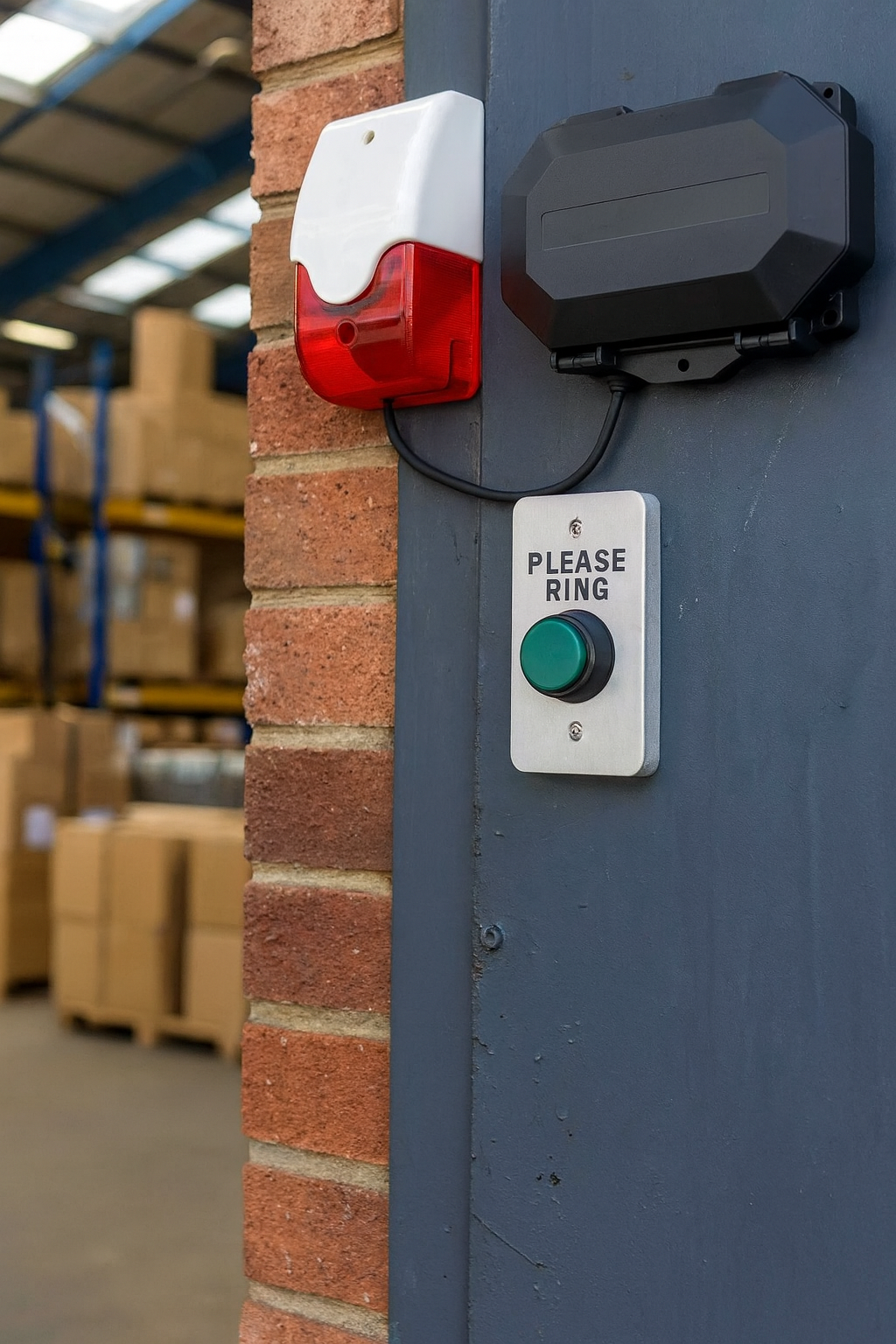

• Wireless Commercial Protect-800 Doorbell Kit comprising of a Heavy Duty Push Button, Battery Powered 800 metre Transmitter & unique Wireless Receiver (with fully adjustable output durations) and a Siren with Flashing Strobe. Ideal for Warehouses, Yards and other commercial applications.
• The duration of the Siren & Strobe is fully adjustable and controlled using a special long range Remote Control. When Armed the Siren will trigger for the chosen duration when the Push Button has been pressed, you can also trigger the Siren at any time using the SOS Button on the Remote Control.

• When the H/D Push Button is pressed a Wireless signal is transmitted to the Outdoor Receiver, if the Receiver is in the Armed status then the Siren & Strobe will activate for the chosen duration (this can be turned off by the owners or staff before the duration has elapsed by using a special long range (800 metre) remote control.
•  The owner or staff could also trigger the Siren using the SOS Button on the Remote Control (supplied) in the event of a Medical or Security emergency, in these situations the Siren will stay latched ON until it is turned OFF using the special remote control which can be a useful additional Safety procedure (more remote controls can be added). It is also possible to connect a different sounding Siren on channel two for use in Medical or Security emergencies.

• The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.

• You could also add an Internal Chime Receiver to the system allowing you to be notified when you are inside the House or Office.

Duration:

The duration of the Siren is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

• PIR's
• Vehicle Probes
• MT Transmitter
• Gate Contact & Transmitters
• PIR in a Bird Box
• Transmitter Board

Remote Control:

The specially designed remote control supplied with this Outdoor Receiver has the following features:

• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
• The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
• Additional Remote Controls can be added (there is no limit).
• The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver from most locations within the business.
• Powered by two standard AAA Batteries (supplied).

• You can also add the standard Indoor Receivers to this system allowing you to have notification in the form of a chosen chime in different parts of the building (regardless of if the Outdoor Receiver is Armed or Disarmed).

• This is a unique Outdoor Receiver which can be used in so many types of applications !!

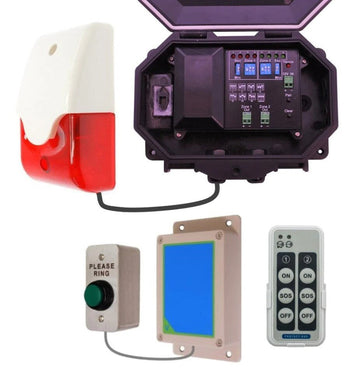

kit Includes:

• 1 x Outdoor Receiver (P800-WSR/1).
• 1 x Remote Control (P800-WSK/1).
• 1 x 12v DC Plug in Power Supply.
• 2 x AAA Batteries.
• 1 x MT Transmitter (in a box).
• 1 x Heavy Duty Push Button (embossed with Please Ring) & 3 metres of Cable.
• 1 x Set of Screws.
• 1 x Siren & Flashing Strobe.

Specifications:

Outdoor Receiver:

• Weatherproof: Yes.
• Power Supply: 12v 5 amp DC.
• Weatherproof Cable Entry Glands: Yes.
• Channels: 2.
• Sensors per Channel: 4.
• Operating Range: 800 metres (line of sight).
• Arming & Disarming Method: Remote Control.
• 12v DC Outputs: 2.
• Output Duration:
• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).
• Duration Selection: Internal Dip-switches.
• Frequency: 869.400 – 869.650 MHz.
• Size: 170 x 125 x 60 mm.

Remote Control:

• Operation:
• Channel 1 Arm, Disarm & SOS.
• Channel 2 Arm, Disarm & SOS.
• Power Supply: 2 x AA Batteries (supplied).
• Size: 85 x 40 x 25 mm.
• Transmission Range: 800 metres (line of sight).
• Multiple Remote Control Operation: Yes (no limit).
• Feedback Indicator: Yes (it confirms a successful operation).
• Frequency: 869.400 – 869.650 MHz.
• Wall Bracket: Yes (supplied).

Push Button:

• Size: 85 (L) x 40 (W) x 40 (D) mm.
• Contact Type: NO or NC.
• Sealed Wired Contacts.
• Laser Etched Legend; Please Ring.
• Weatherproof: Yes.
• IP 67.

Transmitter:

• Wireless Range: 800 metre (line of sight).
• Power Supply: 1 x 3v Lithium CR123A Battery.
• Battery Life: 12 - 18 months (most applications).
• Size: 65 x 33 x 15 mm.
• Activation Methods:
• Wired Input: Yes (N/O Momentary Volt Free, when used as a circuit board).

Mounting Box:

• Material: Plastic.
• Weatherproof: IP65.
• External Size: 150 (L) x 85 (W) x 34 (D) mm.
• Internal Size: 106 (L) x 76 (W) x 28 (D) mm.
• Label: V range.

Siren:

• Siren Level: 100 Decibel.
• Flashing Strobe: Yes.
• Size: 70 x 45 x 120mm.
• Cable: Twin (3 metres).
• Power Requirements: 12v DC.
• Colour: Red & White.
• Internal & External.
