Wireless Commercial Bell Kit (With An Adjustable Loud Bell) & additional Chime Receiver


Price:
Sale price£495.31

✔️ Fast Shipping
✔️ In Stock
✔️ Hassle-Free Returns

Our Clients

Description

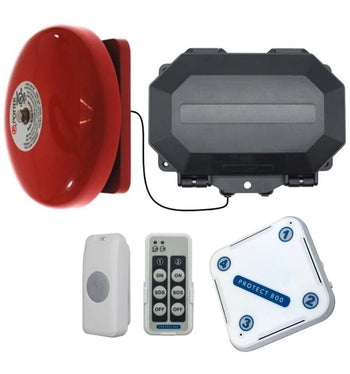

  • Wireless Commercial Protect-800 Bell Kit comprising of a Battery Powered 800 metre Push Button & unique Wireless Receiver (with fully adjustable output durations), a Loud Ringing Bell & additional Internal Chime Receiver. Ideal for Warehouses, Offices and other commercial applications.
  •  The duration of the Bell is fully adjustable and controlled using a special long range Remote Control. When Armed the Bell will trigger for the chosen duration when the Push Button has been pressed, you can also trigger the Bell at any time using the SOS Button on the Remote Control.
  • The additional Chime Receiver has Volume Control, simple ON/OFF Button, a choice of 32 Chimes or Sirens and is ideal for using in a separate office or building to the Bell. It can be wall or desk mounted.

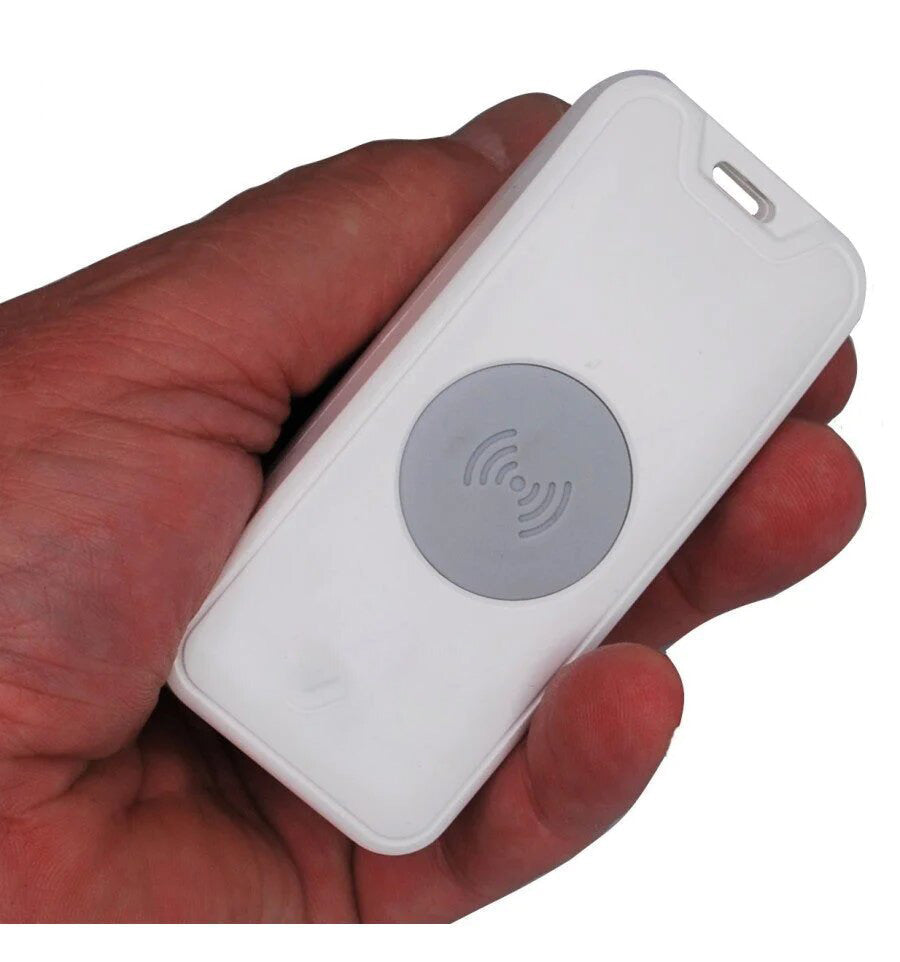

Push Button:

  • The Transmission range between the Battery Push Button & Wireless Bell is an impressive 800 metres (line of sight), which equates to around 400 - 600 metres in most applications.
  • Additional Push Buttons can be added to cover different entrances, these are powered by a 3v CR123A Battery (supplied) which would last 12 - 18 months in most applications.
  • The Push Buttons are weatherproof (IP56), if it is to be exposed to extreme weather or to potential vandalism we recommend adding a H/D Push Button.
How it Works:
  • When the Push Button is pressed a Wireless signal is transmitted to the Indoor & Outdoor Receiver, if the Outdoor Receiver is in the Armed status then the Loud 85 Decibel Bell will activate for the chosen duration (this can be turned off by the owners or staff before the duration has elapsed by using a special long range (800 metre) remote control.
  •  The owner or staff could also trigger the Bell using the SOS Button on the Remote Control (supplied) in the event of a Medical or Security emergency, in these situations the Bell will stay latched ON until it is turned OFF using the special remote control which can be a useful additional Safety procedure (more remote controls can be added). It is also possible to connect a different sounding Siren on channel two for use in Medical or Security emergencies.

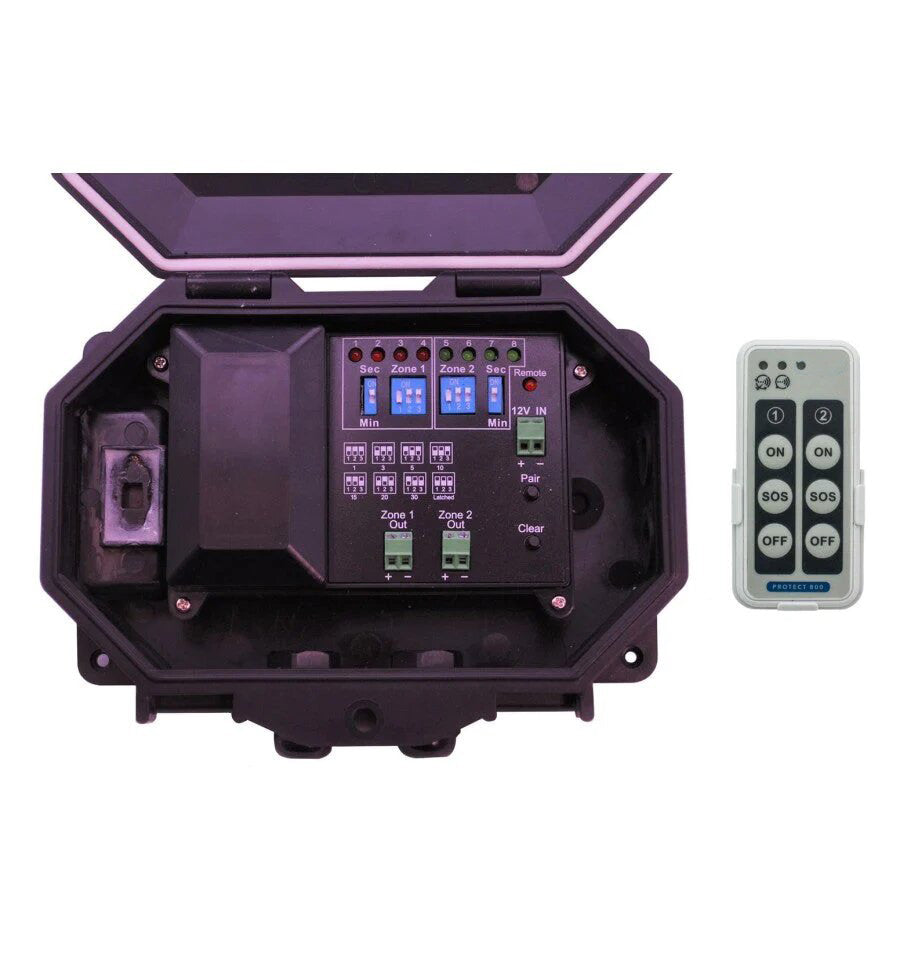

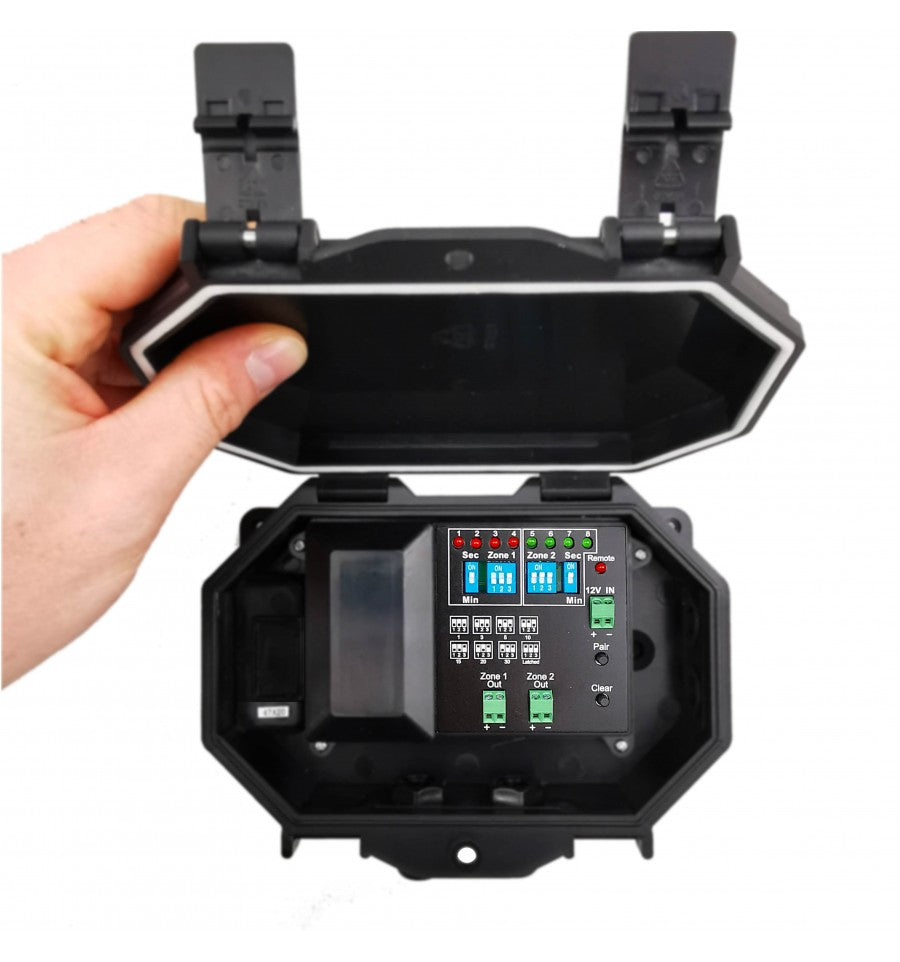

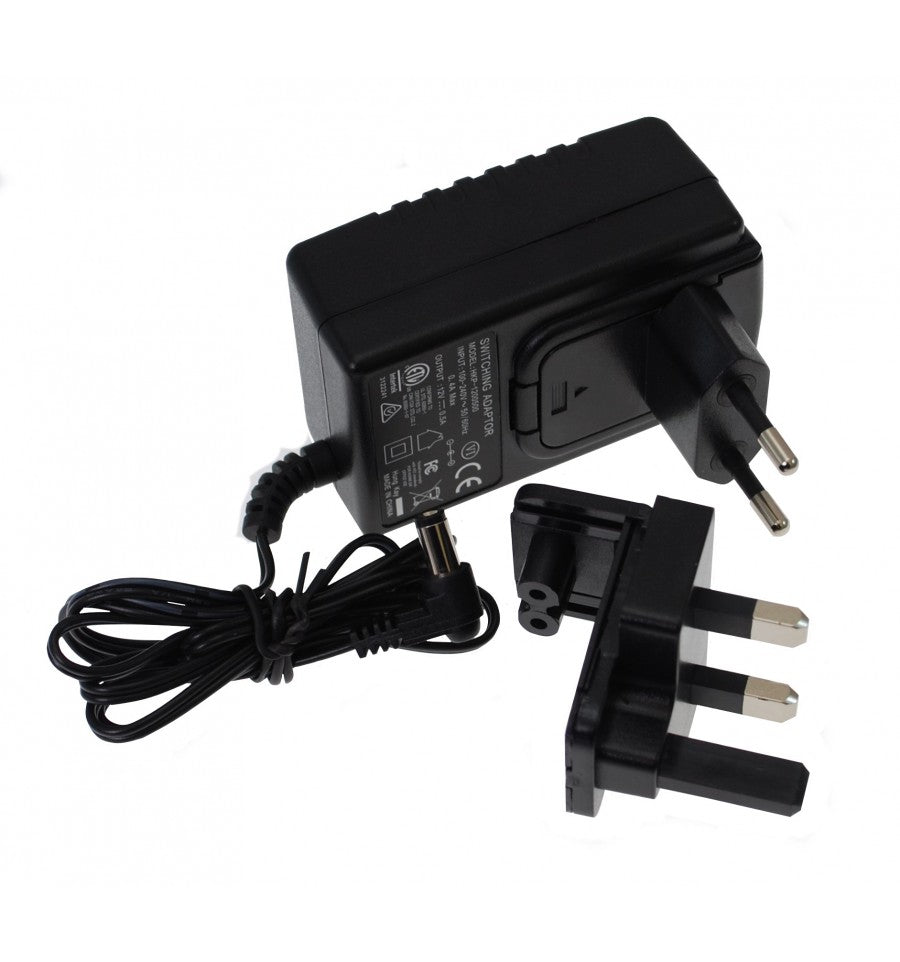

  •  The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (800 metre) Remote Control.
  •  The Internal Chime Receiver works regardless of if the Bell Receiver is turned ON or OFF.

Duration:

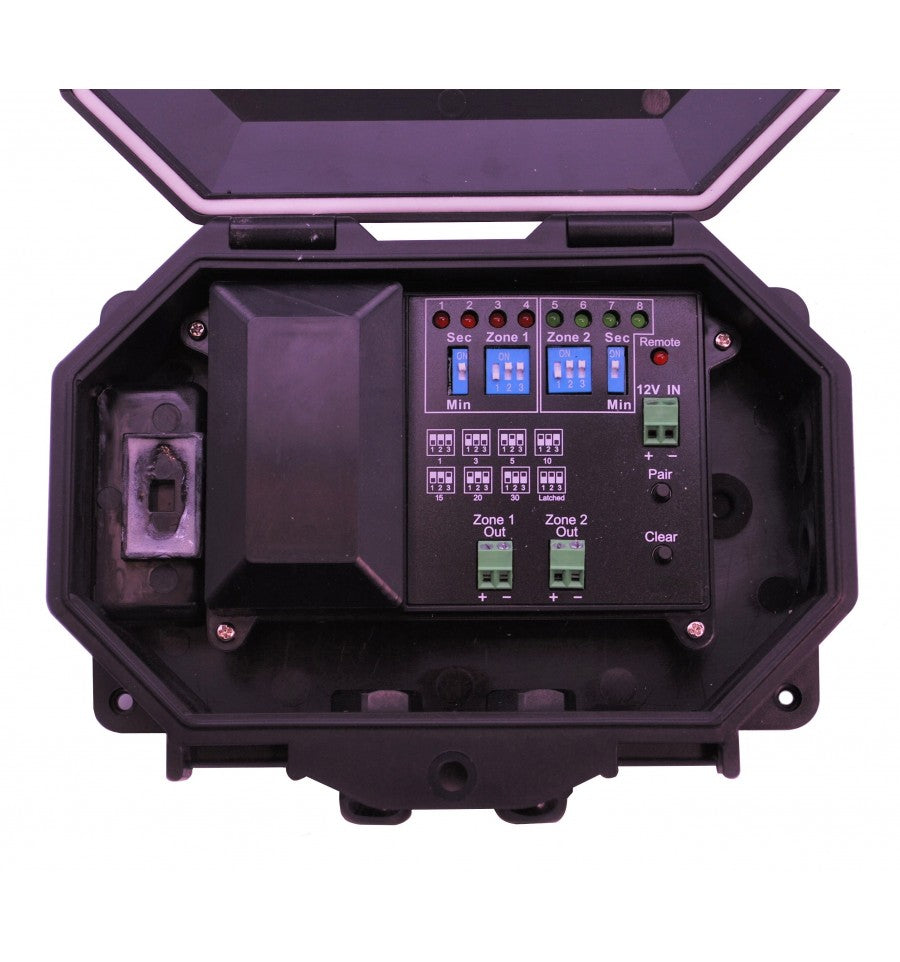

The duration of the Bell is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

  • 1 second or minute.
  • 3 seconds or minutes.
  • 10 seconds or minutes.
  • 15 seconds or minutes.
  • 20 seconds or minutes.
  • 30 seconds or minutes.
  • Latched ON (until disarmed using the remote control).
Outdoor Receiver:
The Outdoor Receiver has two channels with a 12v Output, each channel can be operated by up to four Protect-800 Sensors, these include:
  • PIR's
  • Vehicle Probes
  • MT Transmitter
  • Gate Contact & Transmitters
  • PIR in a Bird Box
  • Transmitter Board

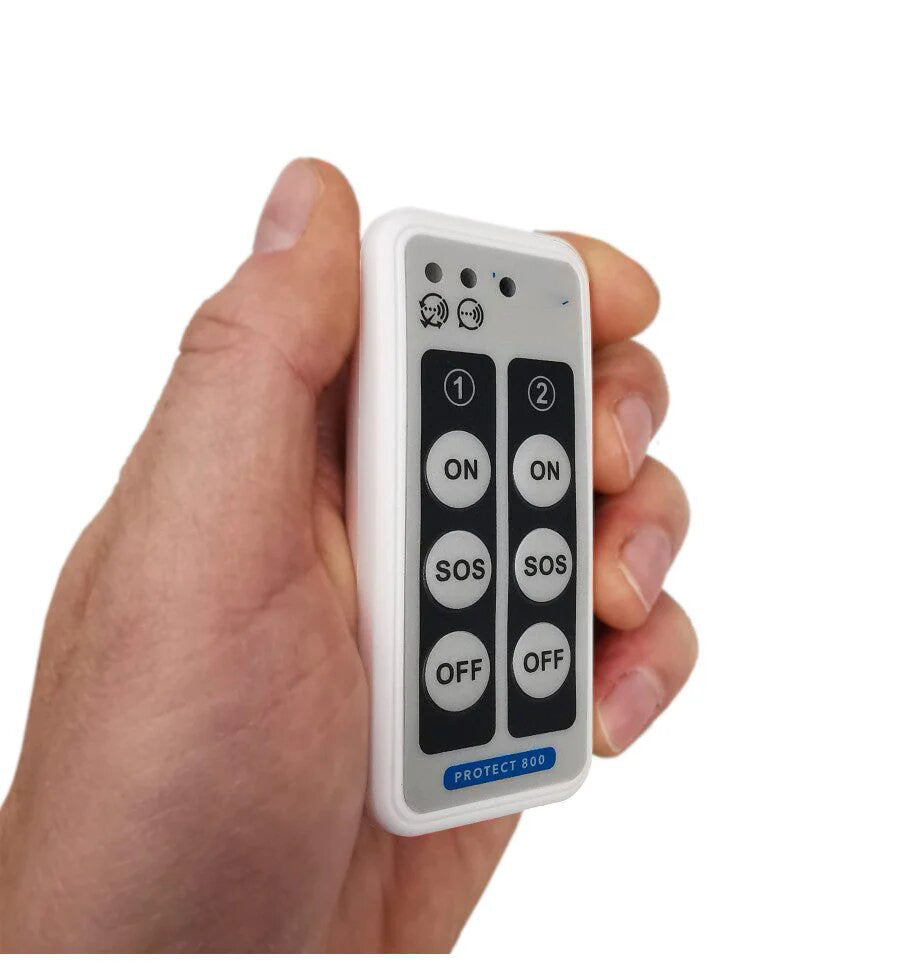

Remote Control:

The specially designed remote control supplied with this Outdoor Receiver has the following features:

  • Arm & Disarm either channel on the Outdoor Receiver.
  • Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.
  • The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.
  • Additional Remote Controls can be added (there is no limit).
  • The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver from most locations within the business.
  • Powered by two standard AAA Batteries (supplied).
Indoor Receiver:
The 4-channel Wireless Receiver is packed with features to help you monitor & protect your Home & Business, these features include:
  • 800 metre Wireless Reception.
  • Adjustable Volume (from low to approximately 85 decibel).
  • 32 optional Melodies.
  • Mains Powered using a Plug in Transformer (3-pin UK & 2-pin European supplied).
  • Optional Battery Back Up using 4 x AAA Batteries (not supplied).
  • LED Notification of Loss of Mains Power.
  • Low Battery Notification.
  • Up to 16 Detectors can be Used.
  • Multiple Receivers can be used (no limit).
  • Zone Indicator (visual and by chime).
  • 4 x Dry Relay Outputs (can be used to trigger Diallers, Flashing LED's, Siren's, Bells etc).
  • 12v DC Output (can be used to trigger Flashing LED's, Siren's, Bells etc).
  • Relay Duration: Momentary.
  • 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
  • Can be Wall or Desk Mounted.
  • PIR Battery Check.
  • Optional Pause Modes.
  • You can add additional Indoor Receivers to this system allowing you to have notification in multiple rooms or buildings.
This is a unique Wireless Bell System which can be adapted for many applications !!
kit Includes:
  • 1 x Outdoor Receiver (P800-WSR/1) & Power Supply.
  • 1 x Remote Control (P800-WSK/1).
  • 2 x AAA Batteries.
  • 1 x MT Transmitter.
  • 1 x Set of Screws.
  • 1 x 85 Decibel Bell.
  • 1 x Indoor Chime Receiver & Power Supply.

Specifications:

Outdoor Receiver:

  • Weatherproof: Yes.
  • Power Supply: 12v 5 amp DC.
  • Weatherproof Cable Entry Glands: Yes.
  • Channels: 2.
  • Sensors per Channel: 4.
  • Operating Range: 800 metres (line of sight).
  • Arming & Disarming Method: Remote Control.
  • 12v DC Outputs: 2.
  • Output Duration:
  • 1 second or minute.
  • 3 seconds or minutes.
  • 10 seconds or minutes.
  • 15 seconds or minutes.
  • 20 seconds or minutes.
  • 30 seconds or minutes.
  • Latched ON (until disarmed using the remote control).
  • Duration Selection: Internal Dip-switches.
  • Frequency: 869.400 – 869.650 MHz.
  • Size: 170 x 125 x 60 mm.

Remote Control:

  • Operation:
  • Channel 1 Arm, Disarm & SOS.
  • Channel 2 Arm, Disarm & SOS.
  • Power Supply: 2 x AA Batteries (supplied).
  • Size: 85 x 40 x 25 mm.
  • Transmission Range: 800 metres (line of sight).
  • Multiple Remote Control Operation: Yes (no limit).
  • Feedback Indicator: Yes (it confirms a successful operation).
  • Frequency: 869.400 – 869.650 MHz.
  • Wall Bracket: Yes (supplied).

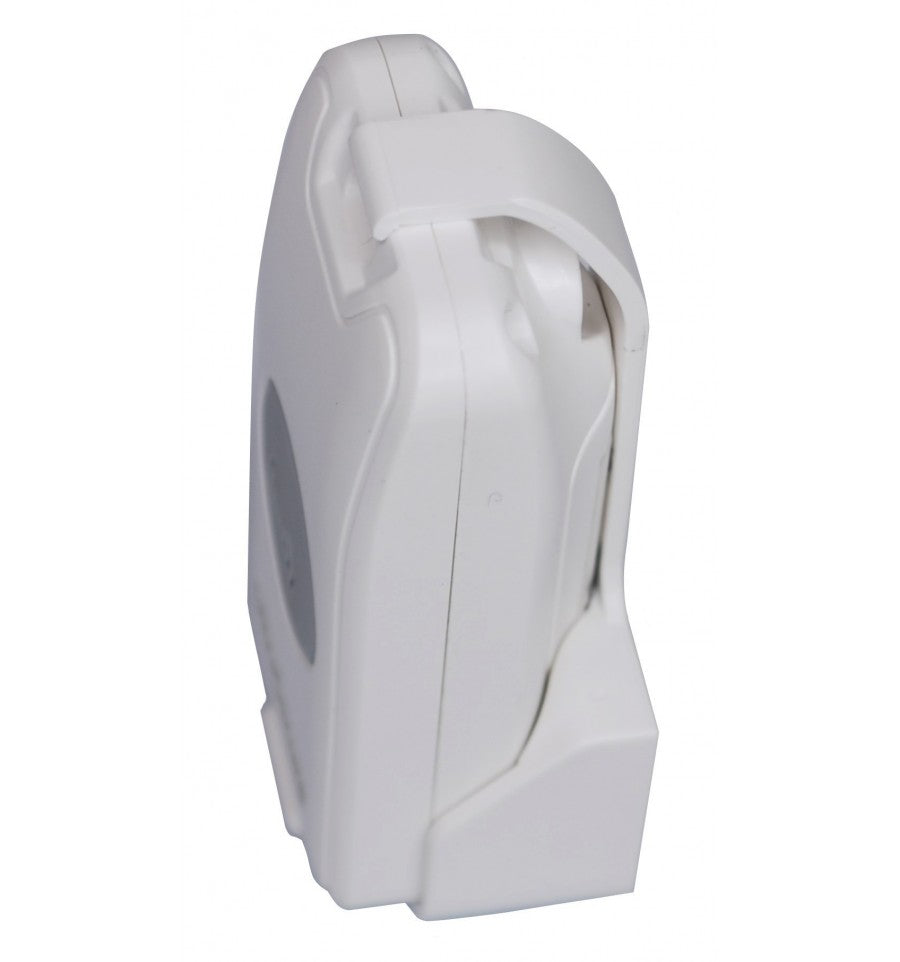

Push Button:

  • Wireless Range: 800 metre (line of sight).

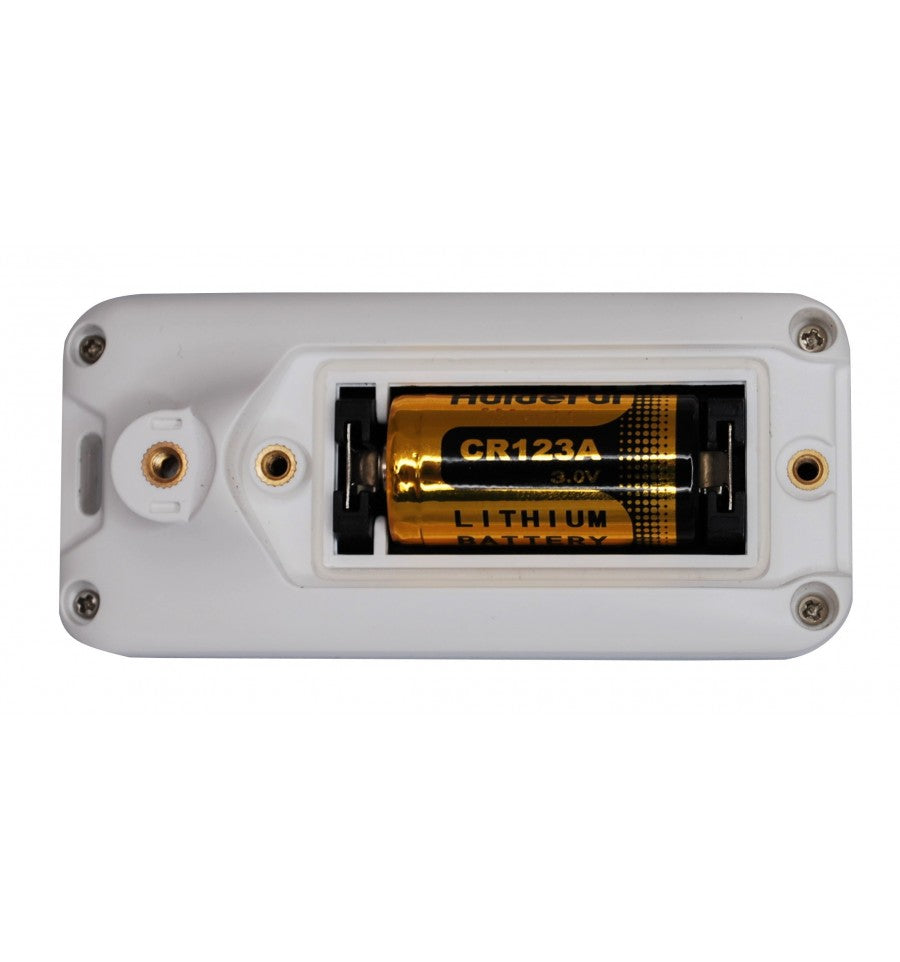

  • Power Supply: 1 x 3v Lithium CR123A Battery.
  • Battery Life: 12 - 18 months (most applications).
  • Size without Brackets: 87 x 37 x 30 mm.

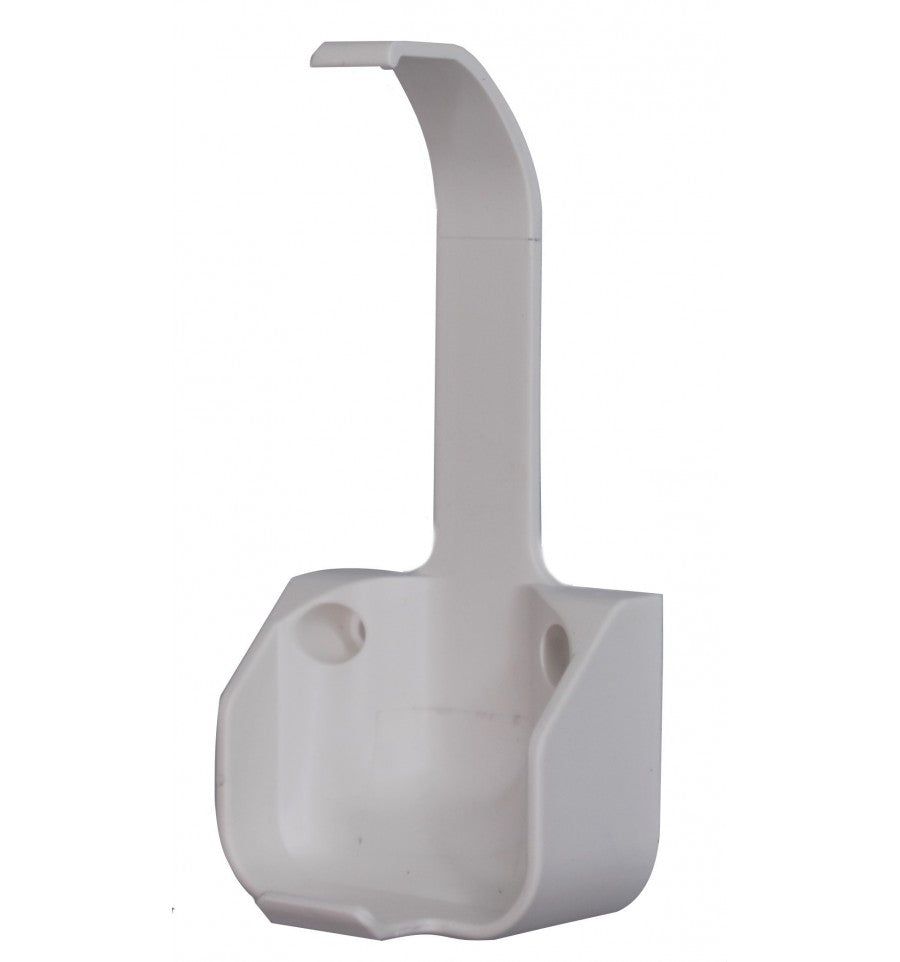

  • Size with Wall Bracket: 90 x 44 x 30 mm.
  • Size with Belt Clip:  87 x 37 x 35 mm.
  • Colour: White.
  • Activation Methods: Push Button.
  • IP: Yes (56).
  • Mounting Methods:
  • Wall.
  • Optional Belt & Pocket.
  • Optional Lanyard.

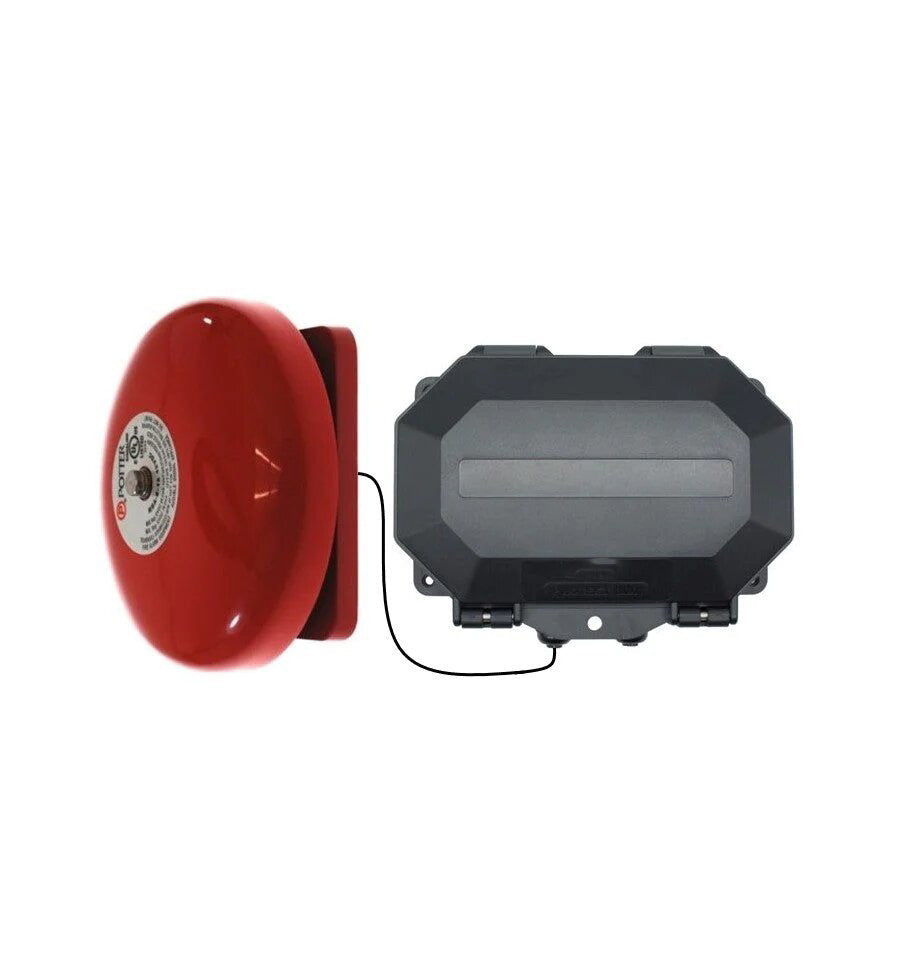

Bell:

  • Power Supply: 12v DC.
  • External: Yes.
  • Size: 150 mm Diameter x 60 mm Deep.
  • Mounting Bracket: 4 x Holes.
  • Volume: Approx 85 Db.

Indoor Receiver:

  • Wireless Operating Range: 800 metres (line of sight).
  • Adjustable Volume: Yes (from low to approximately 85 decibel).
  • Melody Options: 32.
  • Power Supply: 3-pin UK & 2-pin European Transformer Supplied.
  • Battery Back Up: Yes 4 x AAA Batteries (not supplied).
  • Loss of Mains Power Notification: Yes (LED).
  • Low Battery Notification: Yes.
  • Maximum Number of Detectors Can Be Used: 16.
  • Multiple Receivers can be used: Yes (no limit).
  • Zone Indicator: Yes (visual and by chime).
  • Dry Relay Outputs: 4 (N/O & N/C Momentary).
  • 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).
  • Relay Duration: Momentary.
  • Mounting Method: Wall or Desk Mounted.
  • PIR Battery Check: Yes.
  • Optional Pause Modes: Yes.
  • Input Voltage: 12v DC 500 mA.
  • Frequency: 869.400 – 869.650.
